Product Description

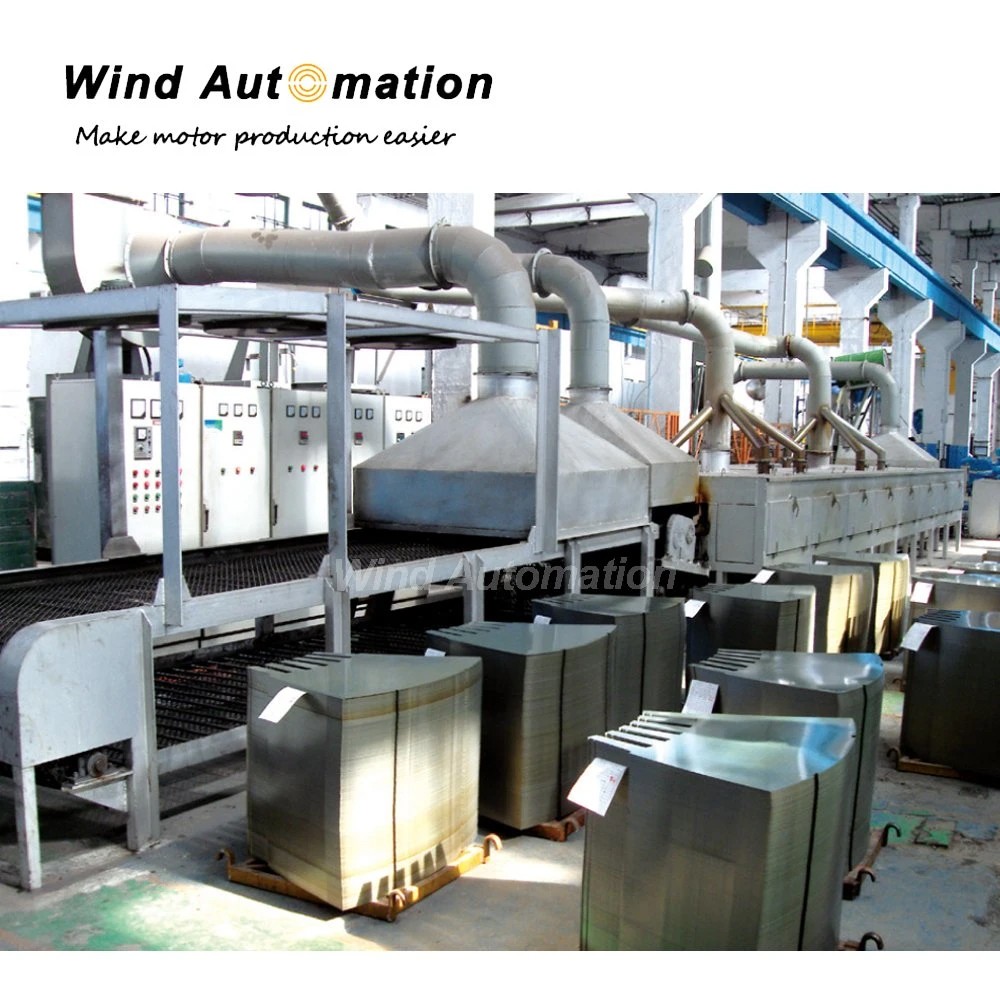

Motor Stamping Painting Machine Silicon Sheet Painting Machine

Specification

1. Silicon sheet thickness: 0.3~0.5mm, silicon sheet width: 40~1100mm;

2. Conveyance belt speed: 1~8m/min, stepless speed regulation;

3. Electric heating stove power: 190kw, oast length 6m, max. temp. of electric heating stove: 100~350ºC;

4. A set of environment protecting equipment: smoke-disposal equipment by water spraying, water circulating system, smoke-suction pipeline, fan pipeline, blower, valve, etc. (self-managed by client or sign order separately, each factory has different situation, estimated environment protection equipment RMB 260,000~280,000);

5. Also has ZCN062-380: power 380kw, oast length 10m, speed 1~12m/min;

6. Also has Hydrosolvent Painting Machine of ZCN062A-190, 380.

Wind Automation is devoted to provide turn-key service to motor manufacturing suppliers. We supply a whole range of supply chain, including automatic motor production line, stand-alone as well as customized machines.
