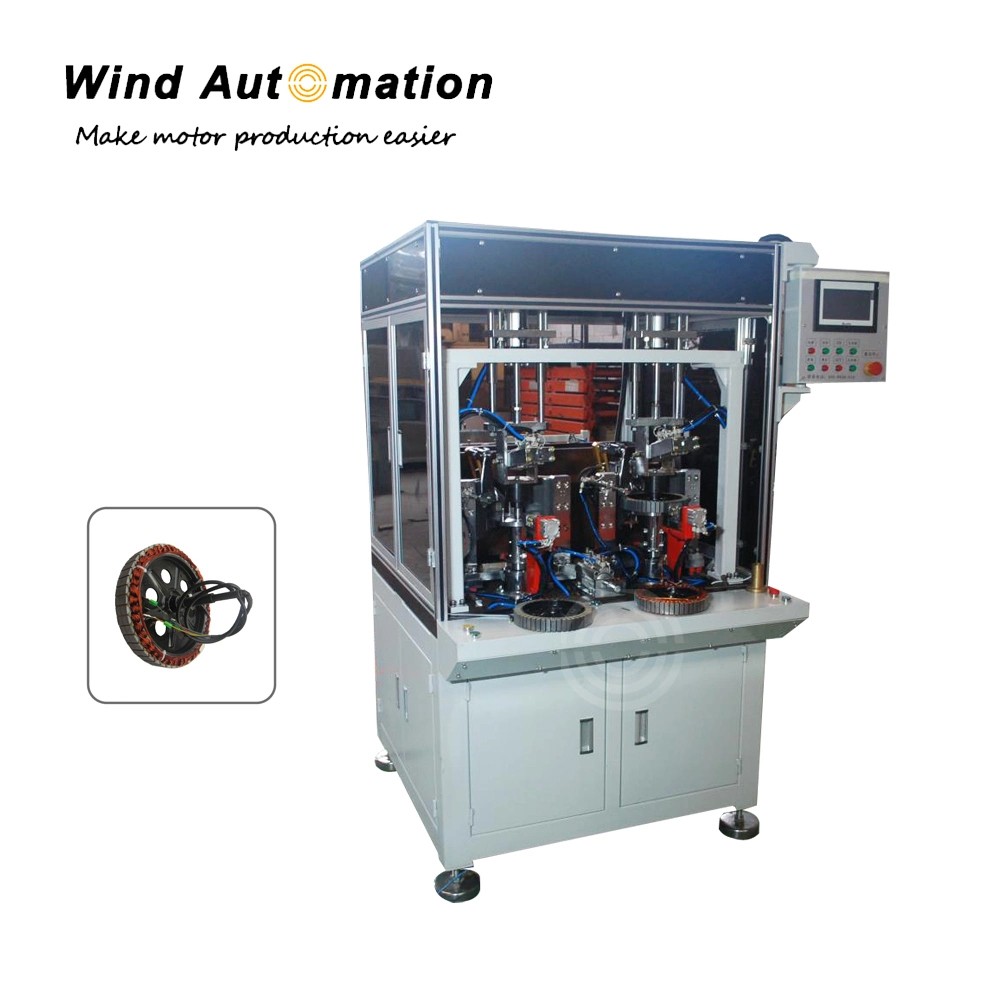

Automatic Hub Motor Wheel Motor Muti Coil Winder
This type of coil winder has a relatively high level of winding, with a qualified rate up to 99%. It is suitable for stators with parallel winding requirement. The tensioner part is independent research and development of Wind Automation. One tension can handle serveral parallel wires.
(1)Specification
| Wire diameter | 0.3mm-0.6mm |
| Stator OD | 198,226,262mm |
| Stack height | 14~30mm |
| Parallel wire | 1~13 |
| Voltage | AC380V,50Hz |
| Air pressure | 0.4~0.7MPa |
| Power | 3KW |
| Cycle time | 5min/pc |
(2)Application
Suitable for hub motor, Electric Bicycle, BLDC Engine, E-Bike, wheel motor.
(3)Features
No skilled operator required
This machine can be customized accordingly
Rigid design frame
Fully automatic working cycle after loading
Quick change-over of tooling
PLC control, fault display
