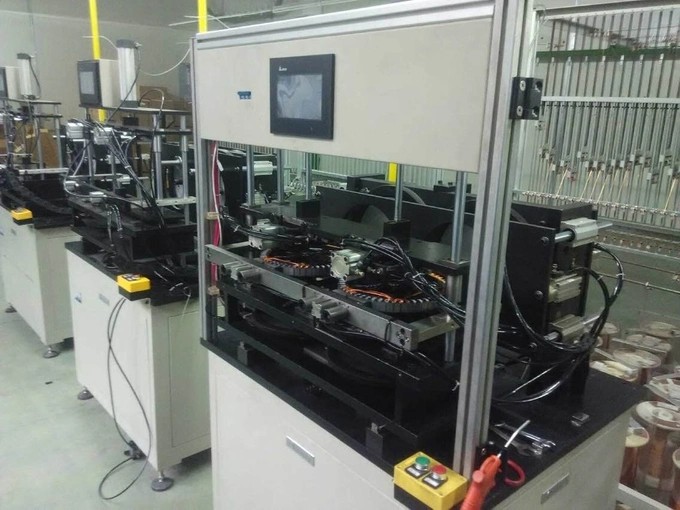

Hub Motor Electric Bicycle BLDC Engine E-Bike Wheel Motor Winding Machine
This wheel motor winding machine is suitable for stators with parallel winding requirement. The qualified rate can reach 98% even 99%. It takes 10min to change tooling including both mechnaical and software adjustment. The tensioner part is independent research and development of Wind Automation. One tension can handle serveral parallel wires.
(1)Specification
| Wire diameter | 0.3mm-0.6mm |
| Stator OD | 198,207,226,254,262mm |
| Stack height | Max 35mm |
| Turn No. | 4~8 |
| Parallel wire | 13~16 |
| Slot No. | 48~54 |
| Slot paper thickness | 0.18~0.20mm |
| Voltage | AC380V,50Hz |
| Air pressure | 0.4~0.7MPa |
| Power | 3KW |
| Cycle time | 5min/pc |
(2)Application
Suitable for hub motor, Electric Bicycle, BLDC Engine, E-Bike, wheel motor.
(3)Features
No skilled operator required
This machine can be customized accordingly
Rigid design frame
Fully automatic working cycle after loading
Quick change-over of tooling
PLC control, fault display
