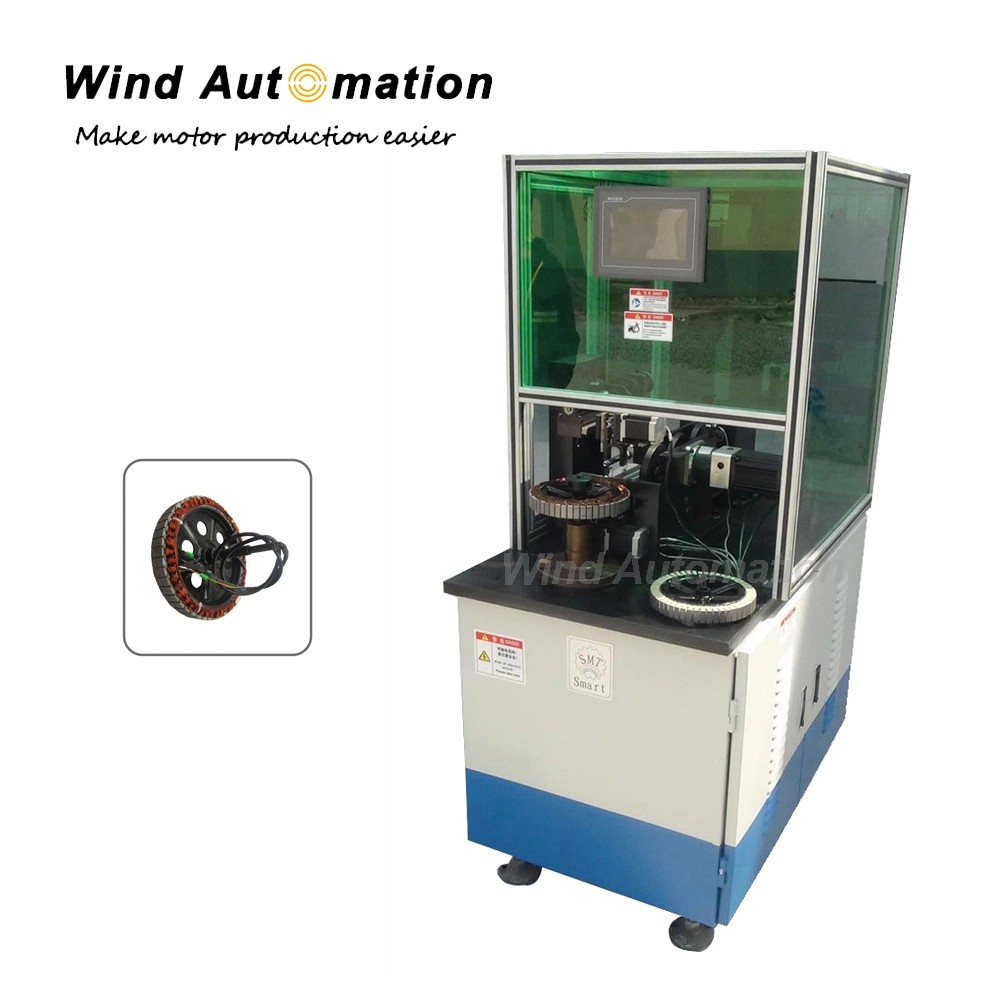

Wheel Motor Hub Motor Outslot Stator Coil Winding Machine
This winding machine is designed for the wheel motor to do coil winding. During winding, no obvious vibration or noise. After winding, there should be no wire damage or break. Once wire is run out, machine will automatically stop winding.
(1)Specification
| Wire diameter | 0.2mm-1.3mm |
| Stator OD | 80-200mm |
| Stack height | 18~35mm |
| Parallel wire | 1~8 |
| Voltage | AC380V,50Hz |
| Weight | 700KG |
(2)Application
Suitable for hub motor, Electric Bicycle, BLDC Engine, E-Bike, wheel motor.
(3)Features
No skilled operator required
This machine can be customized accordingly
Rigid design frame
Fully automatic working cycle after loading
Quick change-over of tooling
PLC control, fault display
