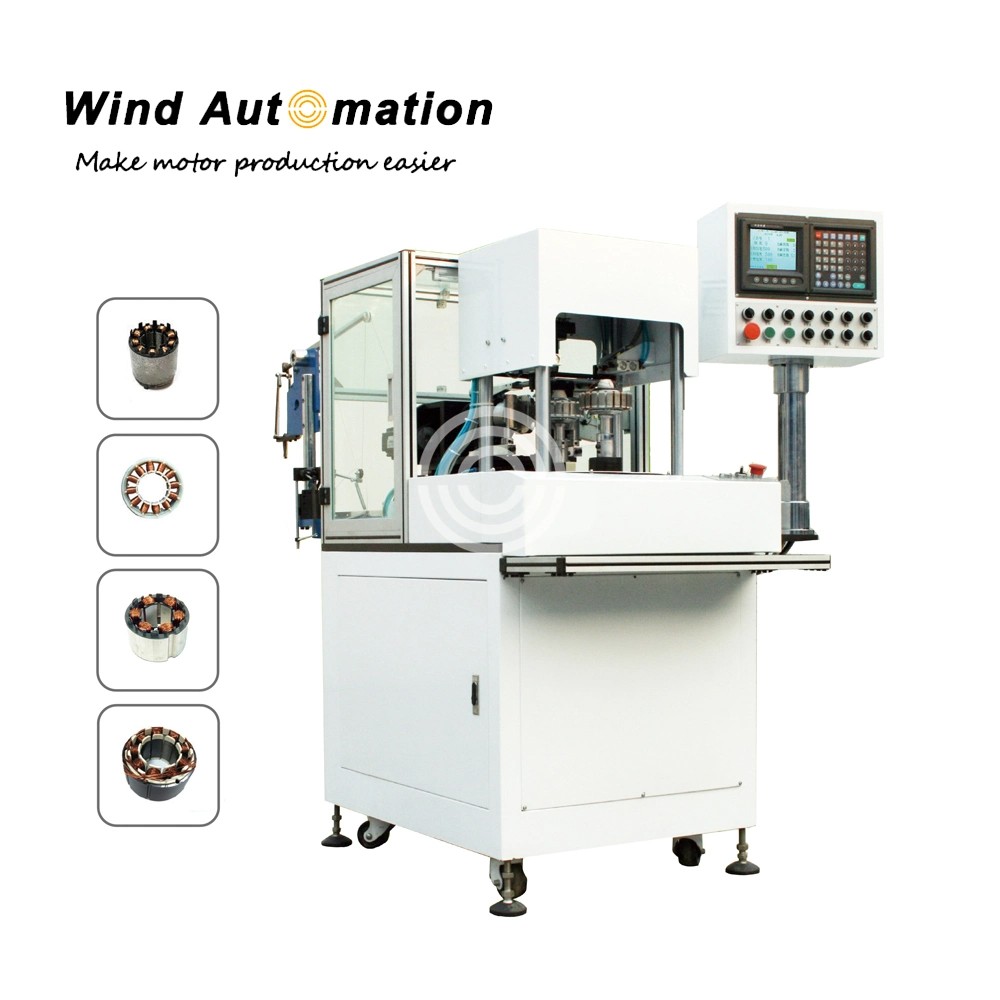

Washing Motor External Rotor Automatic Winding Machine
This automatic winding machine wind both odd and even slot number workpieces.It covers a wide wrie diameter from 0.15mm to 1.5mm.
(1) Specification
| Wire diameter | 0.15~1.50mm |
| Rotor O.D | 15~260mm |
| Slot number | Multi poles |
| Turn no | 0~99999 |
| Movement | Stepping / Auto |
| Stack height | 7~60mm |
| RPM | Max 1500RPM |
| Voltage | 220v/50Hz |
| Power | 2.5 KW |
| Air source | 5~7kg/m3 |
| Weight | 600Kg |
| Dimension | 1150X2350X1500mm |
(3) Application

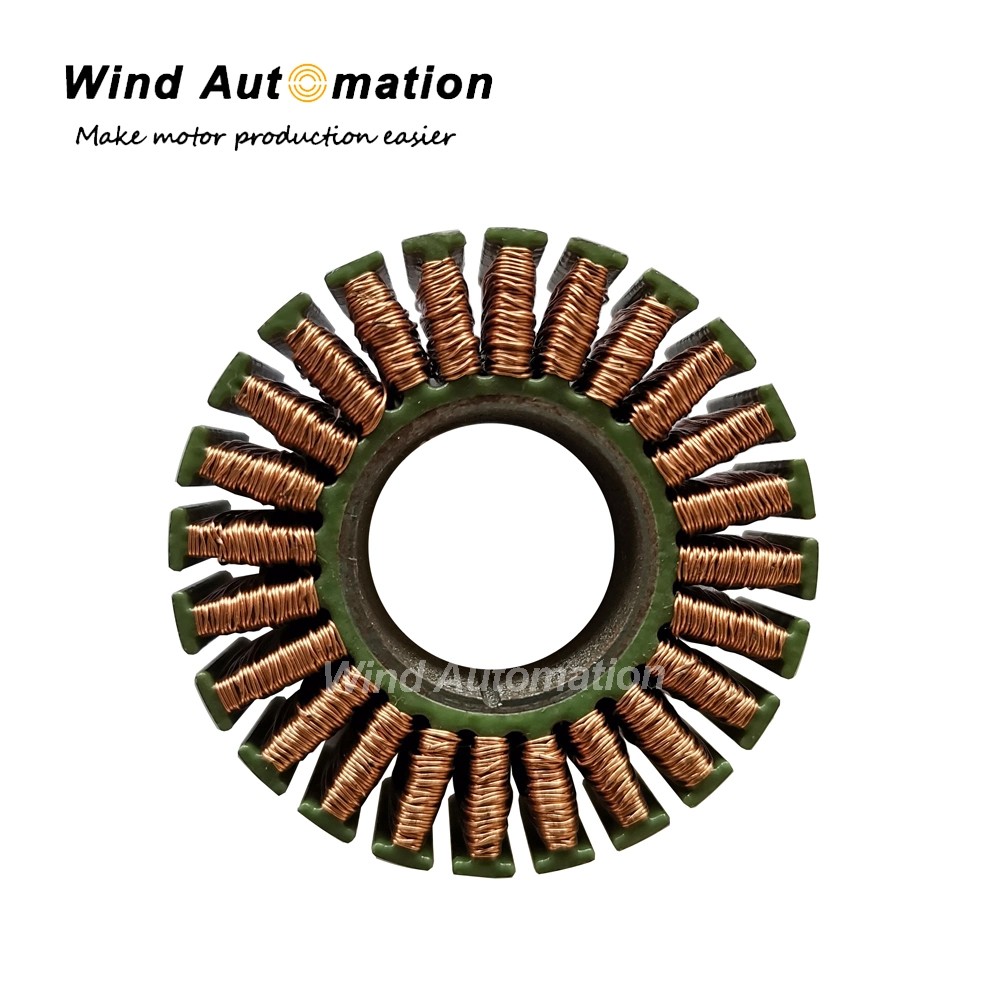

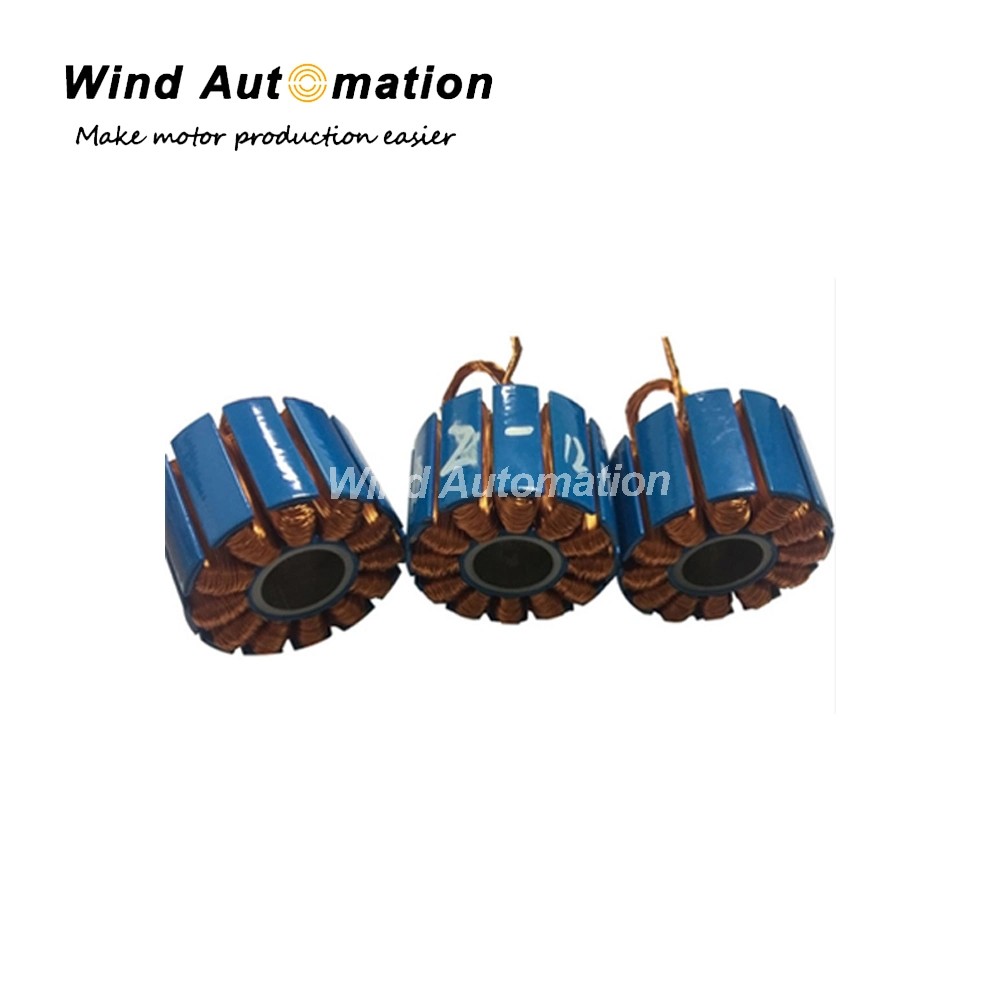

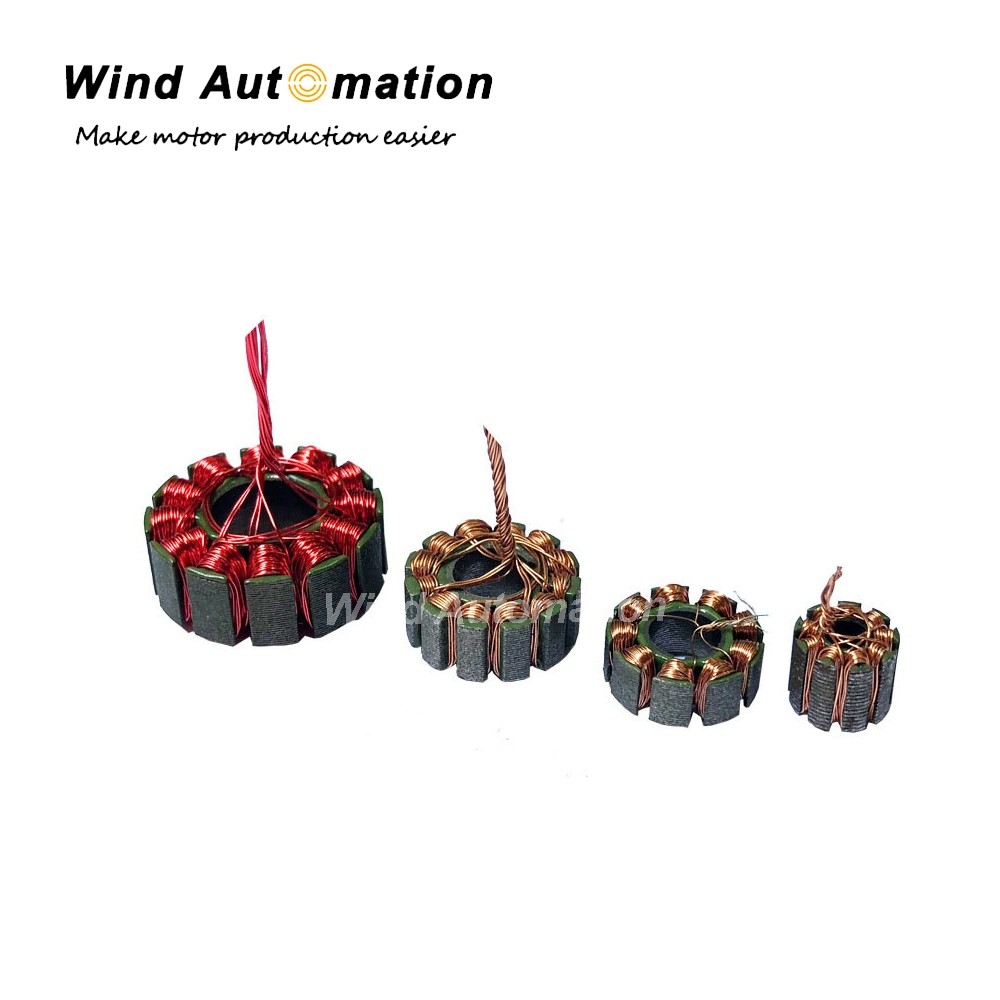

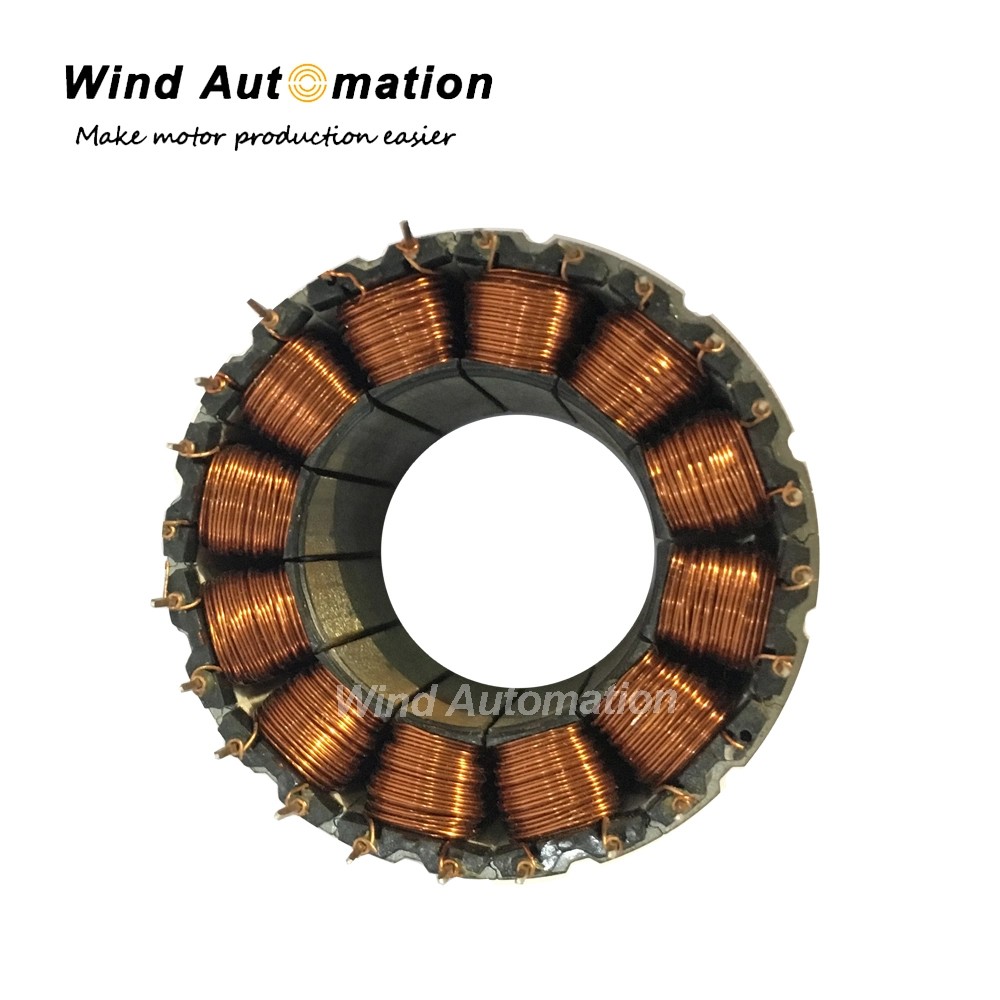

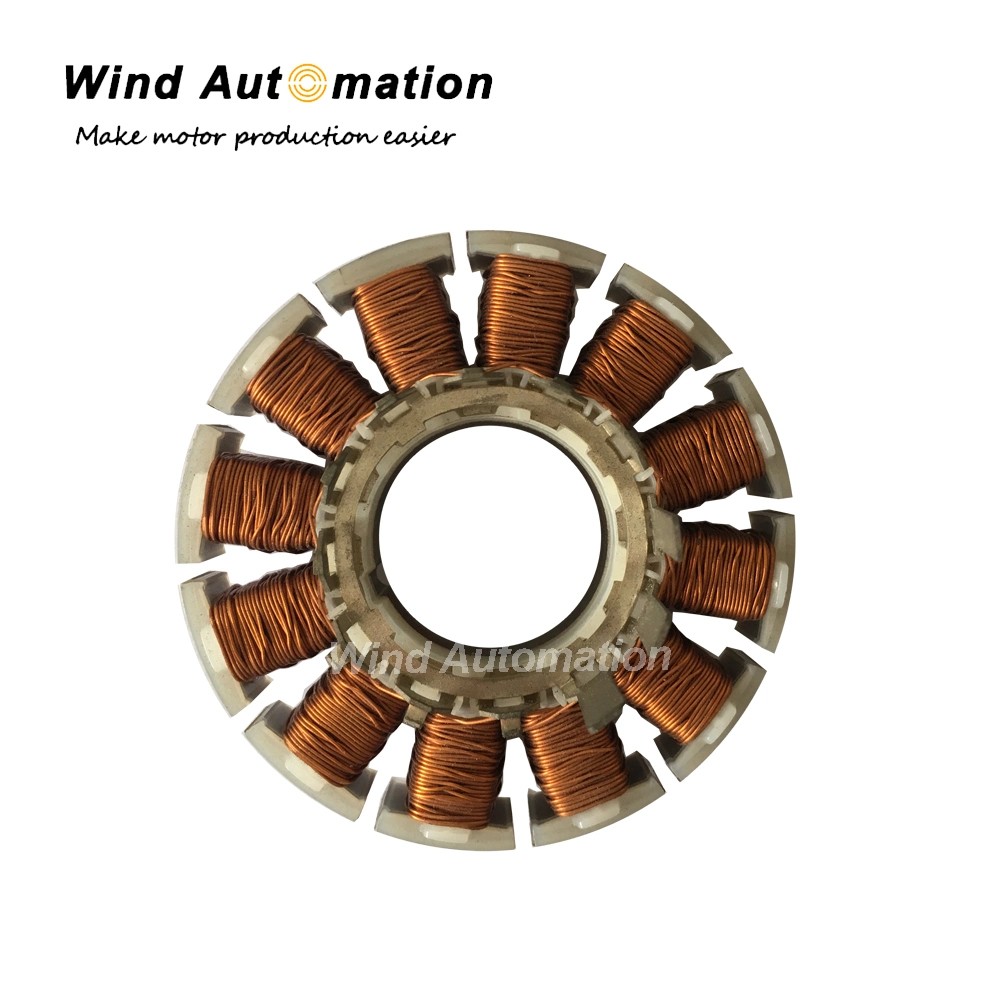

Suitable for magnetic motor, digital generator, washing machine motor, air conditioner motor.
(2) Features
Winding speed up to 1500RPM
Wide wire diameter range
Wide application and strong adaption
Perfect layer winding
Fast retooling
