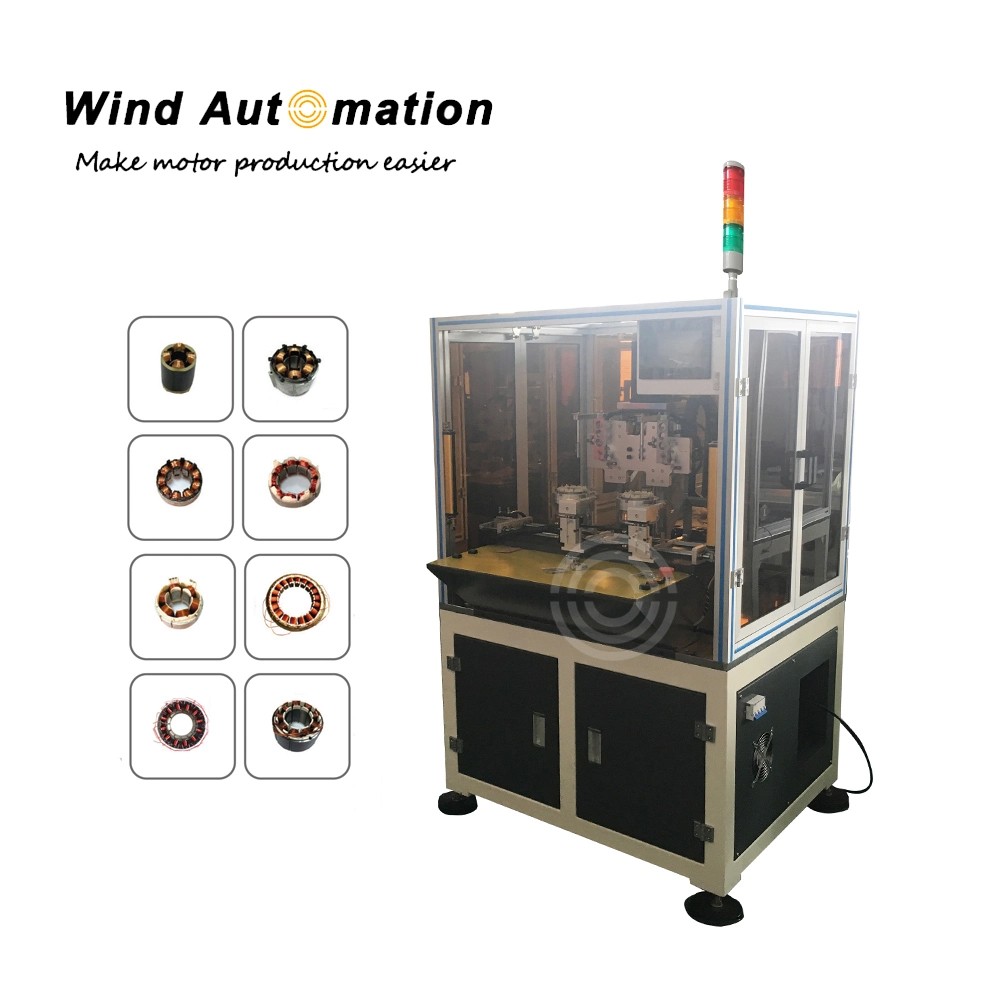

High Efficiency Pump Motor Vacuum Cleaner Motor Stator Coil Needle Winding Machine
This needle winding machine has a wide application. It is suitable for stators with slot range within 0-36 slots to do coil winding.
(1) Application

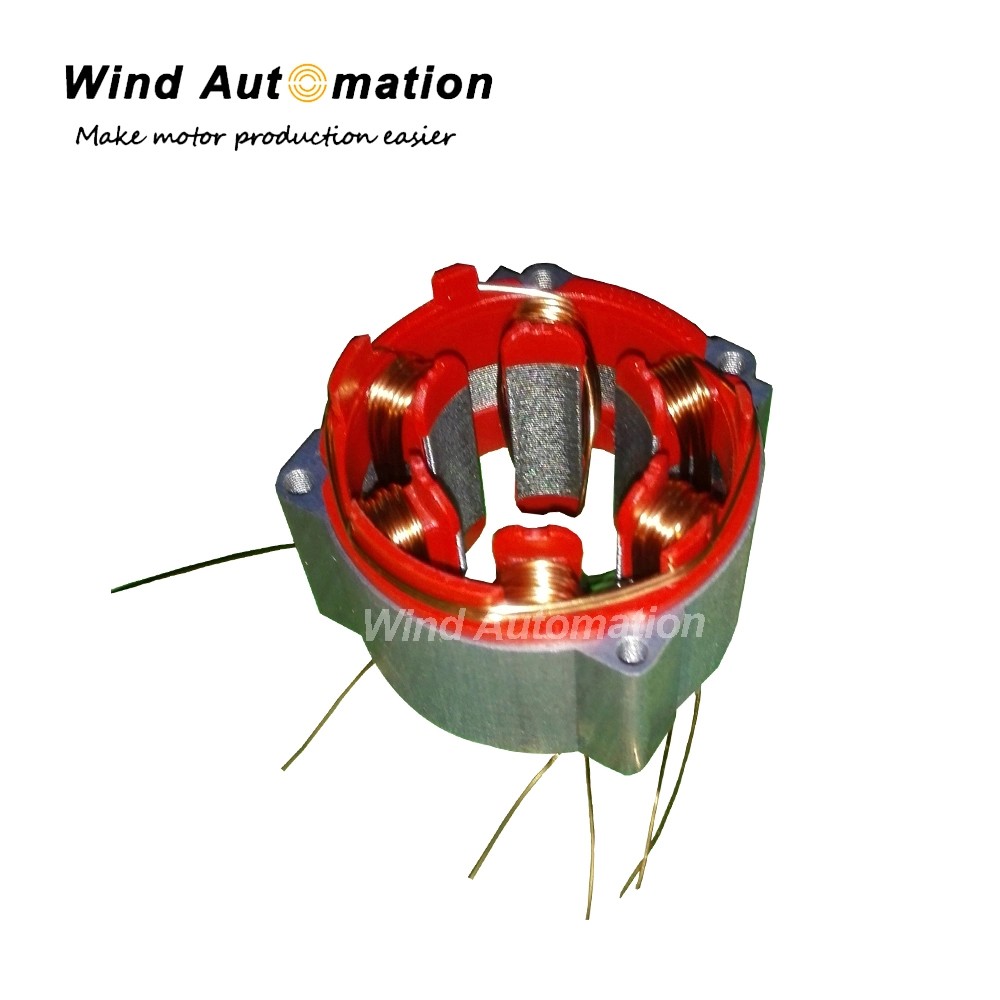

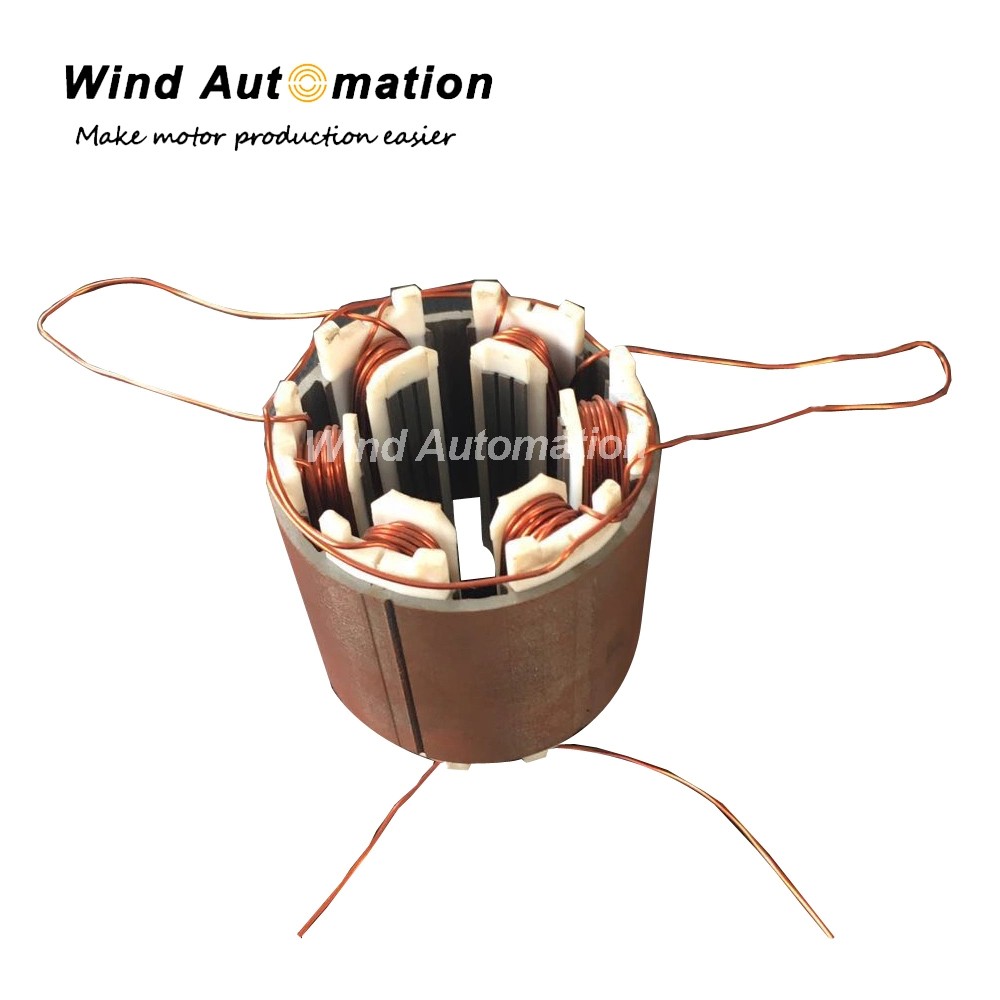

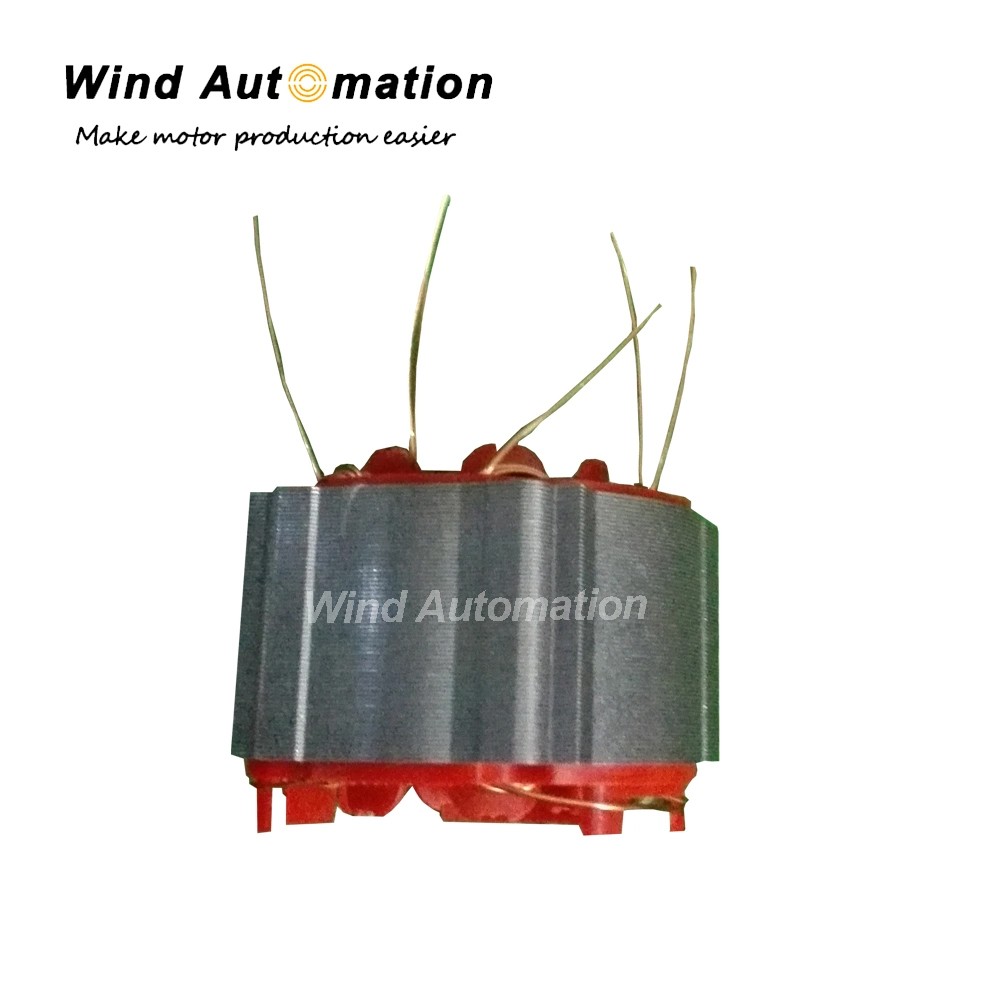

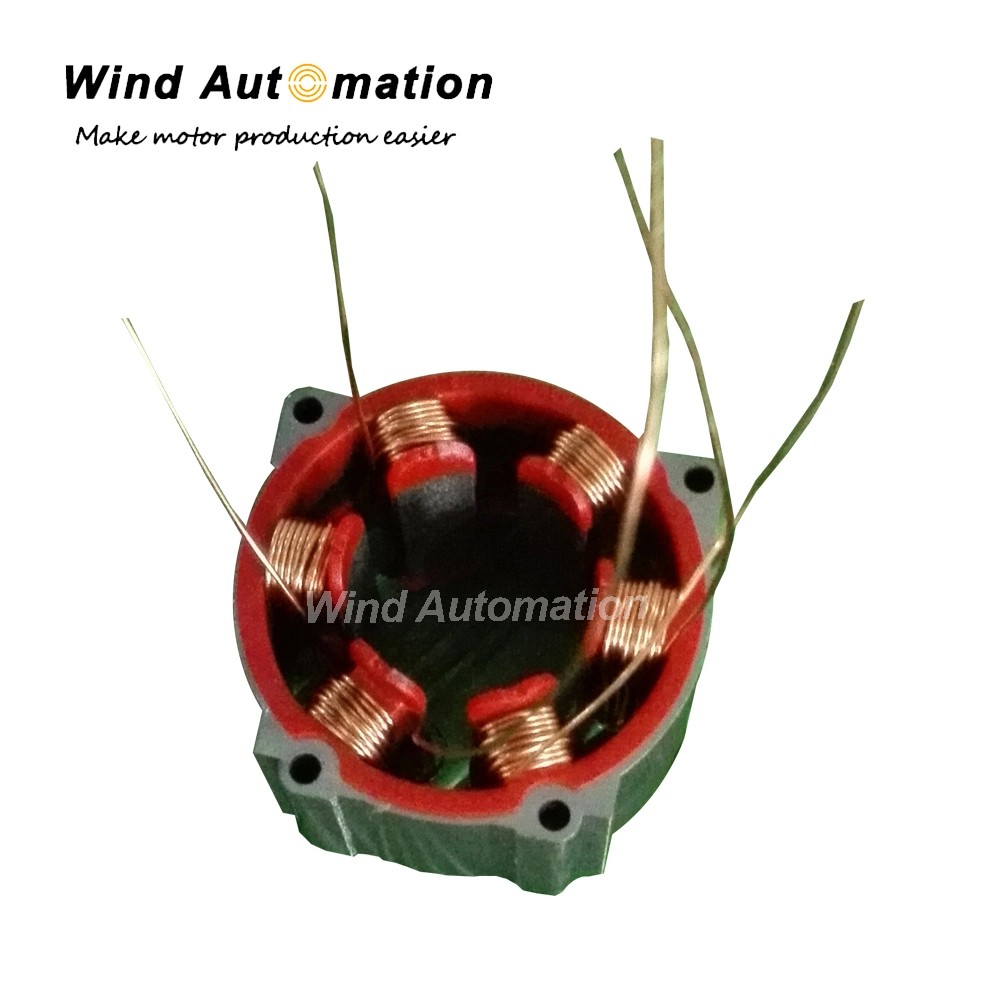

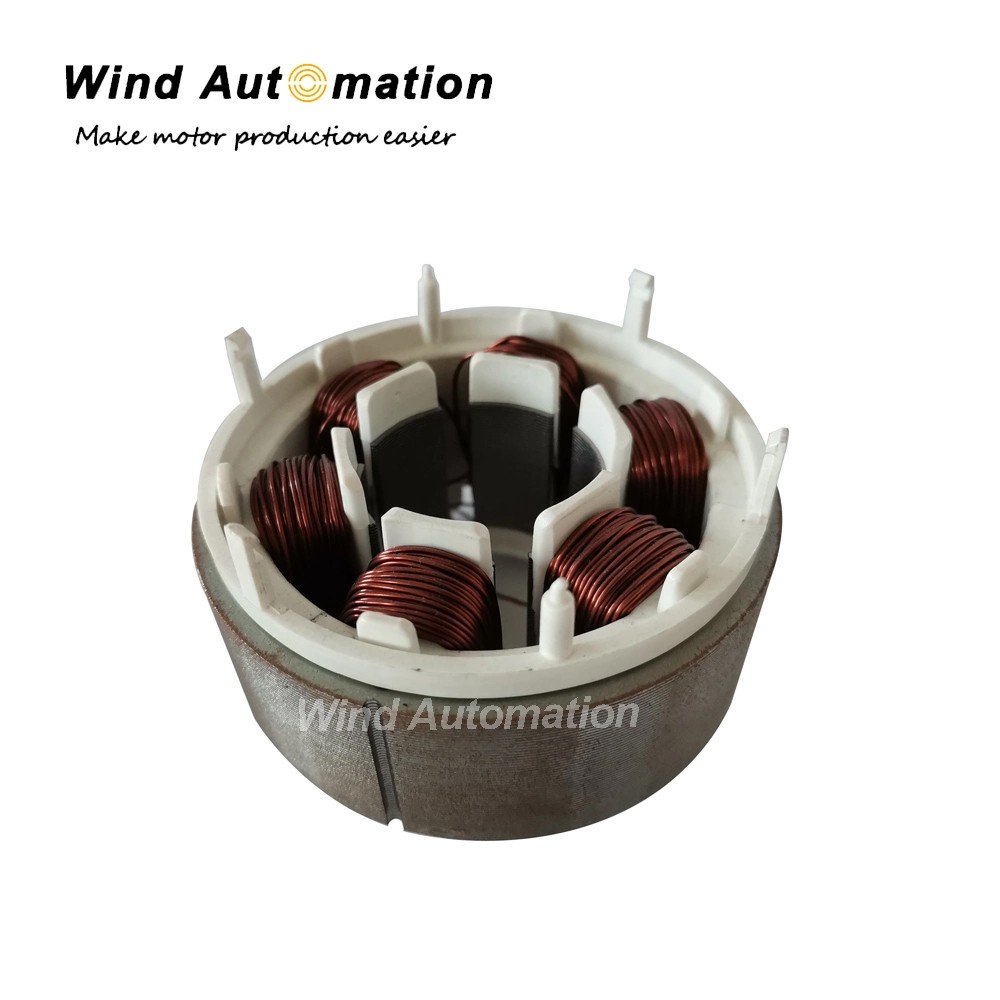

It is suitable for brushless motors, pump motors, stepper motors, vacuum cleaner motors, power tool motors.
(2) Specification
| Working station | 2 |
| Stator OD | 20~130mm |
| Stator ID | 12~100mm |
| Stack length | 5~80mm |
| Wire diameter | 0.08~1.3mm |
| Drive servo | 3000W 1 set |
| Indexing servo | 2000W 2 sets |
| Arraying servo | 750W 2 sets |
| Air source | 7 kg/cm3 |
| Power supply | 380V 50HZ 15A |
| Dimension | 1000x1100x1700mm |
| Weight | 650KG |
(3) Features
2 working stations to do synchronous winding
Wide stator slot range, up to 36 slots
Wide stator application and strong applicability
Provide customized service
Touch screen with password protection function
High efficiency and production
