Product Description

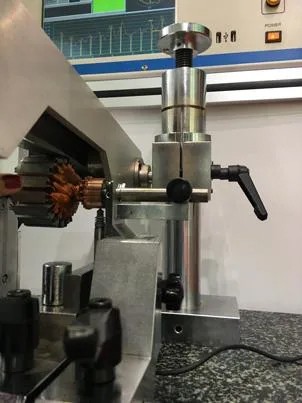

Motor Armature Commutator Roundness Tester Roundness Testing Machine

Motor Armature Commutator Roundness Tester Roundness Testing Machine

(1Testing item

Test ItemsTest DescriptionAccuracy
Inside of the film-10μm~10μm<0.2μm
Between slices-10μm~10μm<0.2μm
Edge beat-10μm~10μm<0.2μm
Circle beat-20μm~20μm<0.2μm


(2) Feature
High-precision LVDT sensor is used for roundness measurement, combined with analog and digital filtering methods, to achieve high stability and rapid acquisition of sensor signals, and to ensure the high accuracy of sensor signals.

The stepper motor is used as the measurement drive source, combined with high subdivision and high-speed pulses to drive the motor, to ensure that the motor is smooth and continuous and the measurement points are equally spaced.

The unique commutator gap data recognition algorithm is used to ensure that the measurement result data does not include the data in the gap and the edge of the gap, and the authenticity of the measurement result is guaranteed.

It is optional to complete the inspection of the surface roundness quality of the central shaft while measuring the commutation photos to find the quality of the armature rotor more accurately.

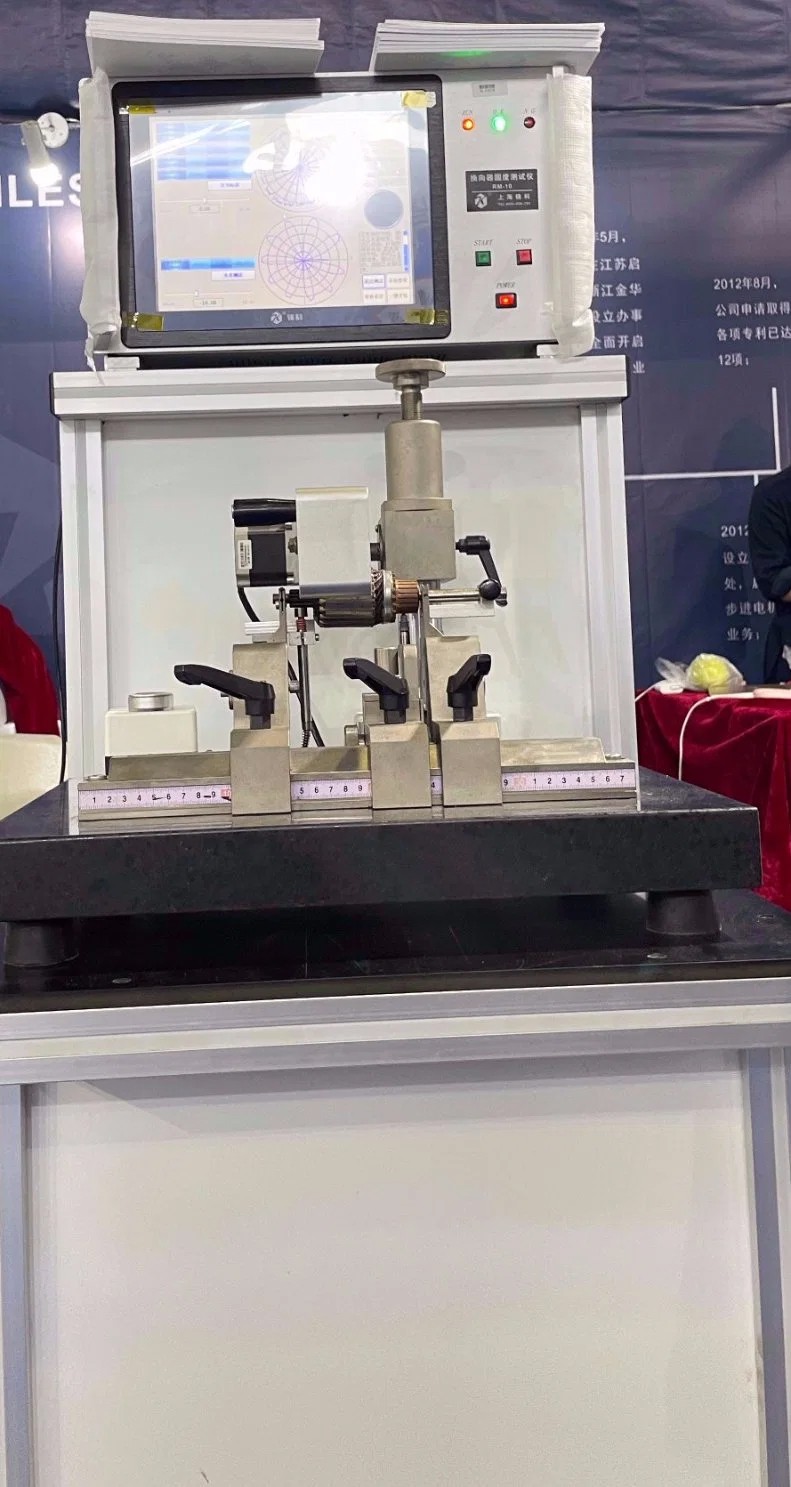

Commutator Roundness Good Communication Testing Device For Brushed DC Motor WIND-RM-10

Motor Armature Commutator Roundness Tester Roundness Testing Machine



(1) The purpose commutator roundness testing



If the commutator is not round, this increses the chances of incresed brush wear on the brushed DC



motor armature, as well as an increase in arcing and sparking of the commutator thereby destroying the



commutator surace, Good commutator roundness is very important for the armature performance.







(2) Technical Data





Test item





Test description





Test result





Inside of the Bar film





-10um ~ 10um





< 0.2um





Between slices





-10um ~ 10um





< 0.2um





Edge beat





-20um ~ 20um





< 0.2um





Cicyle beat





-20um ~ 20um





< 0.2um









(3) Features



1. The high precision LVDT sensor is used for the roundness measurement, combining the analog and



digital filtering method into realization a high stability and rapid access to the sensor signal, to ensure



the high precision of the sensor signal.



2. Stepper motor is used as a driving source of measurement,combined with motor driven high subdivision



and high-speed pulse, ensuring the motor to run as smooth continous and measurement points



equidistant distribution.



3. The commuatator slot data recognition algorithm is unique, to ensure that the measurement results of



the data dones not include the gaps and the gap edge data, to guarantee the authenticity of the



measurement results.



4. When it measured on commutator bar also complete the detection of roundness quality surface to the



center axis at the same time, to find more accurate qualtiy armature.





(4) Competitive Advantages



1. Commutator surface turning quality is one of the importand factors that infulence the performance



   of armature, timely check the turning qulaity of commutator can provide an effective means of control



   the lathing quality.

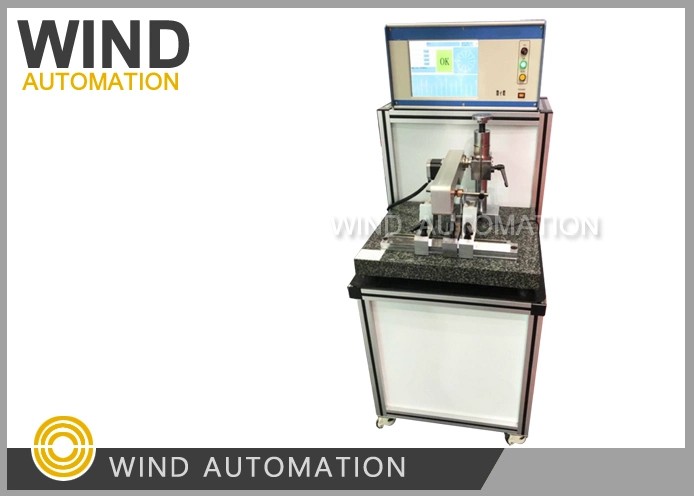

2. The WIND-RM-10 Rotor roundness tester can deteck the armature commutator roundness fast and



    accurately, it is a fast and direct way to know the state of the armature production, can control the



    product quality timely, control the production process and ensure the armature manufacturing quality.

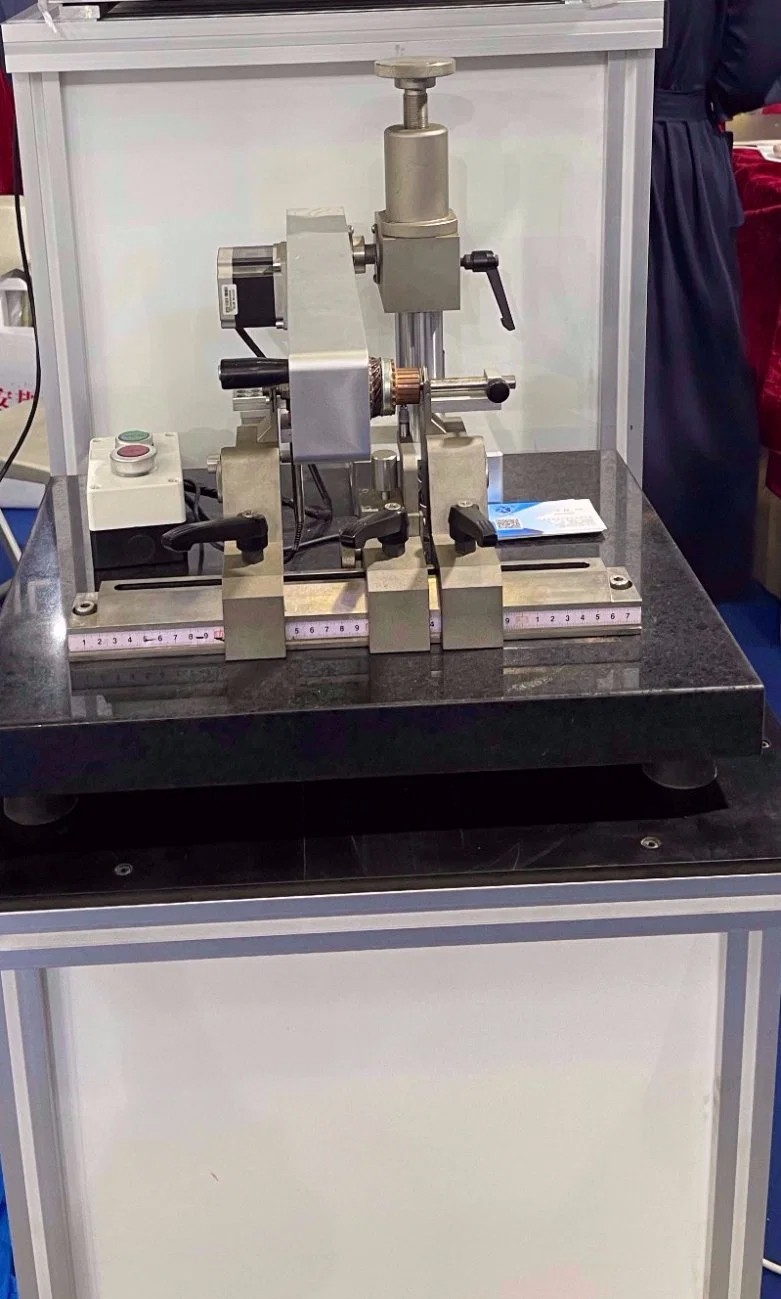

3. High precision, no rust, rust, acid and alkali, no magnetization, no deformation, good wear resistance,



    the marble is used as a placement platform, V seat is placed on the marble platform, and the placement



    accuracy of the V seat is enhanced. The components (and connecting rod driving parts) drive the rotor



   (and the connecting rod drive parts) with two pairs of leveraged linkage lever mechanism synchronous



   clamp Tight rotor ensures smooth rotation of the rotor, ensuring the accuracy of the test.





   In conclusion, the utility model improves the automation degree of the rotor roundness tester in the



   existing technology, improves the production efficiency, saves the manpower,



   and improves the testing accuracy of the roundness tester.

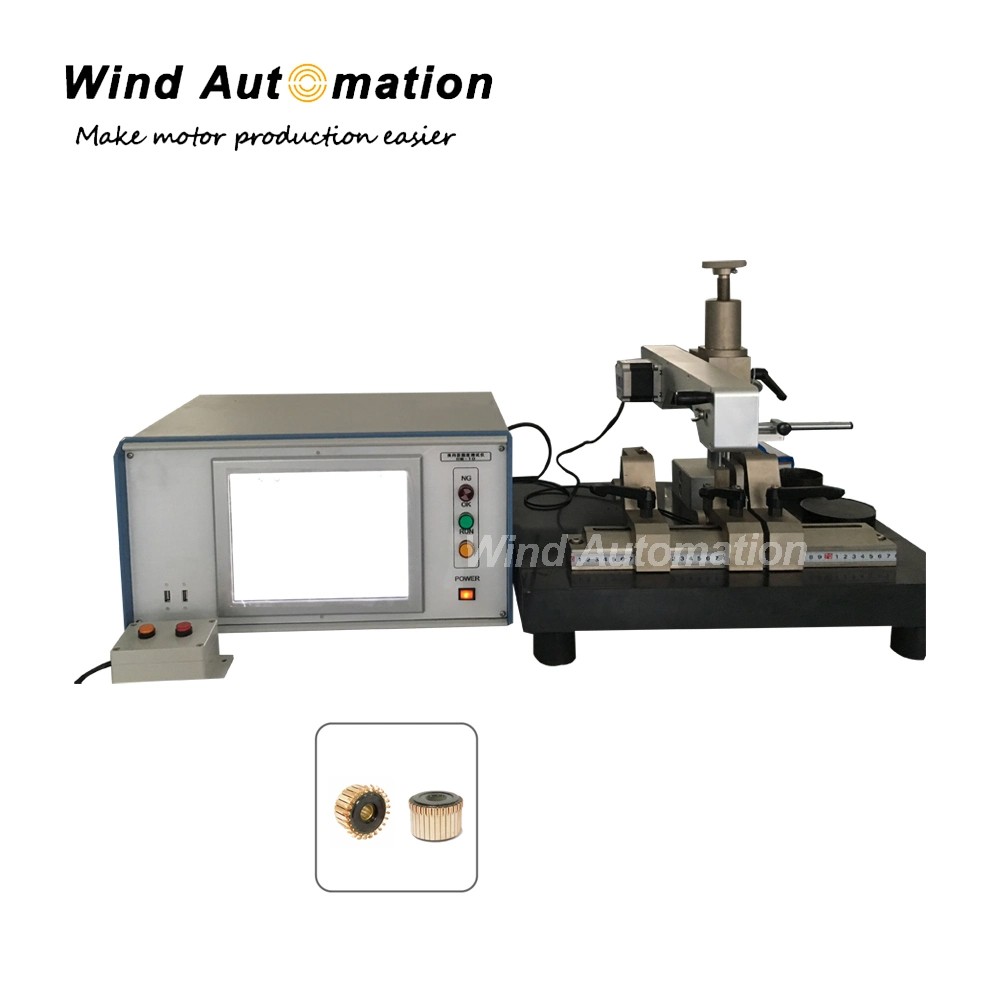

Motor Armature Commutator Roundness Tester Roundness Testing Machine

Motor Armature Commutator Roundness Tester Roundness Testing Machine
Motor Armature Commutator Roundness Tester Roundness Testing Machine
