Product Description

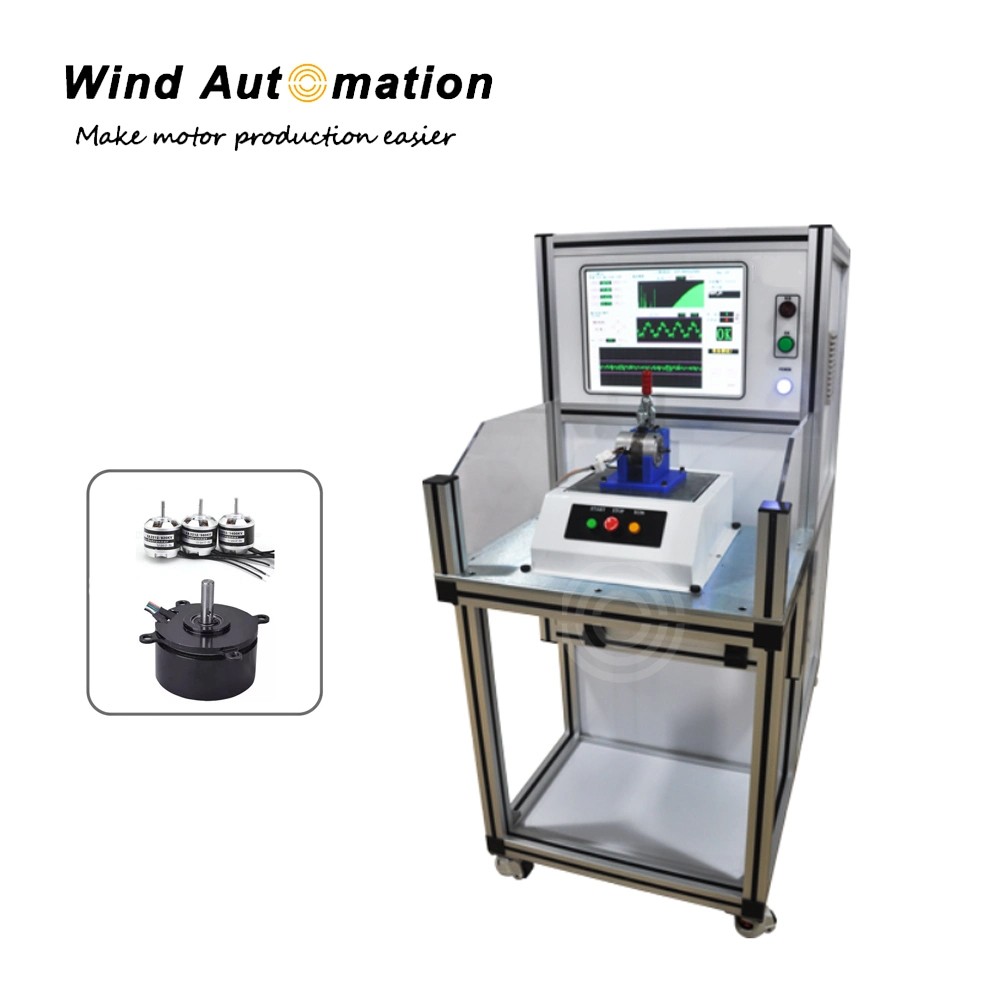

Motor Tester Isolation Resistance Testing Machine for BLDC Motor

Motor Tester Isolation Resistance Testing Machine for BLDC Motor

This type of motor testing machine is used to do motor performance testing.

(1Testing item

Test ItemsTest DescriptionAccuracy
Isolation resistanceDC 500V/1000V0.1-500MΩ
≤±2.5% Full scale
HipotAC 100-1000V0-20mA
≤±2.5% Full scale
Speed0~50000rpm≤±1%
VoltageDC 0~200V≤±1% Full scale
Current0-5A/0-10A/0-20A≤±1% Full scale
Power0~3000W≤±1.5% Full scale
Hall waveform duty cycle0~100%≤±0.1%
Hall phase difference0~360°≤±1%
Electrical conduction angle0~100%≤±1%
Hall level±10V≤±1%
Back EMF detection

Rotation range:200~3K rpm
Voltage range:20~200V
≤±1%
Turn directionAccording to magnetic fieldCW/CCW
NoiseFrequency Range: 0~12000HZ
Test Results: 30~120dB
≤±1.5dB
VibrationFrequency Range: 0~12000HZ
Test Results:0.1~100m/s2
≤±5%
QR/Bar codeApplicable



(2) Application
Suitable for various types of BLDC motor to do performance testing.


(3)Feature
Both single and double working station applicable
QR/bar code applicable
Testing done by machine automatically
Quick and accurate test
Friendly HMI interface
Modular design of tooling
Work as stand-alone machine or integrated into a production line
All parameters can be catch automatically by one-key-operation
