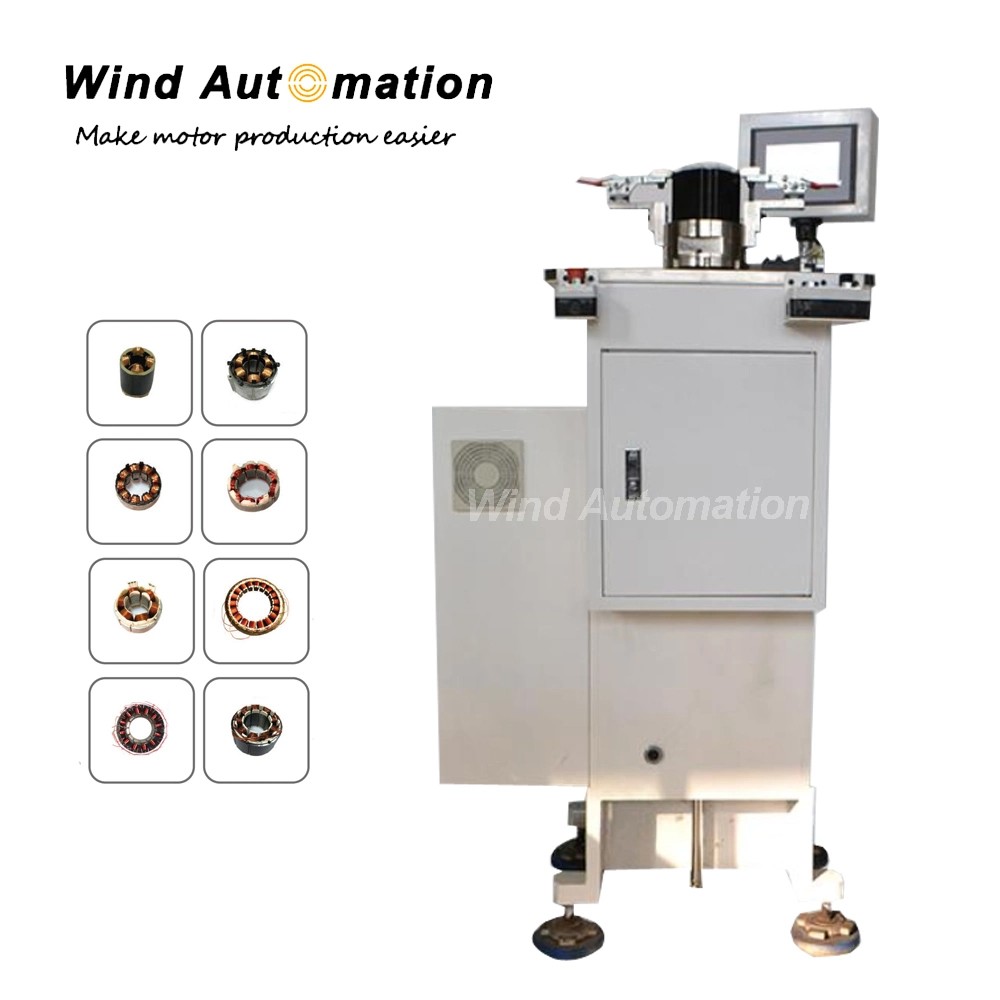

Brushless Motor Stator Winding Machine with 2 Needles
This stator winding machine has two winding needles. The winding track is in rectangle shape. It covers a wide wire range up to 18 AWG (1.0 mm) .
(1)Application

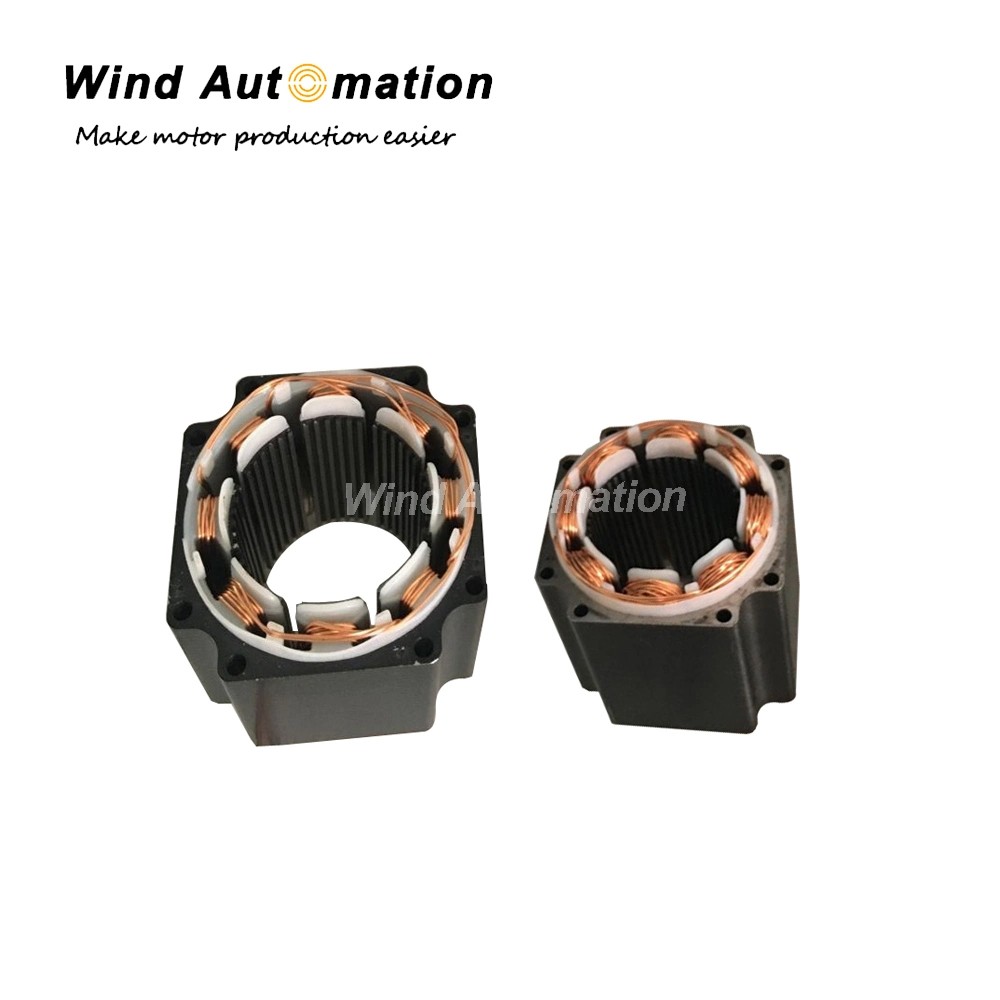

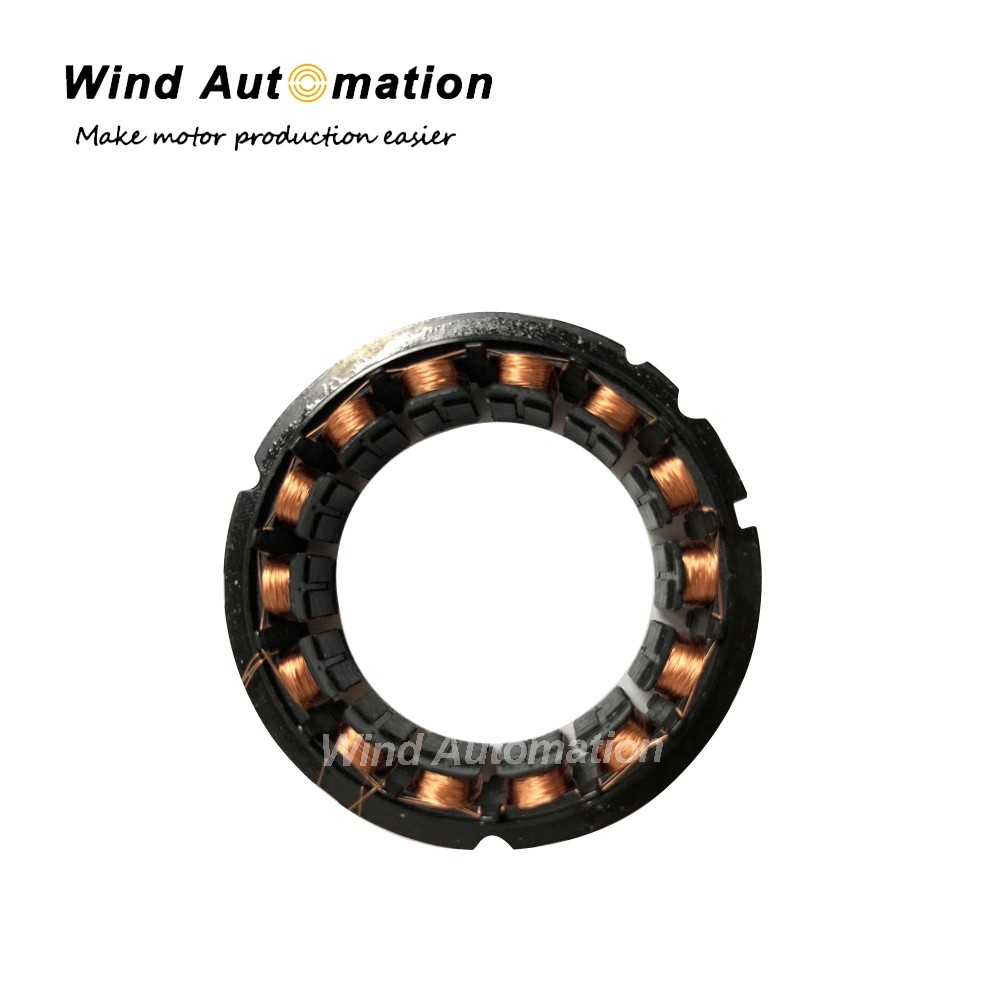

Suitable for various types BLDC motor stators with narrow slot width and heavy wire but high slot filling rate.
(2)Specification
| Wire diameter | 0.08~1.0mm |
| Stator ID | Min 19mm |
| Stack length | Less than 100mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,8,9,10,12,14,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 2KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 450KG |
| Dimension | 1600x1100x1400mm |
(3)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and dual spindle synchronous control unit
Lubrication system
(4)Features
Rectangle winding track
Precision performance of needle winding
Winding speed adjustable according to wire diameter
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling

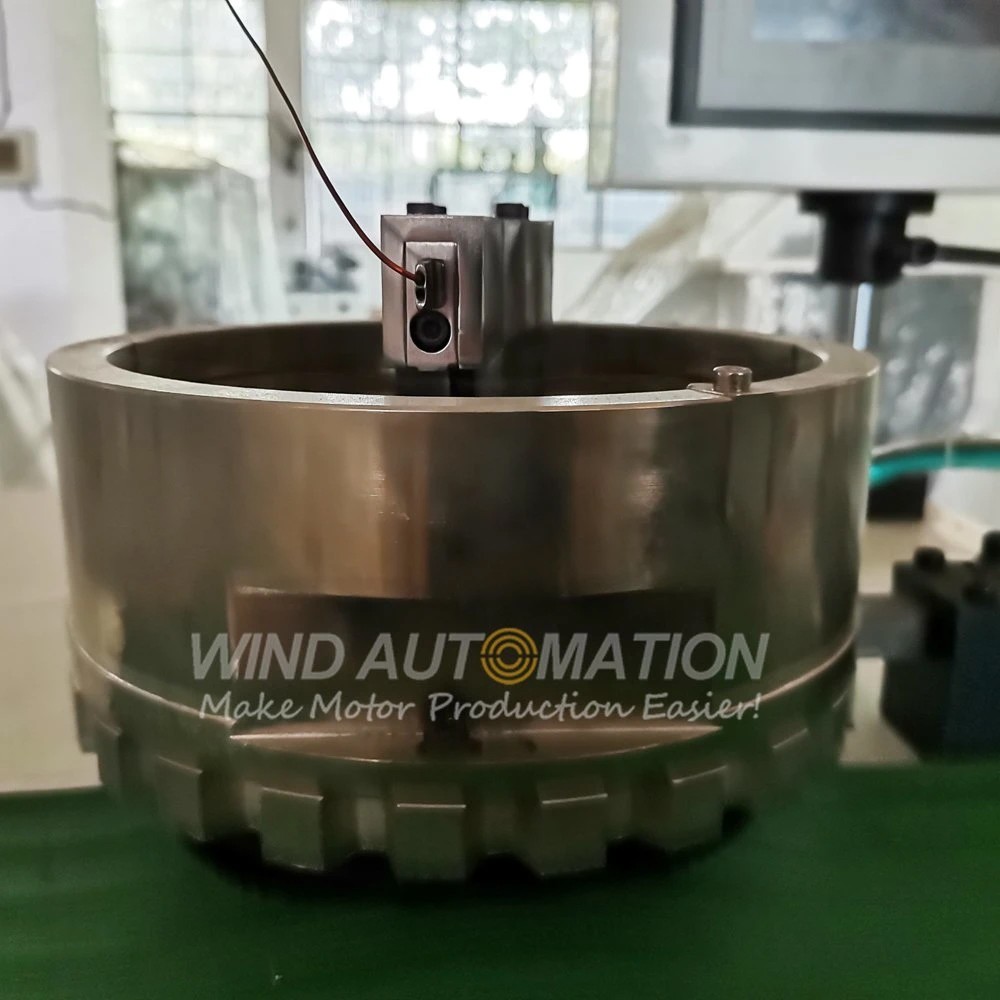

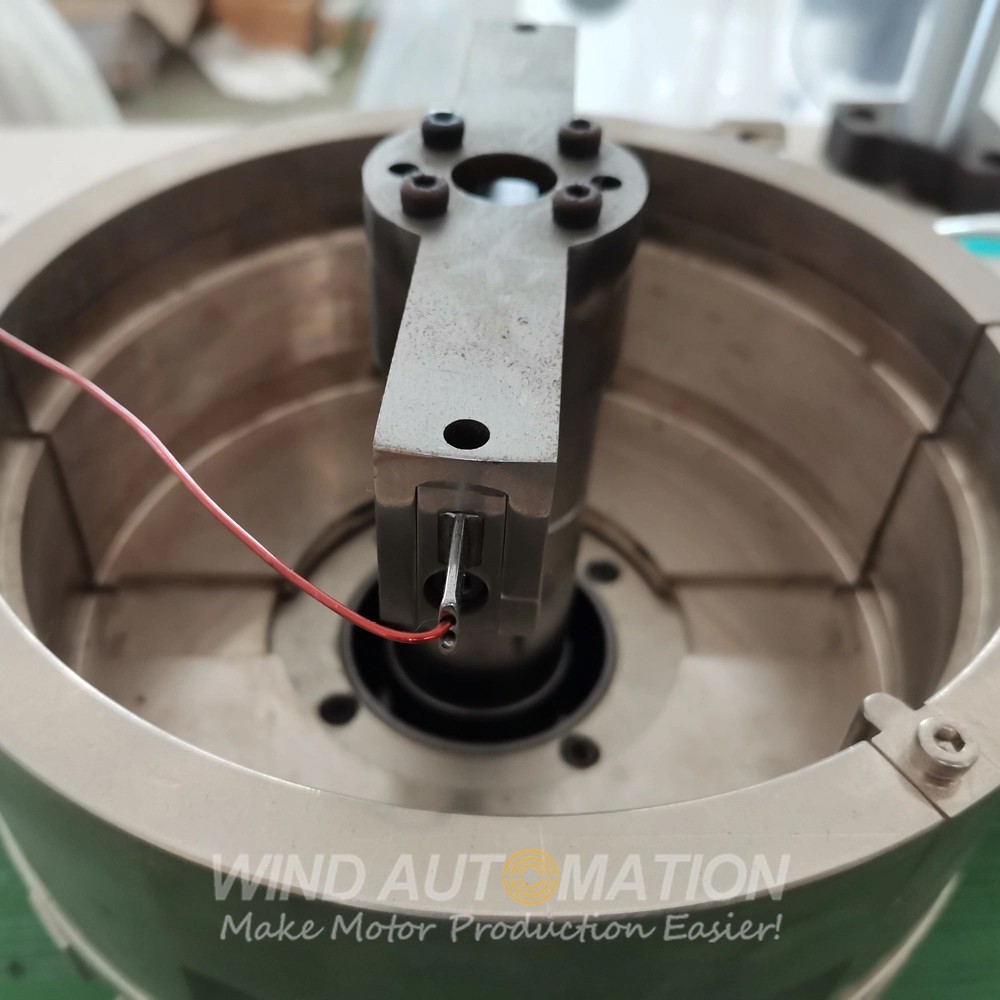

(5)Machine working station
