Weftless-Tape-Bandaging-Machine-with-Electron-Constant-Tension

Product Description

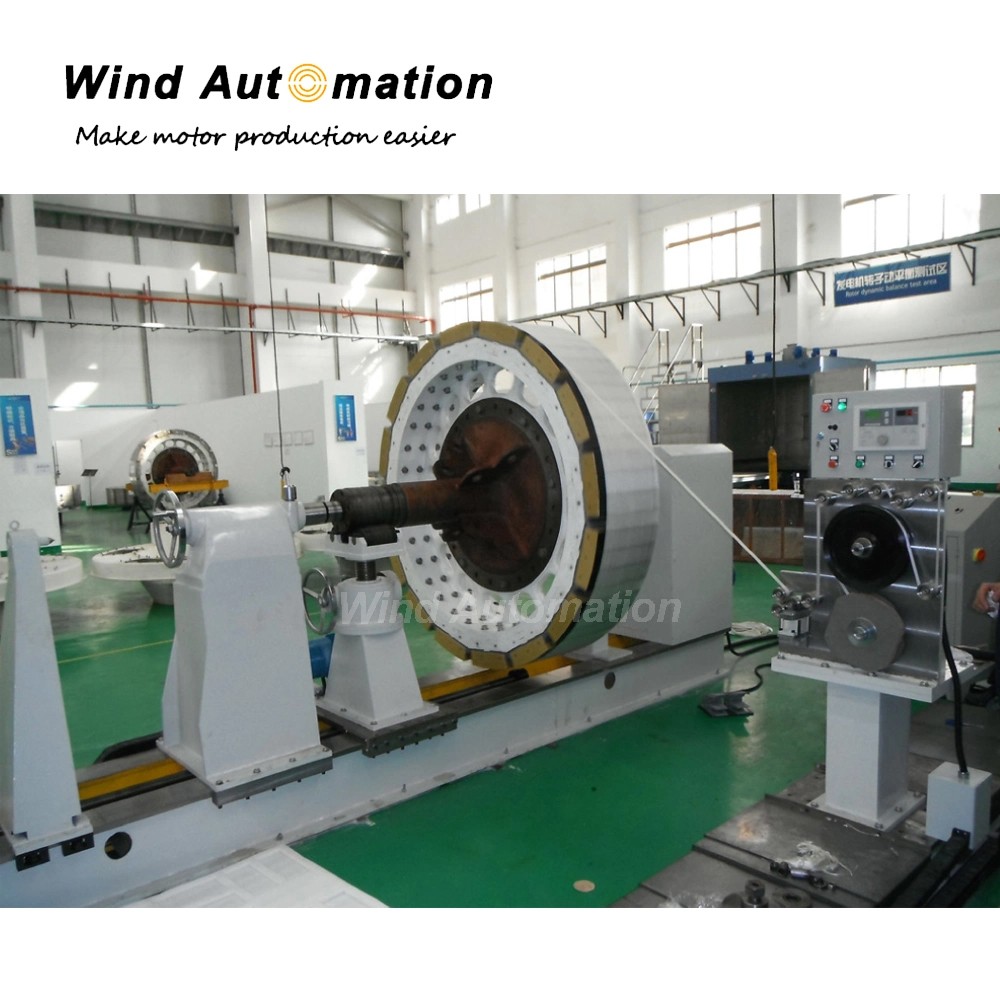

Weftless Tape Bandaging Machine with Electron Constant Tension

Specification

1.Workpiece max. length: 3500mm, max. diameter:φ2000mm, max. load: 10T;

2.Speed: 3~16r/min;

3.Weftless tape width: 10~15~20~25mm;

4.Bandaging length: 2200mm, original head to clamp 550mm;

5.Weftless tape pitch: 5~15~25mm stepless adjustable, fast phase 640mm/min;

6.Constant tension bandaging: 5~100kg (max. 200kg), adopt Japan imported constant tension control system.

Wind Automation is devoted to provide turn-key service to motor manufacturing suppliers. We supply a whole range of supply chain, including automatic motor production line, stand-alone as well as customized machines.
