Stator-Iron-Core-Single-Cyliner-Pressing-Machine

Product Description

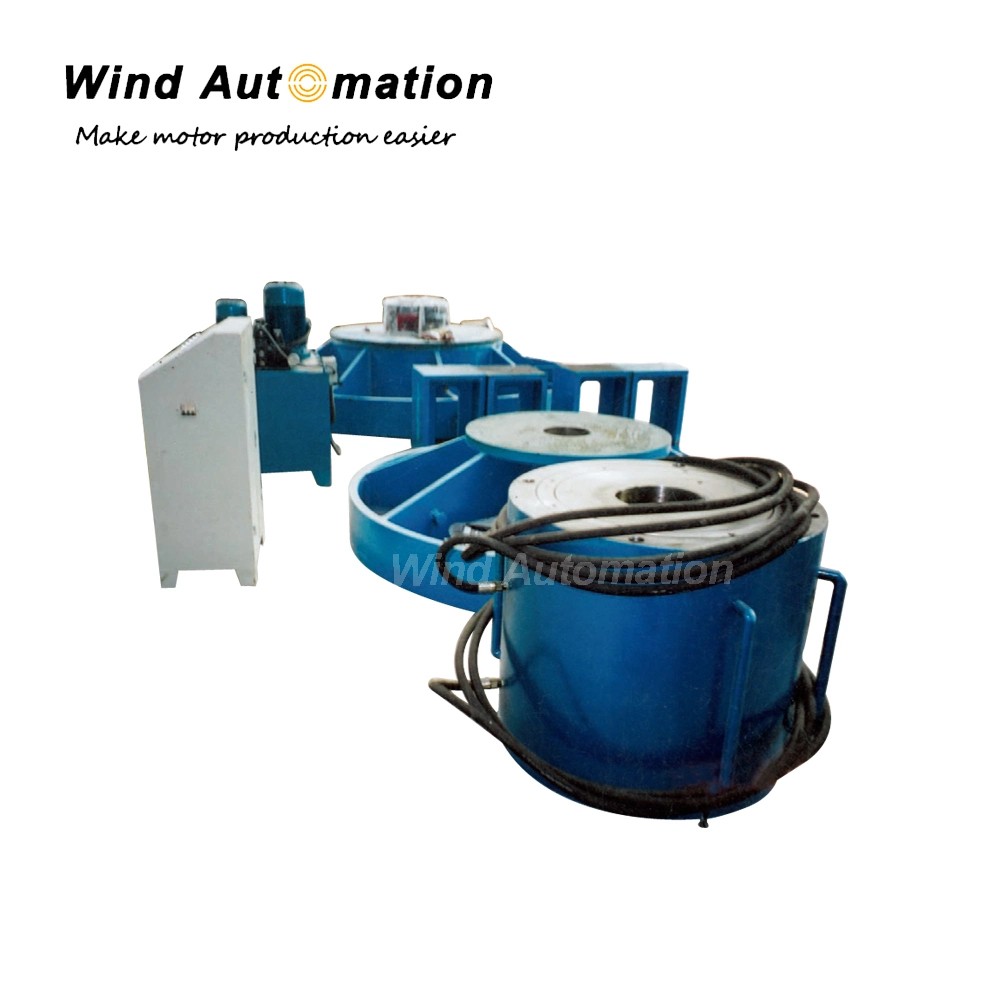

Stator Iron Core Single-cyliner Pressing Machine

Wind Automation is devoted to provide turn-key service to motor manufacturing suppliers. We supply a whole range of supply chain, including automatic motor production line, stand-alone as well as customized machines. We also provide our customers with customized service. They only need to tell us their requirements, then we will do the whole design.

Specification

1.Oil Pressure: 31.5MPa;

2.Pressure: 1200T;
3.Oil cylinder outer diameter: 1050 mm, stroke 160mm;

4.Motor power: 10kW;

5.Max. height of processing stator lamination: 8000mm;

6.Bottom plate excircle: 4500mm, upper plate excircle: 2500mm;

7.Including pull rod connector, oil cylinder, half ring nut, gasket, upper plate, bottom plate, hydraulic pump station, 15m high pressure hose, bottom plate pedestal control cabinet (4 types: 500T, 800T, 1000T, 1200T).
