Product Description

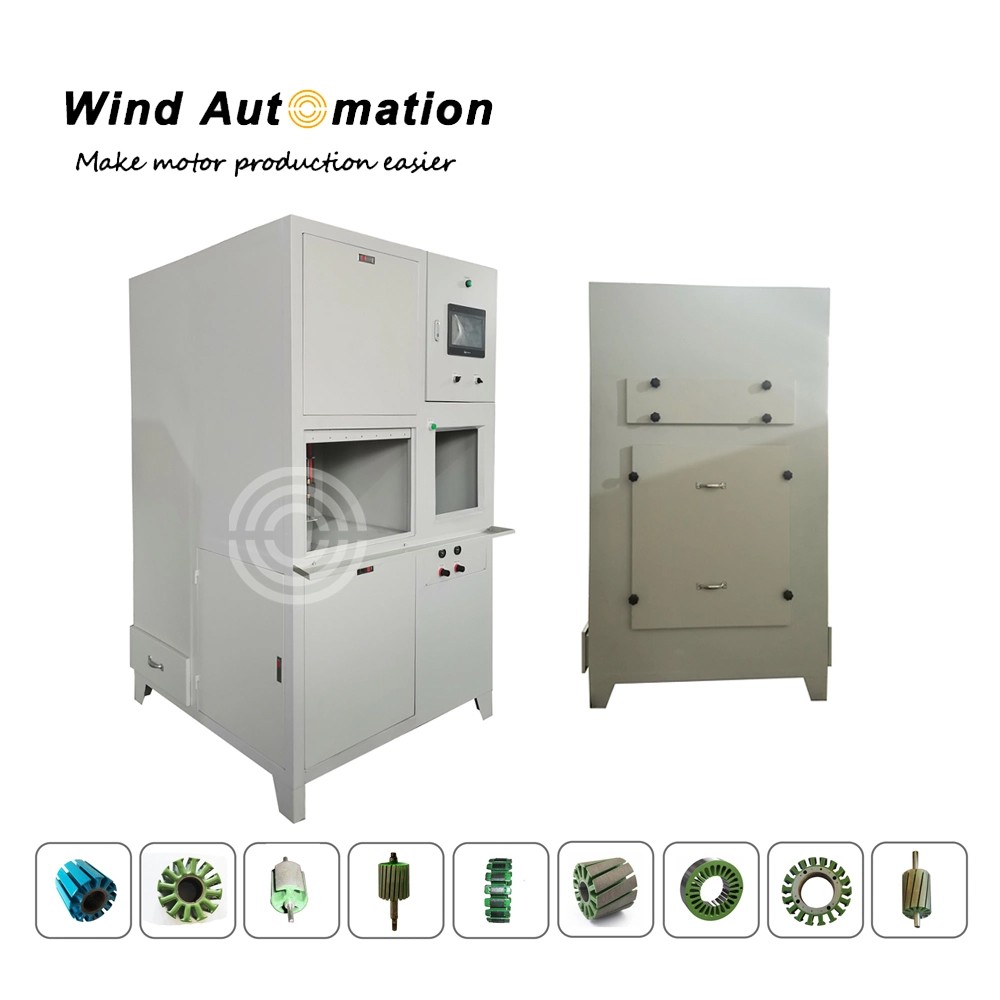

Motor Stator Armature Hot Dip Power Coating System

Motor Stator Armature Hot DIP Power Coating System

Normally the pre-heating temperature is as per customer's own requirement. For 3M powder, 220~230 degree will be better.

(1)Features
Workpiece should be pre-heated.
Manual loading and unloading
Dipping time adjustable on touch screen
Safety door to keep powder contained
With powder recycling function and fixture rotation function
Workpiece pre-heating temperature is as per customer's requirement, our recommendation is 220-230 degree.

(2)Specification

Ambient temperature	-20ºC~40ºC
Relative humidity	Less than 80%
Air supply	0.6MPa
Power	3KW
Power supply	AC 380V ± 10%, 50Hz / 60Hz
Dimensions	1200(L)X1280(W)X2060(H) mm

(3) Operation step
Power on machine
Pre-heat stators
Select related stator parameter on touch screen
Load heated stator
Press auto start button
Machine will automatically do powder coating
Unload stator
Remove extra powder by air gun
