Basic Info.

Model NO.

WIND-1-TDS

Dimension

1150X2350X1500mm

Outside Rotor Tooth Winding Service

Engineers Avaiable to Service Overseas

Transport Package

Wooden Case

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

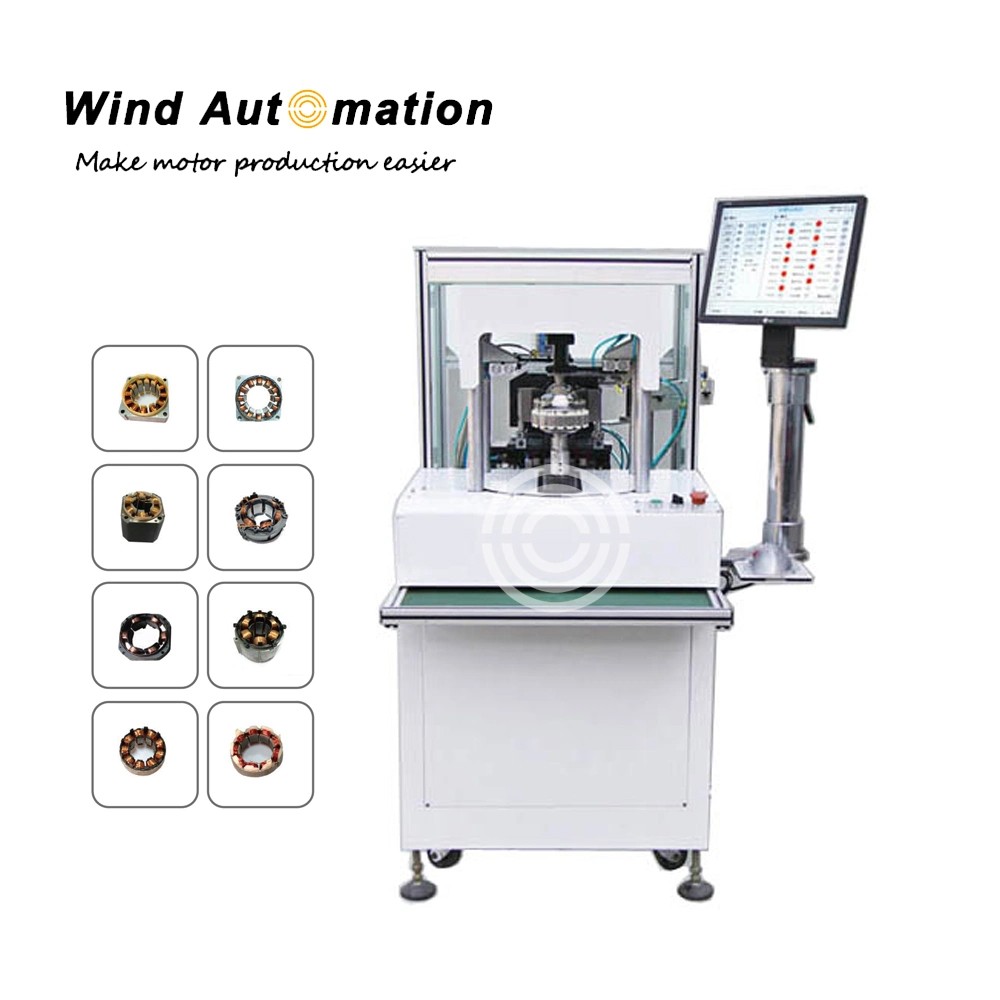

Fully Automatic Outside Rotor Tooth Winding Machinery

This outside rotor winding machine is a high speed coil winding machine for magnetic motor, digital generator, washing machine motor, air conditioner motor. There are two movement options, stepping or auto mode. The winding speed could reach 1500RPM.

(1) Specification

Wire diameter	0.15~1.50mm
Rotor O.D	15~260mm
Slot number	Multi poles
Turn no	0~99999
Movement	Stepping / Auto
Stack height	7~60mm
RPM	Max 1500RPM
Voltage	220v/50Hz
Power	2.5 KW
Air source	5~7kg/m3
Weight	600Kg
Dimension	1150X2350X1500mm

(2) Application

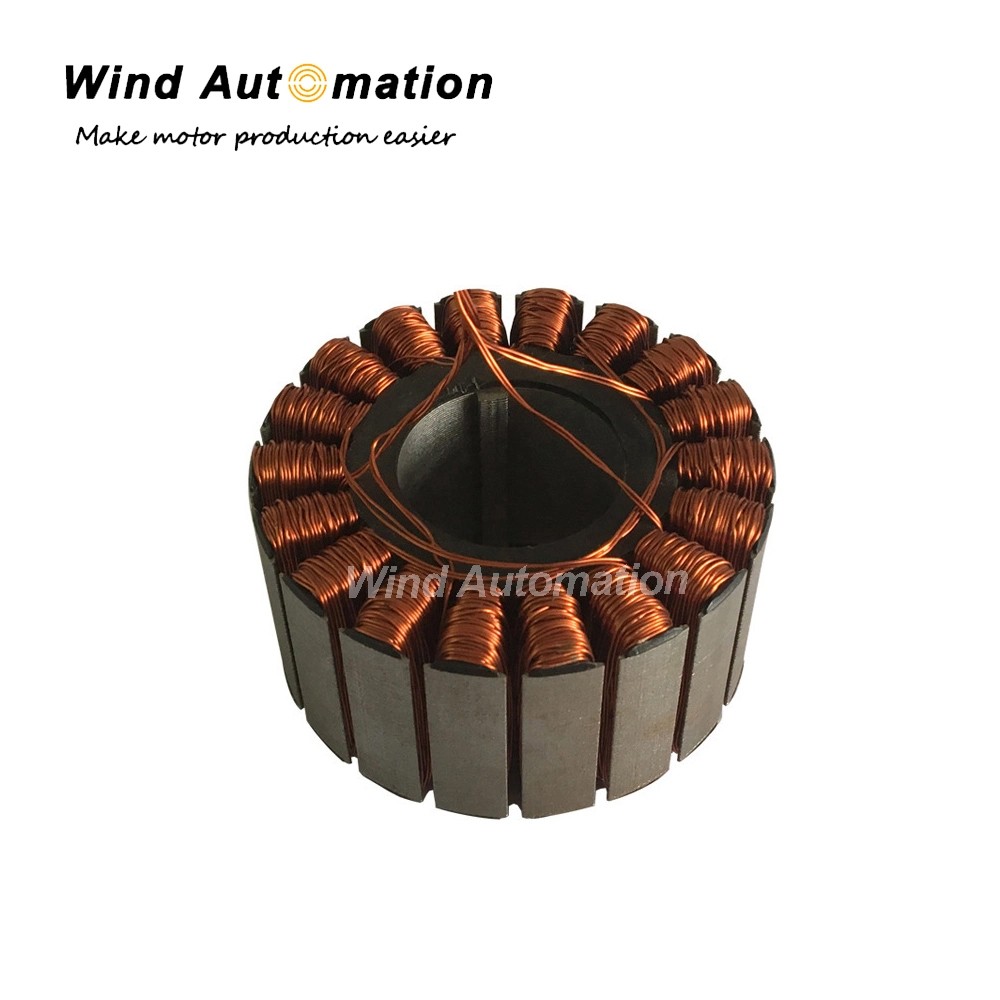

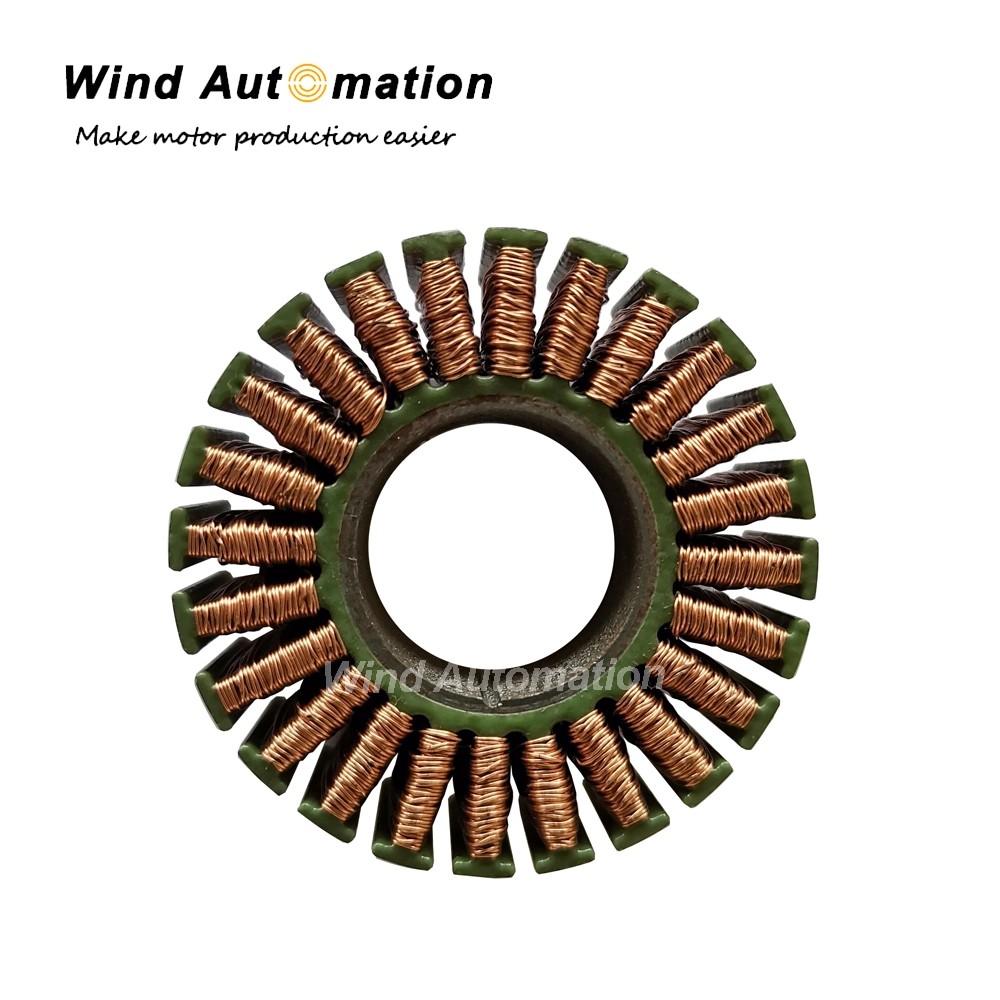

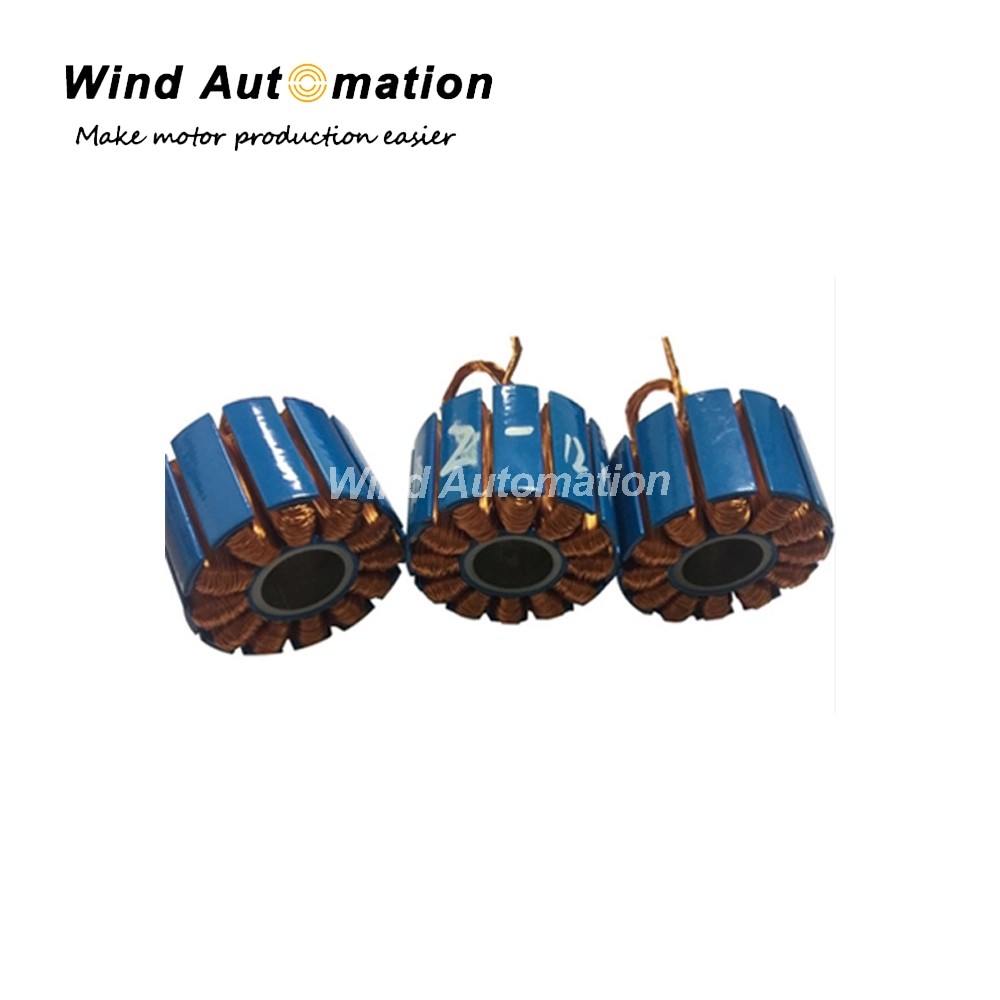

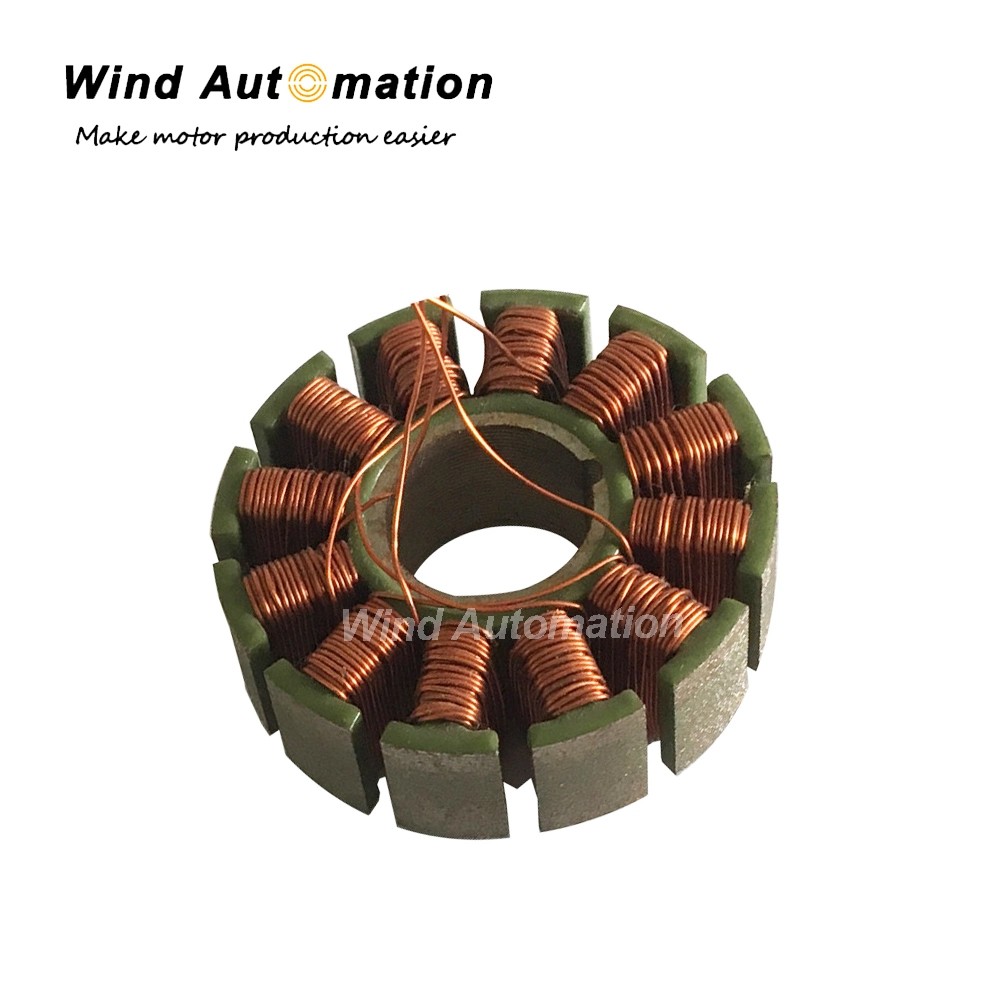

Suitable for magnetic motor, digital generator, washing machine motor, air conditioner motor.

(3) Features
Winding speed up to 1500RPM
Wide wire diameter range
Wide application and strong adaption
Perfect layer winding
Fast retooling
