Home-Appliance-Motor-Automatic-Armature-Winding-Machine

Basic Info.

Model NO.

WIND-FAW

Customized Service

Provided

Transport Package

Wooden Case

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

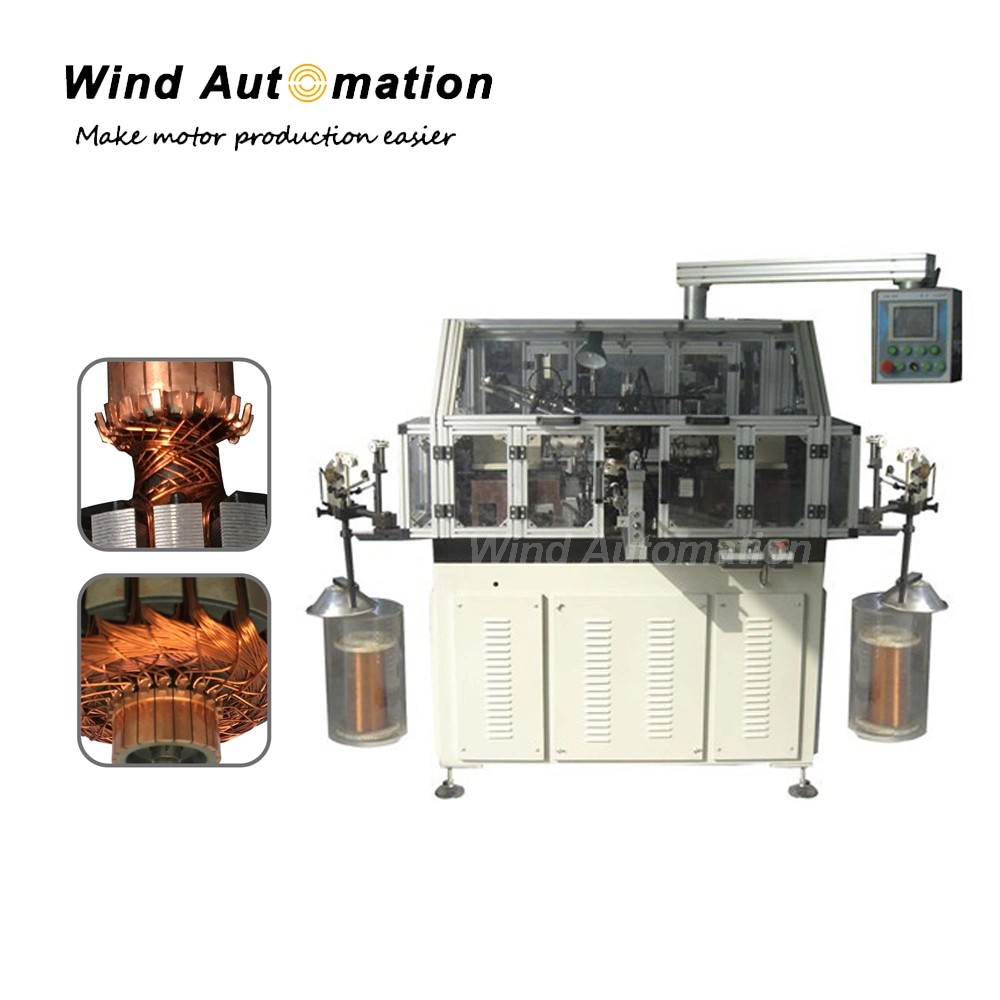

Home Appliance Motor Automatic Armature Winding Machine

Home Appliance Motor Automatic Armature Winding Machine

This machine is capable of winding coil into armature slot. Machine can automatically do winding, indexing and hooking. After winding one slot, machine will rotate the armature to a horizontal angle for hooking. For each slot, it should rotate 360/12 degree. Therefore, it should rotate 15°.


(1) Specification

Power supplyAC 380V±10%  50/60HZ
Air resource5~7kg/cm2
Weightabout 1180kg
Dimension2560mm×1300mm×1800mm
Armature ODΦ20~Φ60mm
Commutator ODΦ18~Φ40mm
Wire diameterΦ0.20.6mm
Slot numberEven number
Turn No.0~99
Stack length10~60mm
Winding speed0~2000rpm
Indexing speed0~2000rpm



(2)Feature
For even slot armature
For hook type commutator
With medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
Manual loading and unloading
Three winding method optional
Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen

(3) Application

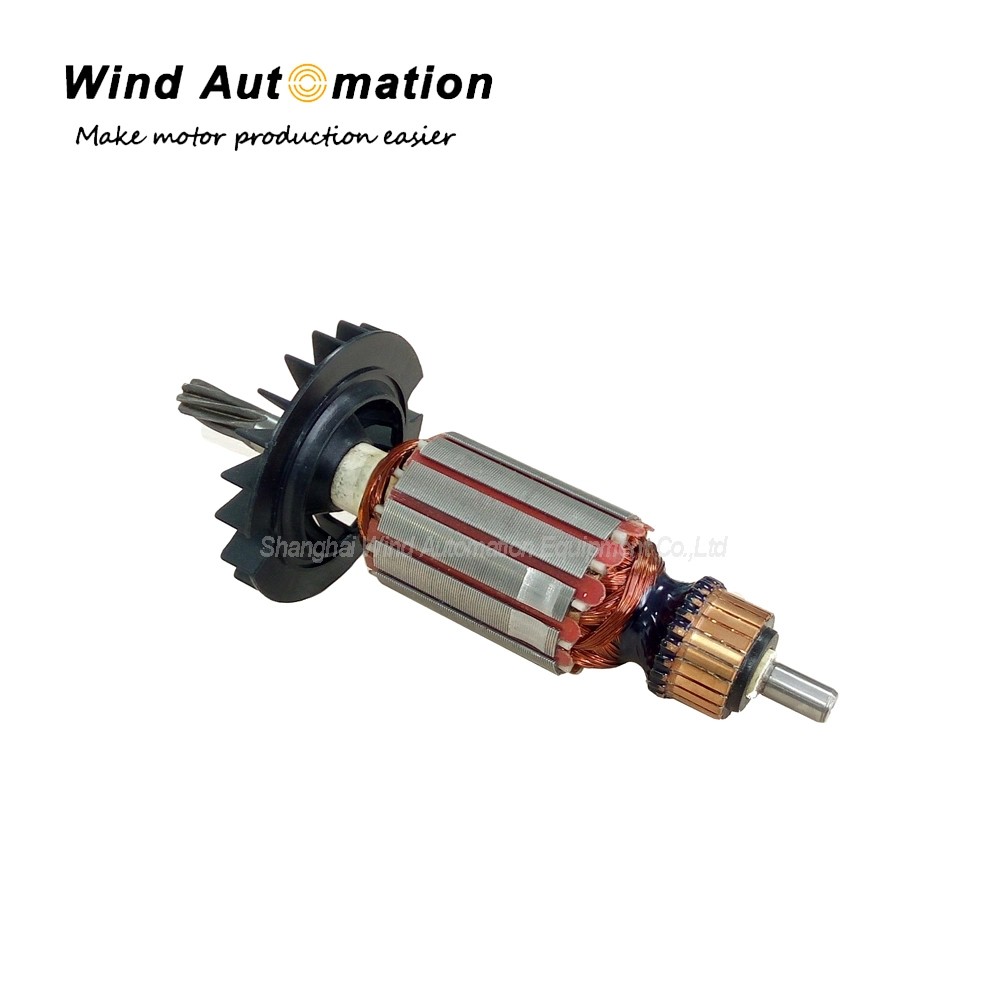

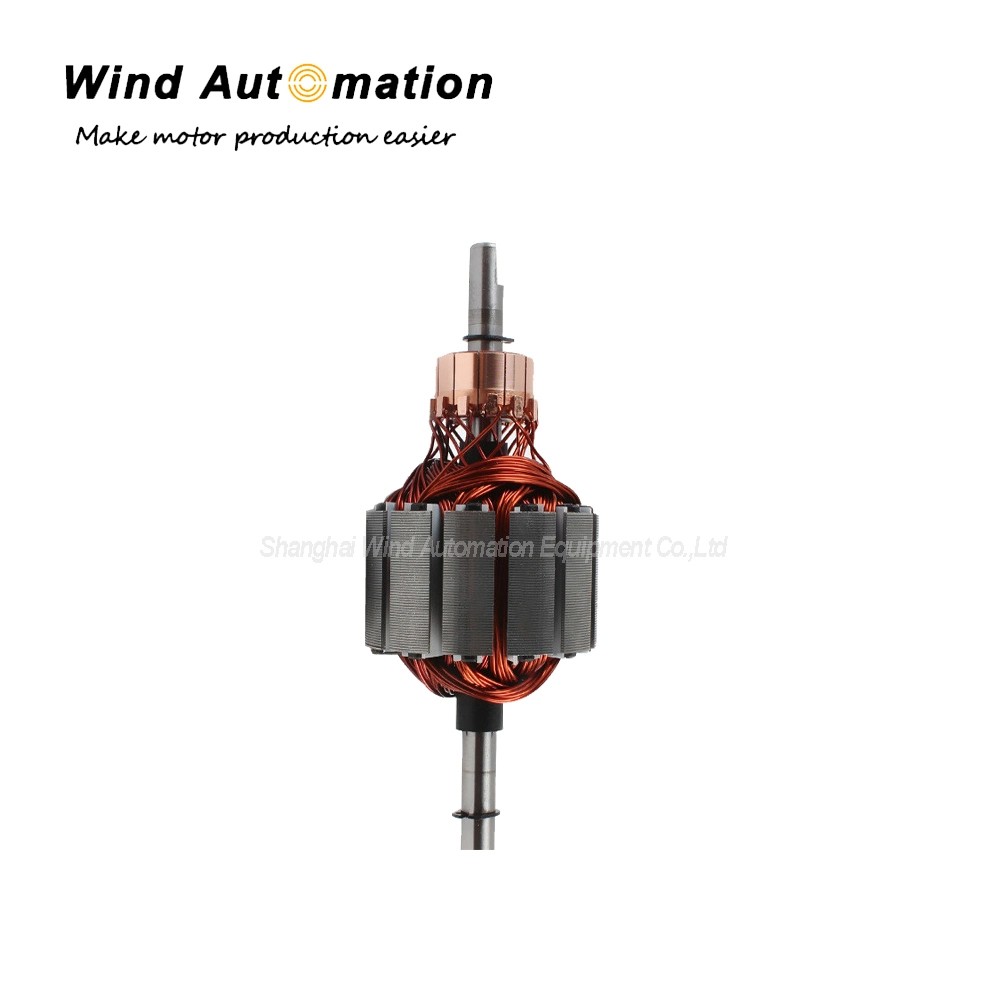

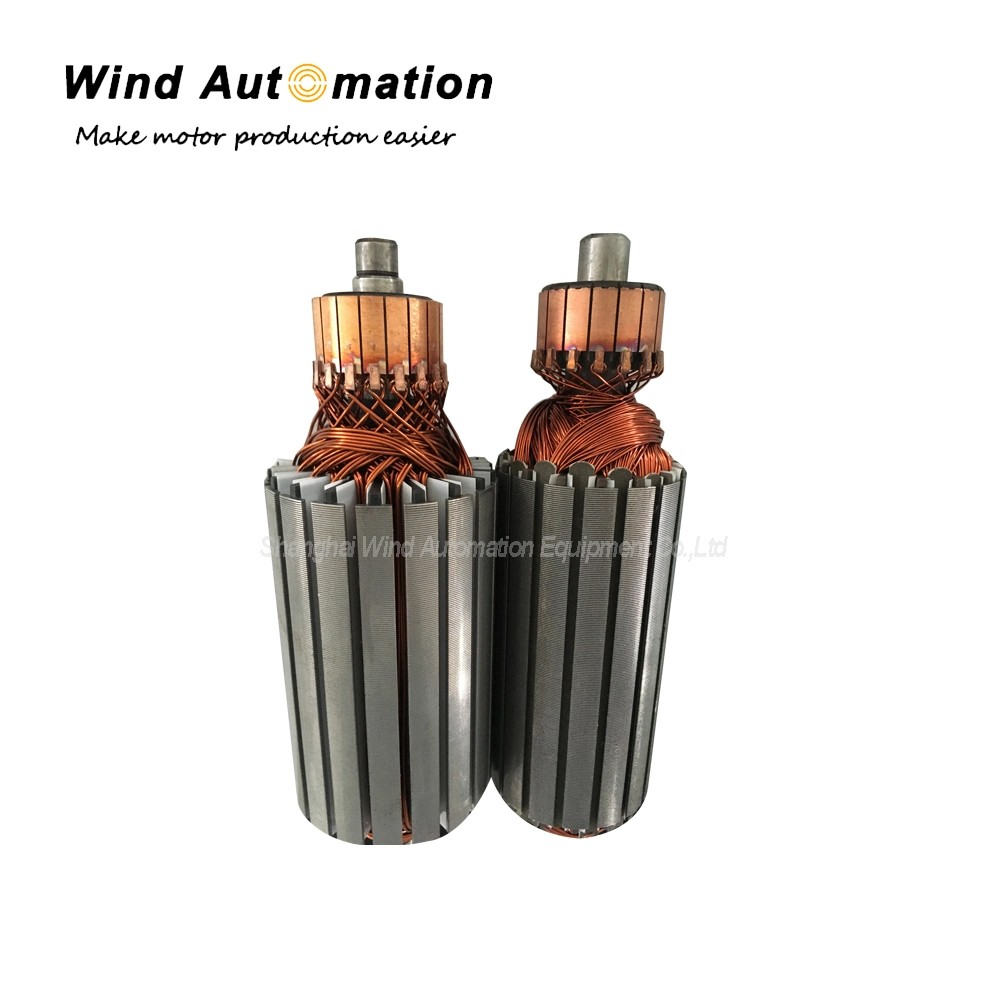

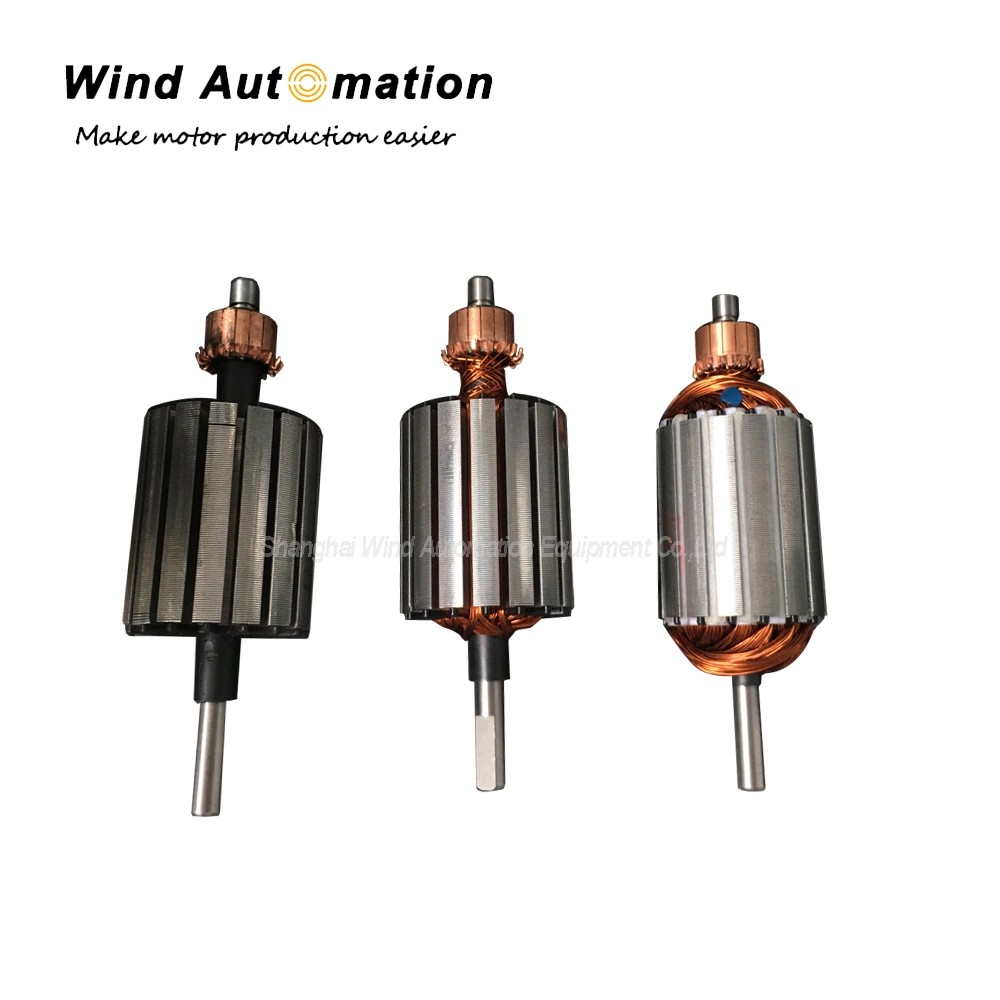

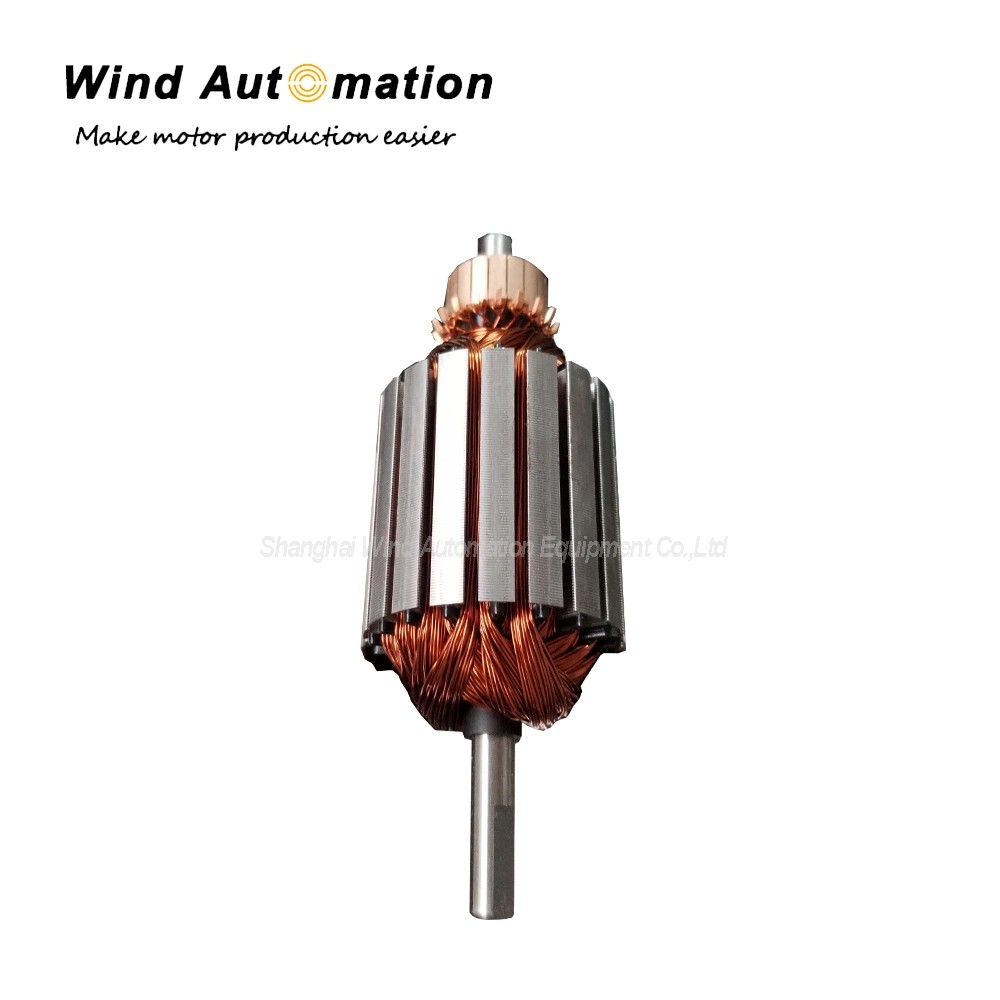

It is suitable for hook type home appliance, car and power tool motor armature.
