Semi-Automatic-Armature-Coil-Winding-Machine

Product Description

Semi-automatic Armature Winding Machine

This is an economic type machine for armature winding. It can wind even slot armatures. Machine can do automatic clamping, automatic winding, automatic indexing. Hooking should be done manuall.

(1) Specification

(2) Application

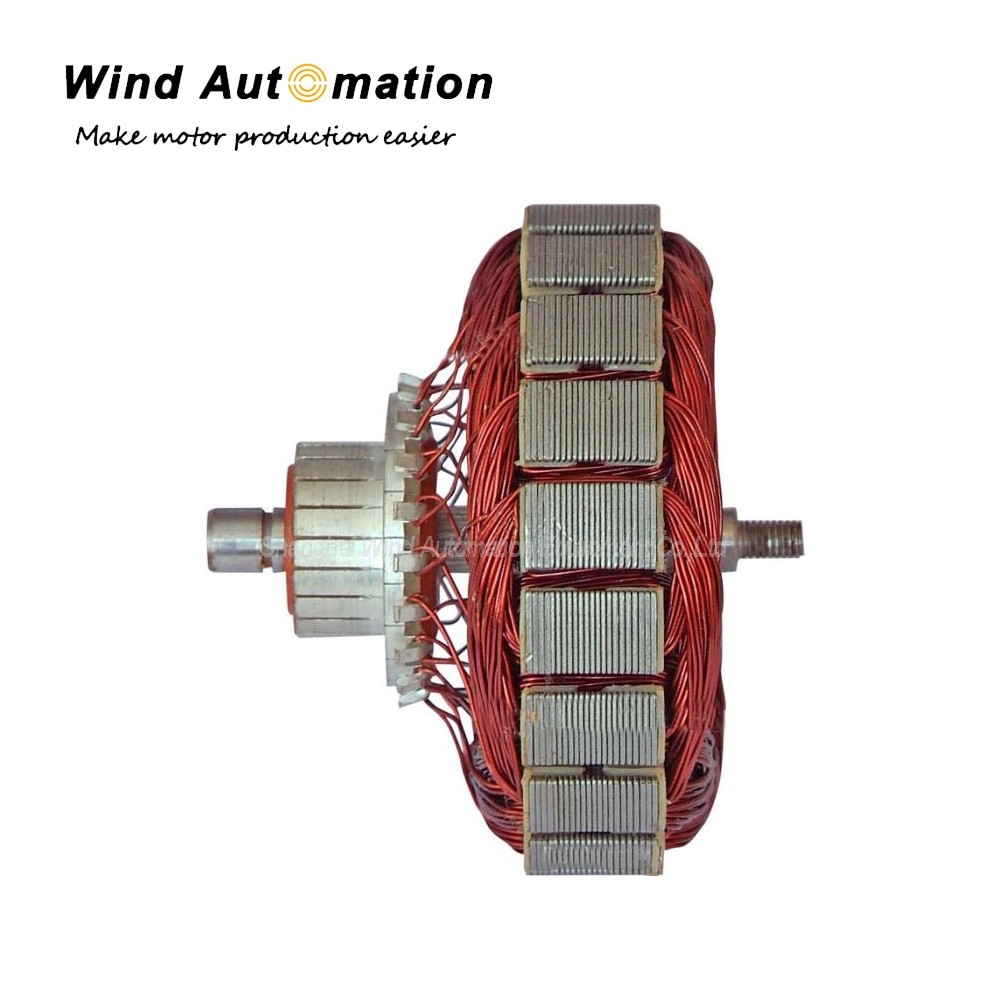

Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.

(3) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
