Product Description

Armature Winding Machine For Micro Motor Rotor with 3 or 5 Slots

Armature Winding Machine for Micro Motor Rotor with 3 or 5 Slots

Machine is of high efficiency with 4 working stations, which means 4 armature can be winded at same time. Wire diameter range is 0.08~0.55mm (AWG23 ~ AWG40). Automatic clamping, automatic winding, automatic indexing,automatic hooking.

(1) Specification

Wire diameter	0.08~0.55mm
Armature type	3~5 slots armature
Armature diameter	8~25mm
Max armature stack length	30mm
Winding motor speed	0~3000 rpm
Maxshaft length	70mm
Rated power	≤1.2kW
Air supply pressure	0.4M~0.8MPa
Voltage	AC220V 50/60Hz
Machine dimension	110011001300mm
Machine weight	320Kg

(2) Application

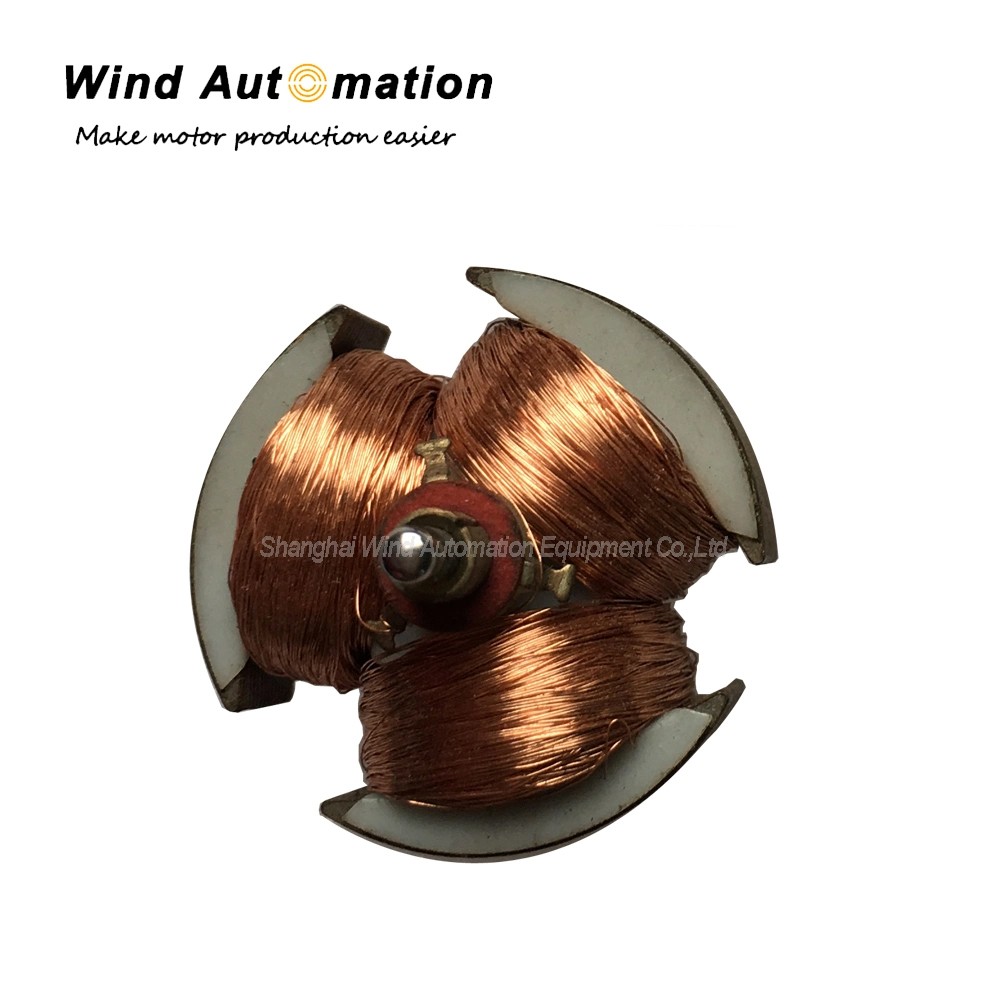

Micro Motor with 3 slots, 5 slots, even slots covering power tool, toy,windshield washer pump, door lock actuator,automotive parts
