 Generator Wave Shape Coil Winding Machine

Generator Wave Shape Coil Winding Machine

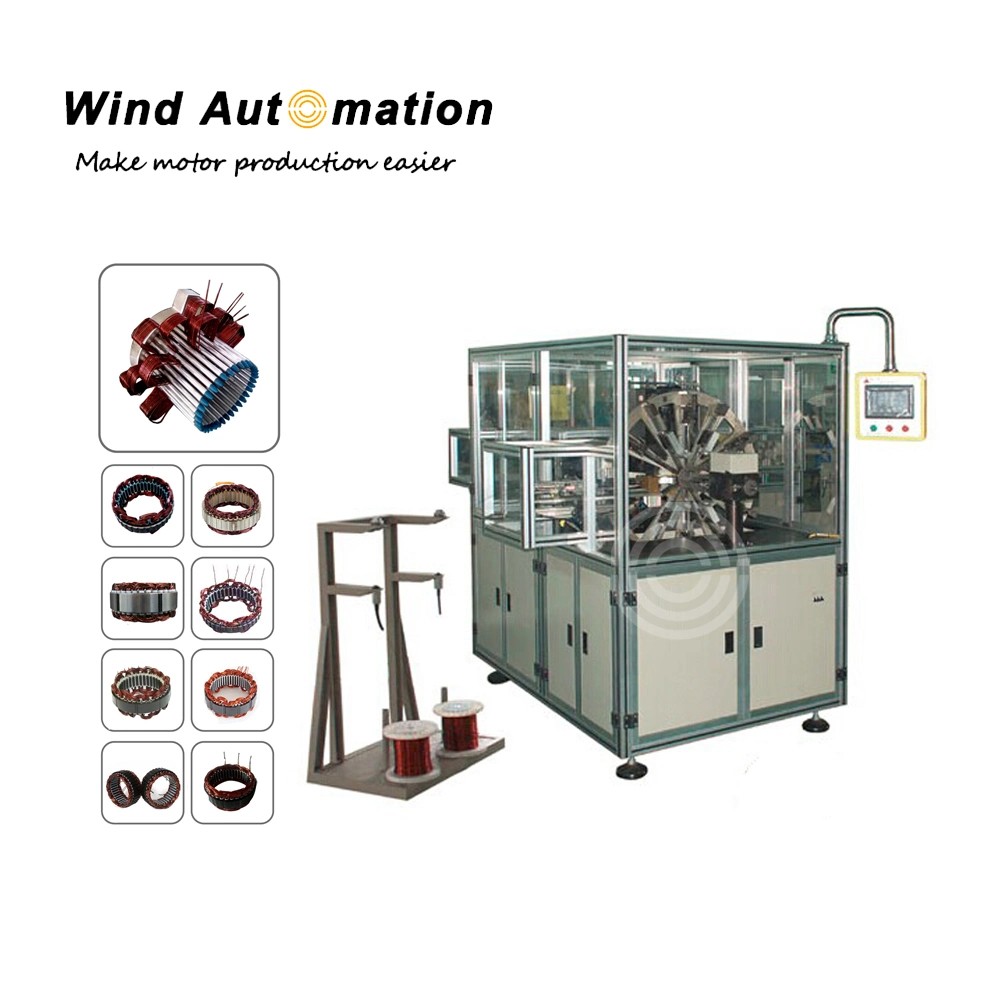

This wave winding machine is suitable for alternator, or generator stator to do coil winding. It will automatically wind the coil into the tooling. In normal case, a winding inserting machine will be needed. Otherwise, the coil inserting process should be done manually.



(1)Specifications

Power Supply Voltage380V/220V±10% 50Hz
Air source Pressure0.5~0.7Mpa
Machine Powerabout 8 kW
Wire Winding Speed10-120r/min
Stator Slot Number36/48
Wire Diameter: 0.8-1.6mm
Merging Winding Wire Number1-2


(2) Application
Suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding and putting into winding transfer former automatically.

(3) Features
Servo motor control wire arraying and winding, pneumatically shaped to plum blossom, double work
Stations automatic position changing, servo automatic wire embedding, automatically put into slot cover
One work station for wave shape winding and push into wire embedding mould, another station for wire
Embedding and put into slot cover, put paper inserted stator on the station manually, repeating operation
PLC control, colorful touching screen, with press work/single step/automatic three kinds of work method
High automation and efficiency.
