Servo-Control-Commutator-Lathing-Machine

Basic Info.

Model NO.

WIND-CT

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

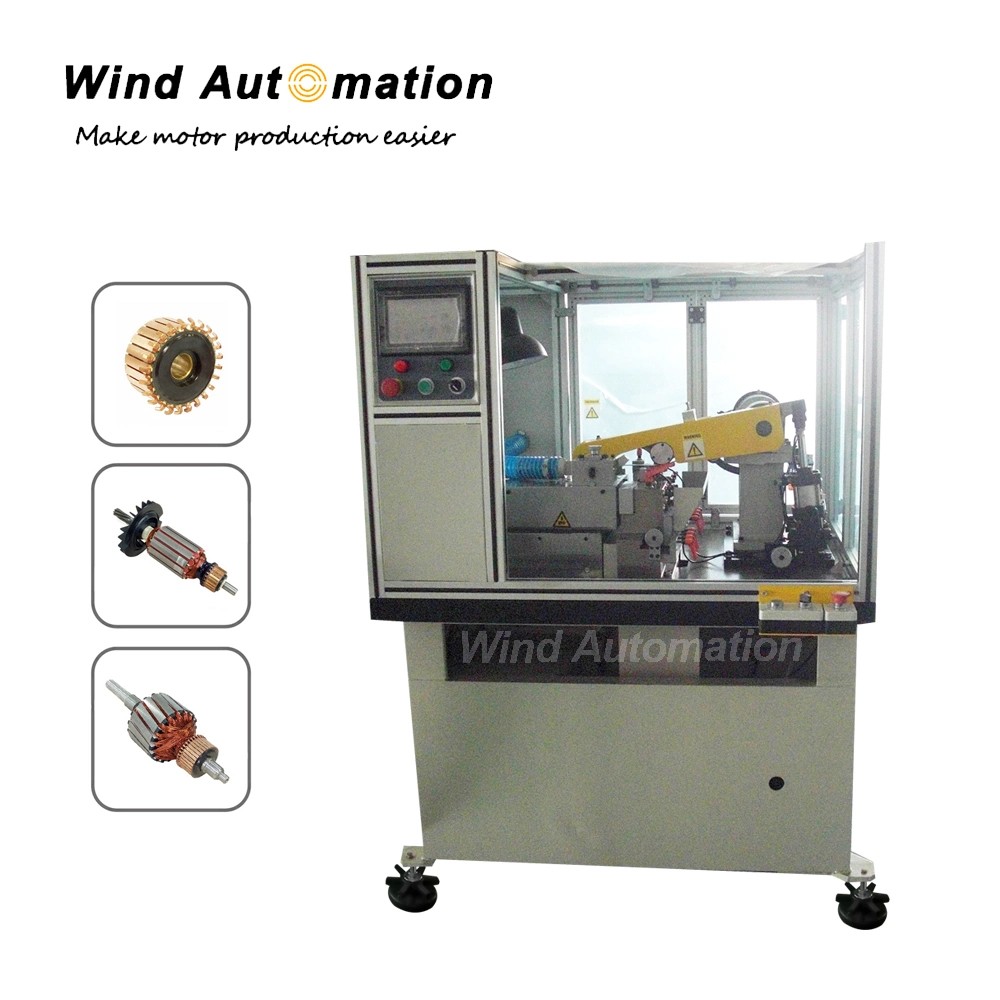

Servo Control Commutator Lathing Machine

Servo Control Commutator Lathing Machine

This machine can be equipped with an automatic feeding device to achieve a fully automatic operation.

The cutter moving in
 axial or radial direction is controlled by ball screws which are driven by three spindle servo motor. Turning times(4 times total) and cutter feeding value(≥1um) could be set up on touch screen according to user's requirement. Three spindle servo motor controlling ensures the stable and precise cutter feeding.



(1) Specification

Armature OD20mm~90mm
Commutator OD8mm~42mm
Shaft length50~250mm
Stack height10~100mm
Single side turning depthMax 0.12mm
Bar-bar roundness≤0.0030mm
Surface roughness≤0.0025mm
Air source pressure0.4MPa~0.7Mpa
Power supplyAC220V+/-5%
WeightAround 1100KG
Dimension1130mm x 900mm x1590mm


(2)Application
Suitable for electrical tool, household appliances , vehicle, motorcycle starting engine, mini-engine and so on.

(3)Maintenance
1. Machine should be installed in a place, with clean air and moderate moisture.
2. Servo motor should be far away from oil, fluid etc and knocks by hard thing.
3. Key parts of machine's mainframe is consisted of high precision dust-proof bearing and it needn't do maintenance on general condition. But it requests replacement on condition that the bearing couldn't rotate smoothly or in jam.
4. Inject 20# machinery oil to oil tank regularly.
5. Inject lubricant oil to linear guide rail regularly.
6. Tighten the screws and bolts regularly.
7. Avoid fierce knocking and pressing of touching display. Avoid fierce rotation of its box.
8. Keep the touching display and its box clean and keep it away from heavy dust, strong sunshine and corrosive material.
9. Keep machine away from high radiation equipment such as transformer.
