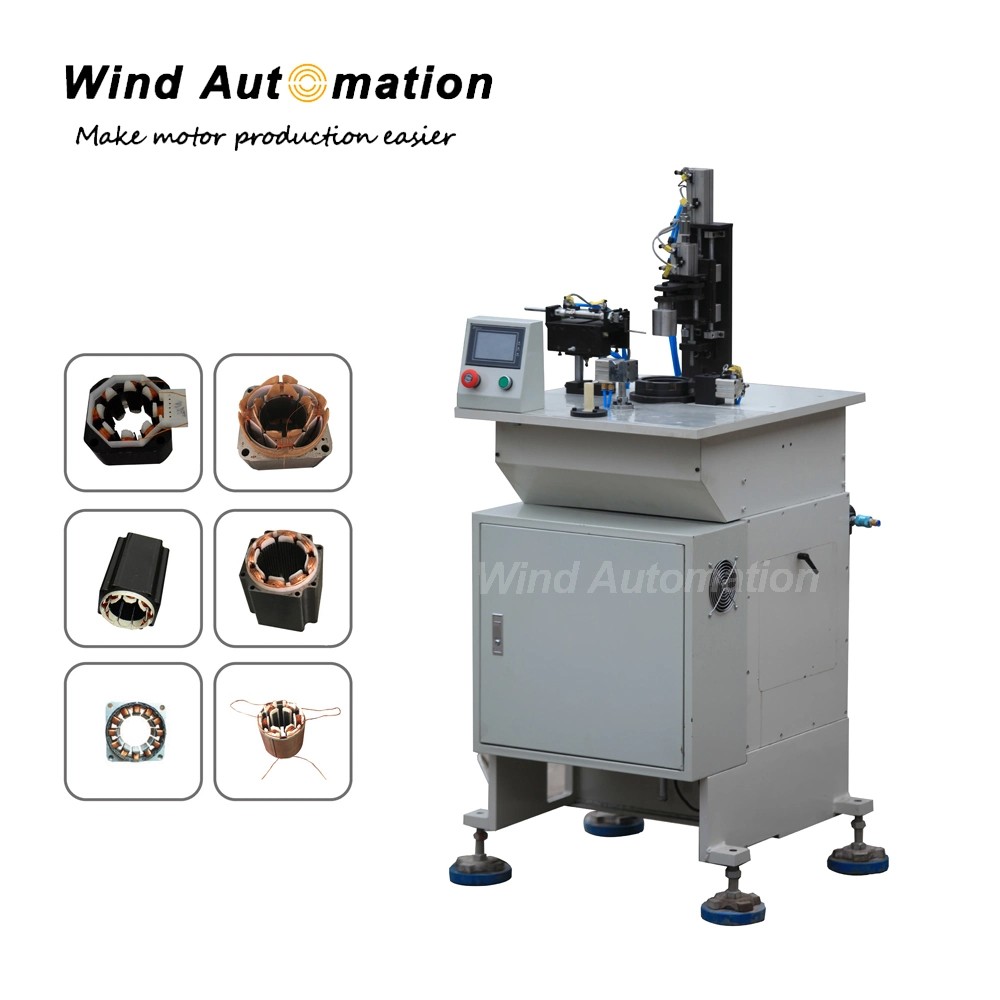

Needle Winding Machine for Inner Slot Stator Winding
This needle winding machine is a semi-auto type machine, so loading, unloading, clamping should be done manually. It covers a wide wrie diameter from 0.1mm to 0.65mm.
(1) Specification
| Wire diameter | 0.10-0.65mm |
| Stator O.D | ≤150mm |
| Stator slot width | ≥1.5m |
| Stack height | 5~100mmm |
| RPM | 0-400rpm |
(3) Application

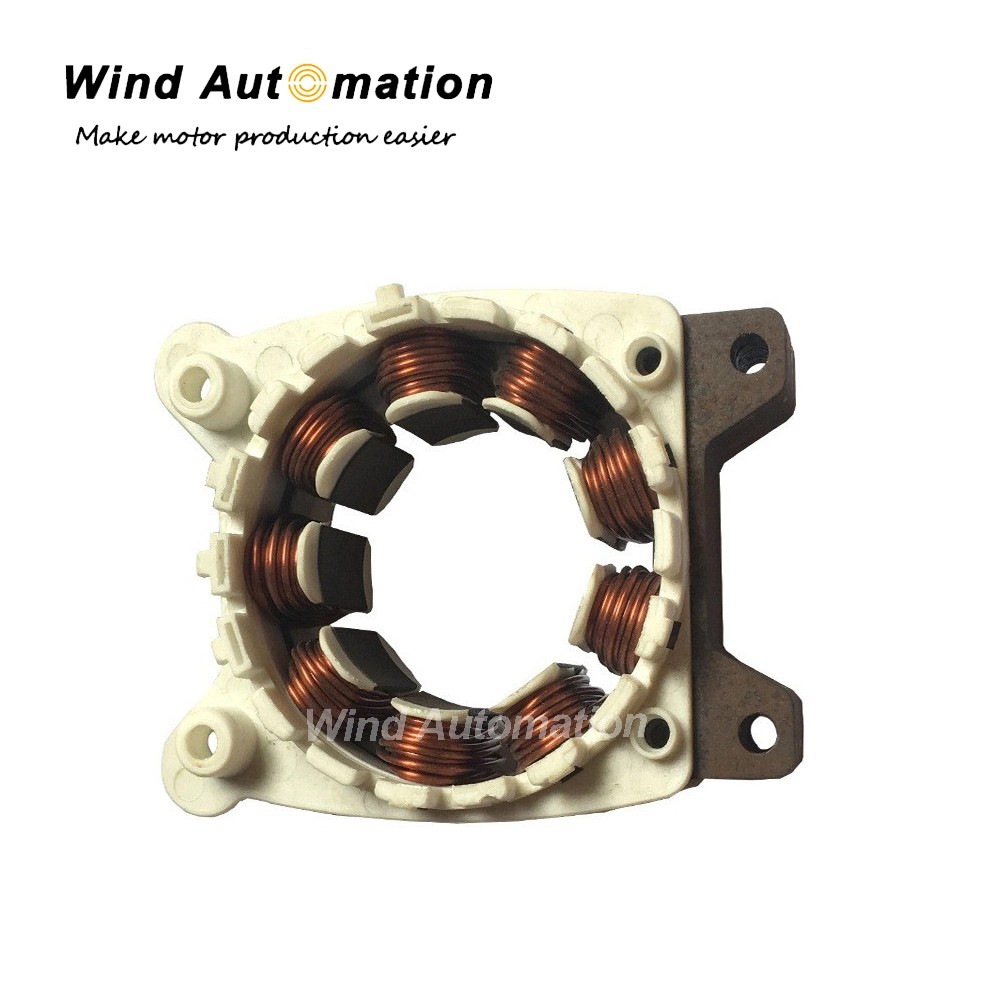

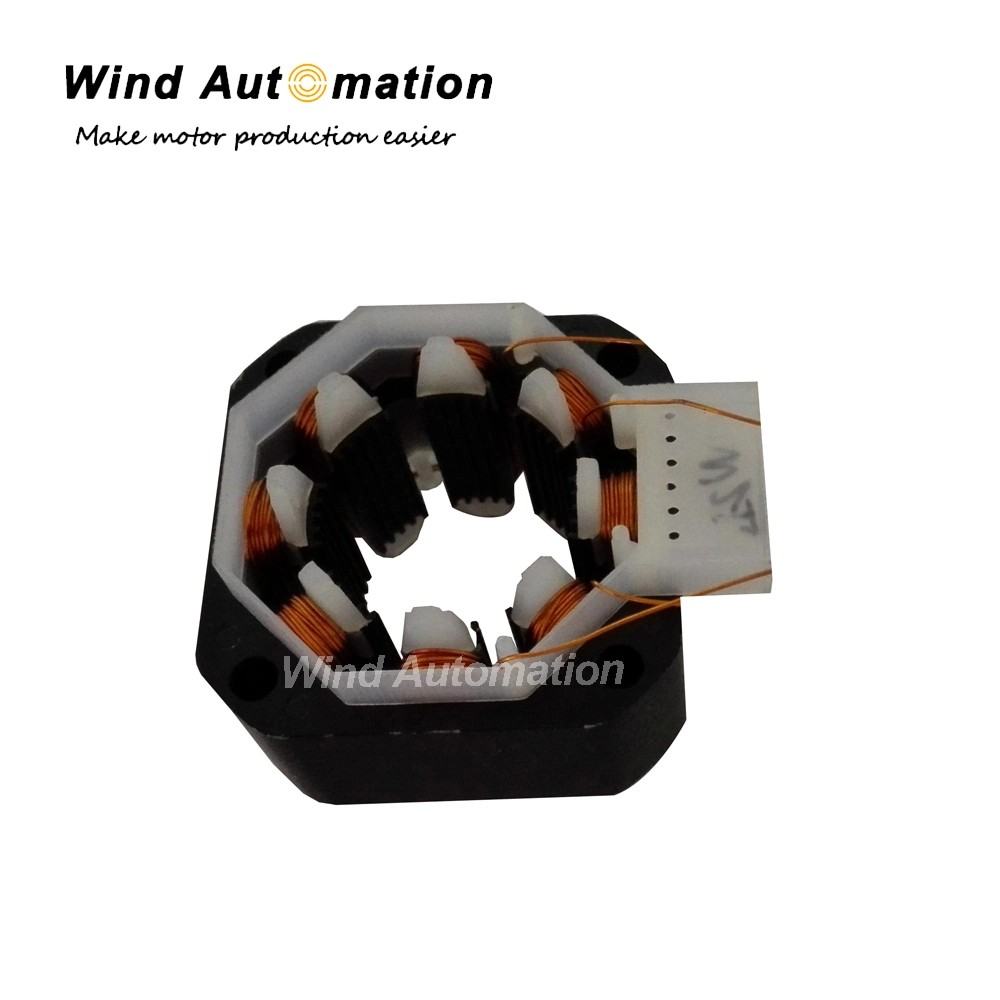

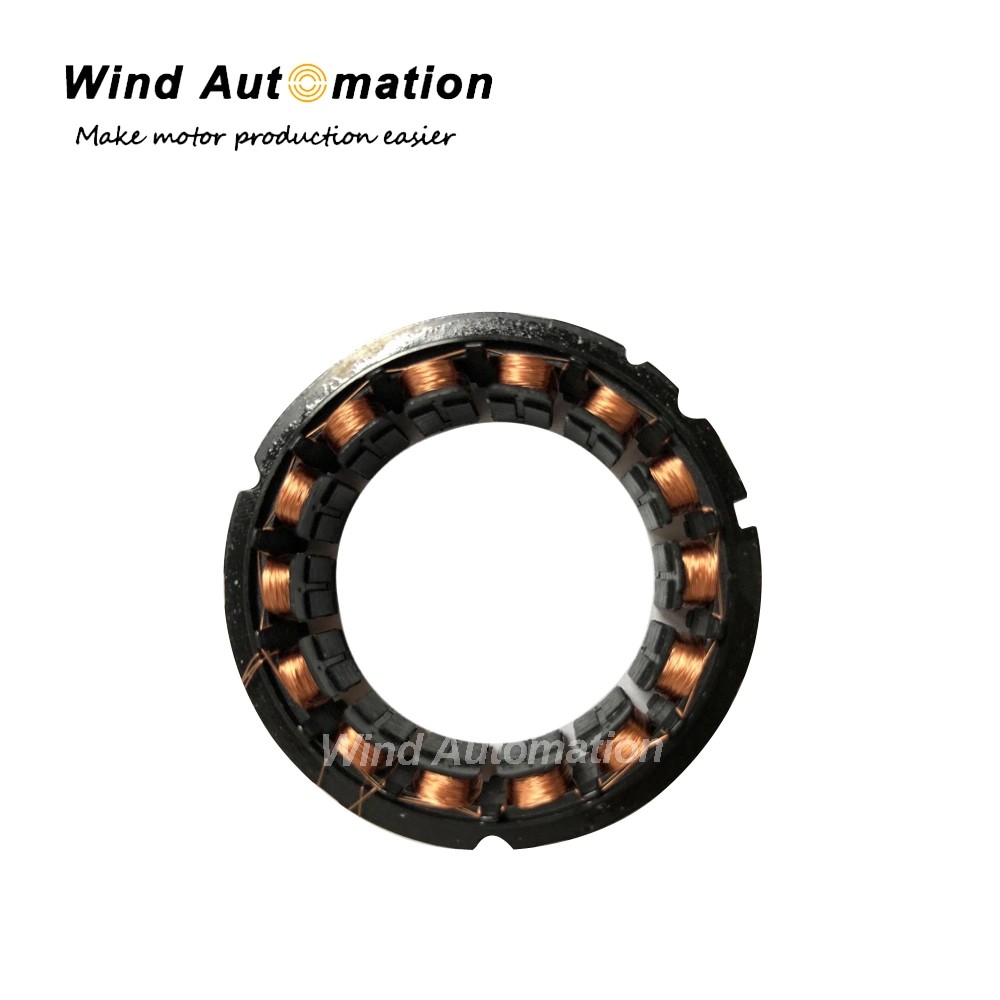

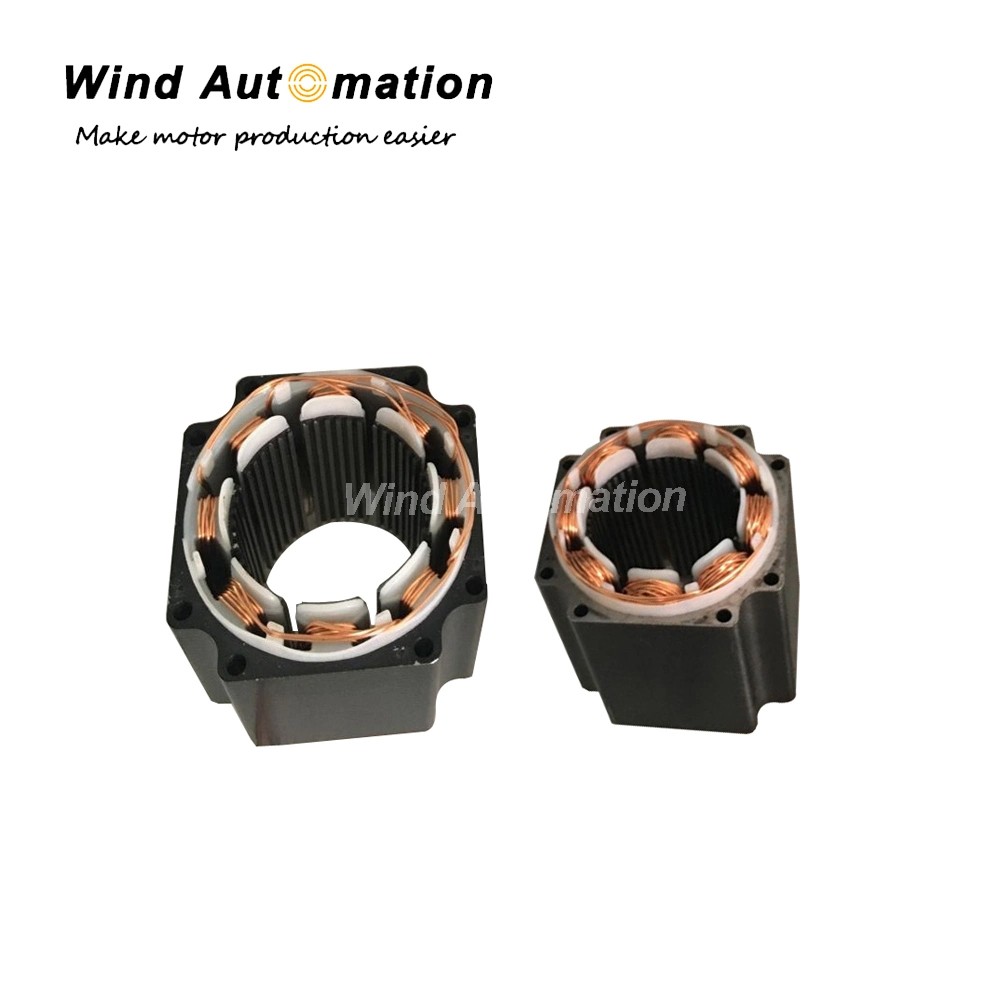

Suitable for small brushless motor stator.
(2) Features
Winding speed up to 1500RPM
Wide wire diameter range
Wide application and strong adaption
Perfect layer winding
Fast retooling
