High-Efficiency-Stator-Winding-Machine-Coil-Winding-Equipment

Basic Info.

Model NO.

WIND-8VW

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

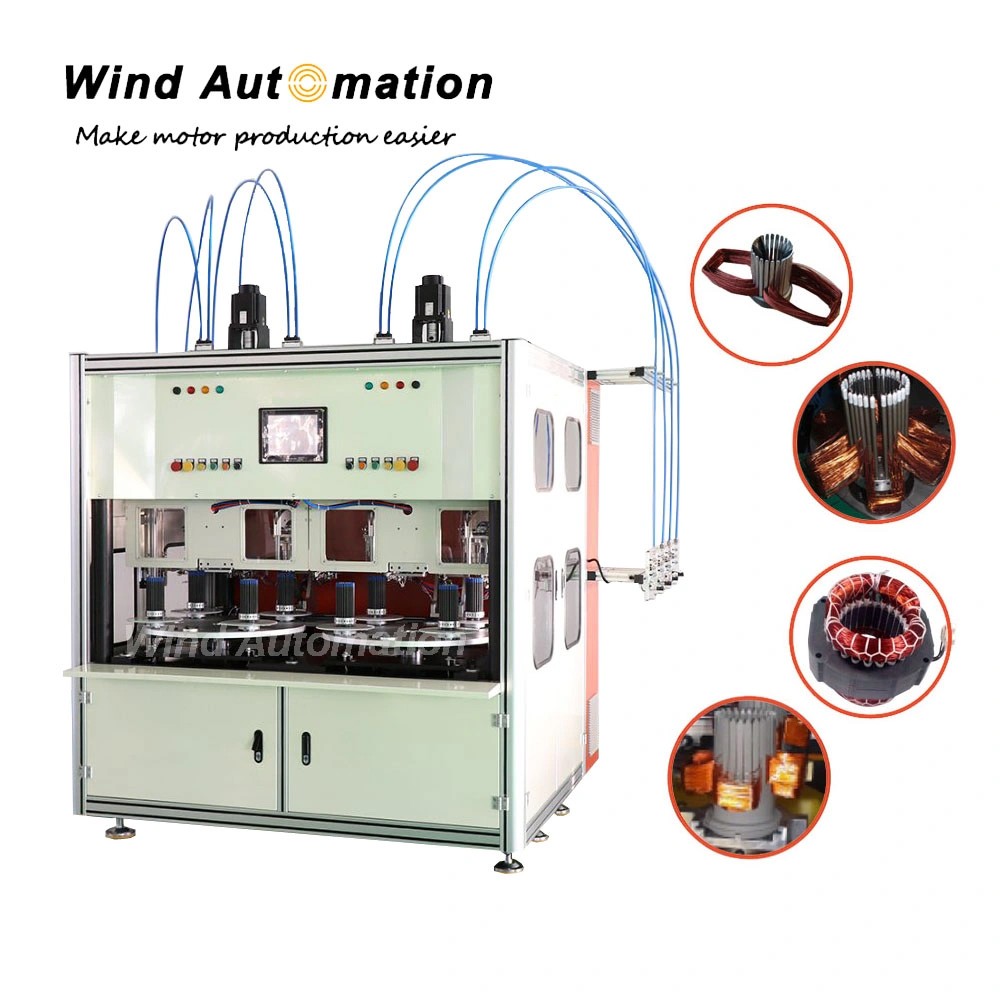

High Efficiency Stator Winding Machine Coil Winding Equipment

This machine is suitable for stators with OD range within 120mm, stack height within 65mm. The max winding speed is up to 3000r/min.


(1) Specification

(2) Feature
4 winding head 8 working station
Manual unloading coils after winding
Rotation and indexing controlled by servo system
No distinct vibration or noise during winding
Automatically stop if wire is run out
All winding parameter programmable on touch screen

(3) Application
This machine is suitable for mass production of 2 poles, 4 poles and 6poles coils winding.
