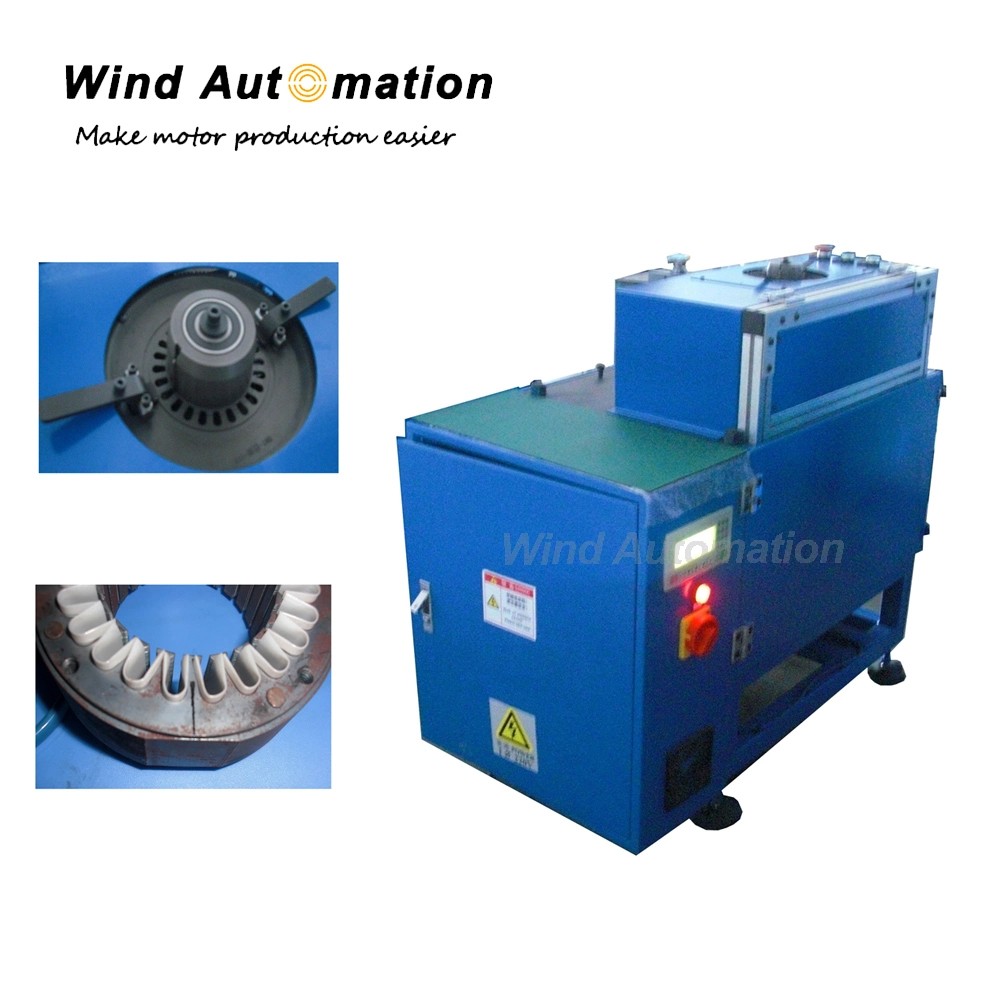

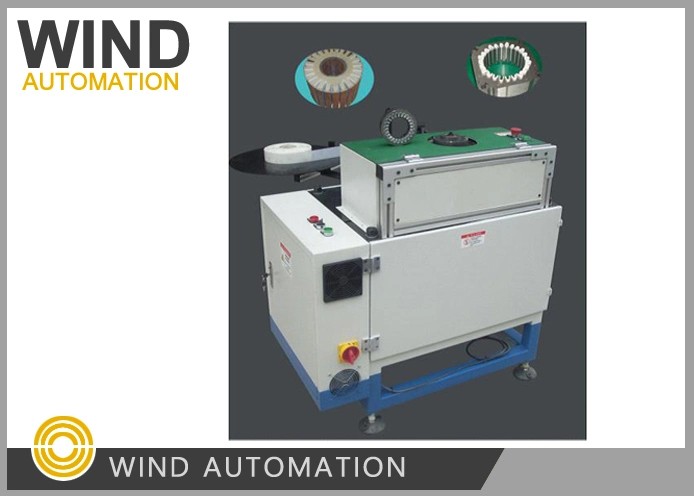

Compressor Motor Stator Insulation Paper Insertion Machine

Compressor Motor Stator Insulation Paper Insertion Machine

(1) Specification

Item Name	Item Data
Laminated thickness of stator	10mm-100mm
Stator OD	Φ 200mm
Height of stator	Φ 15mm- Φ 90mm
Height of edge folded insolation	2.5mm-5mm
Max insulation paper's thickness	0.3mm
Feeding length	12mm-45mm
Tack time	0.5 to 0.7s/slot
Input Power Source	380V/50Hz
Power	0.75KW
Machine productivity	around 1500pcs/8hours
Dimension	950mm × 600mm × 1000mm
Weight	150KG

(2) Application
This machine is suitable for small and medium-sized three phase motor, single phase motor, external rotor motor and generator.

(3) Feature
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator

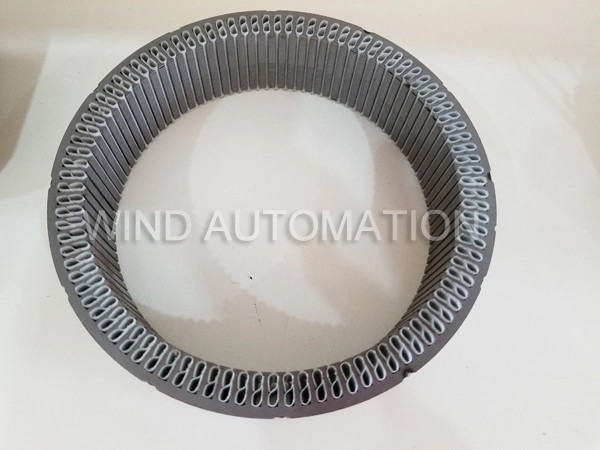

After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required
Low noise, high efficiency
Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process
Compressor Motor Stator Insulation Paper Insertion Machine
