CNC Commutator Undercutting Machine

Machine consturction Specification

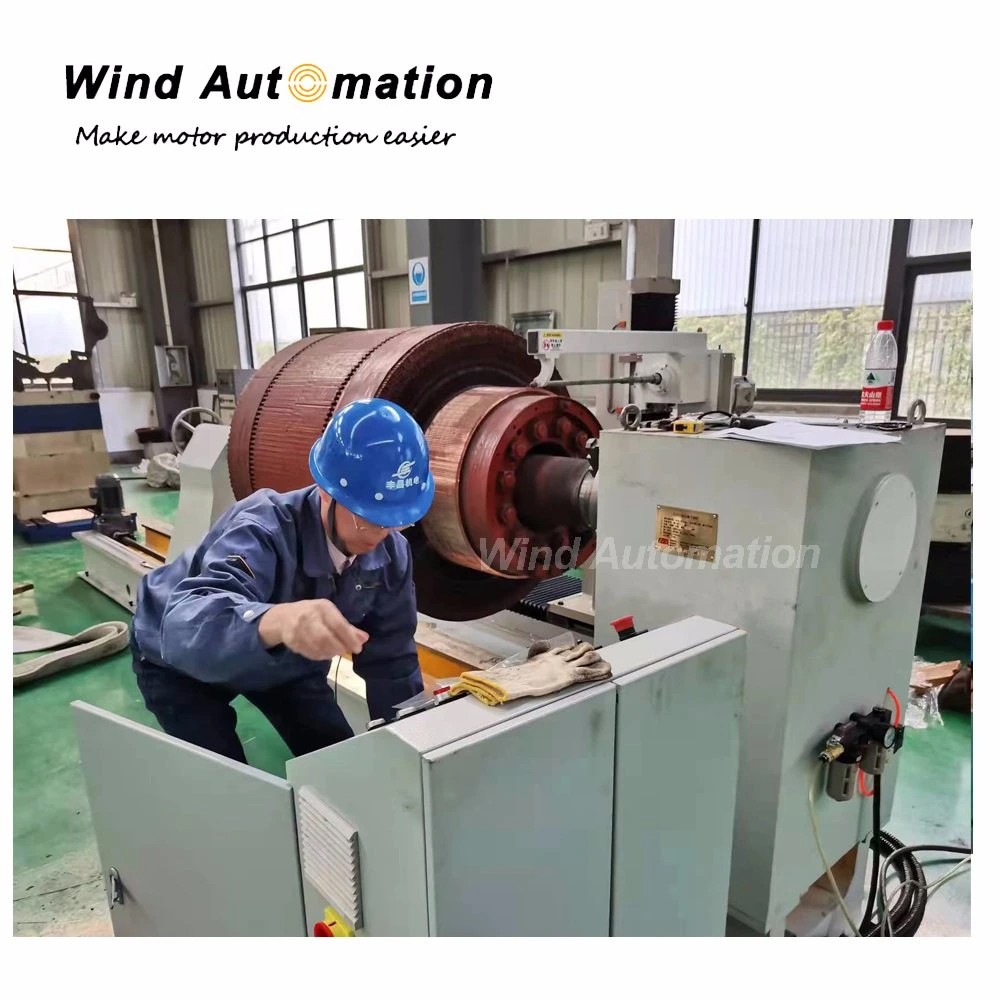

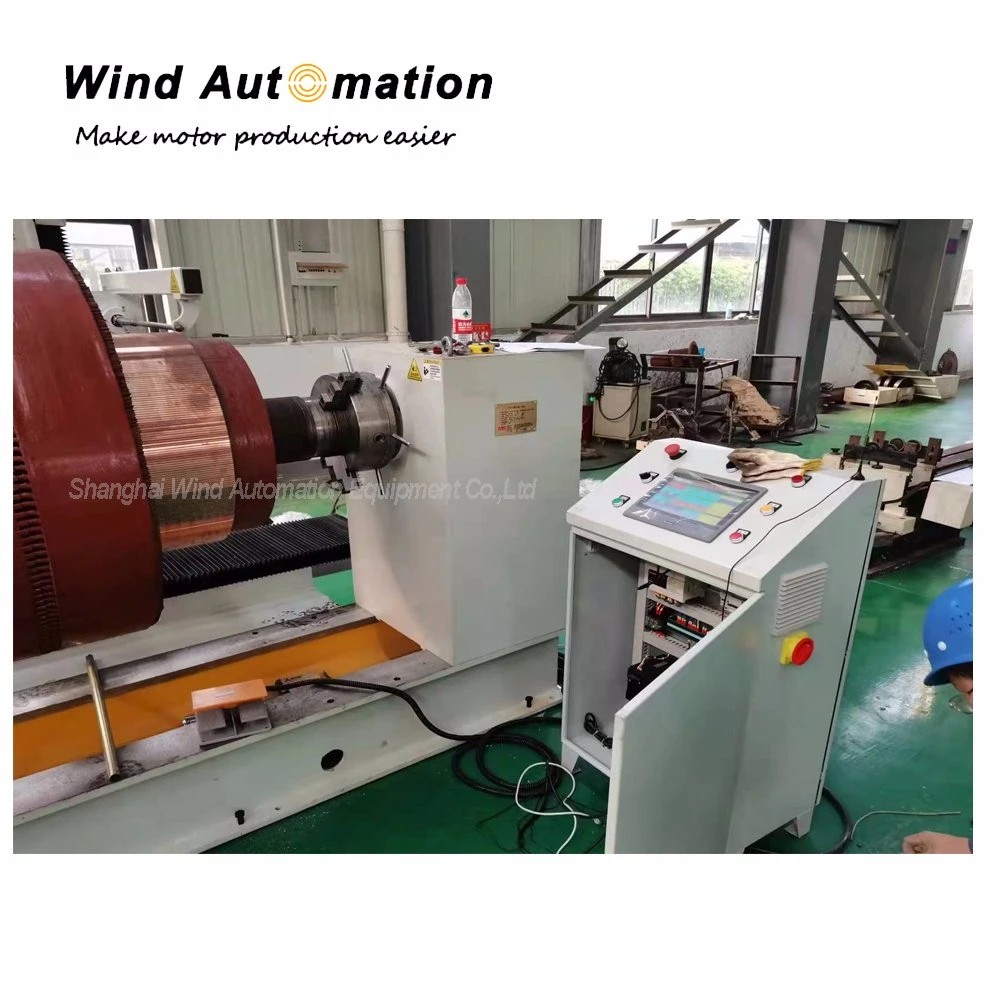

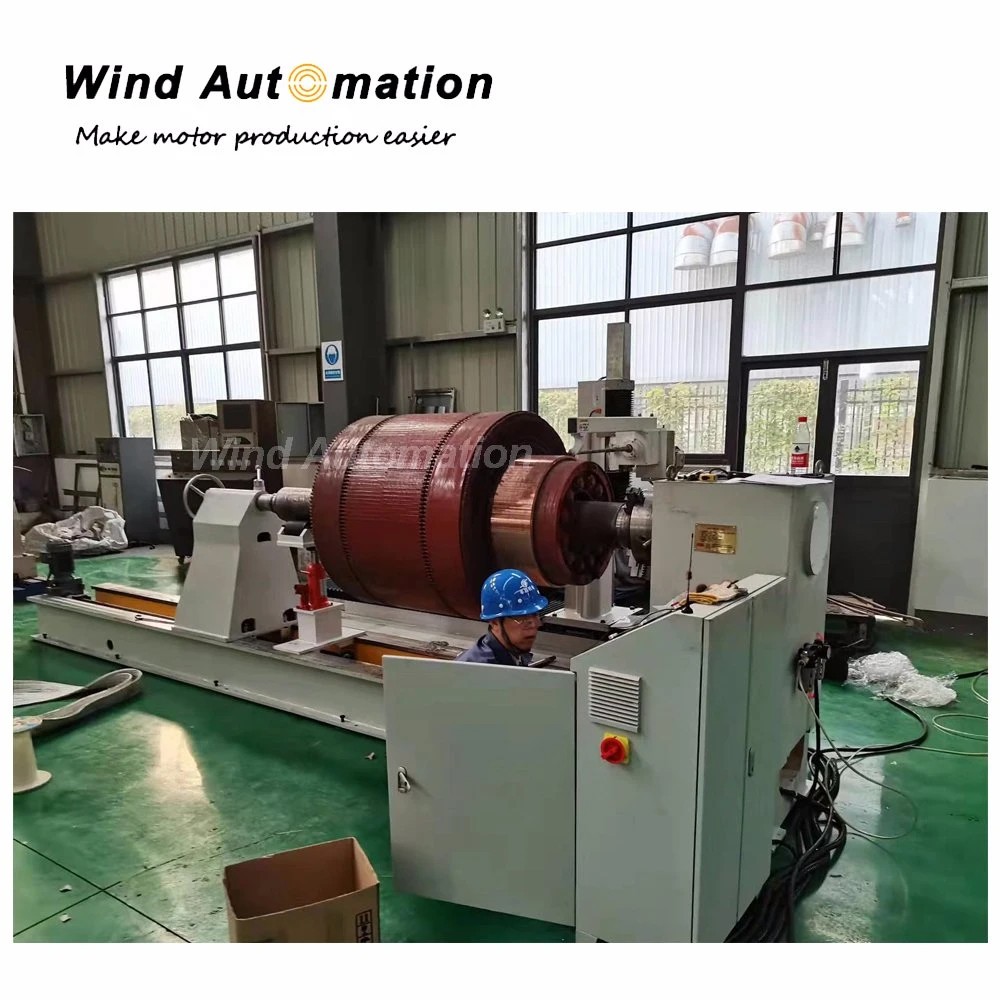

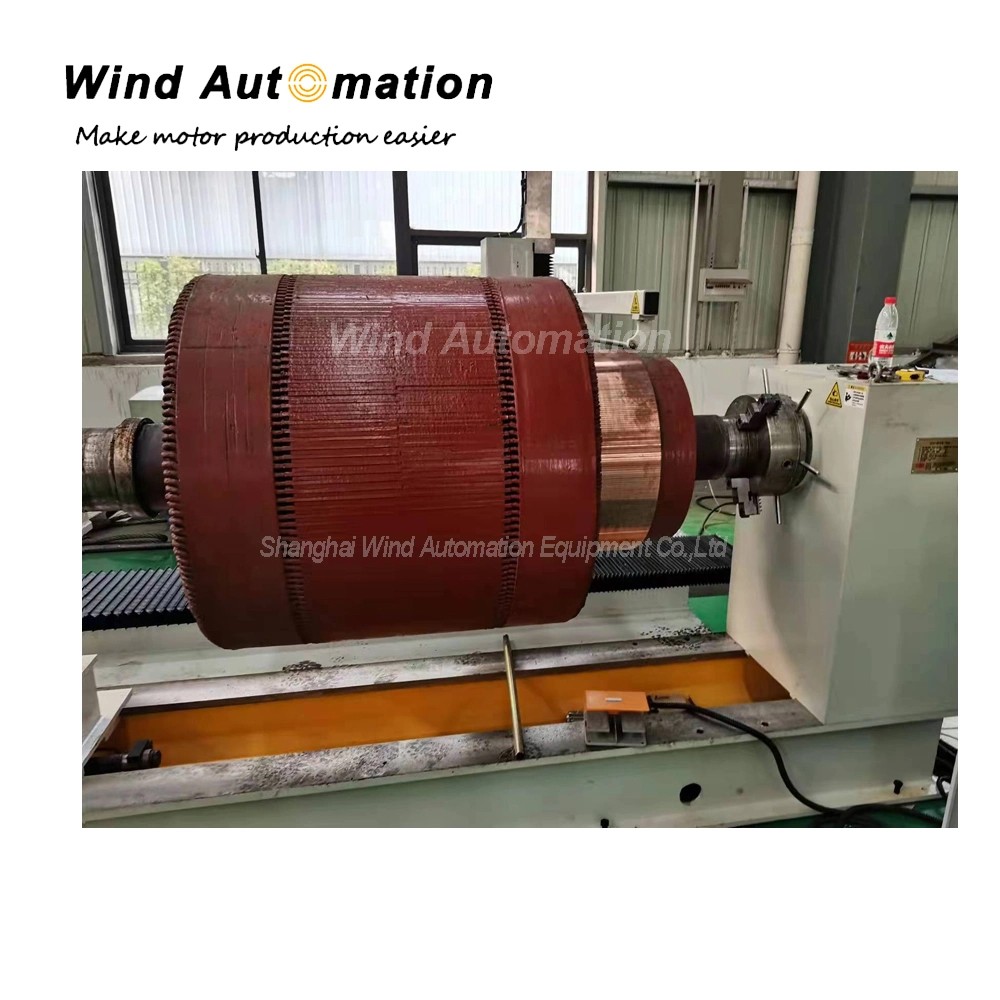

Machine Construction This cnn commutator undercutting machine equipment has
a machine bed, a fixed tailstock thimble, an adjustable thimble with clamping,
a hydraulic ram, a power lower engraving head on the ram, a hydraulic power system,
and an electrical control System, a set of dust collector.
Manually rotate the engine to position and press the button to carry out the undercutting.

Wind Automation is devoted to provide turn-key service to motor manufacturing suppliers. We supply a whole range of supply chain, including automatic motor production line, stand-alone as well as customized machines.


Commutator CNC undercutting machine

设备简介：General descriptions:

本设备由主机床身，固定式尾架顶针，可调式带夹紧的顶针，数控分度装置，伺服滑台及下刻伺服组件机构组成。换向器下刻分度采用伺服电机数控分度装置，下刻头进给及定位由数控伺服系统定位后，全自动数控加工，配有一套废料收集吸尘装置。

The equipment is composed of the main machine, fixed tail frame thimble, adjustable thimble with clamping, CNC indexing device, servo slide and undercutting servo assembly mechanism. The commutator undercutting indexing adopts servo motor CNC indexing device, after the feeding and positioning of the undercutting head are positioned by the CNC servo system, the automatic CNC machining is carried out, and a set of waste collection and dust suction device is equipped.

技术参数：Technical parameters:

1. 操作高度：工件中心离地1200mm

   Operation height: the center of workpiece is 1200mm from the ground.

2. 工件铁芯直径：最大Ф1200mm（顶针中心高600mm）

   Iron core diameter of workpiece: max. φ1200mm (thimble center height 600mm).

3. 工件换向器直径：最大Ф800mm

   Commutator diameter of workpiece: max. Φ800mm.

4. 工件转轴长度：3000mm

   Rotating shaft length of workpiece: 3000mm.

5. 换向器长度：最大500mm

   Commutator length: max. 500mm.

6. 刻槽铣刀直径：Ф23mm，铣刀离地1000mm

   Grooving milling cutter diameter: φ23mm, milling cutter from the ground 1000mm

7. 刻槽铣刀转速：2800r/min，功率1.5千瓦

   Grooving milling cutter speed: 2800r/min, power 1.5kW

8. 工件转子重量：最大5吨

   Rotor weight of workpiece: max. 5T

   9、分度采用伺服电机，进给采用伺服电机。

   Indexing by servo motor, feeding by servo motor.
