BLDC-Motor-Coil-Winder-with-Needle-Winding

Product Description

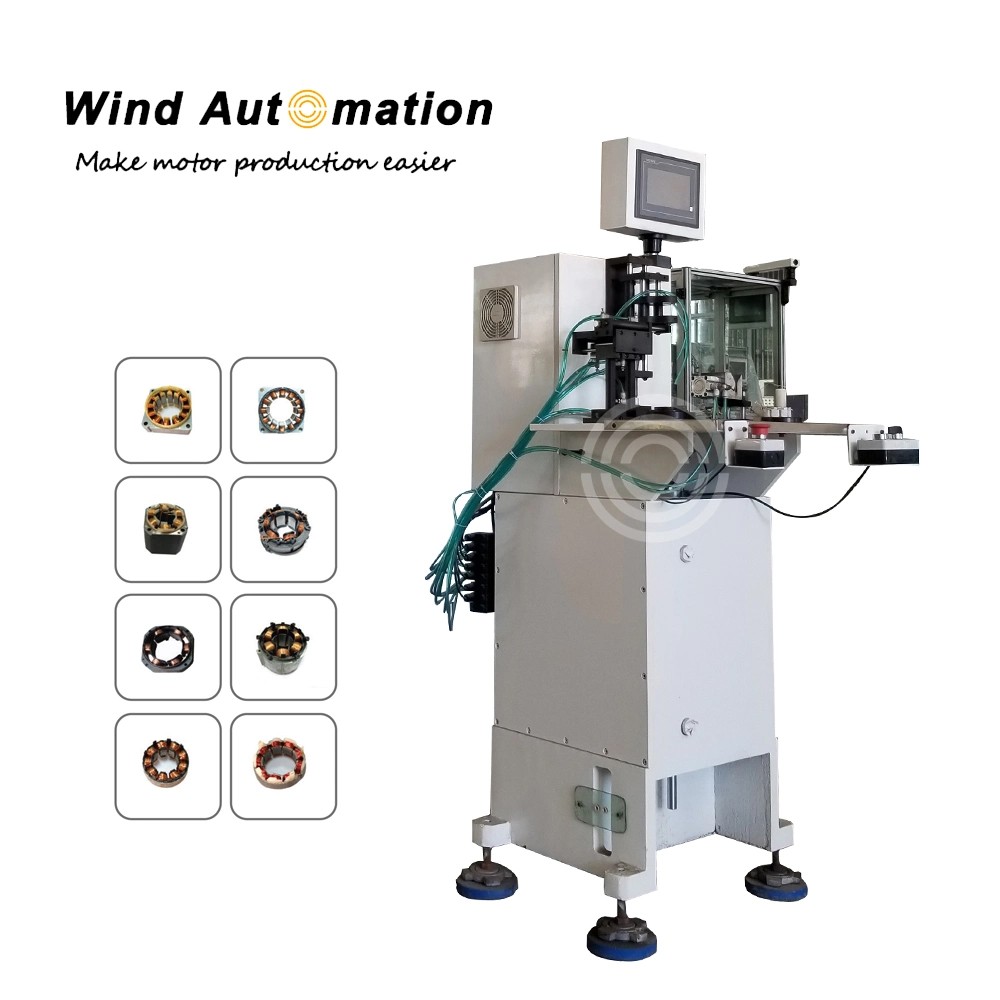

BLDC Motor Coil Winder with Needle Winding

This coil winder is designed to wind various BLDC motor stators  with a high number of turns per tooth.  The precision needle winding performance brings a high level of quality and efficiency.

(1)Features
Rectangle winding track
Precision performance of needle winding
Winding speed adjustable according to wire diameter
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling

(2)Application

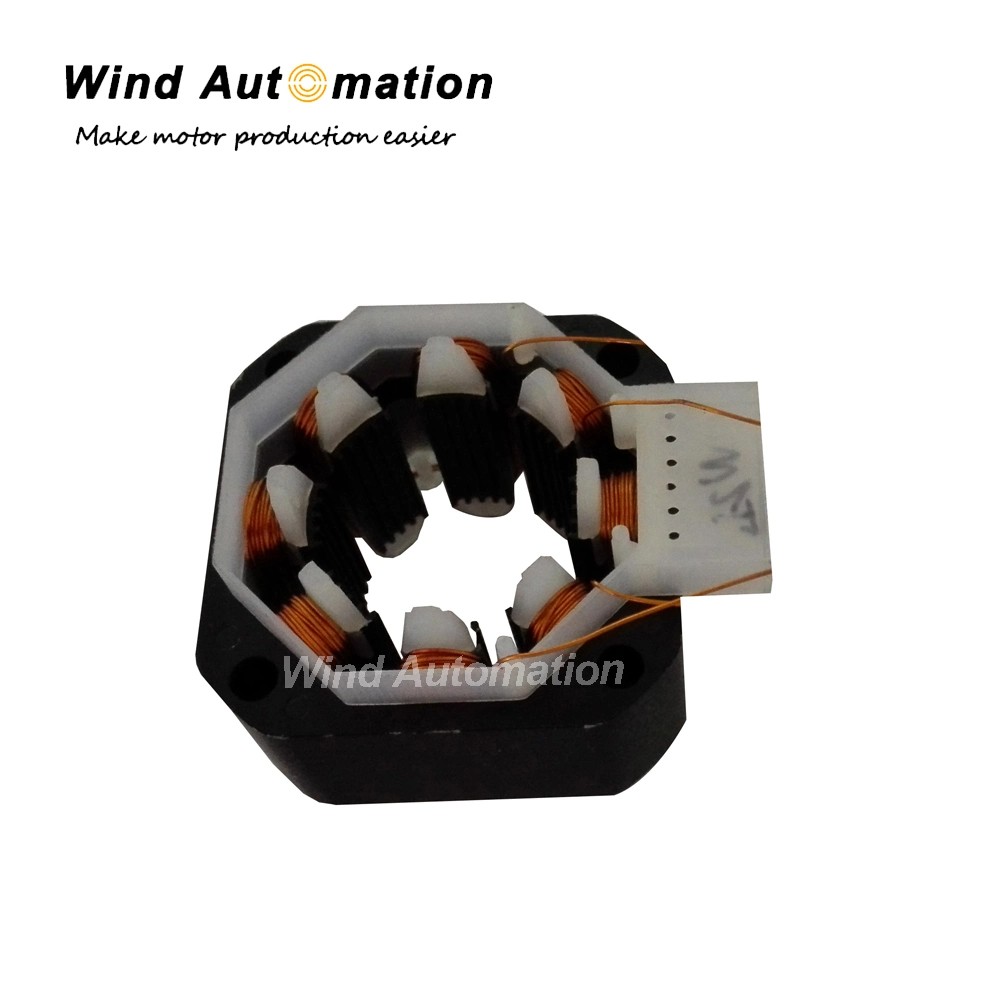

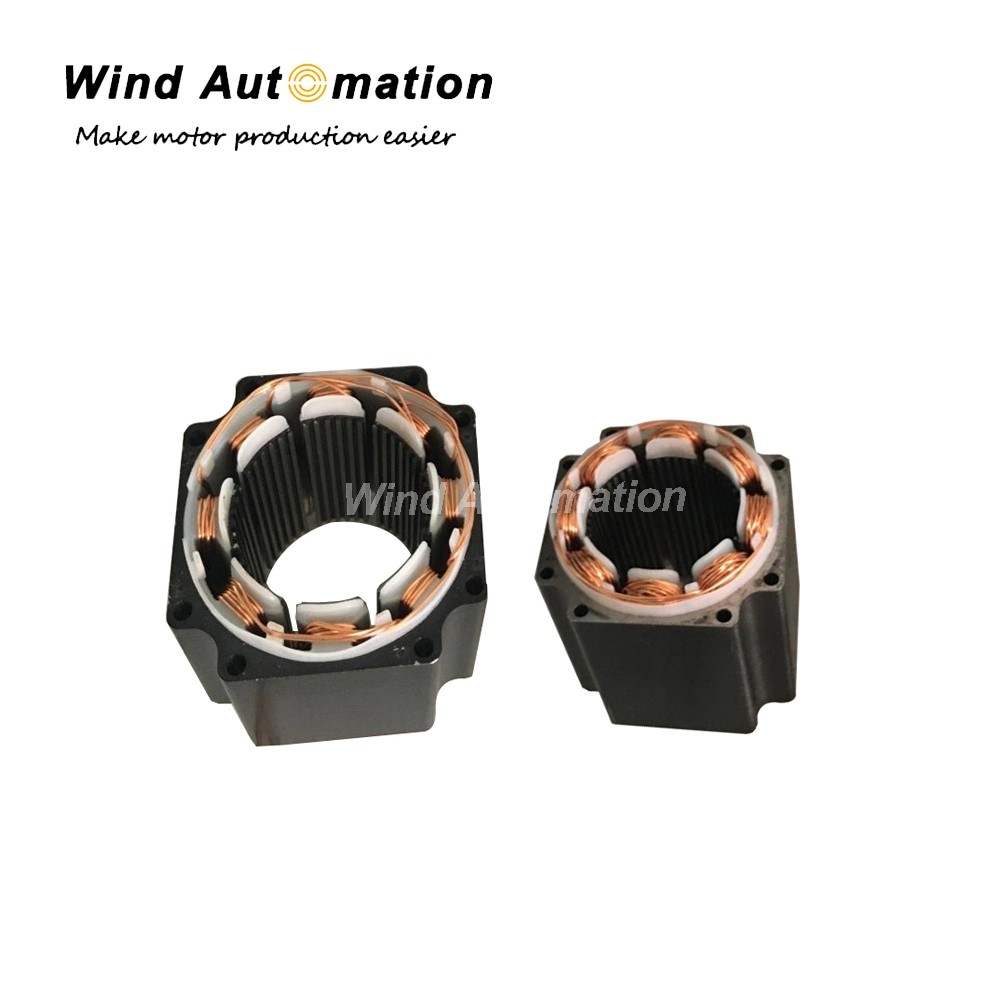

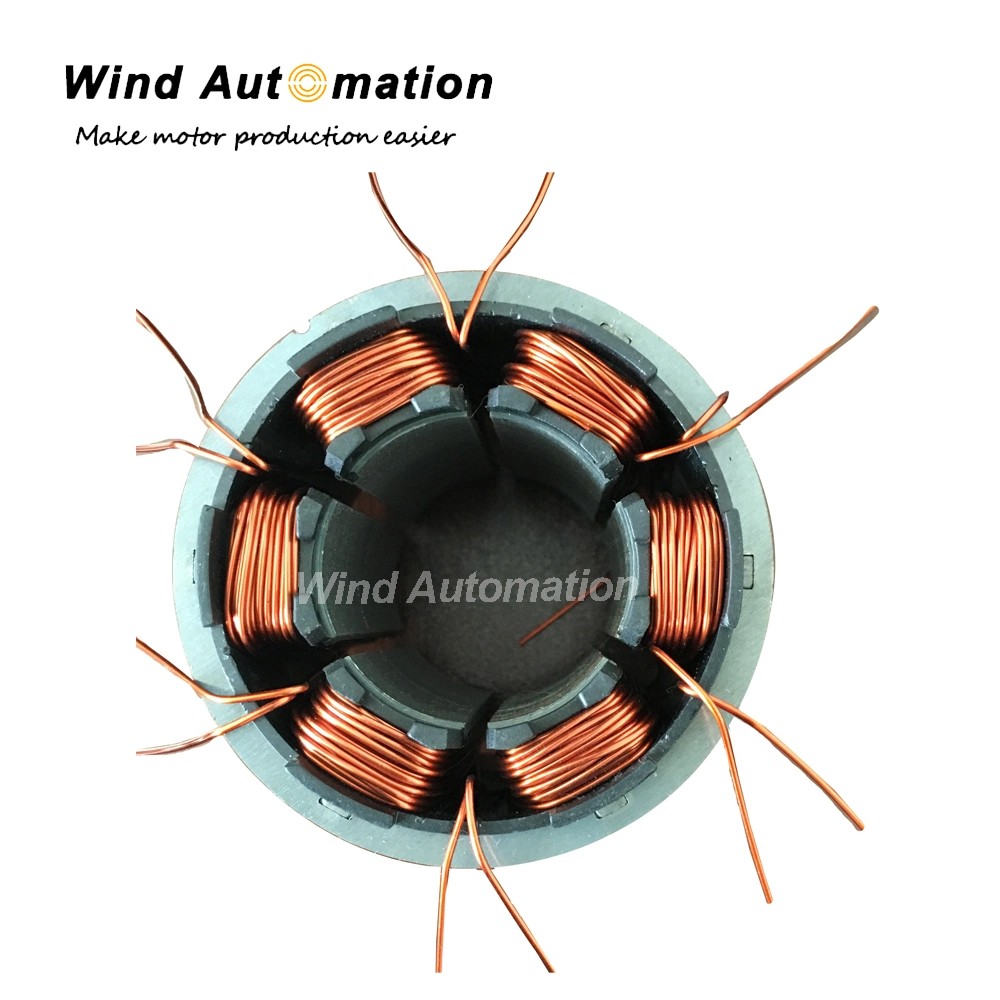

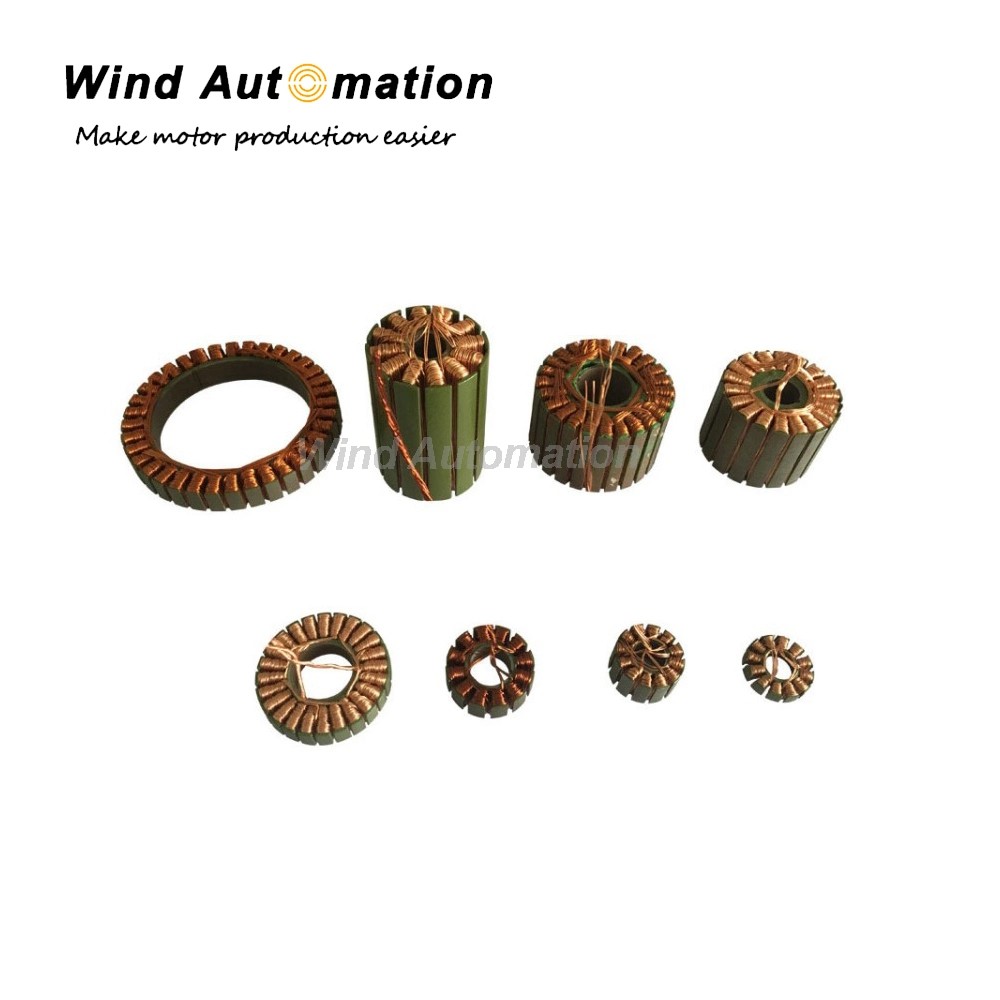

Suitable for various types BLDC motor stators with narrow slot width and heavy wire but high slot filling rate.

(3)Specification

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and dual spindle synchronous control unit
Lubrication system

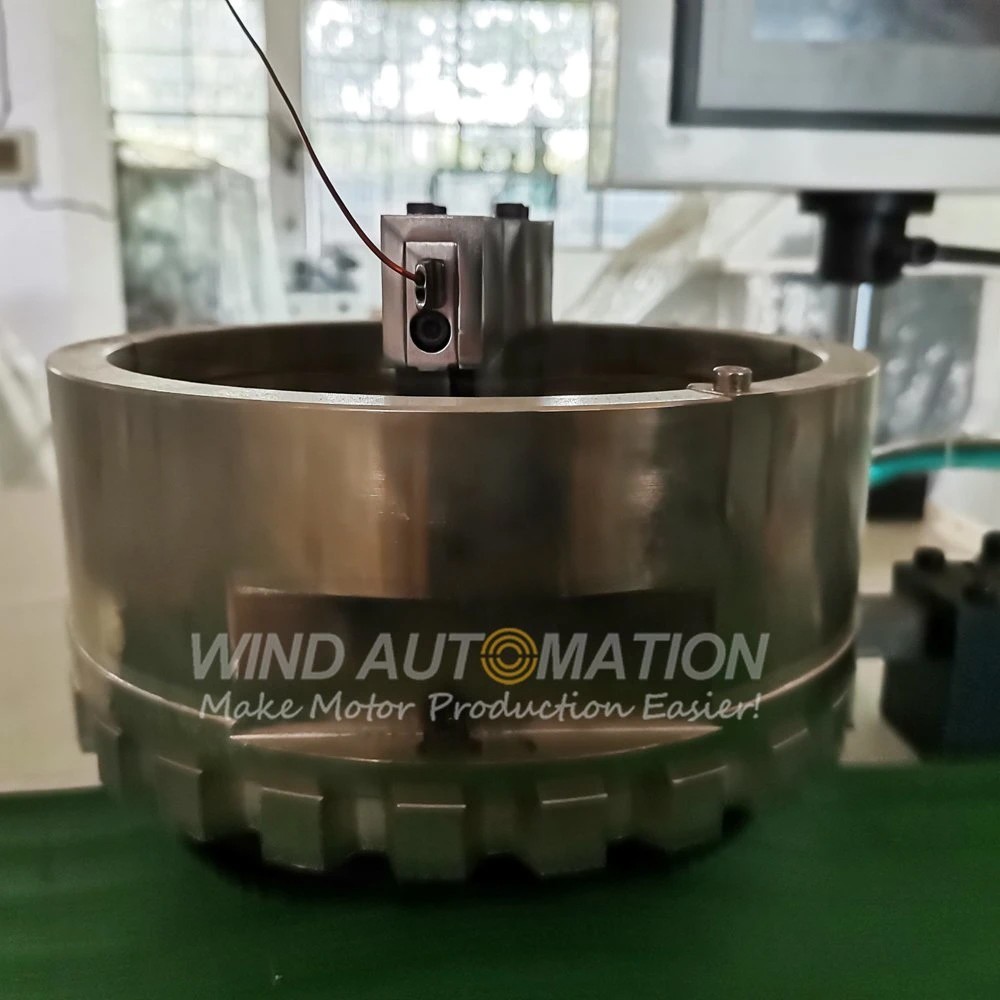

(5)Machine working station
