Motorcycle Motor Armature Winding Machine Coil Winder

Motorcycle Motor Armature Winding Machine Coil Winder

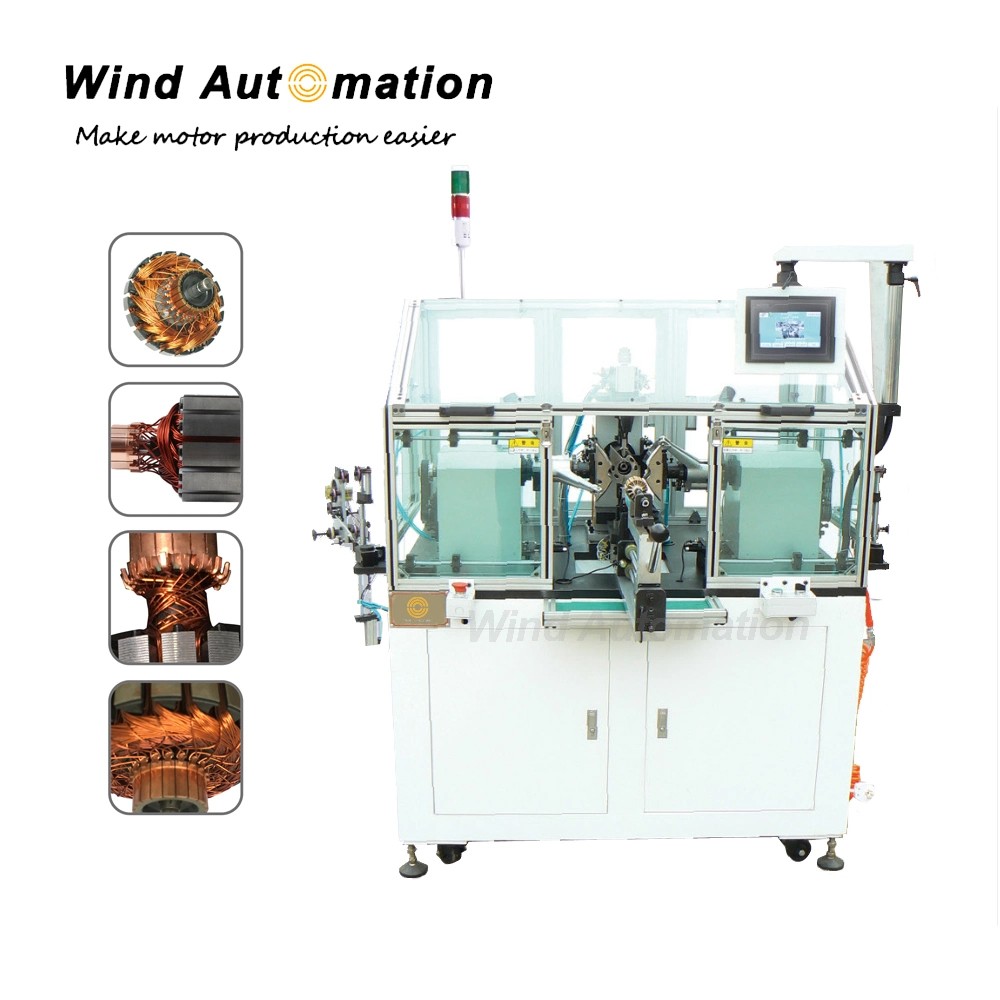

This winding machine is suitable for high-speed winding of medium and big wire diameter armature with hook-type commutator. The winding process is done by two flyers. It can be connected with a production line to realize online automatic production. It can save up to 99 sets armature parameter.

(1) Specification

Wire range0.15~1.26mm
Armature OD20~90mm
Stack height10~130mm
Commutator OD8~50mm
MovementJog/auto
Slot No.Odd/Even
Turn No.0~9999
Flyer speed0~2000rpm
Power supplyAC 220V  50/60HZ
Air source5~7kg/cm3
Power3.5KW
Weight830KG
Dimension1450x1050x1650mm


(2) Application
This machine is widely used in the winding of DC and series excited motor rotors.


(3)Machine configuration
Mitsubishi PLC
Delta servo control system
Touch screen
Airtac pneumatic system and air source treatment
Fully automatic feeding device (can be connected with production line)
Hysteresis tension control unit
HIWIN linear guide


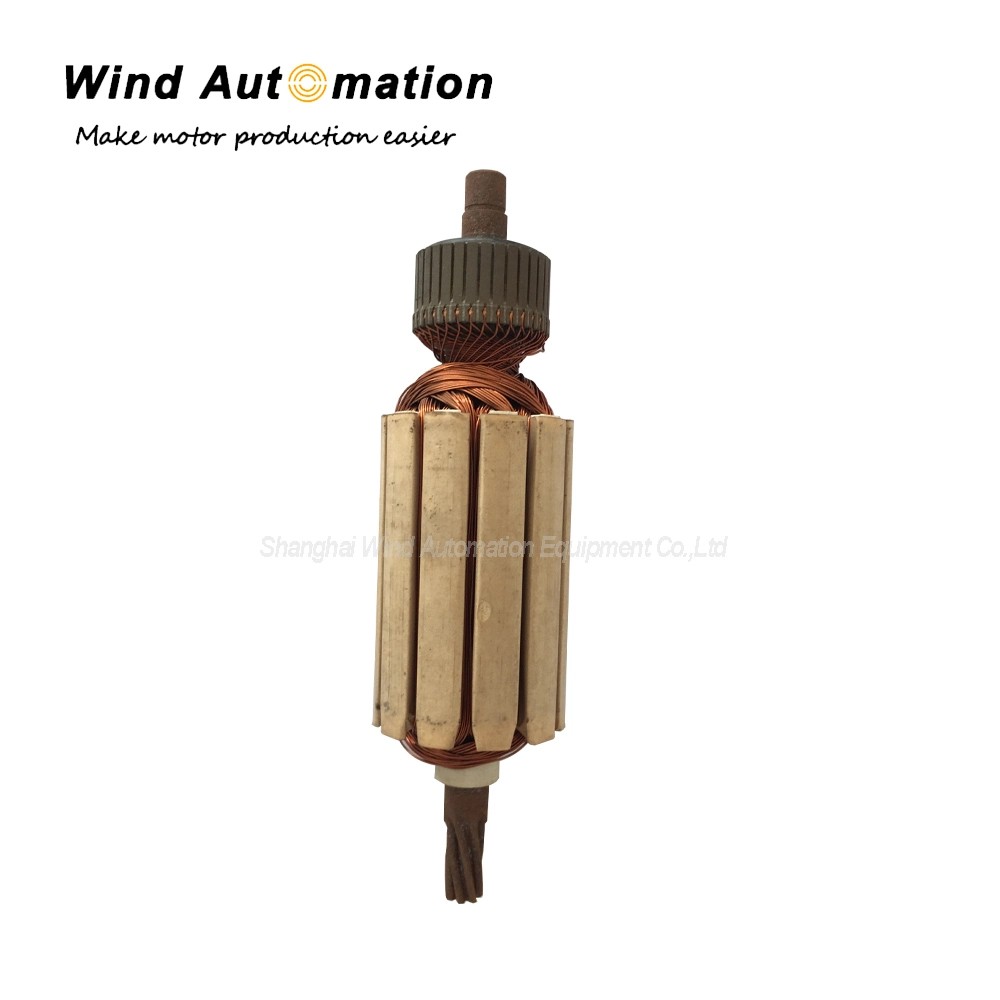

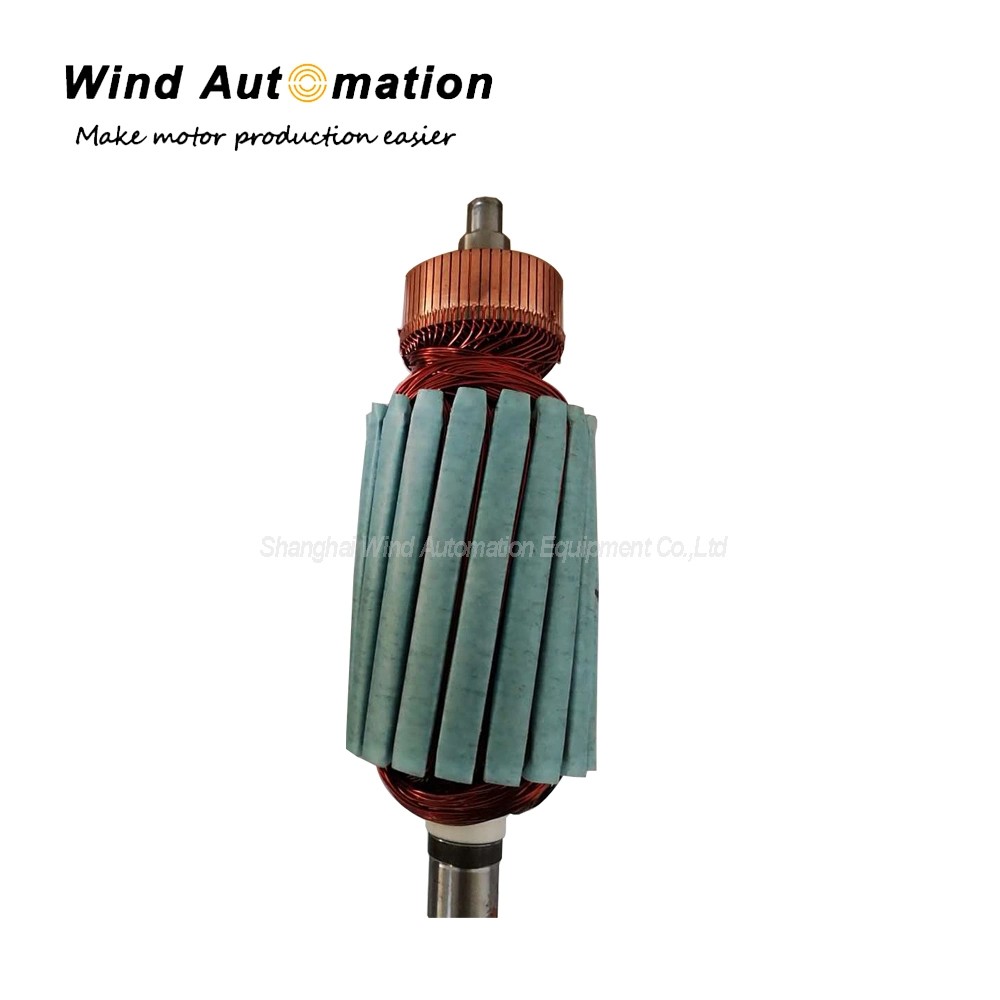

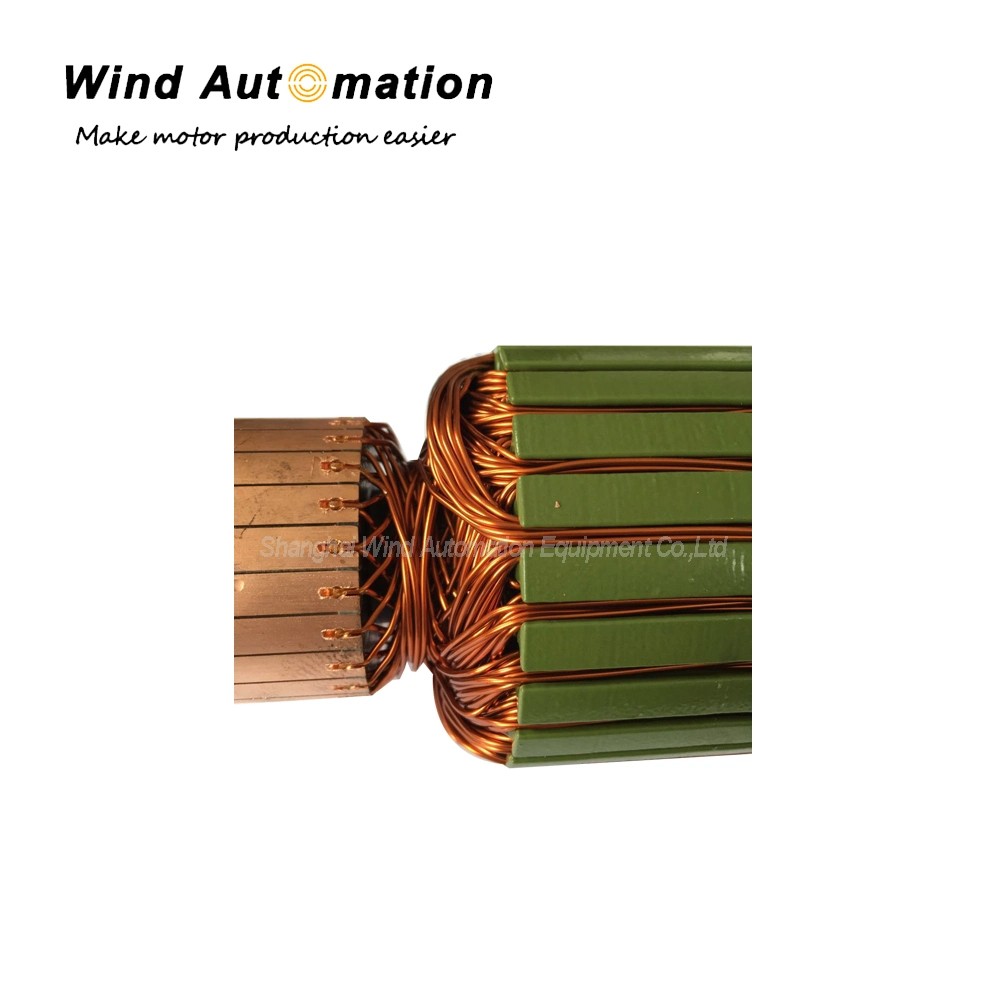

Motorcycle Motor Armature Winding Machine Coil Winder Motorcycle Motor Armature Winding Machine Coil Winder
Motorcycle Motor Armature Winding Machine Coil Winder
