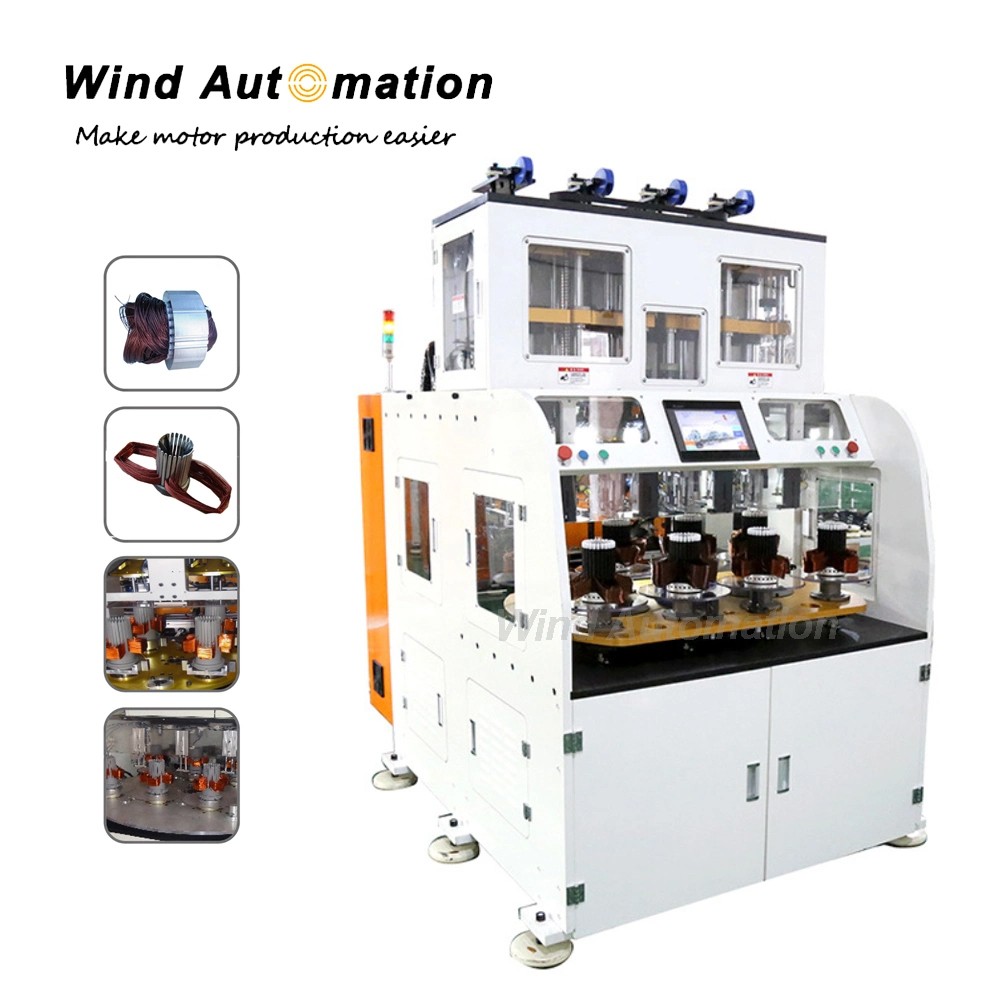

Motor Coil Winding Machine for Compressor Stator

This type of machine is suitable for 2 poles, 4 poles, 6 poles stator to do coil winding. It will directly wind coils into a winding form, easy for coil inserting process. After winding, coils should be unloaded manually.

(1) Specification

(2) Feature
4 winding head 8 working station
Manual unloading coils after winding
Rotation and indexing controlled by servo system
No distinct vibration or noise during winding
Automatically stop if wire is run out
All winding parameter programmable on touch screen

(3) Application
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(4)Operation step
Thread wire into the machine
Connect the power and air source
Turn on the machine, and press "reset" button to reset the machine
Put the winding form on the indexing plate
Press "cut wire"
Press "start" button by two hands, machine will automatically wind the stator.
