Automatic-Stator-Paper-Insertion-Machine-for-Induction-Motor-Manufacturing

Basic Info.

Model NO.

WIND-160-SI

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

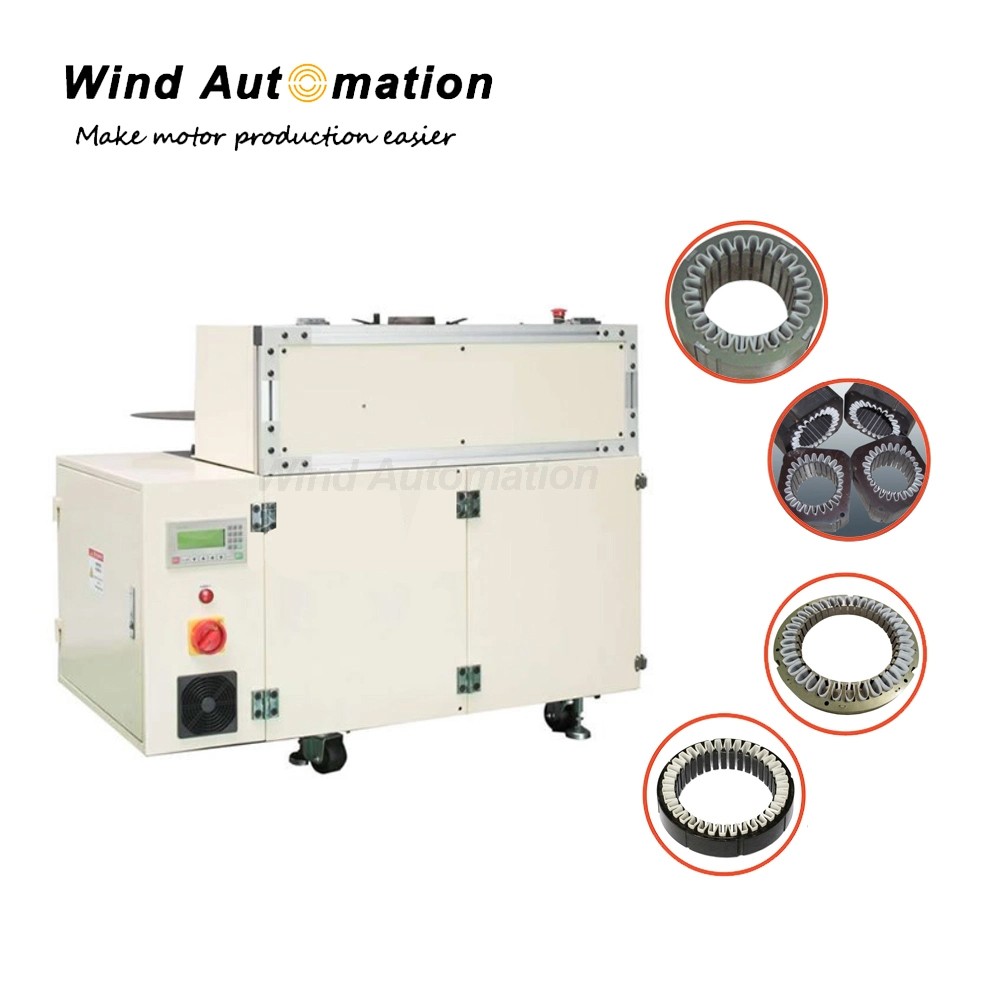

Automatic Stator Paper Insertion Machine For Induction Motor Manufacturing

Automatic Stator Paper Insertion Machine for Induction Motor Manufacturing

This machine is suitable for small size stator with OD within 190mm.

(1) Specification

Stack length	20~160mm
Stator ID	50~120mm
Stator OD	Max 190mm
Cuff height	2~4mm/4~7mm
Paper thickness	0.188~0.35mm
Cycle time	0.8 s/slot
Power supply	380V 50/60HZ
Weight	250KG
Dimension	1200x650x1200mm

(2) Feature
Manual loading and unloading
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator requiredLow noise, high efficiency
Production capacity ≤1s/slot (exclude the loading/unloading time)
Can be customized accordingly
High quality level of the paper inserting process
High repeatability of the insulation's shape and length

(3) Application
This machine is suitable for small and medium-sized three phase motor, single phase motor, external rotor motor and generator.
Automatic Stator Paper Insertion Machine for Induction Motor Manufacturing
