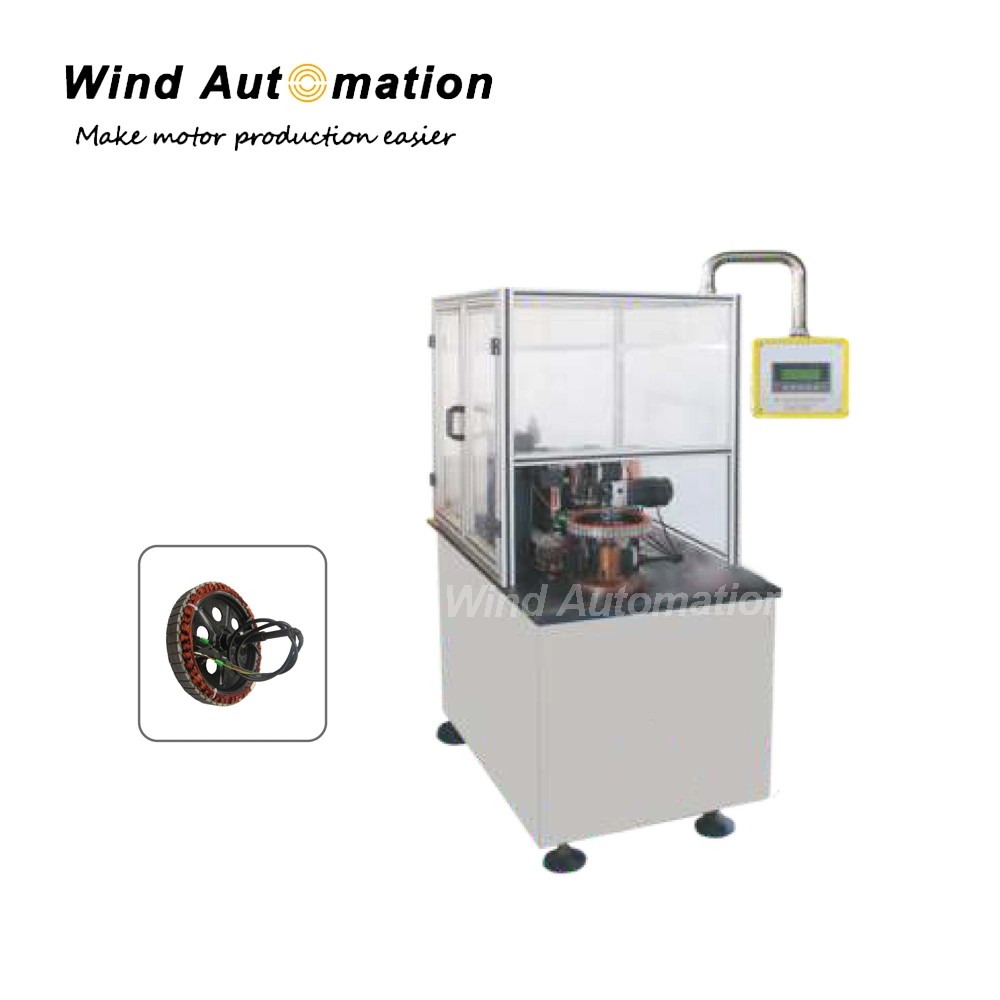

Single Station Hub Motor Wheel Motor Winding Machine
This machine is suitable electric bicycle stator to do automatic winding. Manual loading & unloading, positioning and wire cut. Machine will do automatic indexing and winding.
(1)Specification
| Power supply | AC 220V |
| Air pressure | 0.5~0.7MPa |
| Total power | 2KW |
| Stator OD | 198/266mm |
| Stack length | 14~50mm |
| Wire diameter | 0.3~0.6mm |
| Number of wire | 1~13 |
(2)Application
Suitable for hub motor, Electric Bicycle, BLDC Engine, E-Bike, wheel motor.
(3)Features
No skilled operator required
This machine can be customized accordingly
Rigid design frame
Fully automatic working cycle after loading
Quick change-over of tooling
PLC control, fault display
