Household Electrical Appliances Motor Electric Motor Testing Machine

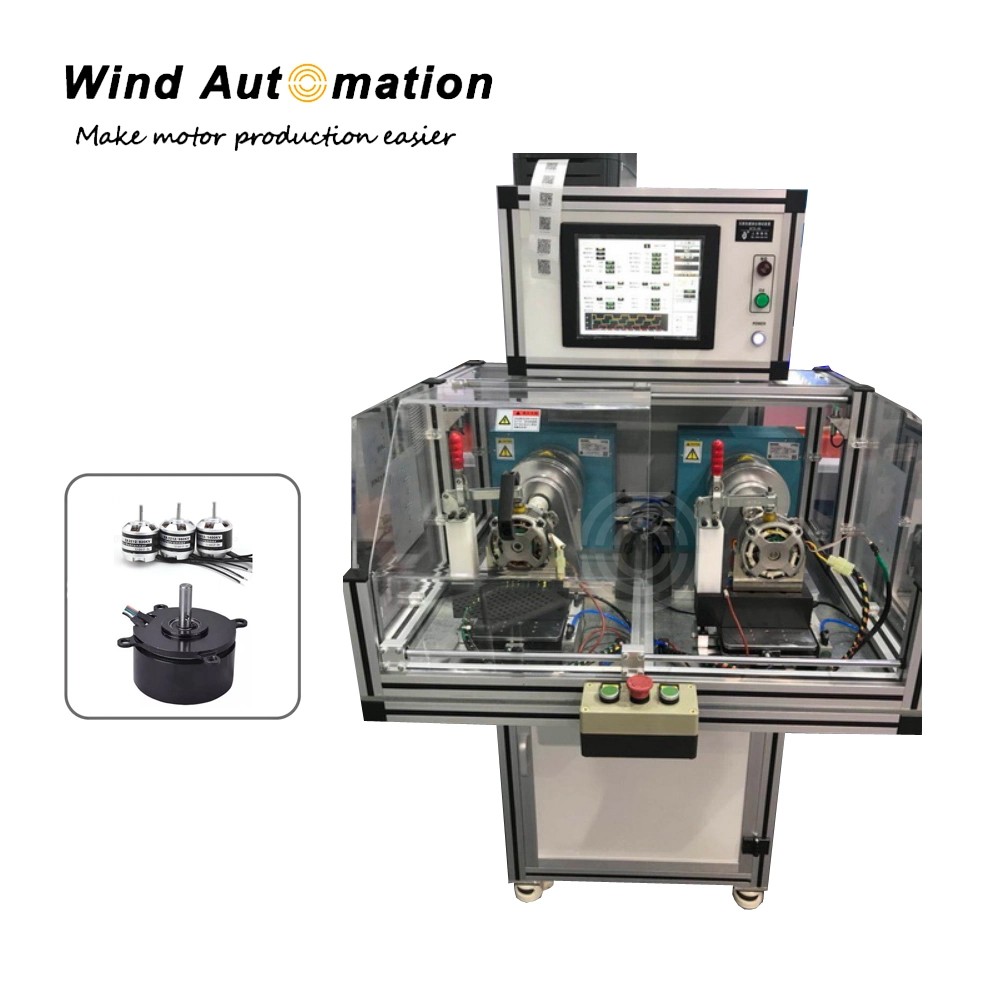

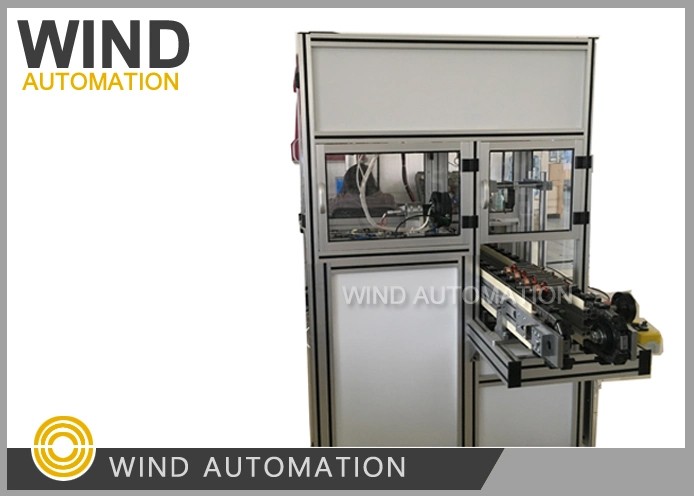

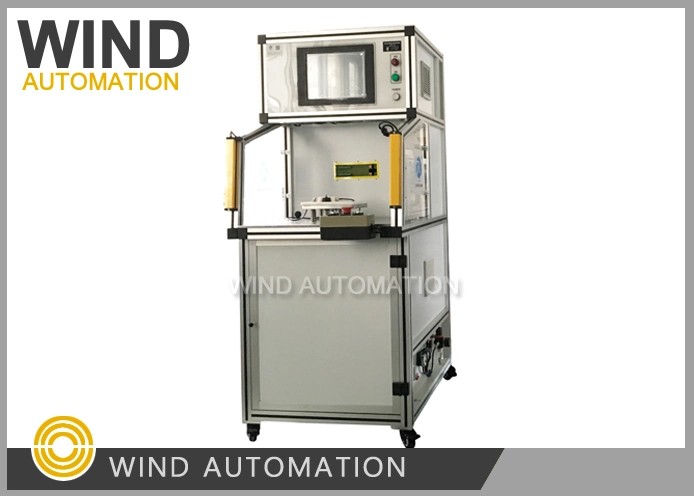

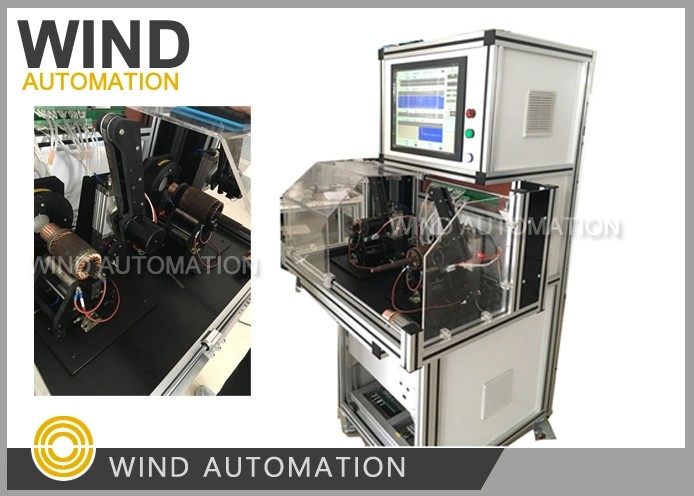

This testing machine is a fully automatic machine for motor performance testing. All the test quality report can be generated and printed.Machine has various testing options available to do testing.
(1)Machine specifications
| Power Supply Voltage | AC 220V, 50Hz |
| Air source Pressure | 0.4~0.6MPa |
| Test cycle | 8~9s (according to 33bars) |
| Temperature | 0~45ºC |
| Dimension | 950x1250x580mm |
(2)Testing specifications
| Test Items | Test Description | Accuracy |
| Bar to Bar resistance | 0.001Ω~1000Ω (Automatic ambient temperature compensation) | ≤±0.5% Full scale |
| Welding resistance | 0.001mΩ-10mΩ | ±10μΩ |
| Cross resistance | 0.01Ω-1000Ω (Automatic ambient temperature compensation) | ≤±0.5% Full scale |
| Surge | 100-2000Vpp (Max 3sets waveform) | ±2.5% |
| Isolation resistance | DC 500V/1000V | 0.1-500MΩ ≤±2.5% Full scale |
| Hipot | AC 100-2000V | 0-20mA ≤±2.5% Full scale |
(3) Application

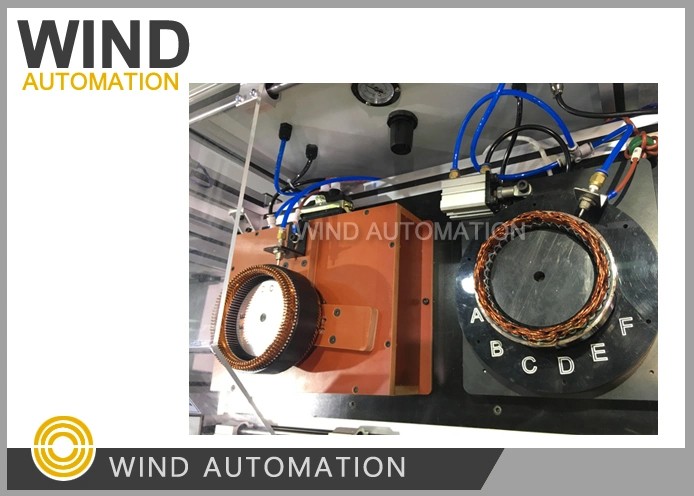

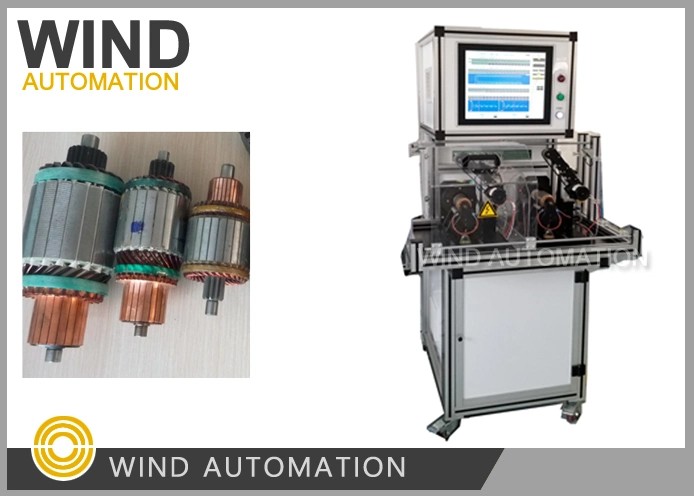

Suitable for various types of DC motor armatures to do performance testing.
(4) Features
1. Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)
Four-terminal measurement to ensure accuracy
2. Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)
Six-terminal measurement to ensure accuracy
3. Cross resistance 0.01mΩ-10mΩ
Four-terminal measurement to ensure accuracy
4.Surge 100-1000V (100V/time)
Pulse crest:0.5u sec, Frequency 1~40MHz
Standard waveform is Write, OK waveform is Green, NG waveform is Red
5.Isolation resistance DC 500V
Testing time:1~10s (0.1s/time)
Range:1~500MΩ
Accuracy: ≤±5%
6.Hipot AC 100-1000V
Testing time:1~10s (0.1s/time)
(5)Machine configuration
15'' Touch screen
Sampling Chip: BB/TI (USA import)
Relay:NAIS(Japan Panasonic)
High voltage relay:Toward
Pneumatic parts: Airtac
