Armature-Winder-with-Two-Flier-Slot-Wire-Winding-Machine

Basic Info.

Model NO.

WIND-2-TD

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

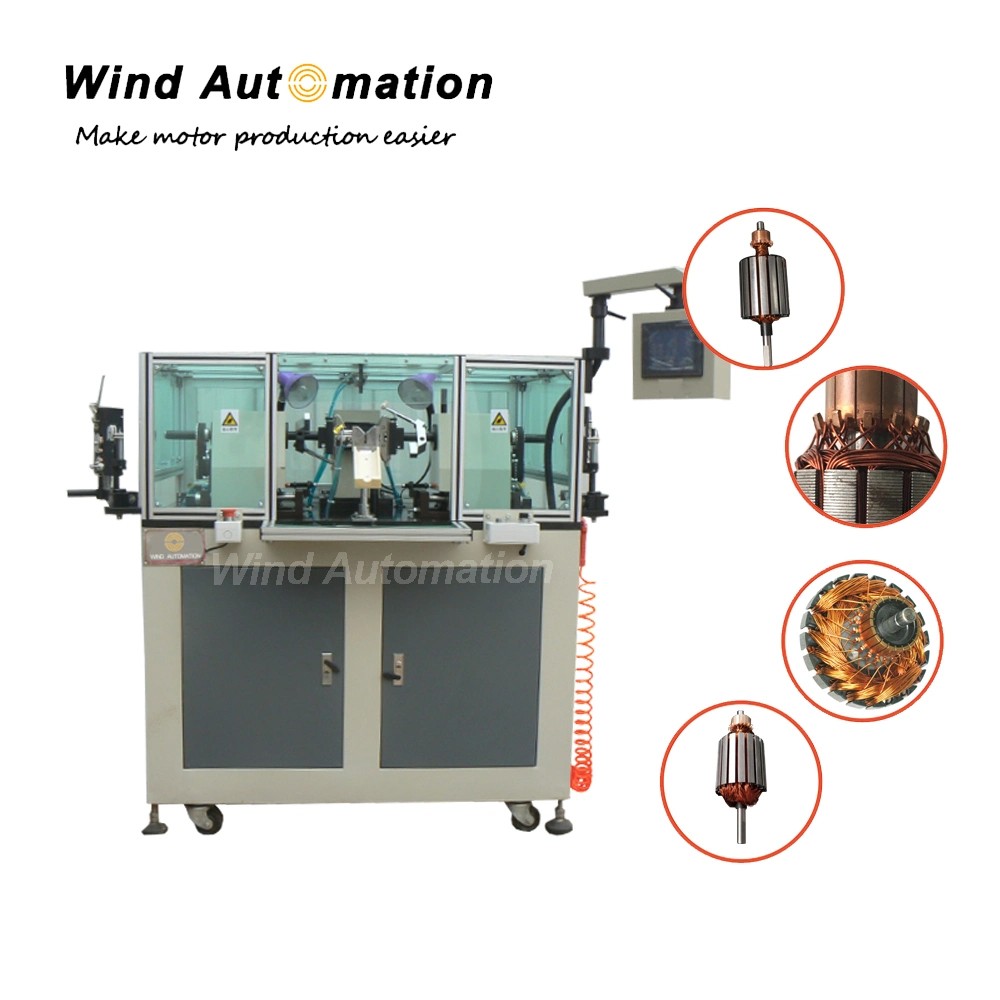

Armature Winder With Two Flier Slot Wire Winding Machine

Armature Winder with Two Flier Slot Wire Winding Machine

This machine can be connected with a production line to realize online automatic production. It is suitable for high-speed winding of medium and big wire diameter rotors.

(1) Application
This machine is widely used in the winding of DC and series excited motor rotors.

(2) Specification

Wire range0.05~0.7mm
Armature OD20~70mm
Stack height10~90mm
Commutator OD8~40mm
MovementJog/auto
Slot No.Odd/Even
Turn No.0~9999
Flyer speed0~3000rpm
Power supplyAC 220V  50/60HZ
Air source5~7kg/cm3
Power2.5KW
Weight350KG
Dimension1450x930x1500mm


(3)Machine configuration
Mitsubishi PLC
Delta servo control system
Touch screen
Airtac pneumatic system and air source treatment
Fully automatic feeding device (can be connected with production line)
Hysteresis tension control unit
HIWIN linear guide


Armature Winder with Two Flier Slot Wire Winding MachineArmature Winder with Two Flier Slot Wire Winding Machine
Armature Winder with Two Flier Slot Wire Winding Machine
