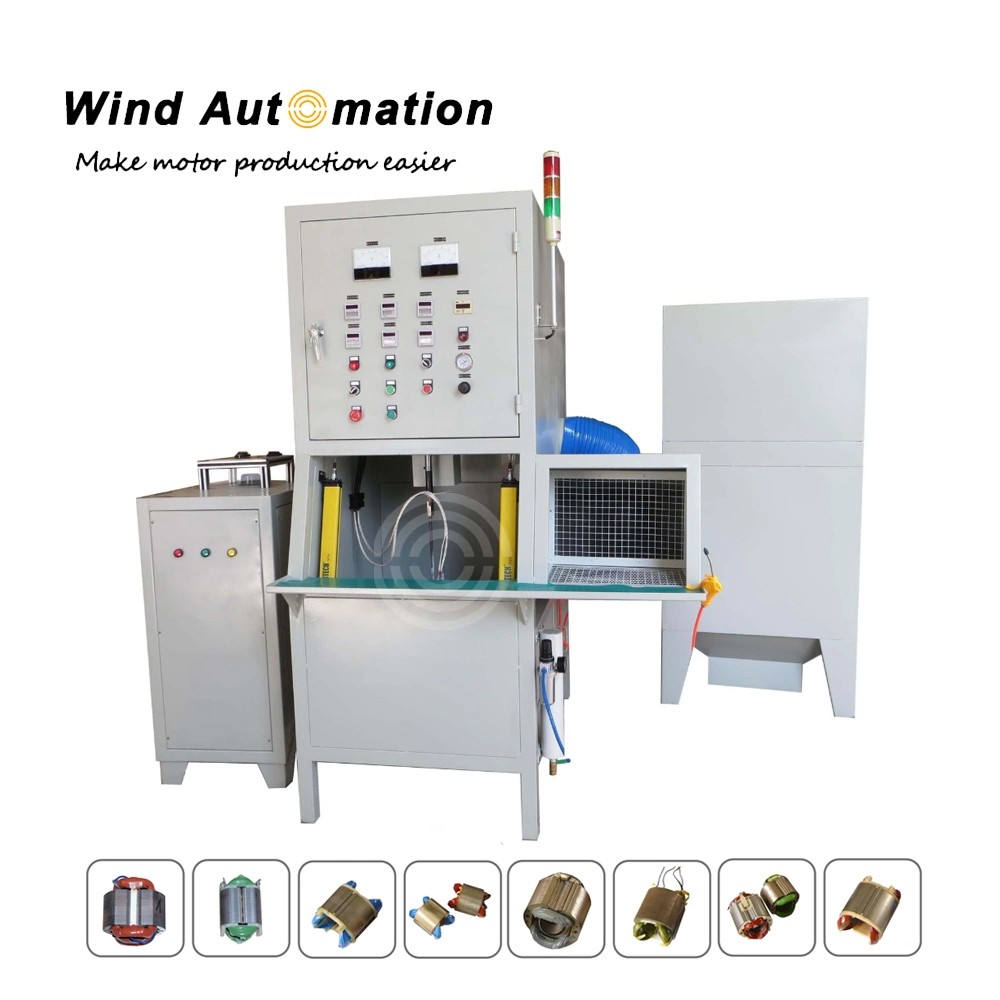

Resign Coating Machine 3M Powder Coater
This powder coater is suitable for 3M powder. Pre-heat stator in the oven to the required temperature, then load stator to powder coating machine. Unload it after powder coating. Then put stator into oven to curring.
(1) Operation process
| No. | Step | Time | Temperature |
| 1 | Cover stator lamination with sticker, then put stator into oven to bake. | Keep heating for 30min | 200ºC, according to powder feature and actual ambient temperature |
| 2 | Manually put stator into fixture, then hold the fixture to powder coating area. Dip it into the fluidization powder. | 5 times (make sure the rough side is upward. ) | according to coating thickness |
| 3 | After powder coating, unload stator. Then remove the sticker. Put stator aside. | ||
| 4 | After all stators has been powder coated, put all these into oven to cure. | Keep heating for 40min | 200ºC, according to powder feature |
| 5 | After curing and put stators aside to let them cooling down. |
(2) Secification
| Dimension | 3058x1720x2100mm |
| Power supply | 380V ±10% 50HZ |
| Air supply | 0.6MPa |
| Power of oven | 9.5KW |
| Power of coating machine | 2.2KW |
(3) Information needed for inquiry
1. Stator lamination drawing
2. Stator stack drawing
3. Power coating thickness
4. Stator application
5. Required productivity
6. Other technical requirement
