Product Description

Litz Coil Twisting machine Machine

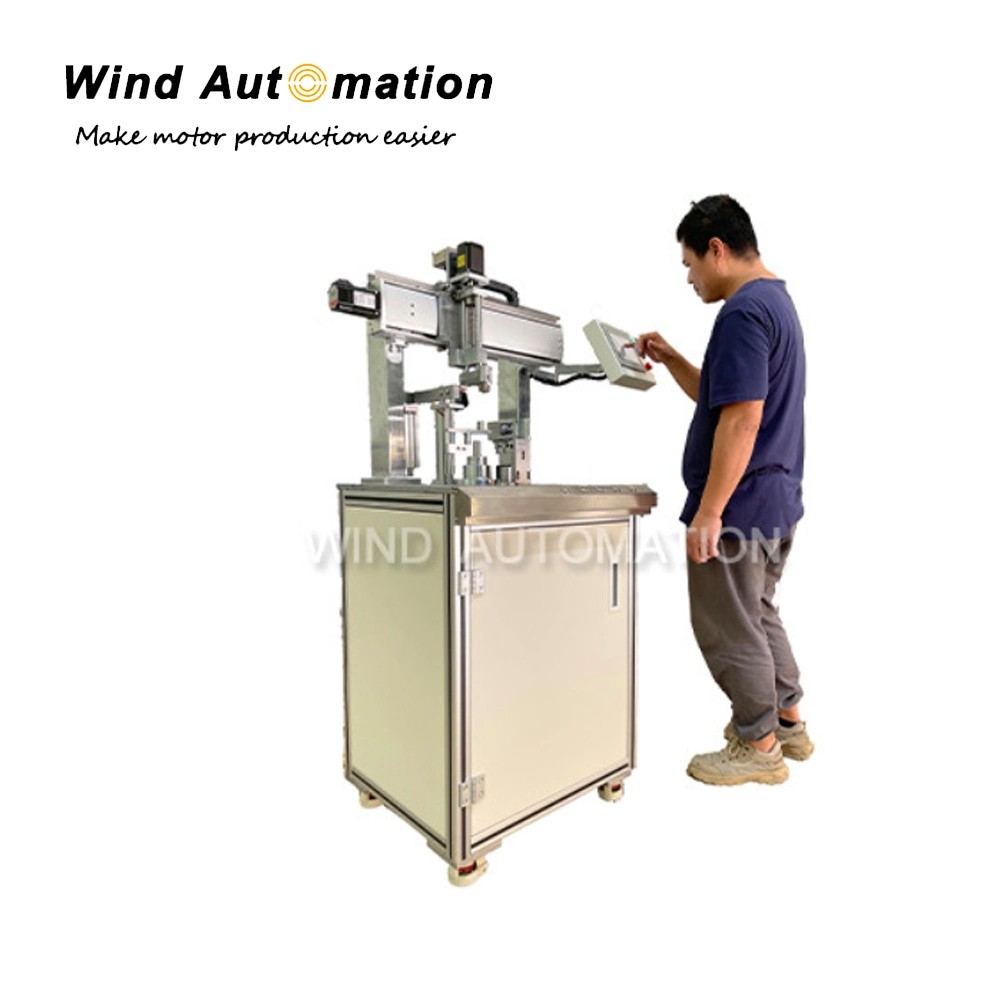

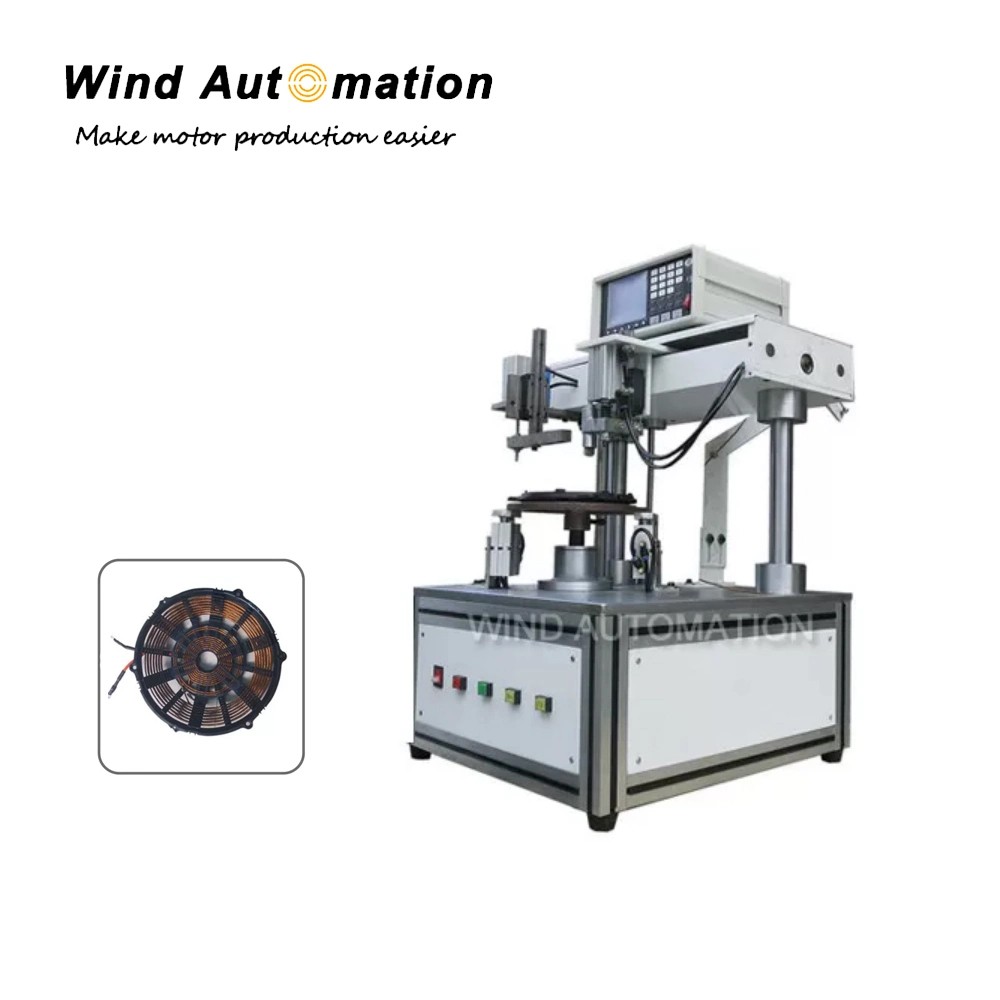

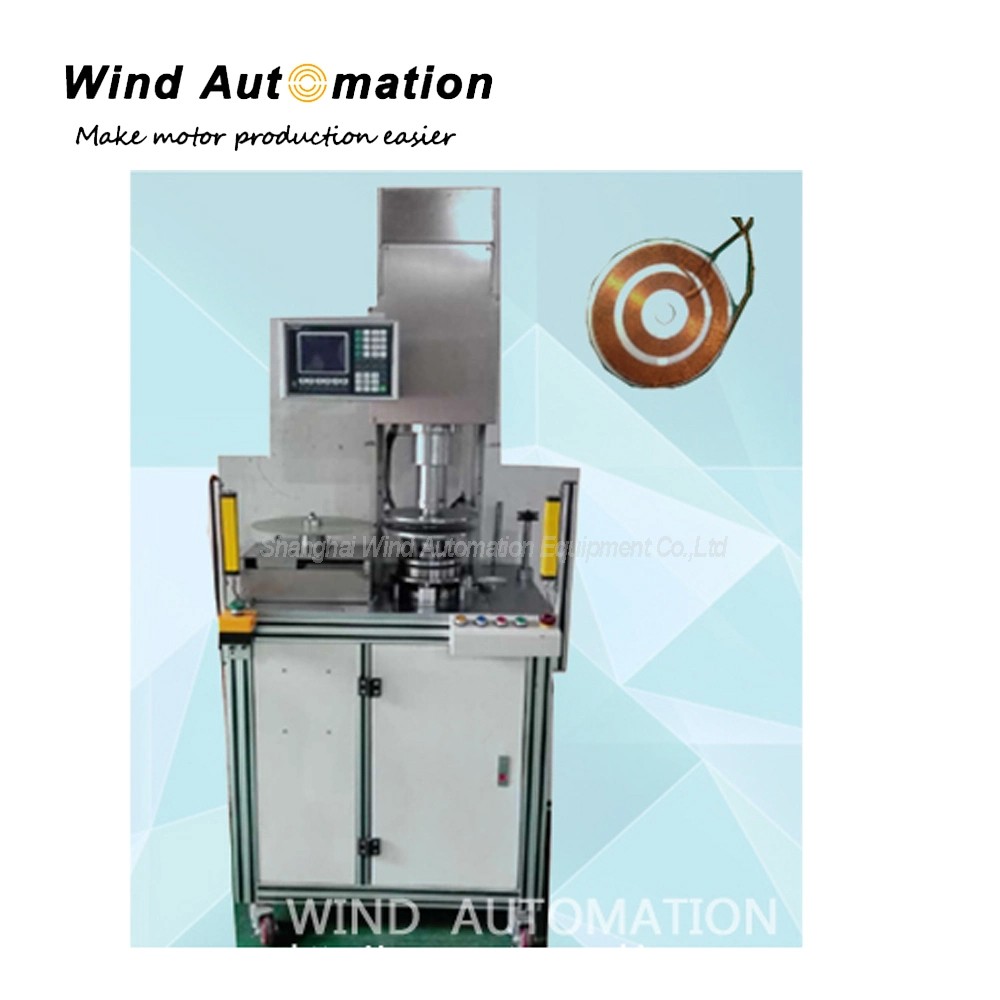

Induction Heater Coil Disk Winding Machine

Induction cooker coil disk dense winding machine WIND-IH-DW wind the litz wire on induction heater
cookertop disk

Advantages
1. Wind at the top side, press from the side face, ensure the winding precision and dense quality
2. Own developed PLC worked for famous cooker top manufacturers including
Media, Supor which are leaders in induction heater field

Specification
Main spindle speed: 0~5000 rpm adjustable
Wire diameter:0.3~5.0mm
Main motor: 1000W servo motor,220V
Array motor: Stepper motor
Dimension: 800*500*1100mm
Part of Coil disk handled by coil winding machine
