Product Description

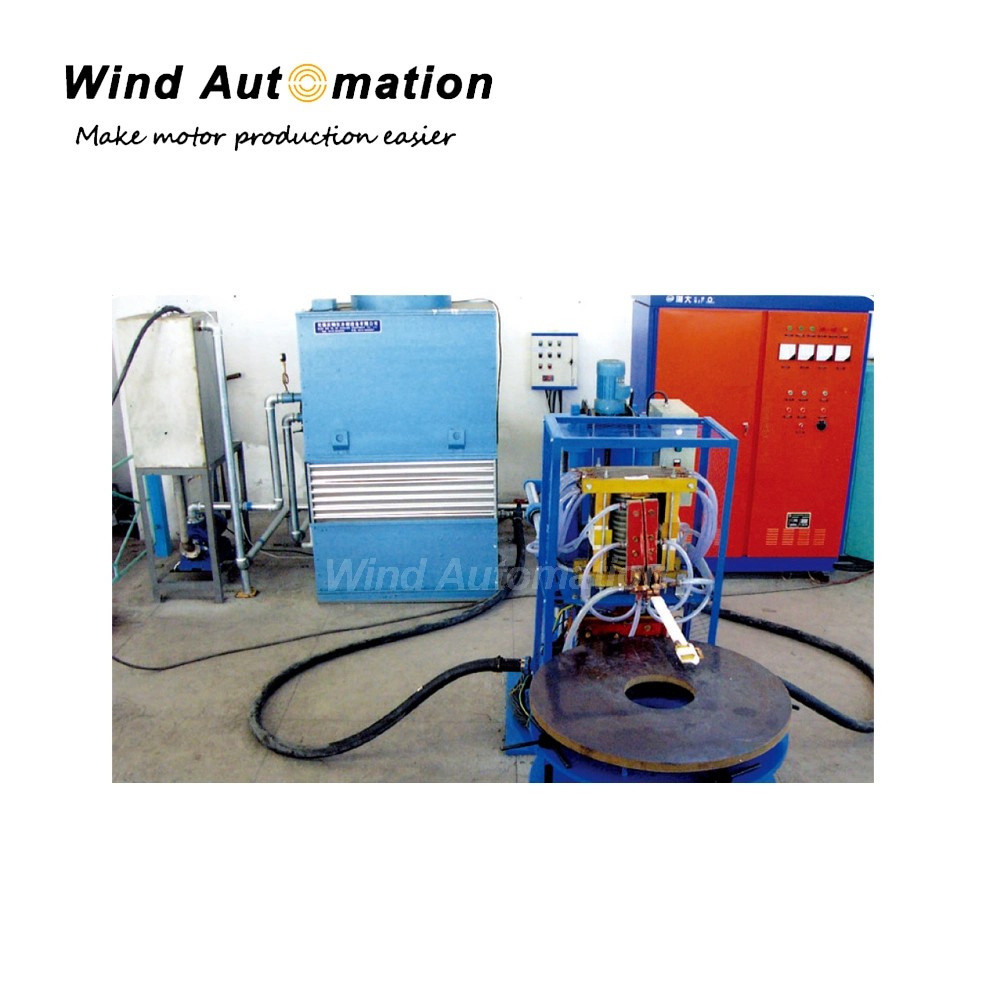

Electrical Intermediate Frequency Welding Machine for Short Circuit Ring

Specification

1.Including: intermediate frequency power supply, cooling box of internal circulation, water tank, medium frequency transformer, capacitor, transformer crane with 3 coordinate, turning table for short circuit ring welding, roller carrier of rotor joint welding, intermediate frequency induction coil of 3 forms, etc;

2.Use imported transistor, RCBT, 160kw, 800HZ intermediate frequency power supply, automatic power output of stepless change between 50~90%;

3.Transformer crane with 3 coordinate, up and down range: 750mm, reach of cross arm max. 1200mm, min. 500mm, rotation 270°, lifting speed: 200mm/min;

4.Welding parameter:

4.1 Short circuit ring welding: (arc coil) DC voltage lower than 500V, DC current lower than 300ampere, 12 capacitors linking;

4.2 Joint welding: (ring coil) DC voltage lower than 300V, DC current lower than 100ampere, 8 capacitors linking ;

4.3 Plate welding: (plate coil) DC voltage lower than 220V, DC current lower than 75ampere, 6~8 capacitors linking;

5.Installation and debugging of complete equipment, connecting line between equipments.
