Meat-Grinder-Stator-Coil-Epoxy-Powder-Coating-Machinery

Product Description

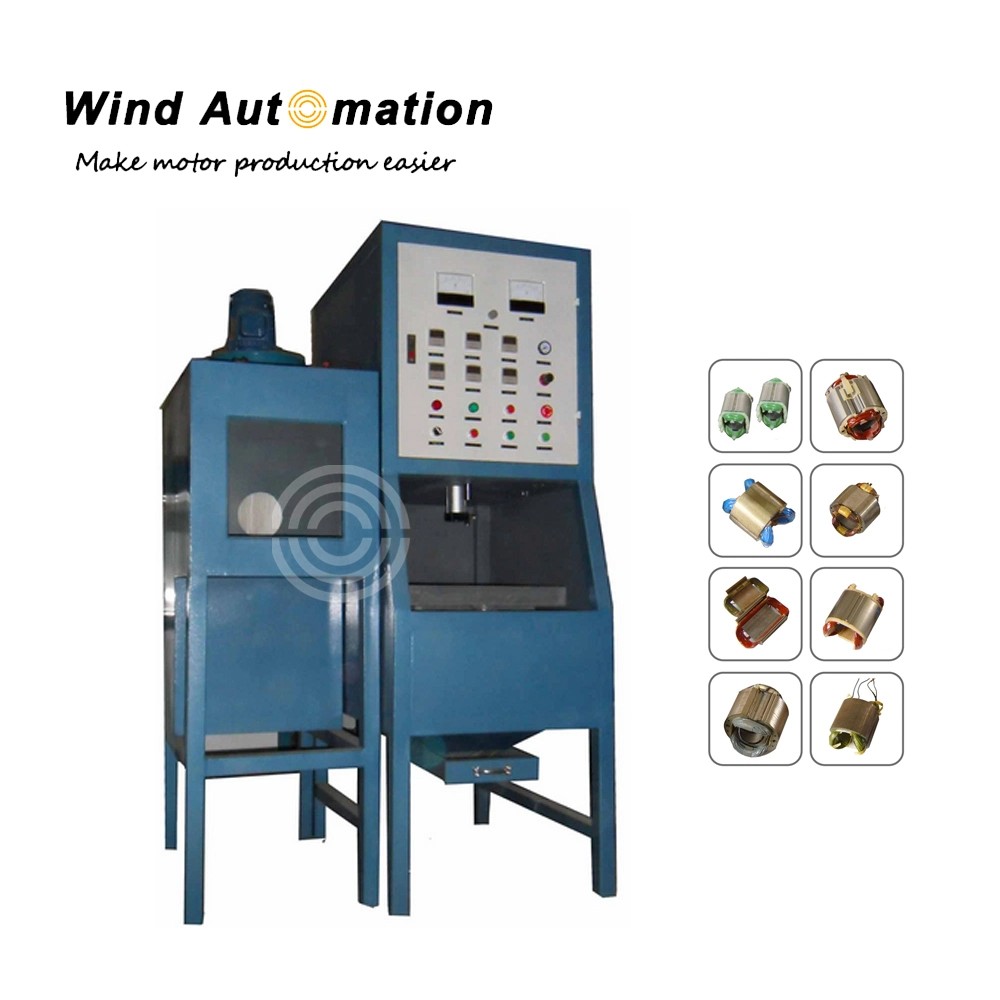

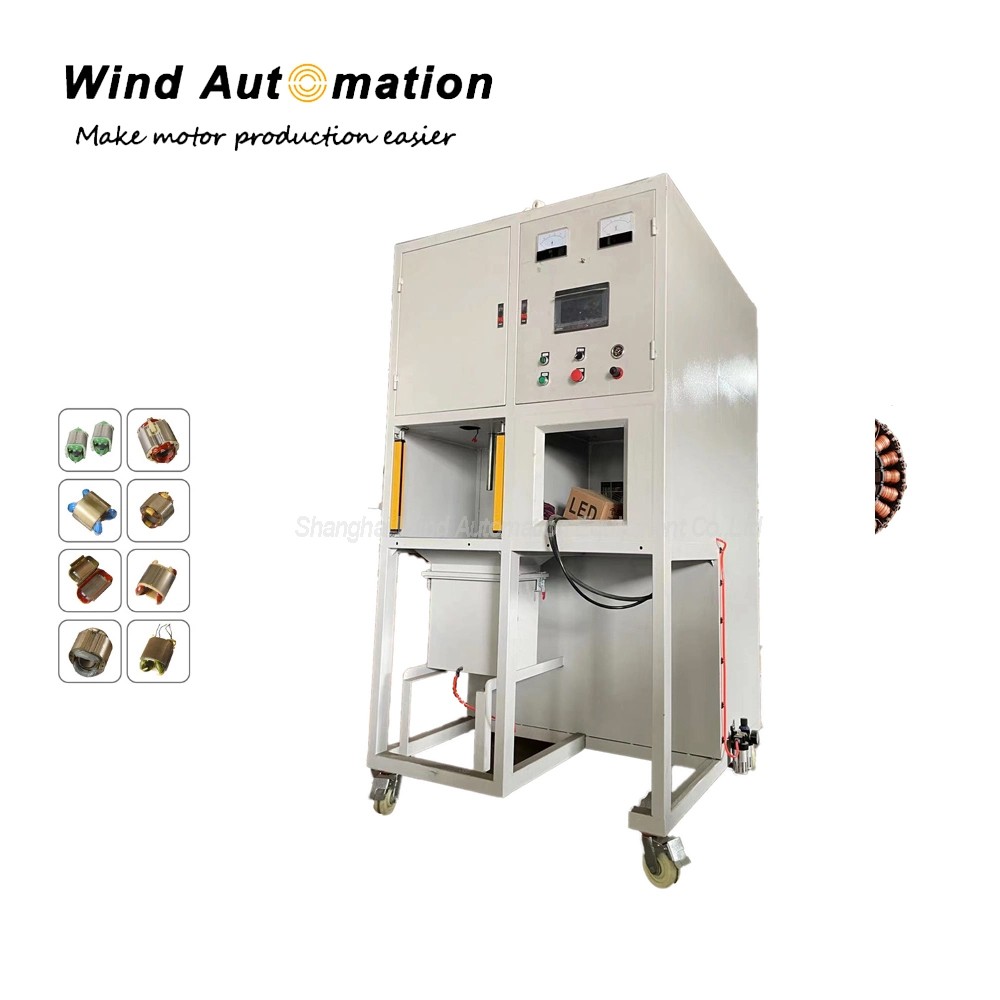

Meat Grinder Stator Coil Epoxy Powder Coating Machinery

This powder coating machine has a high output, around 120~180pcs/h. It adpots hot dip method to do coil insulation treatment. Coating thickness is adjustable.

(1) Features
Hot dipping method
With counting function
Easy to operate, no skilled operator needed
Coating thickness is adjustable

(2) Secification

(3)  Application
This Coil Powder Coater is used for stator coil powder coating insulation.

(3)  Working Process
(1) Load the coil (1pc) to the sling fitting and insert each wire head(heated) into the connection groove, compact inching cylinder.
(2)Turn on the switch (go up and down, heating, coating etc controlled by time relay to work automatically)
(3) After finish coating (the powder adhere to the stator coil and through melting and leveling  preliminary,  there's a little powder in the inside and outside of the stator lamination, but not melt, it can  clean completely by preliminary air blowing and subsequent cleaning).Take it down and transmit toanother person, clean the inside and outside of the stator with air blowing gun in the powder cleaning  entrance,   then put it on the shelf (prepared by customer) for natural cooling → put into oven together  for baking (prepared by customer, the bake requirement of the powder in the oven is the oven temperature  rise to the needed temperature for curing powder(this depend on the enameled wire heat- resisting temperature and powder curing requirement), keep hot insulation for over 40 minutes).
