Automatic-Armature-Inslot-Coil-Winder

Basic Info.

Model NO.

WIND-FAW

Customized Service

Provided

Transport Package

Wooden Case

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

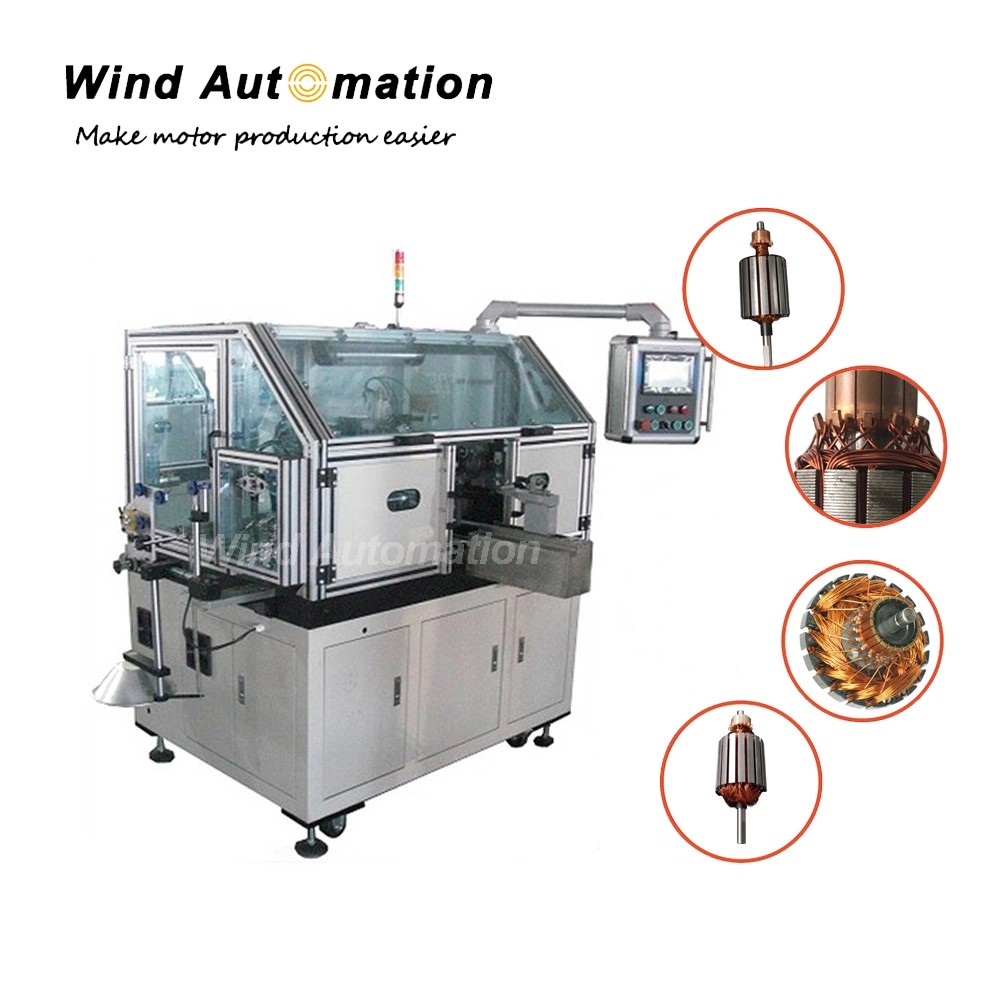

Automatic Armature Inslot Coil Winder

Automatic Armature Inslot Coil Winder

This machine is suitable for hook type commutator armature to do coil winding.. All the winding parameter and fault are displayed on the touch screen. If breakdown occurs, the touch screen will display the reason. All the alarm information is shown on touch screen.

Application

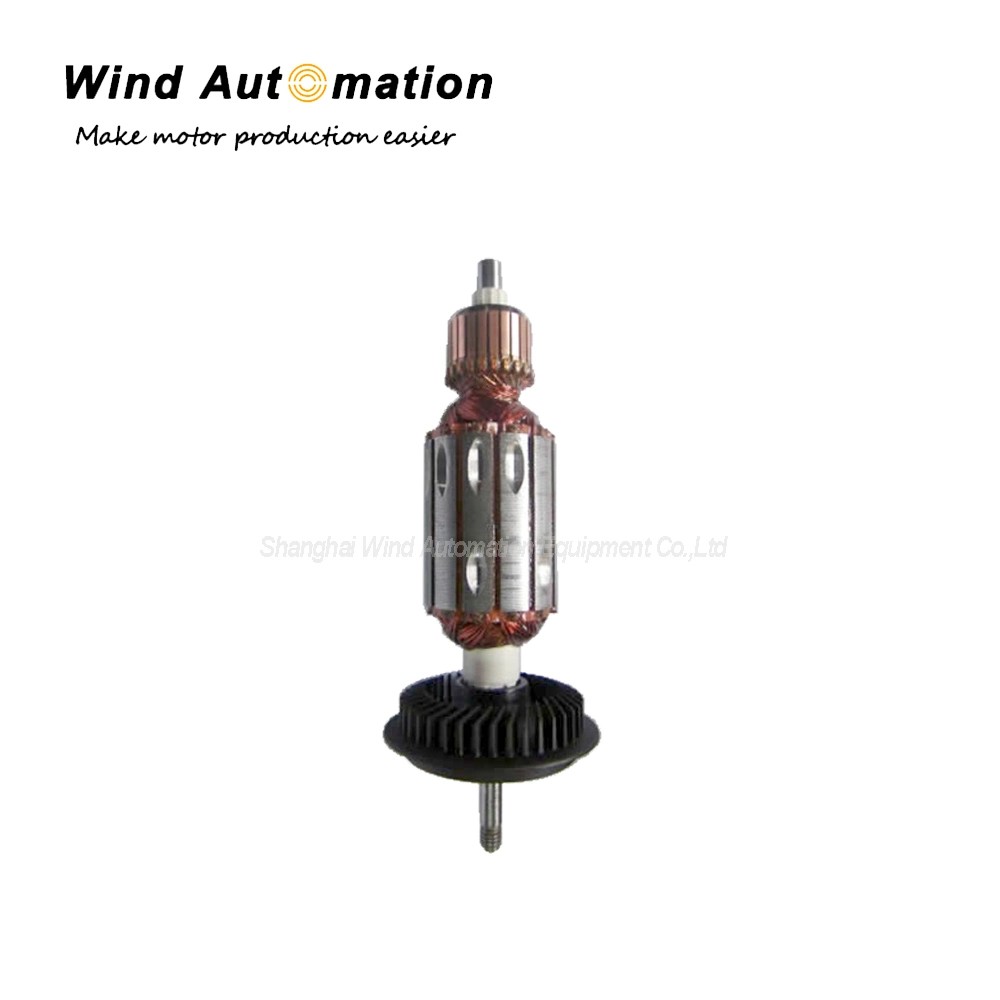

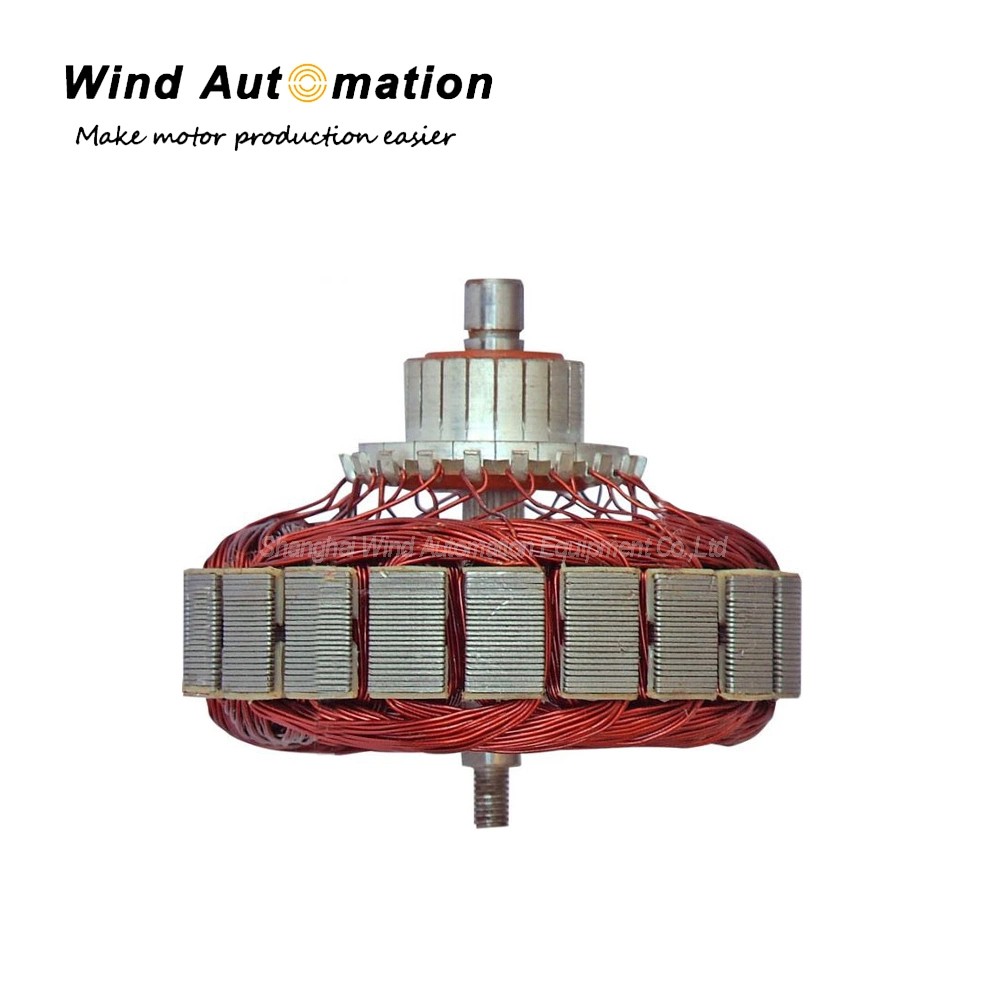

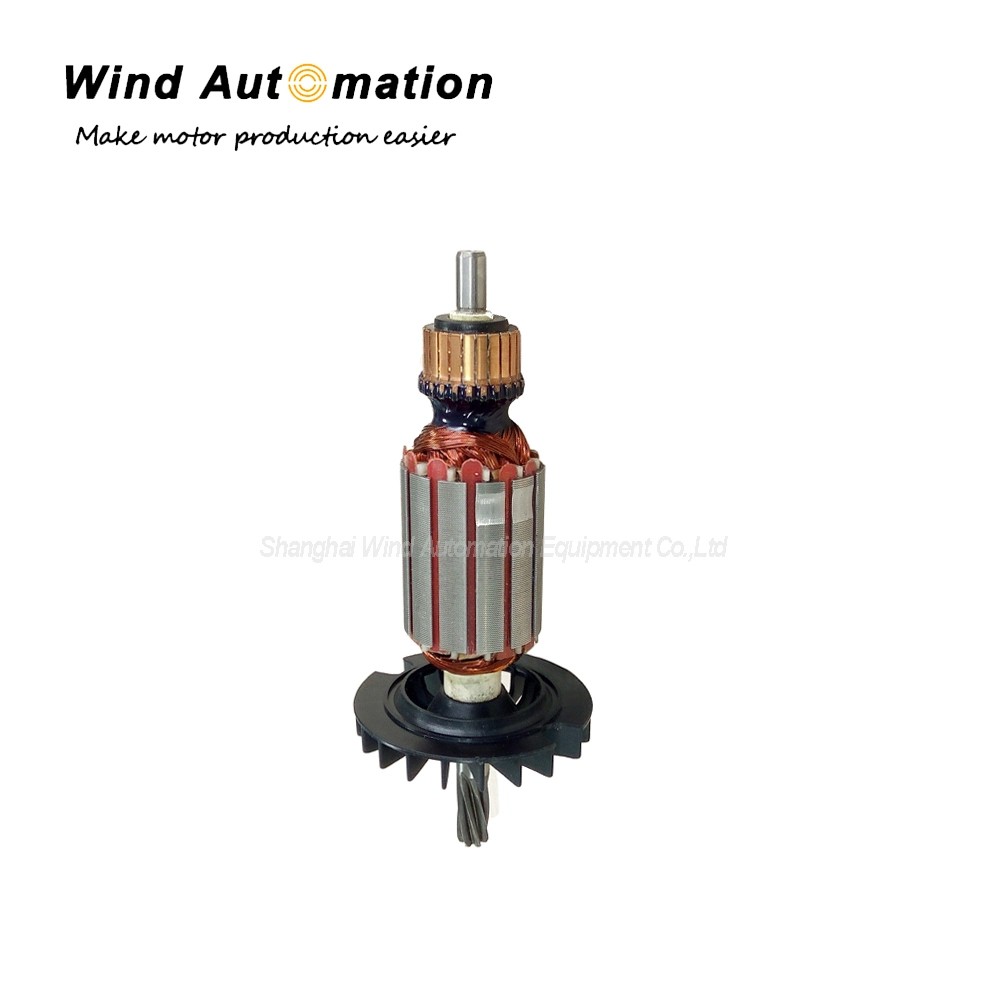

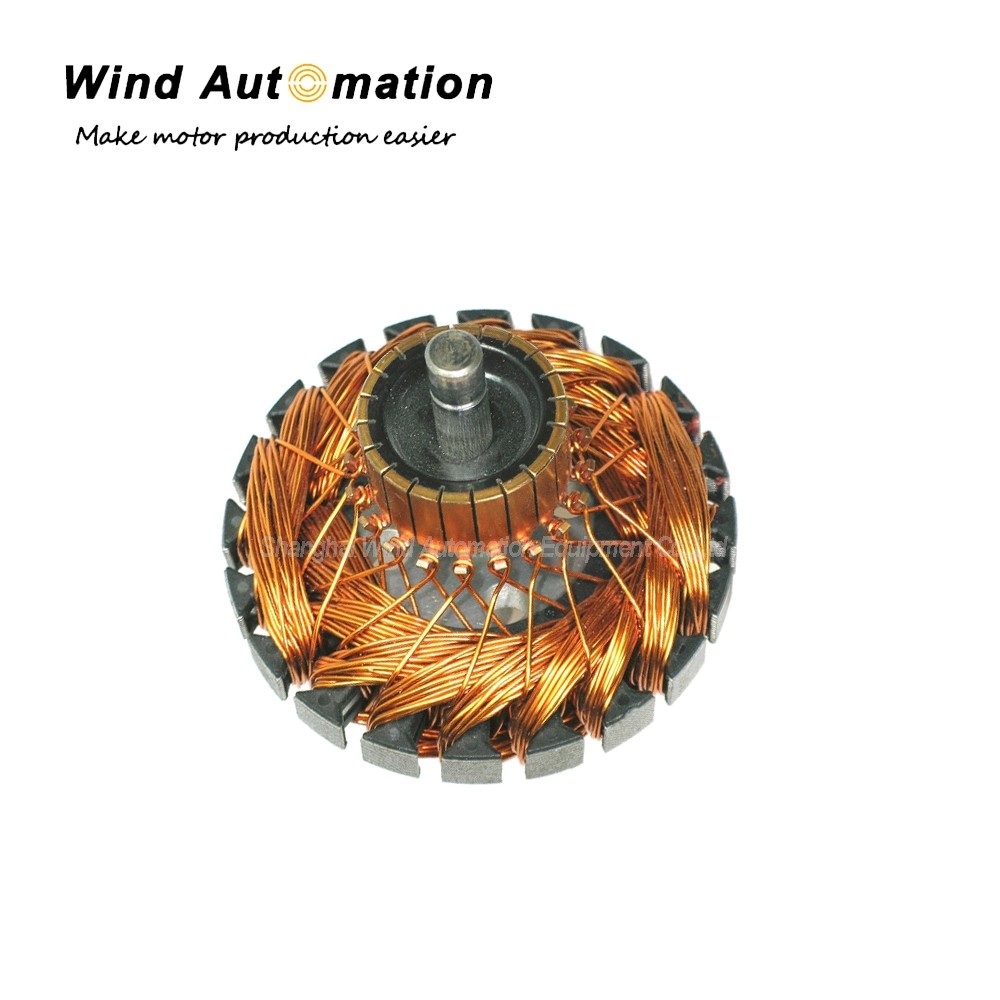

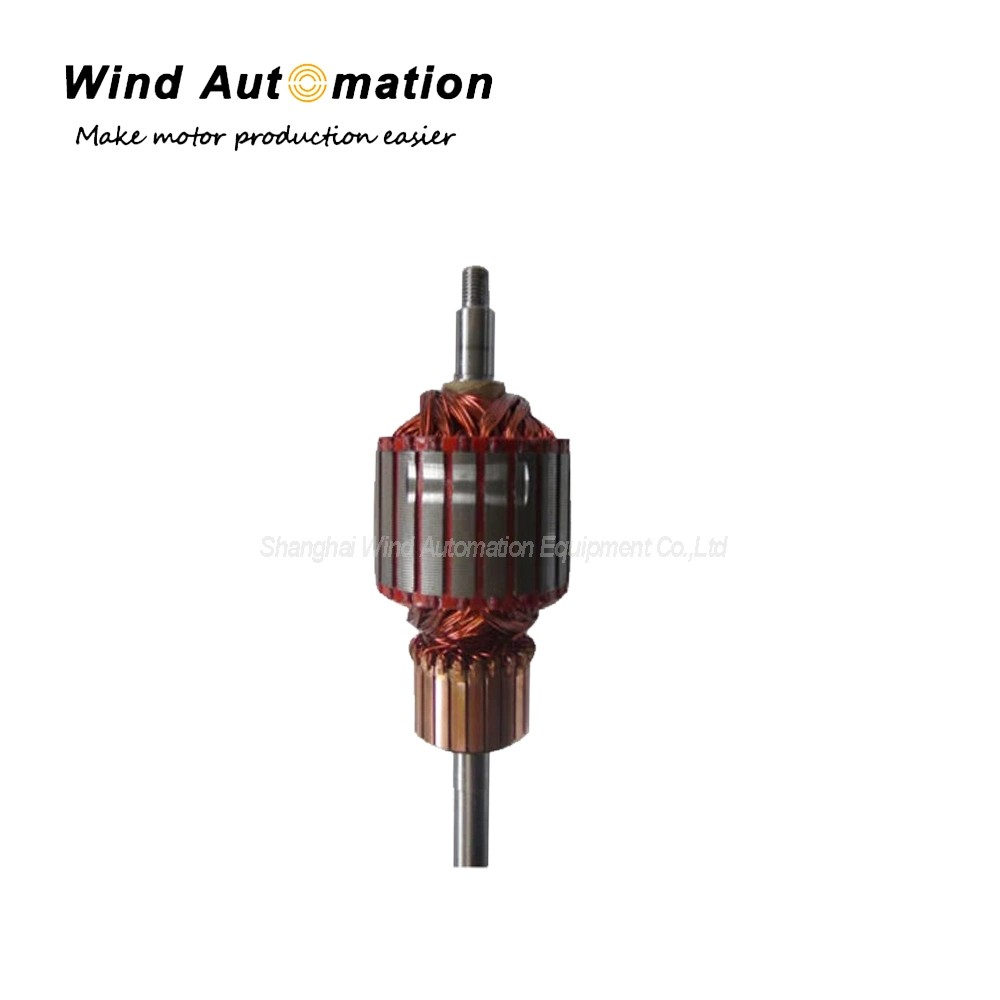

It is suitable for hook type home appliance, car and power tool motor armature.

Specification

Power supply	AC 380V±10% 50/60HZ
Air resource	5~7kg/cm2
Weight	about 1180kg
Dimension	2560mm×1300mm×1800mm
Armature OD	Φ20~Φ60mm
Commutator OD	Φ18~Φ40mm
Wire diameter	Φ0.2~Φ0.6mm
Slot number	Even number
Turn No.	0~99
Stack length	10~60mm
Winding speed	0~2000rpm
Indexing speed	0~2000rpm

Feature
For even slot armature
For hook type commutator
With medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
Manual loading and unloading
Three winding method optional
Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen

Machine Operation
1)Put the armature on the tooling
2)Then press the start button.
3)Machine will wind the armature automatically
4)Unload wound armature

Automatic Armature Inslot Coil Winder
