Vacuum-Cleaner-Motor-Rotor-Core-Turning-Machine-Commutator-Turning-Machine

Vacuum-Cleaner-Motor-Rotor-Core-Turning-Machine-Commutator-Turning-Machine

Basic Info.

Model NO.

WIND-CT-TH3B

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

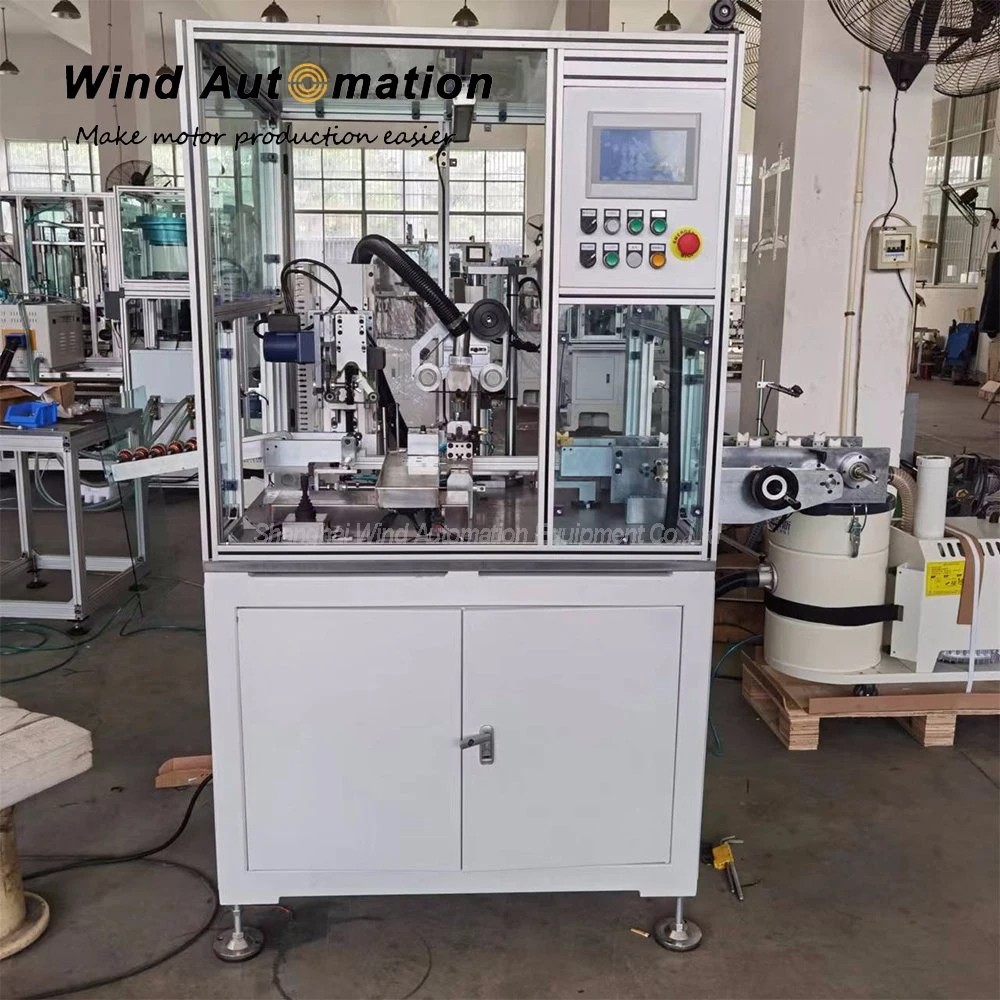

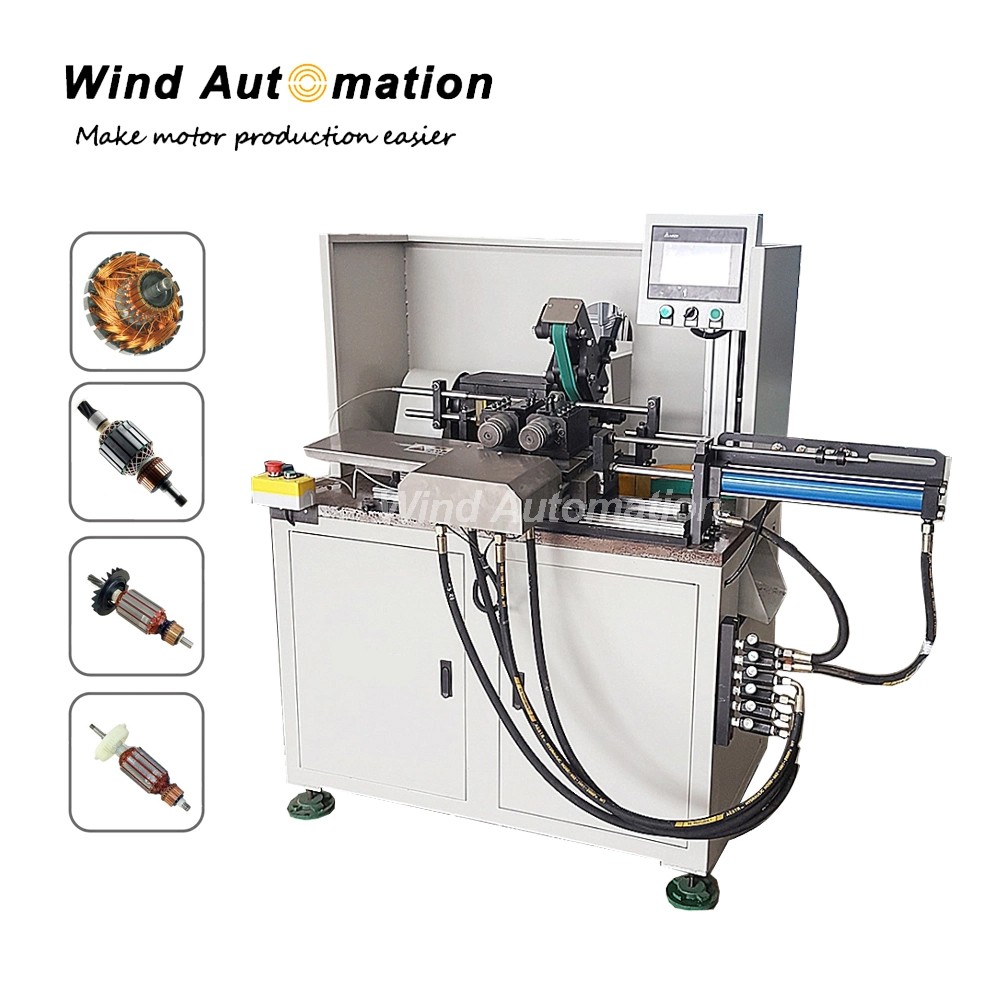

Vacuum Cleaner Motor Rotor Core Turning Machine Commutator Turning Machine

Vacuum Cleaner Motor Rotor Core Turning Machine Commutator Turning Machine

This turning machine is capable of turning both armature core and commutator.

Machine performs external finishing of the cast aluminum rotor. The processing process is fully automated. The processing flow is divided into one rough turning and one fine turning. The effect is remarkable, the precision is high, and it greatly saves manpower, financial resources and time. Get

Specification
Control system and accessories: three-phase motor, servo motor, PLC, touch screen
Rotor outer diameter: max 100mm
Rotor length: max 100mm

Application
Suitable for electrical tool, household appliances , vehicle, motorcycle starting engine, mini-engine and so on.

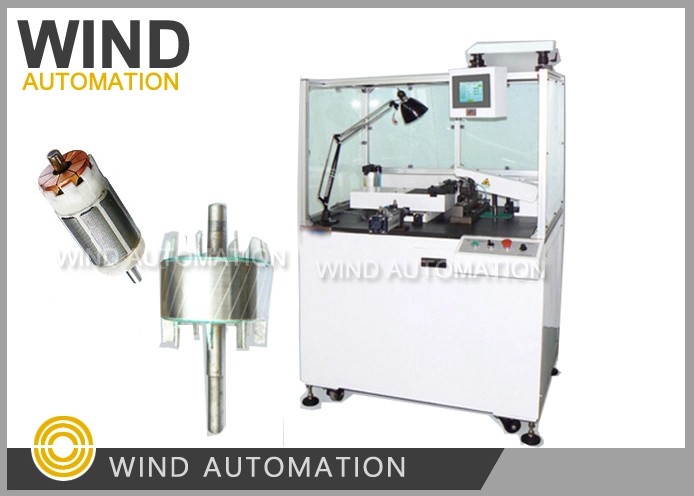

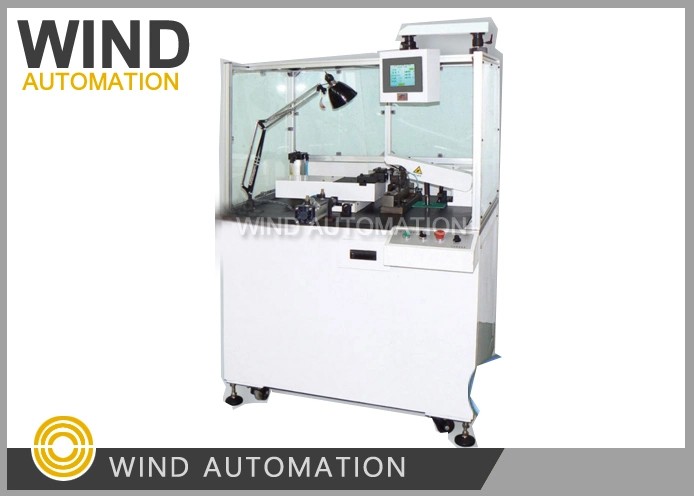

Accuracy 0.01mm AC Motor Rotor Outside Diameter Lathe OD Turning Machine WIND-CT-TH3B

Application:

The lathe turning machine WIND-CT-TH3B is designed to turn the AC Motor Rotor surface outside

diameter and armature commutator surface lathe

Competitive Advantages:

1. Comapring to Alloy CNC turning tool (carbide), turning machine's diamond tool is advanced,

Diamond turning tool is what most Chinese motor manufacturers are using as diamond tool

can achieve better shining and micro finish after lathing and turning the copper surface

Alloy CNC turning tool carbide is only suitable for aluminum iron alloy surface product turning.

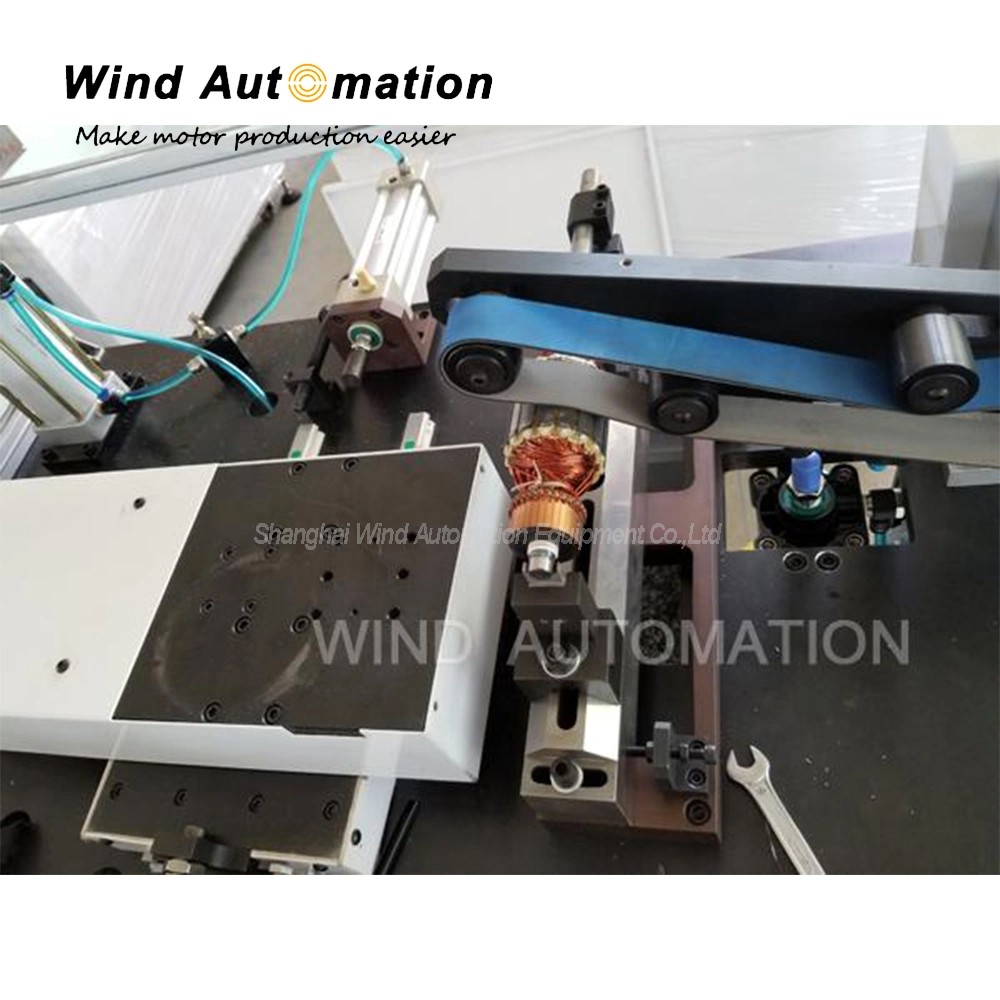

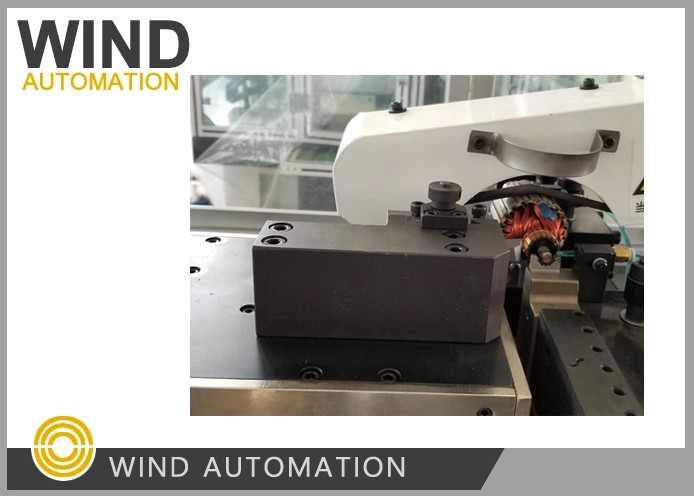

2. The holding device of turning machine WIND-CT-TH3B for holding your Rotor OD have

two side ball bearing device which prevent shaft from wear.

3. There was a German customer who used this device for over 10year in German and Austria,

and still purchase the diamond turning tool from us.

Specification:

Roundness:	<=0.003mm
Surface roughness:	<=Ra0.40
Rotor outer diameter:	Ф20-Ф100mm
Rotor shaft length:	32-250mm
Rotor shaft diameter:	Ф3-Ф22mm
Commutator outer diameter:	Ф4.3-Ф50mm
Turning capability:	rough turning Max0.20mm diameter
Speed amplitude modulation:	0-60Hz
Feeding unit:	1μm-0.5mm arbitrary
Cutting length:	Max80mm
Feeding speed:	Stepless adjustable
Control mode:	stepping, automatic
Operation method:	Touch screen operation
Air source pressure:	5-7kg/cm²
Turning times:	1-4 Any setting
Fixture:	Diamond V-shaped Frame
Total power:	2.5Kw
Power source:	AC220V 50/60Hz
Weight:	about 500Kg
Dimensions:	1100×850×1800mm³

Armature Production machine package
A - Automatic Winding Machine
B - Commutator turning lathe machine
C - Remove burr copper filings
D - Papier inserting machine

1 - Pallet of 1840mm*1150mm*2040mm
2 - Pallet of 1730mm*1540mm*1940mm
3 - Pallet of 600mm*500mm*1750mm
4 - Pallet of 1800m*1130mm*1950mm
