Customized-Needle-Winding-Machine-for-Brushless-Motor-Stator

Product Description

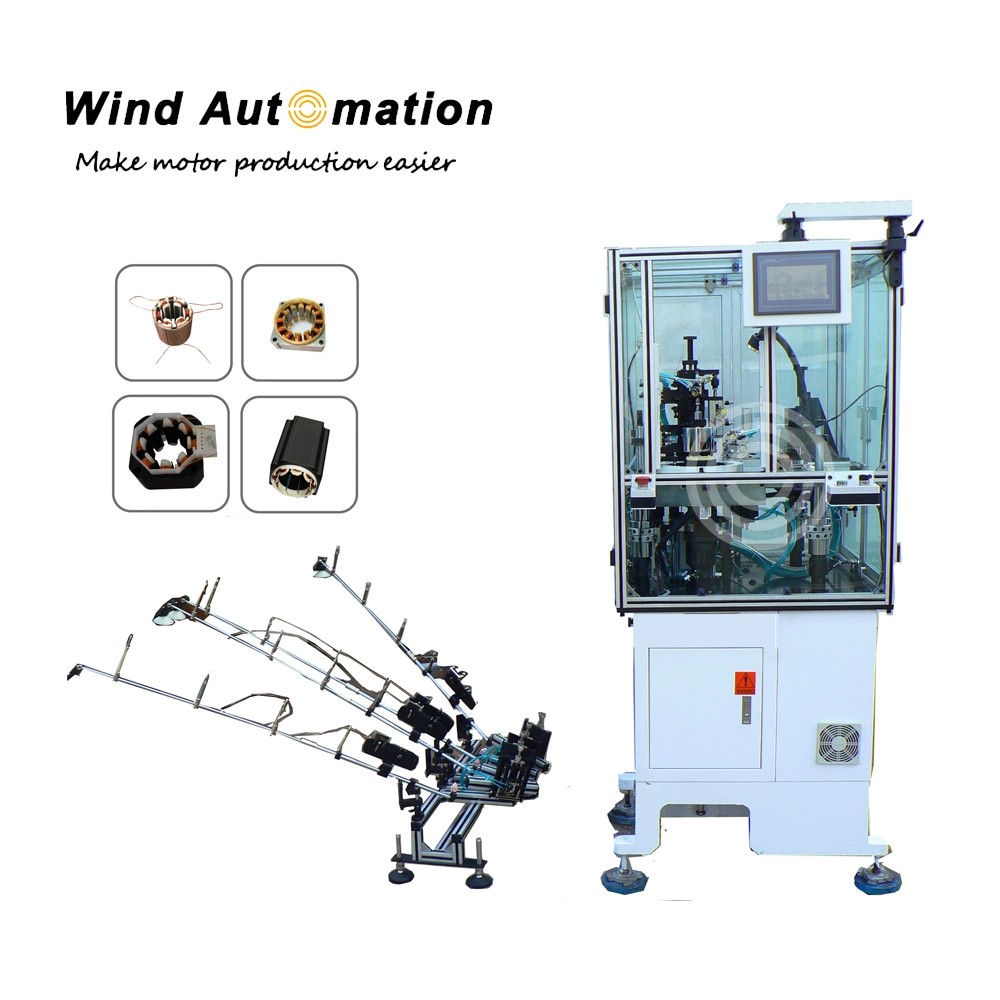

Customized Needle Winding Machine for Brushless Motor Stator

This brushless motor stator winding machine can synchronously wind 3 slots of one stator. Except for auto arraying, machine can do automatic winding, indexing, layering and terminating.

(1)Features
Synchronously wind 3 slots
Winding track in rectangle shape
Precision performance of needle winding
Fully programmable operation
Can meet high winding requirements
Quick change-over of tooling
Winding parameter adjustable according to different stators

(2)Specification

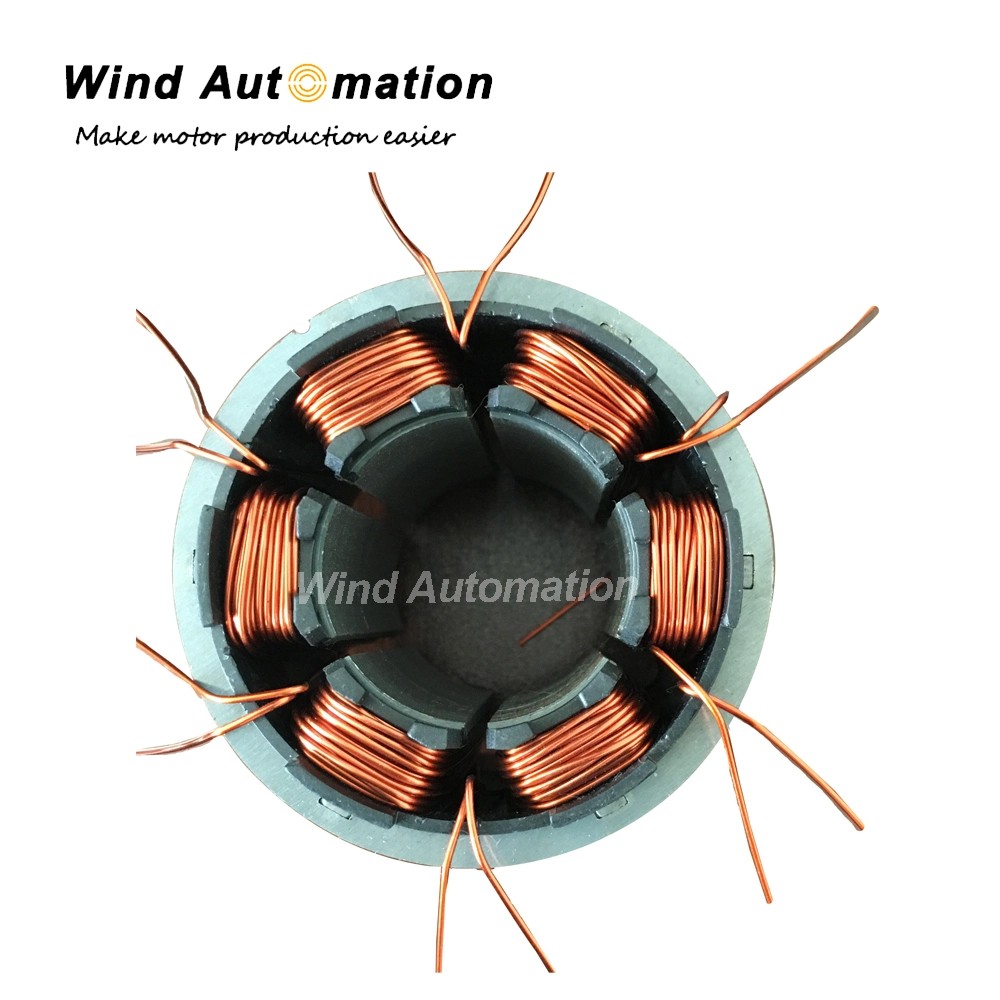

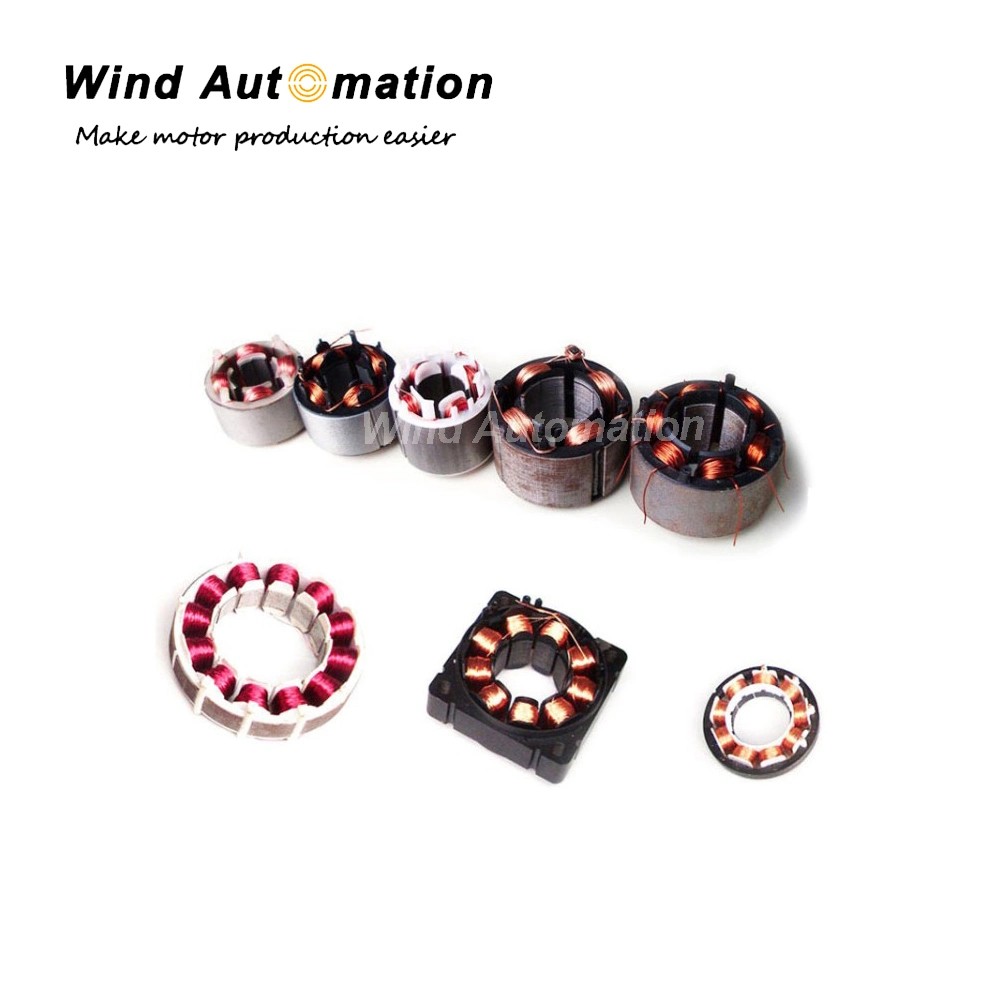

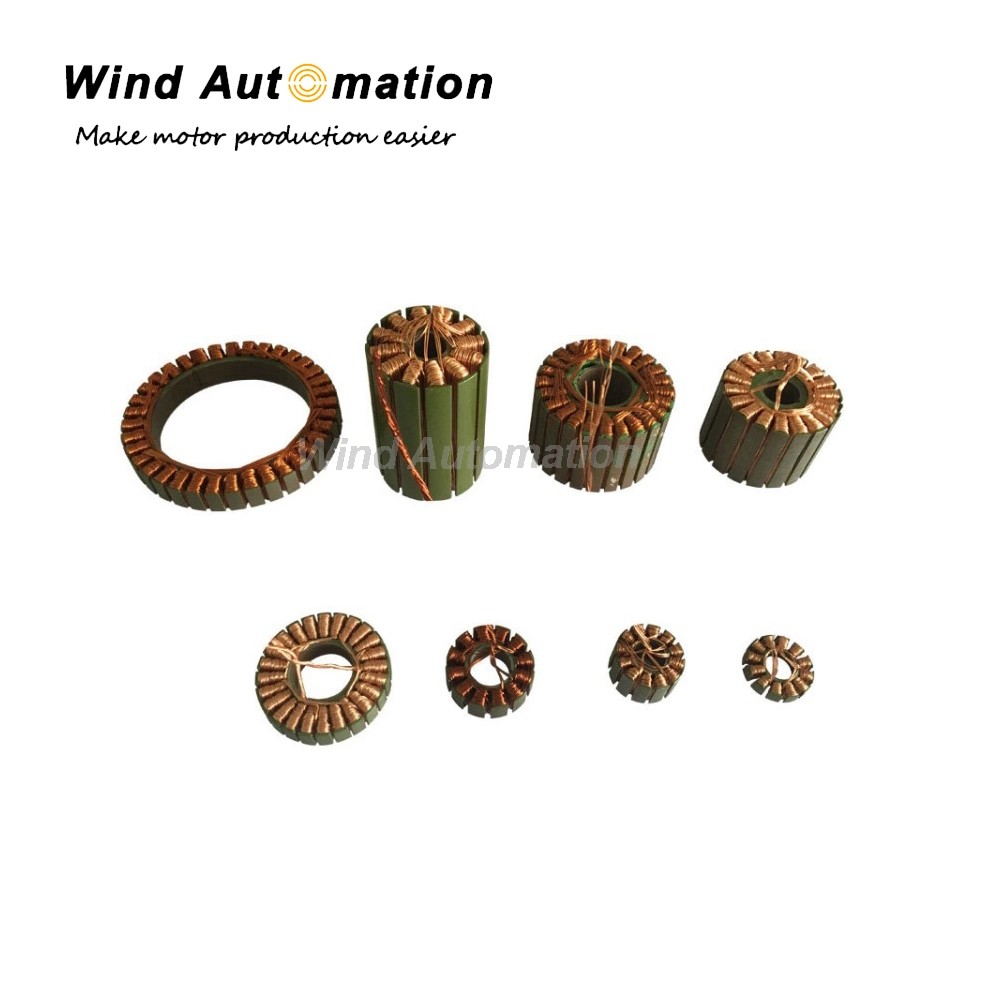

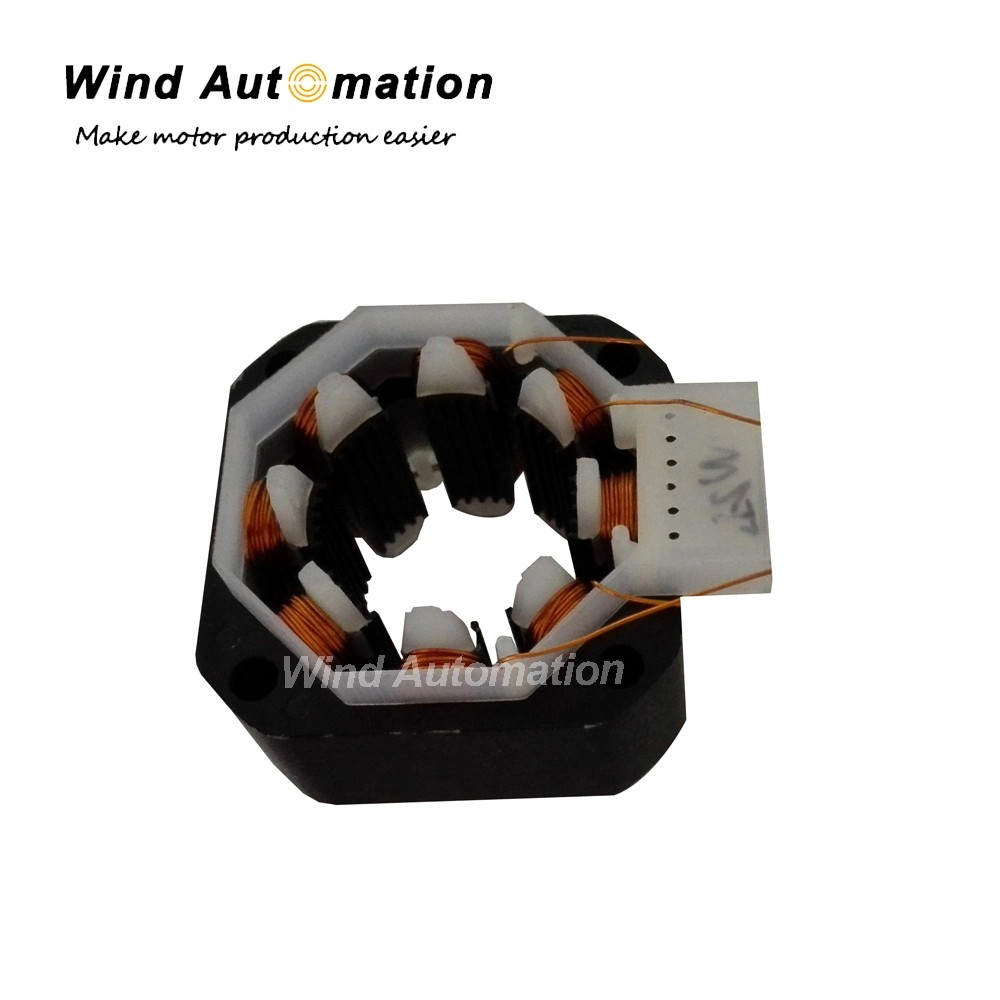

(3)Application
suitable for various types stators with narrow slot width but high slot filling rate.

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
Delta AC servo system and four spindle synchronous control unit
Lubrication system

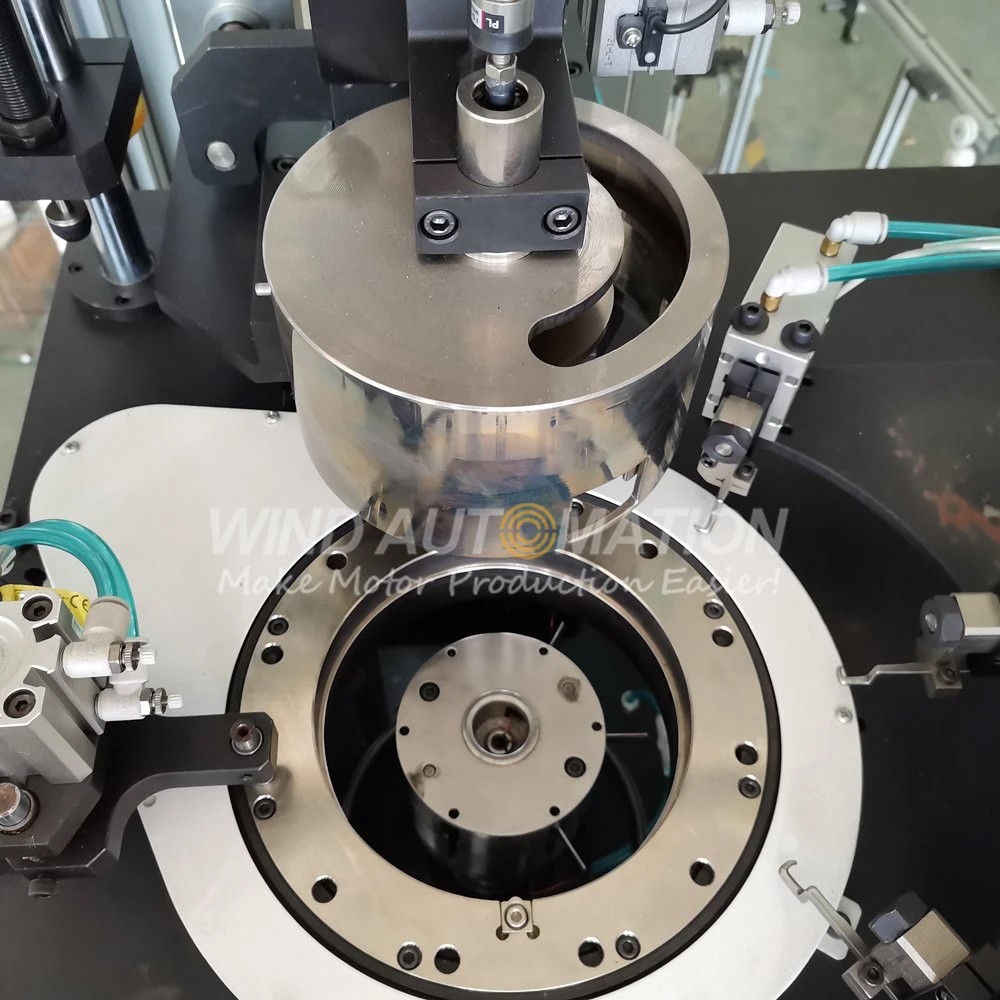

(5)Machine working station
