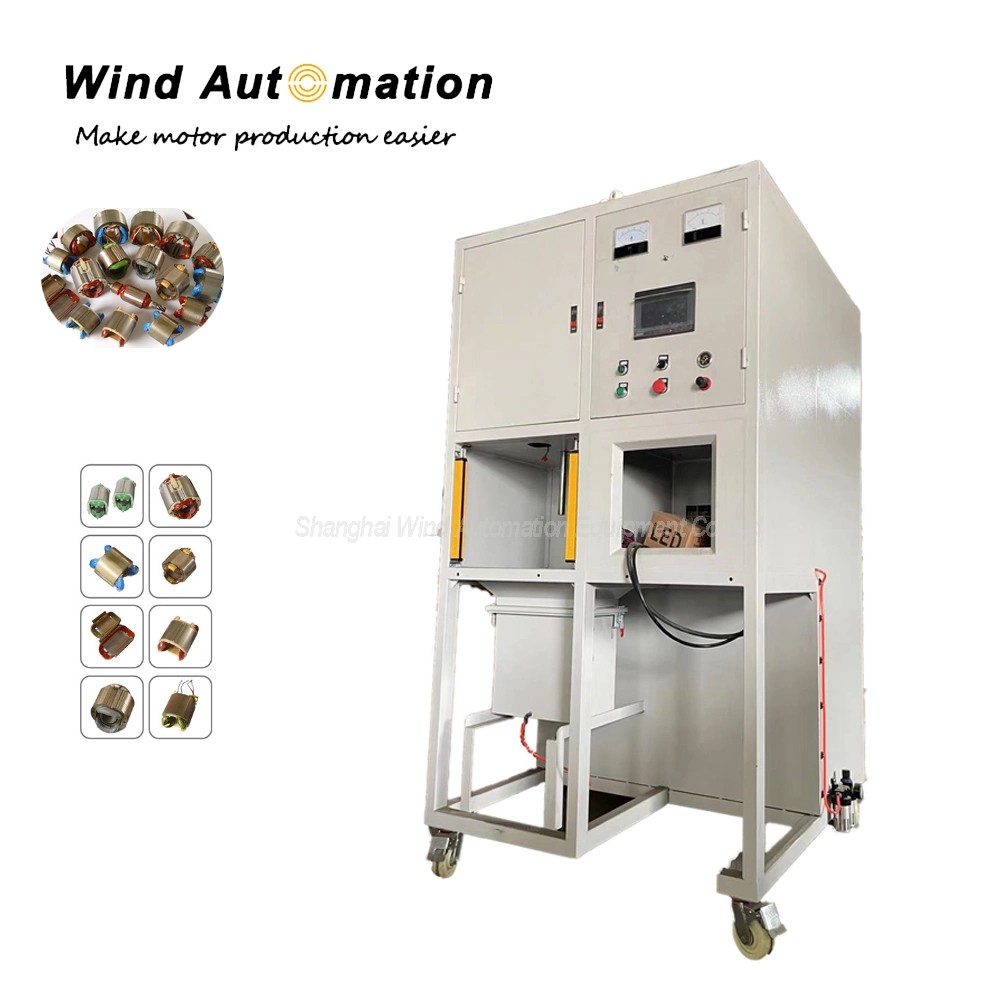

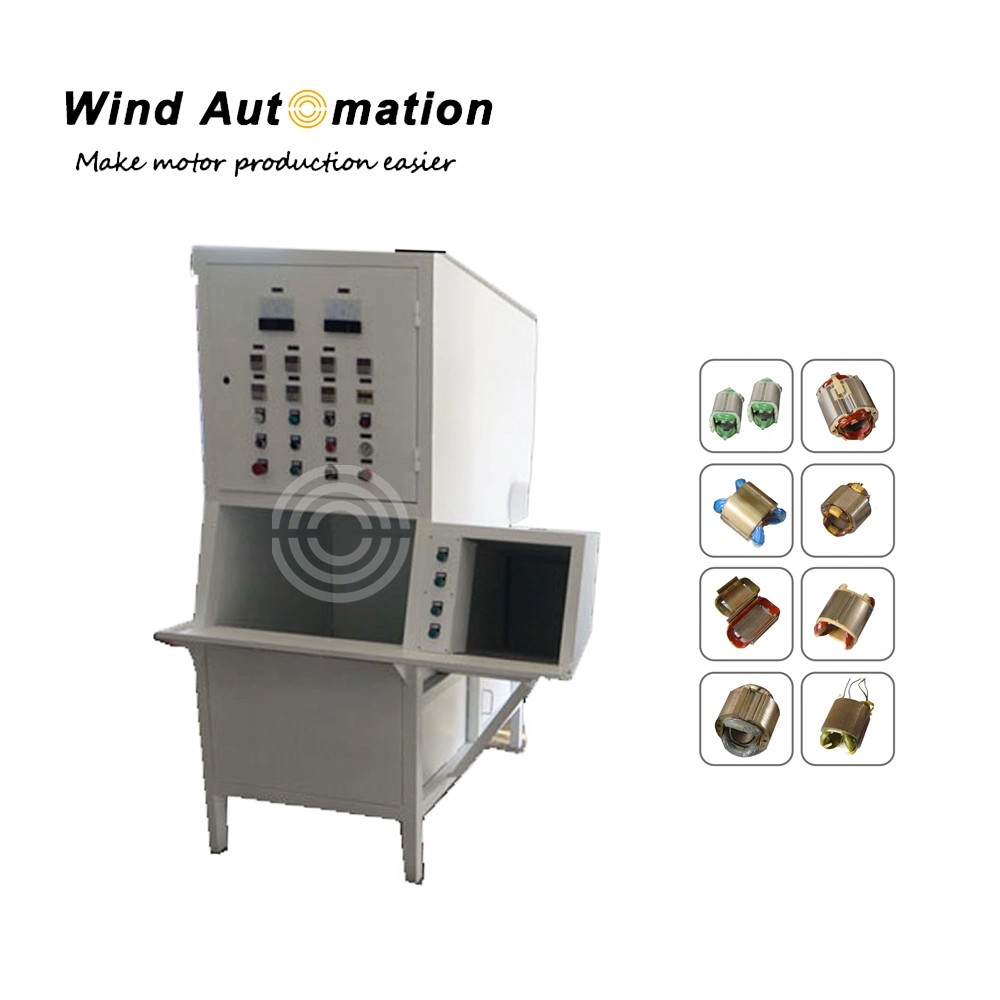

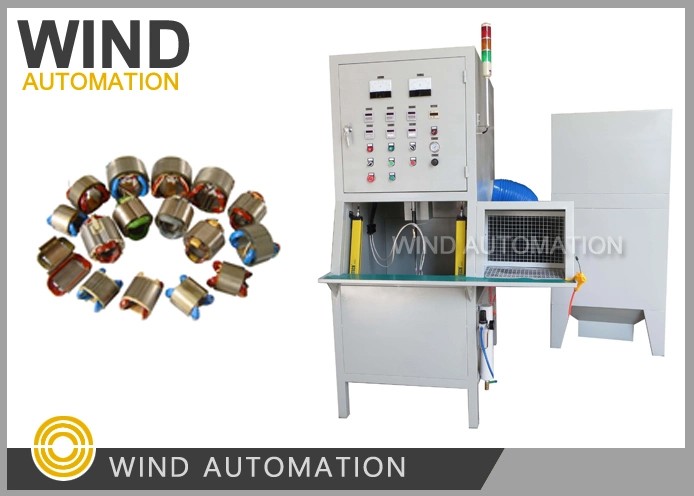

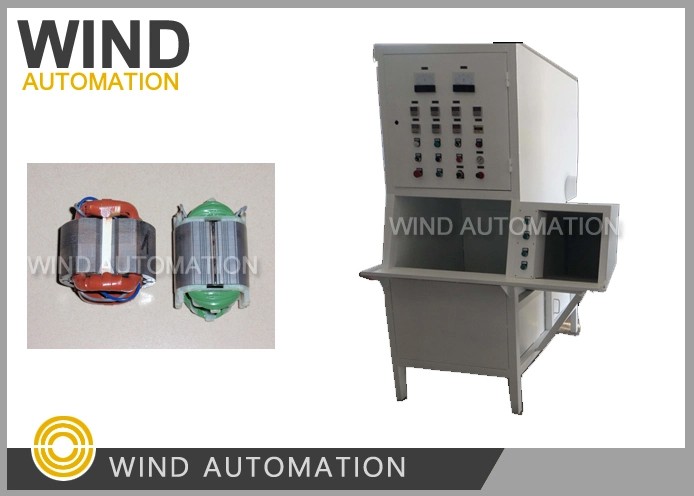

Stator Coil Insulation Powder Coating Machine
This powder coating machine has a high output, around 120~180pcs/h. It adpots hot dip method to do coil insulation treatment. Coating thickness is adjustable.
(1) Features
Hot dipping method
With counting function
Easy to operate, no skilled operator needed
Coating thickness is adjustable
(2) Secification
| Stator OD | less than 95mm |
| Stator length(including coil) | less than 100mm |
| Stator weight | less than 3KG |
| Wire type | Enameled wire |
| Output | 120~180pcs/h |
| Powder supply | 380V±10%, 50HZ |
| Compressed air | 0.6Mpa |
(3) Application
This Coil Powder Coater is used for stator coil powder coating insulation.
