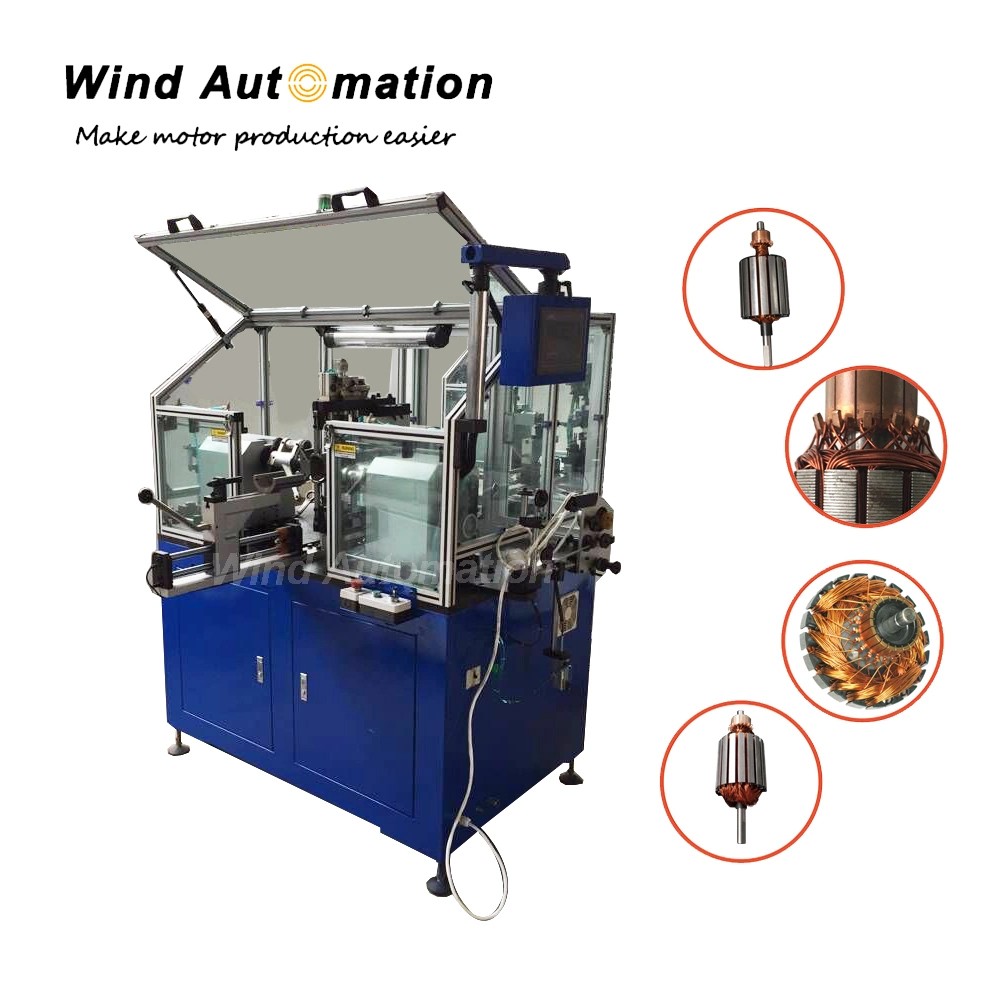

Even Slot Armature Winding Machine

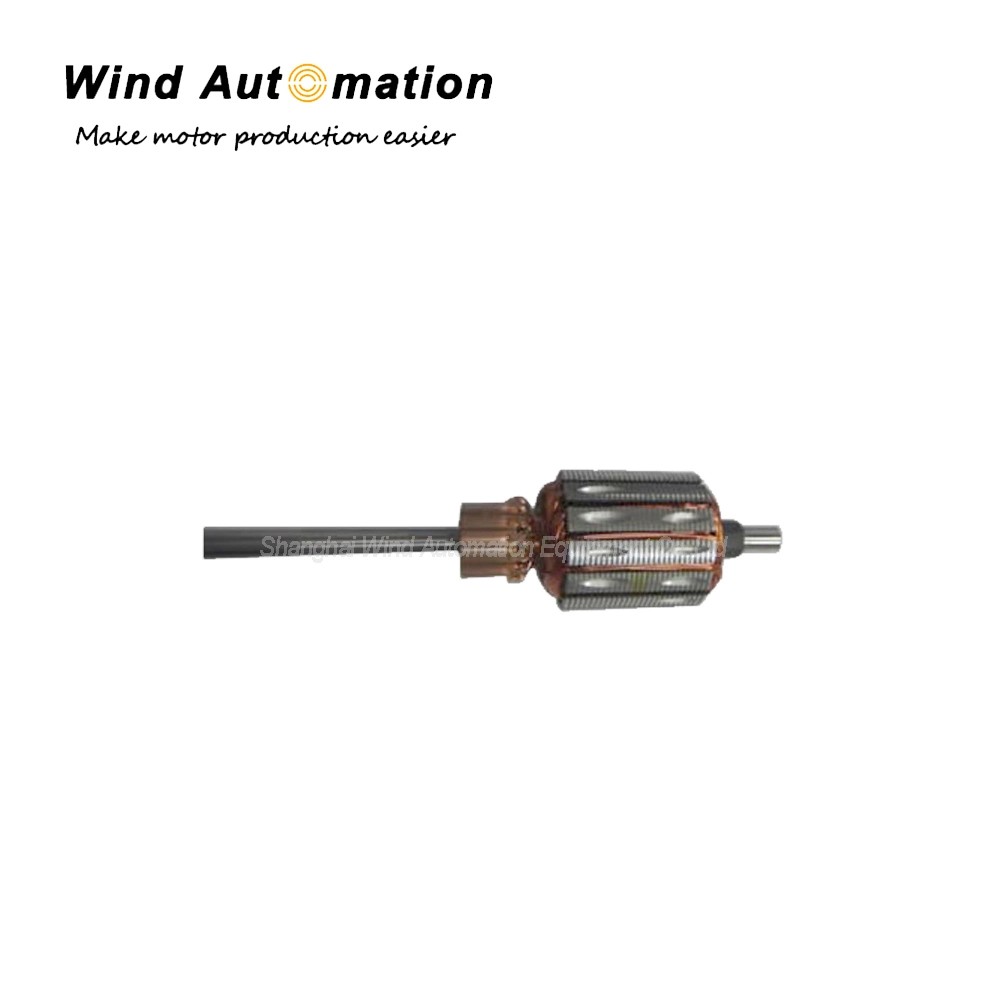

This machine is able to produce armature coils for hook type commutator with even slot number. During working, the armature stack is clamped tightly by left and right side two winding tooling and shaft clamping device. When flyers are running, wire goes through the wire holder, tension device then enters hollow spindle, comes out from wire sliding wheel, then the wire slides into the armature slot through flyer wire guiding wheel. After this step, armature into the slot to do winding.

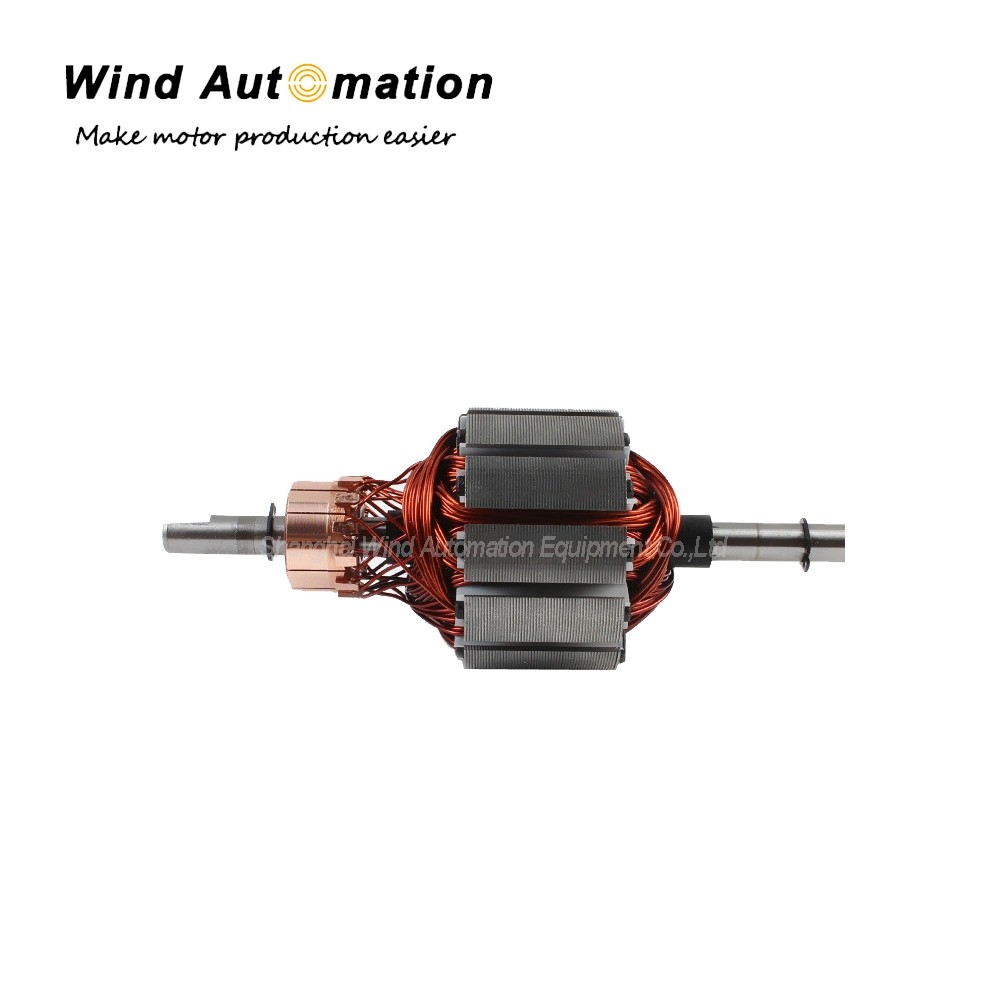

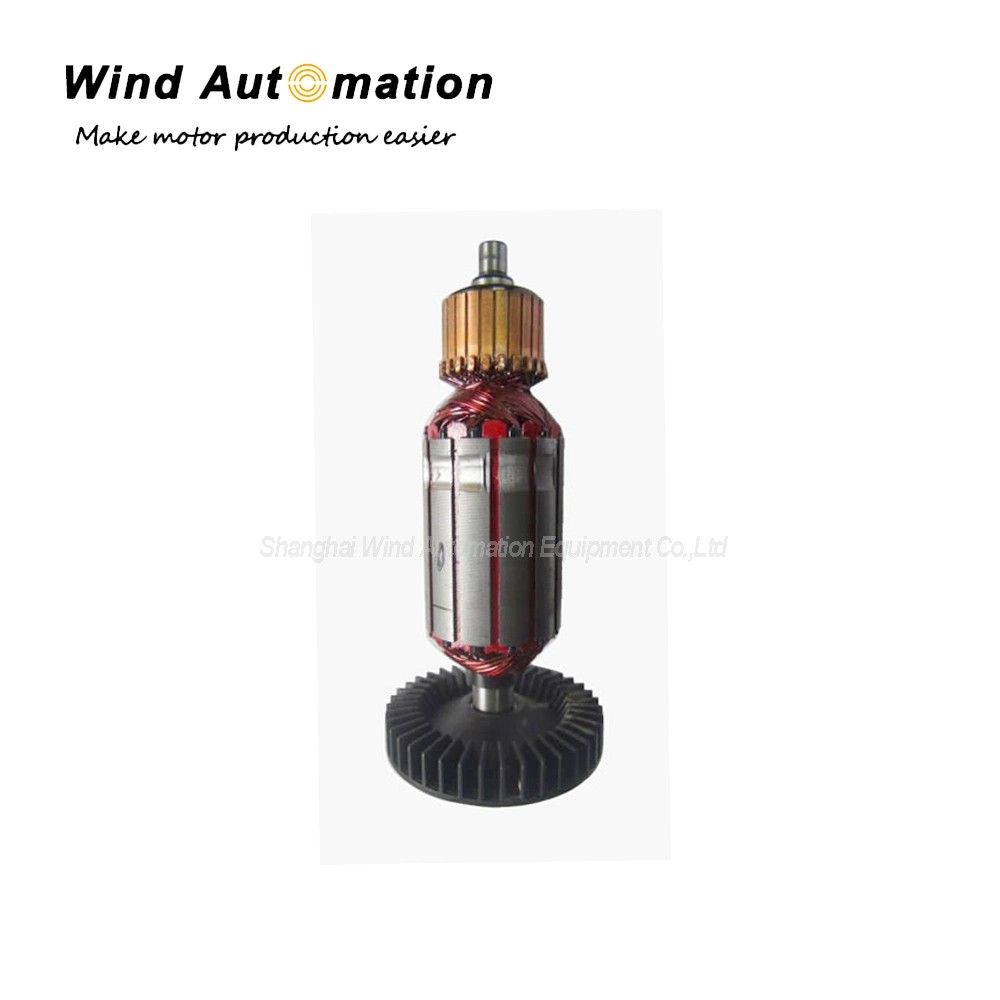

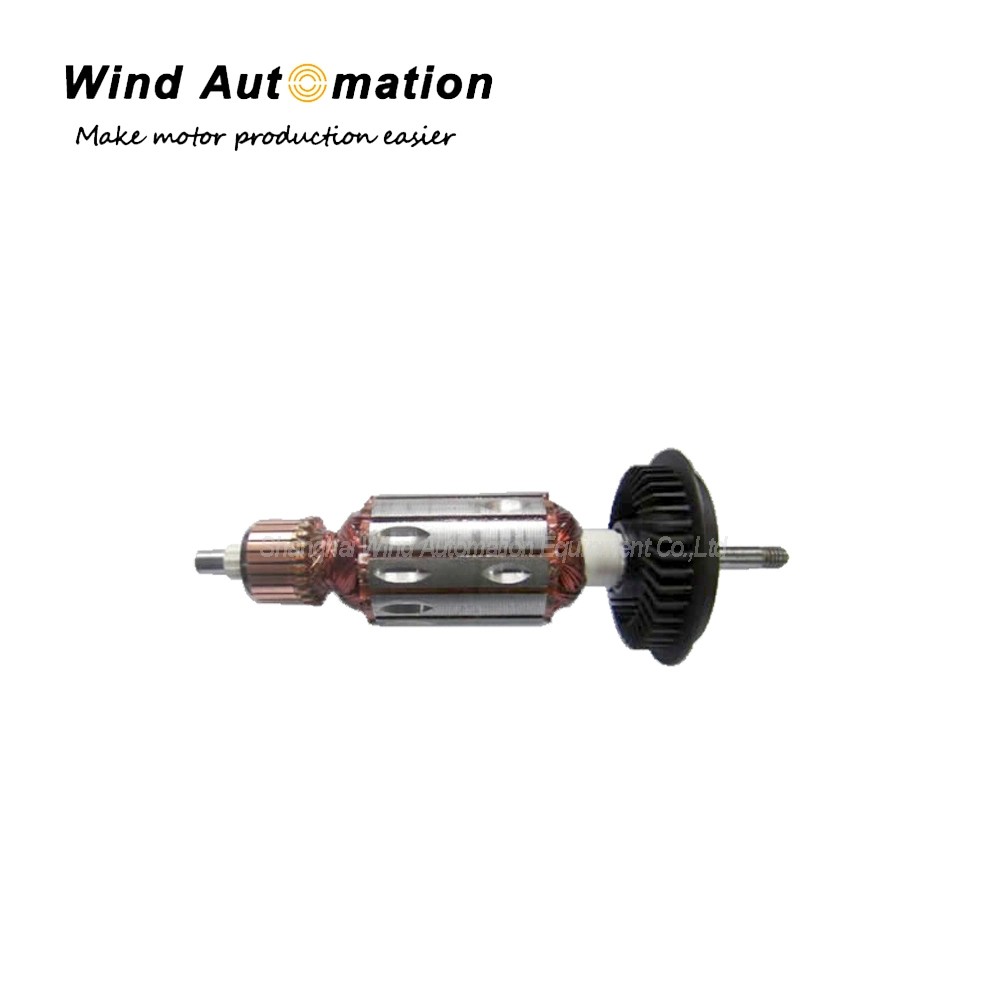

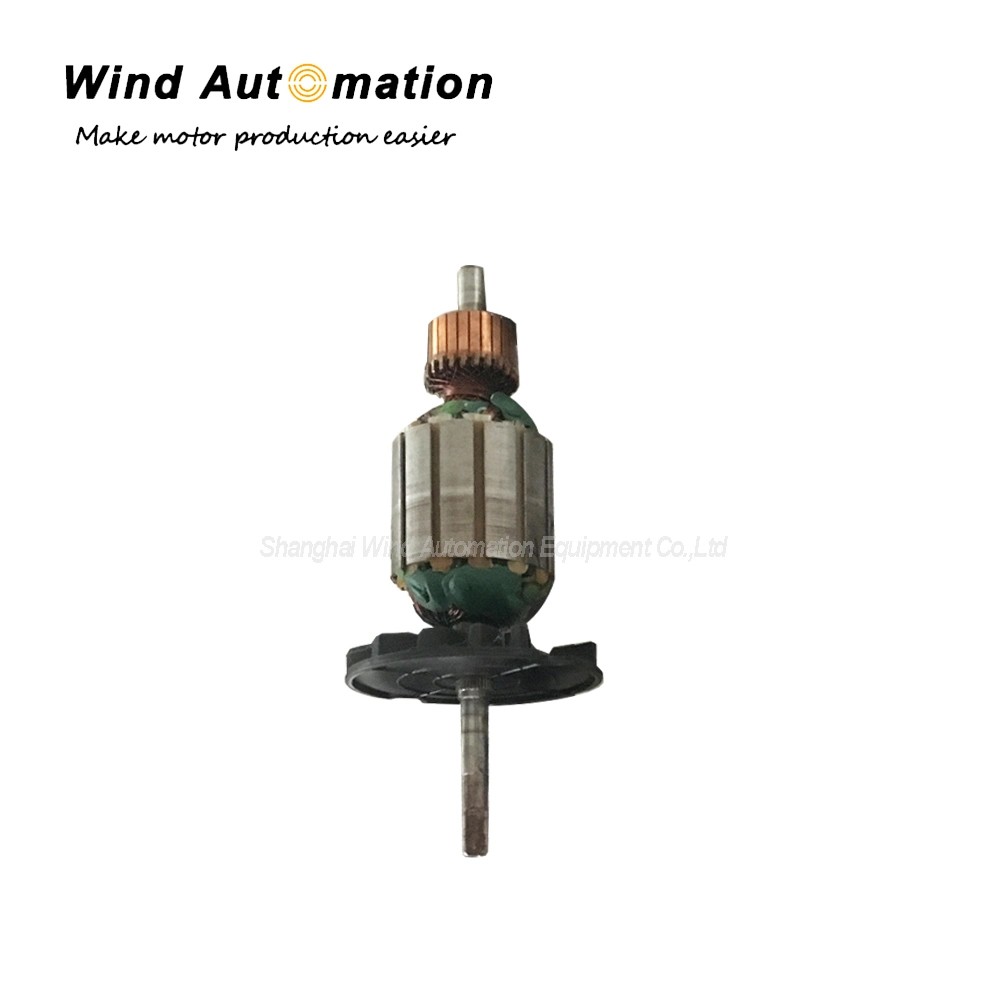

(1) Application
Suitable for mixer,vacuum cleaners, hammers,power tool.
house hold appliances motor power tools,mixer,blender, drill ,
Grinder wiper,car motor etc
Wind the wire of armature for micro motor such as series motor,
(2) Specification
| Power supply | AC380V±10% 50/60HZ |
| Air resource | 4~6kg/cm2 |
| Weight | about 1250kg |
| Dimension | 2000mm×1000mm×1800mm |
| Total power | 4KW |
| Armature OD | 20~85 mm |
| Commutator OD | 8~40mm |
| Shaft OD | 3~15 mm |
| Shaft length | Max 250mm |
| Wire diameter | 0.16~1.2 mm |
| Slot number | Even number |
| Turn No. | 0~9999 |
| Stack length | 10~70 mm |
| Winding speed | 0~2500rpm |
| Winding motor power | 1.5KWX2 |
| Angle detecting speed | 0~3000rpm |
| Angle detecting motor power | 0.75KWX1 |
(3)Feature
For hook type commutator
High quality level of winding
Manual loading and unloading
For medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
All winding parameter programmed on touch screen
(4)Machine configuration
Mitsubishi PLC
Mitsubishi or Panasonic servo motor control system
5.7'' colorful touch screen system
SMC Cylinder
