Induction-Motor-Pump-Motor-Coil-Winder

Product Description

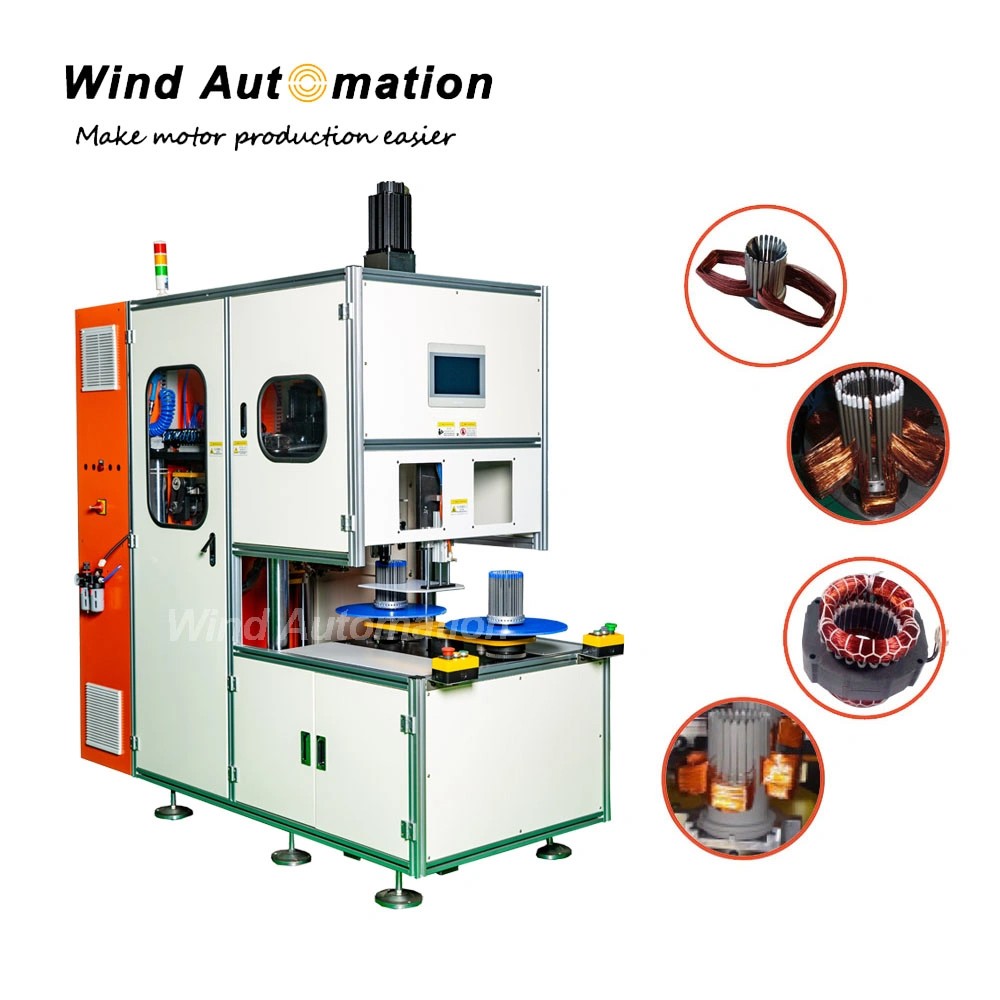

2 Poles Stator Coil Winder Wire Making Machine

This model is a single-head two-station vertical winding machine; it adopts turntable mechanism. The main and auxiliary phases can be wound at the same time. It is suitable for the stator with high output requirements.It can achieve continuous and non-continuous winding.

(1) Specification

(2) Feature
Rotation and indexing controlled by servo system
Tooling change and software adjustment within 15min
No distinct vibration or noise during winding
Automatically stop if wire is run out
Manual unloading coils after winding
Single winding head two working stations
All winding parameter programmable on touch screen

(3) Application
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(4)Operation step
Thread wire into the machine
Connect the power and air source
Turn on the machine, and press "reset" button to reset the machine
Put the winding form on the indexing plate
Press "cut wire"
Press "start" button by two hands, machine will automatically wind the stator.
