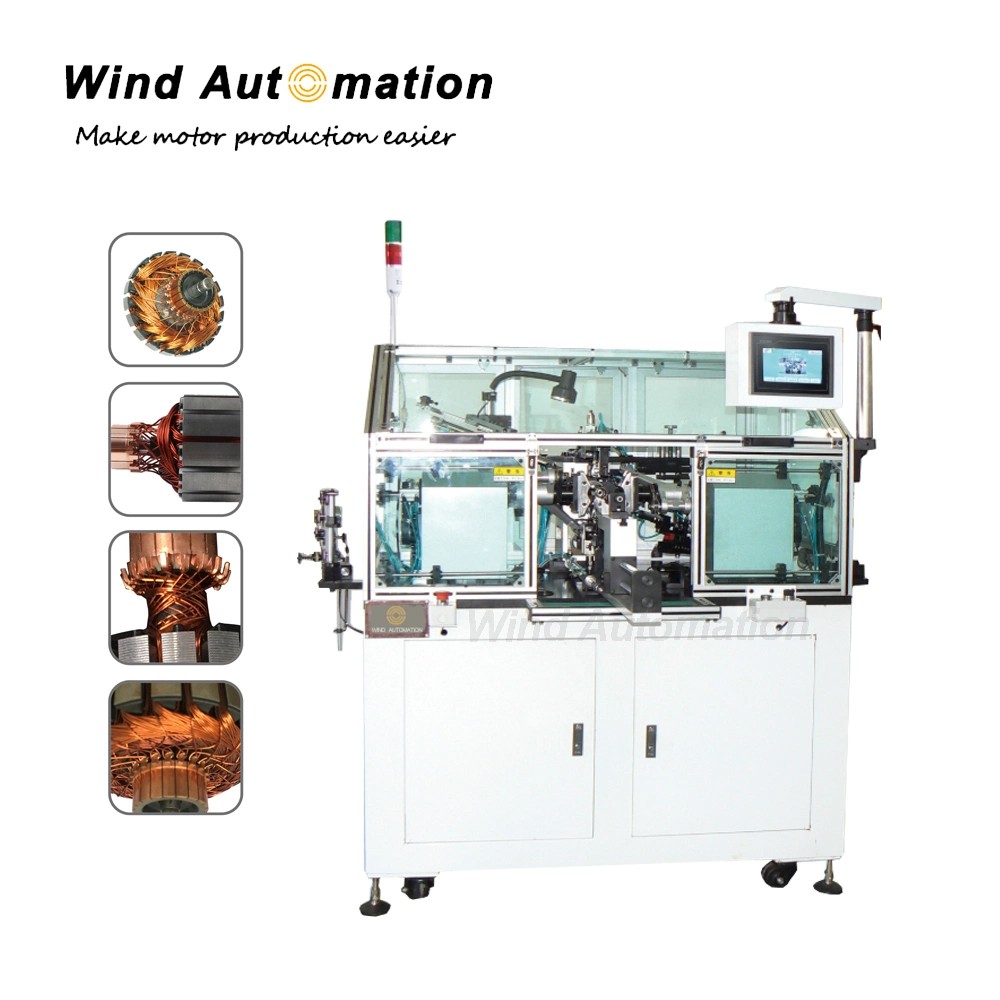

Two Flyer Armature Winder For Automobile Motor

Two Flyer Armature Winder for Automobile Motor

The winding process of this winder is done by two flyers. It can be connected with a production line to realize online automatic production. It can save up to 99 sets armature parameter.

(1) Specification

Wire range	0.15~1.26mm
Armature OD	20~90mm
Stack height	10~130mm
Commutator OD	8~50mm
Movement	Jog/auto
Slot No.	Odd/Even
Turn No.	0~9999
Flyer speed	0~2000rpm
Power supply	AC 220V 50/60HZ
Air source	5~7kg/cm3
Power	3.5KW
Weight	830KG
Dimension	1450x1050x1650mm

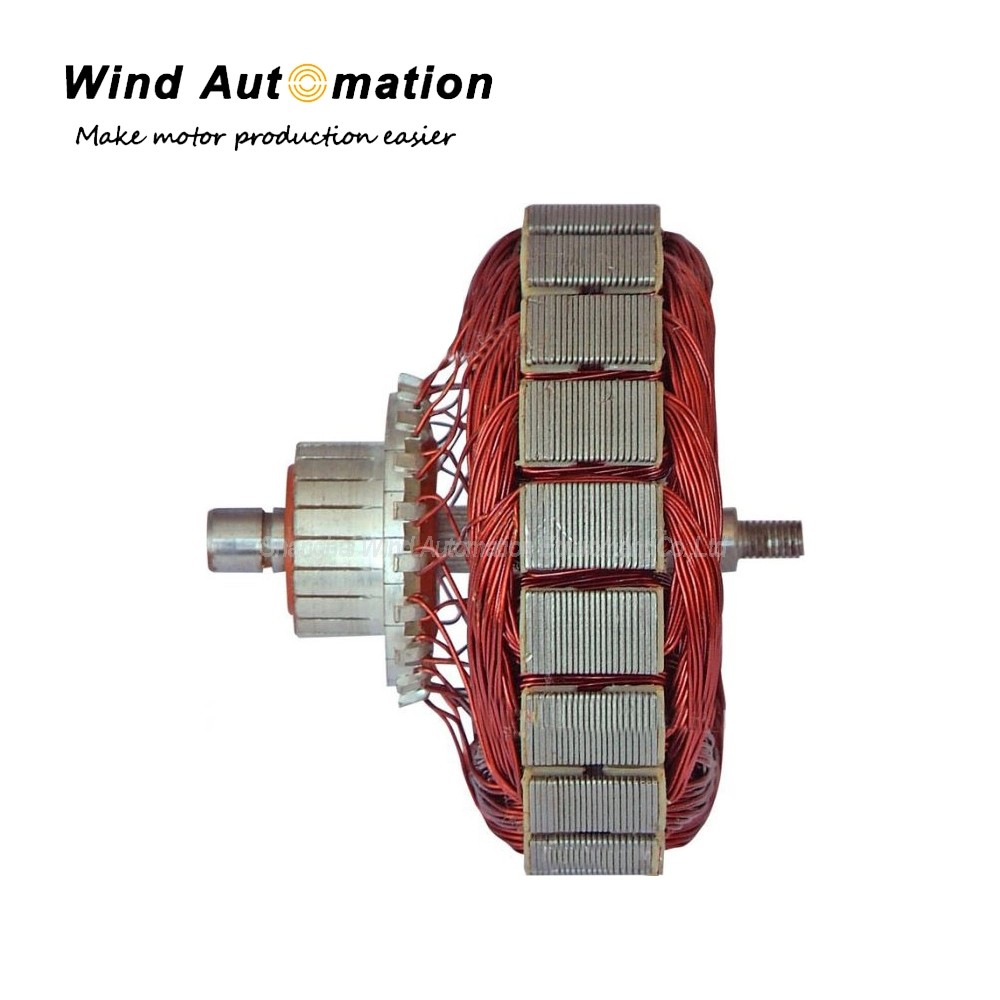

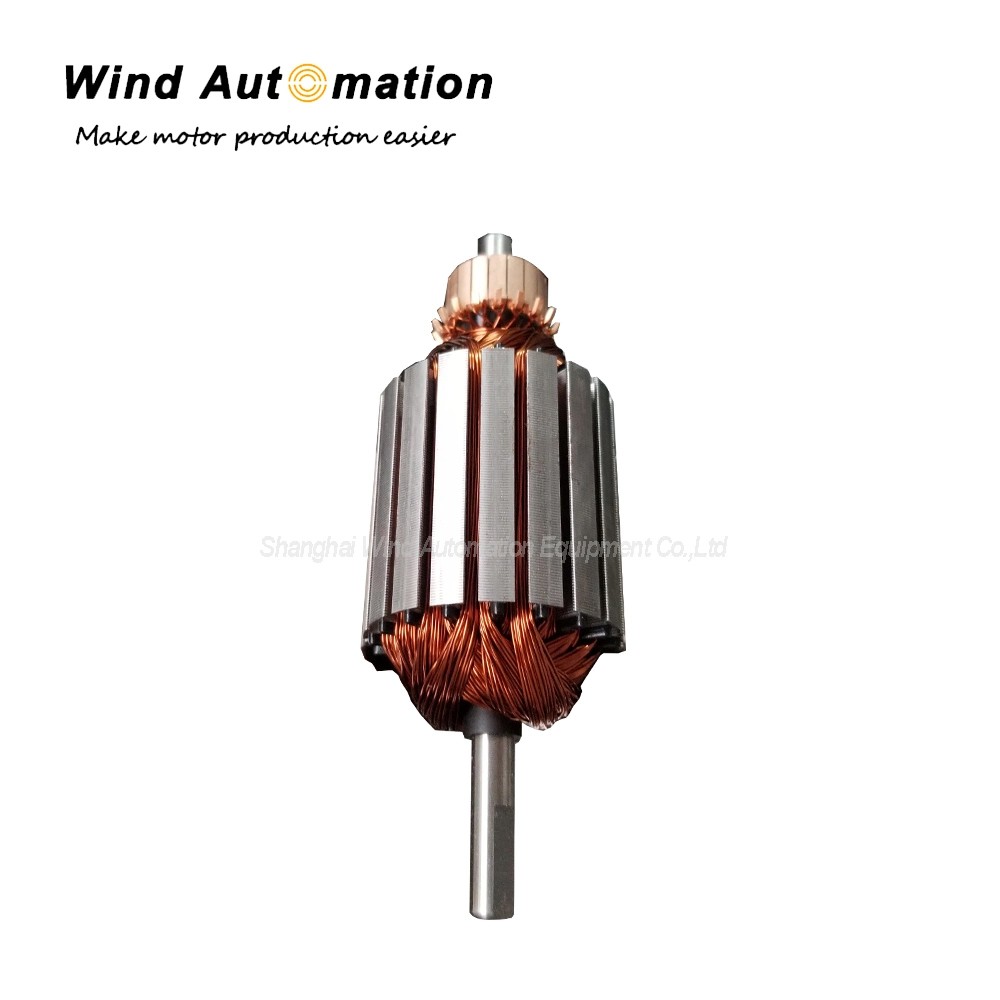

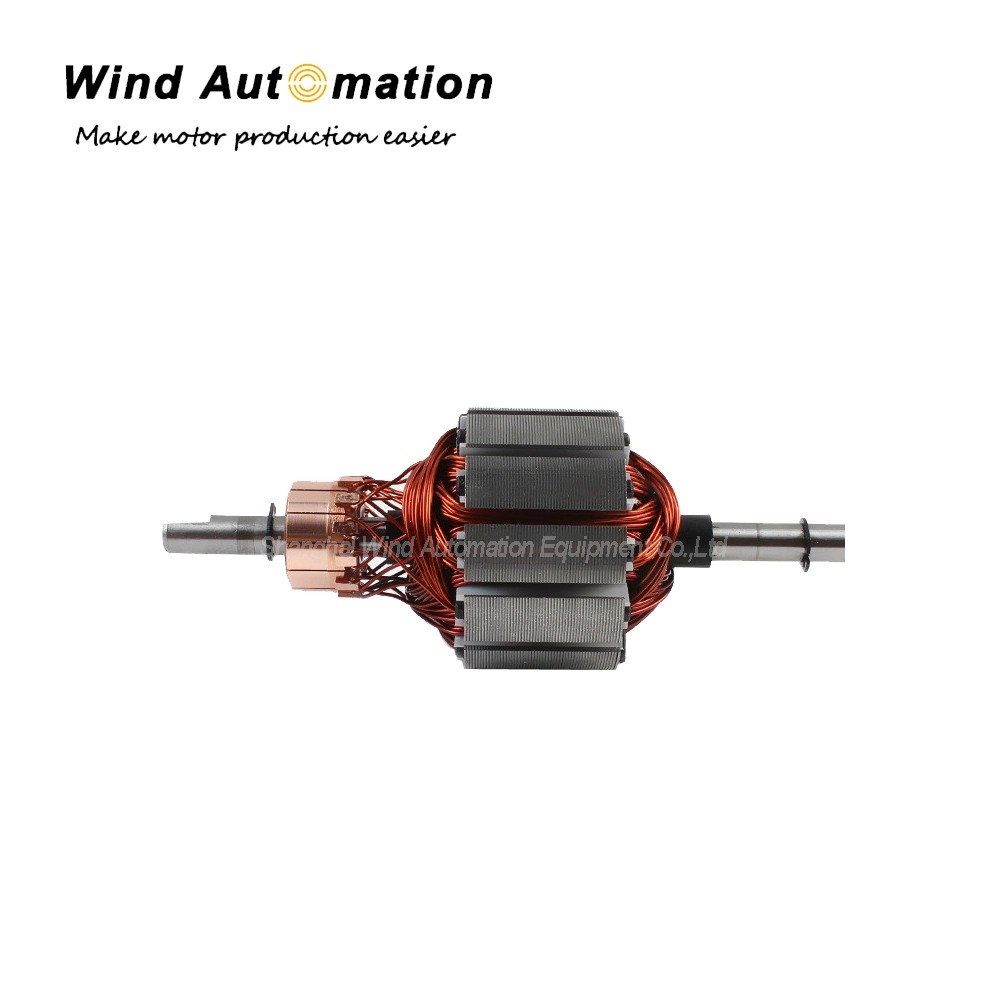

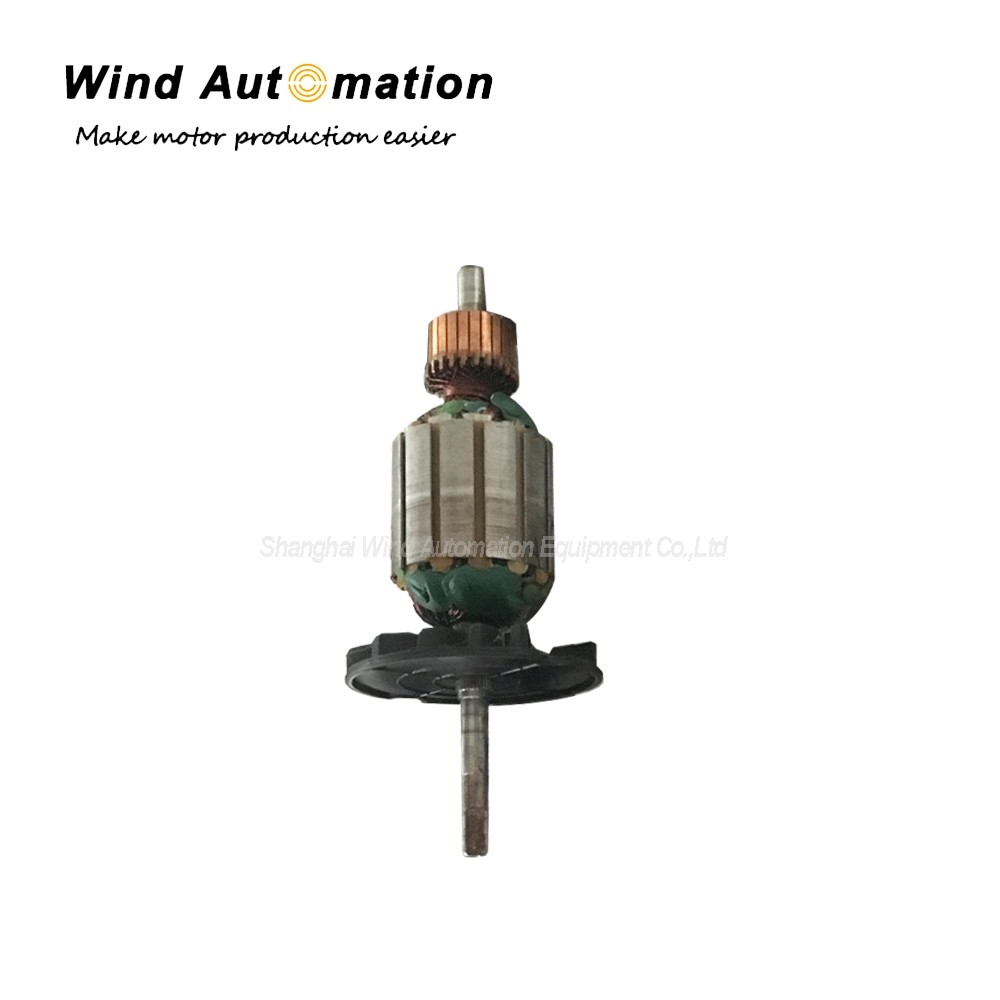

(2) Application
This machine is widely used in the winding of DC and series excited motor rotors.

(3)Machine configuration
Mitsubishi PLC
Delta servo control system
Touch screen
Airtac pneumatic system and air source treatment
Fully automatic feeding device (can be connected with production line)
Hysteresis tension control unit
HIWIN linear guide
