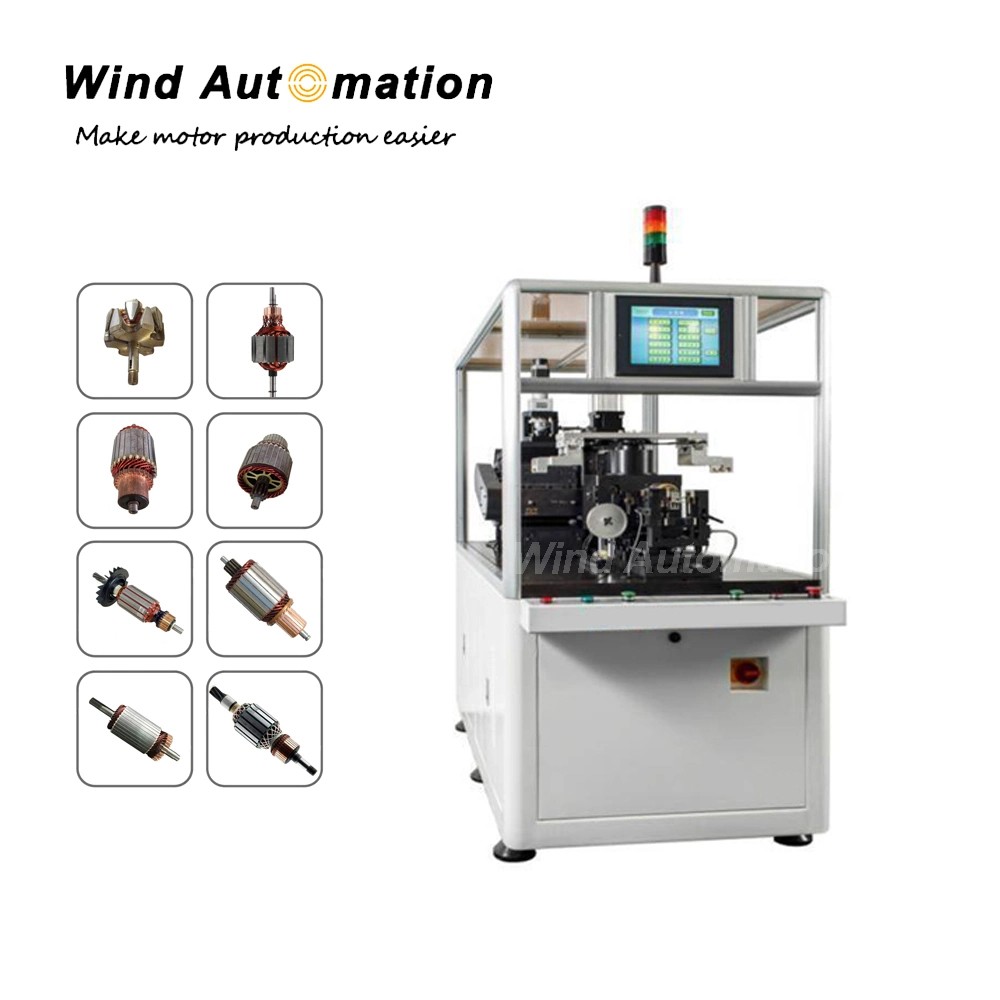

Armature Weight Balancing Machine with Removing Method
This balancing machine adopts armature weight balancing removing method. It can do automatic measure, and weight removing. Loading and unloading should be done by manual.
The initial unbalance is in accordance with difference of rotor radius and cutting depth, for example, the max single cut on diameter of 32mm≤500mg, the max single cut on diameter of 40mm ≤800mg.
(1)Specification
| Working station | 2 |
| Balancing speed | 1600-2100rpm |
| Milling method | R-shape or V-shape |
| Power | AC380V |
| Air supply | 0.4~0.6Mpa |
| Rotor weight | Less than 1.6KG |
| Stack height | 20-70mm |
| Rotor diameter | 20-45mm/40-70mm |
| Max removing volume | >=90% |
| One time cutting qualified rate | >=90% |
| Imbalance repeat measuring precision | ≤0.5g.mm (±5mg) |
| Fixture changing time | Same armature O.D ≤5 min Different armature O.D ≤ 15 min |
| Dimension | 1300x 1000 x 1300 mm |
(2) Application
It is suitable for home appliance, car and power tool motor armature.
