Product Description

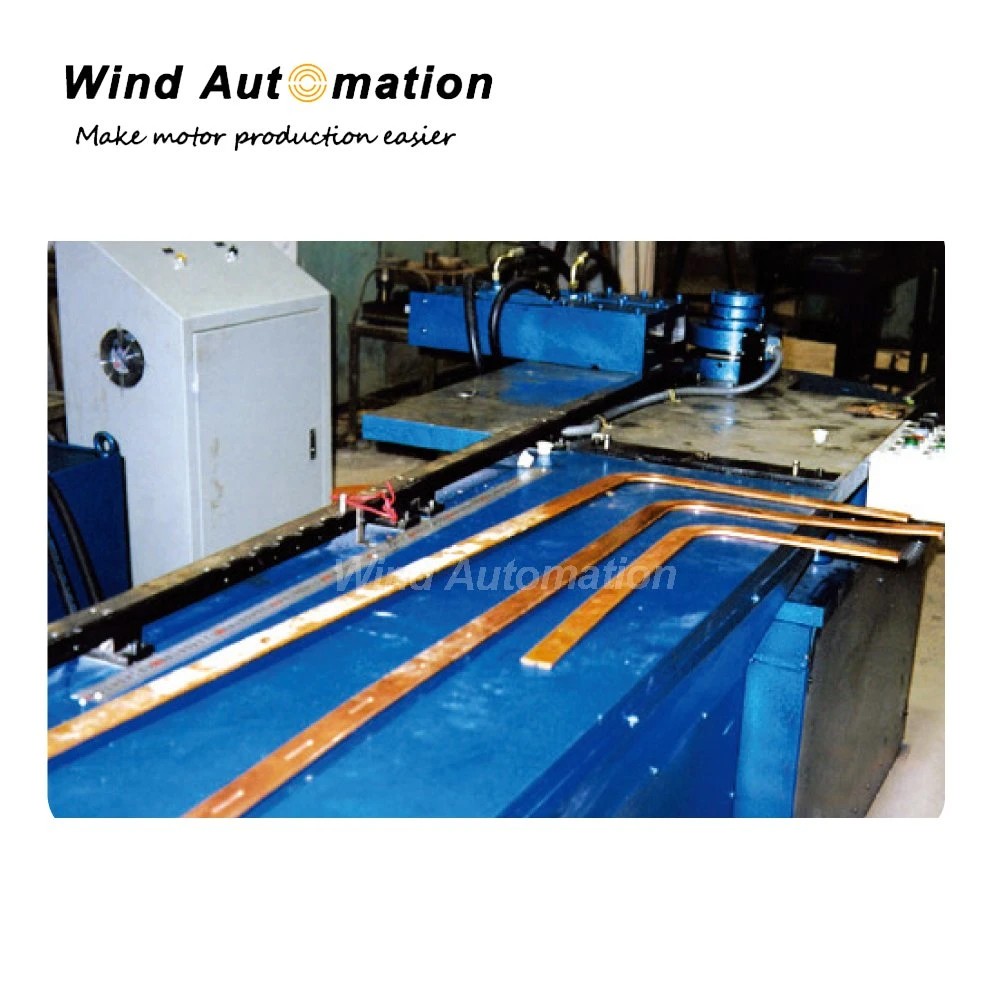

Rotor Copper Bar Bending Machine for Turbo-generator

Wind Automation is devoted to provide turn-key service to motor manufacturing suppliers. We supply a whole range of supply chain, including automatic motor production line, stand-alone as well as customized machines. We also provide our customers with customized service. They only need to tell us their requirements, then we will do the whole design.

Specification

1.Copper bar standard: 33.6×5.6mm2×L, max. 40×6mm2×L

2.Radius of curvature: R38mm, radius adjustable template

3.Oil pressure of compaction force: 14 MPa~40 T

4.Horizental thrust: 14 MPa~2.7 T

5.Incrassation tolerance: ≤0.09mm

6.Speed: 2.5r/min

7.Power: 8.5kW
