Product Description

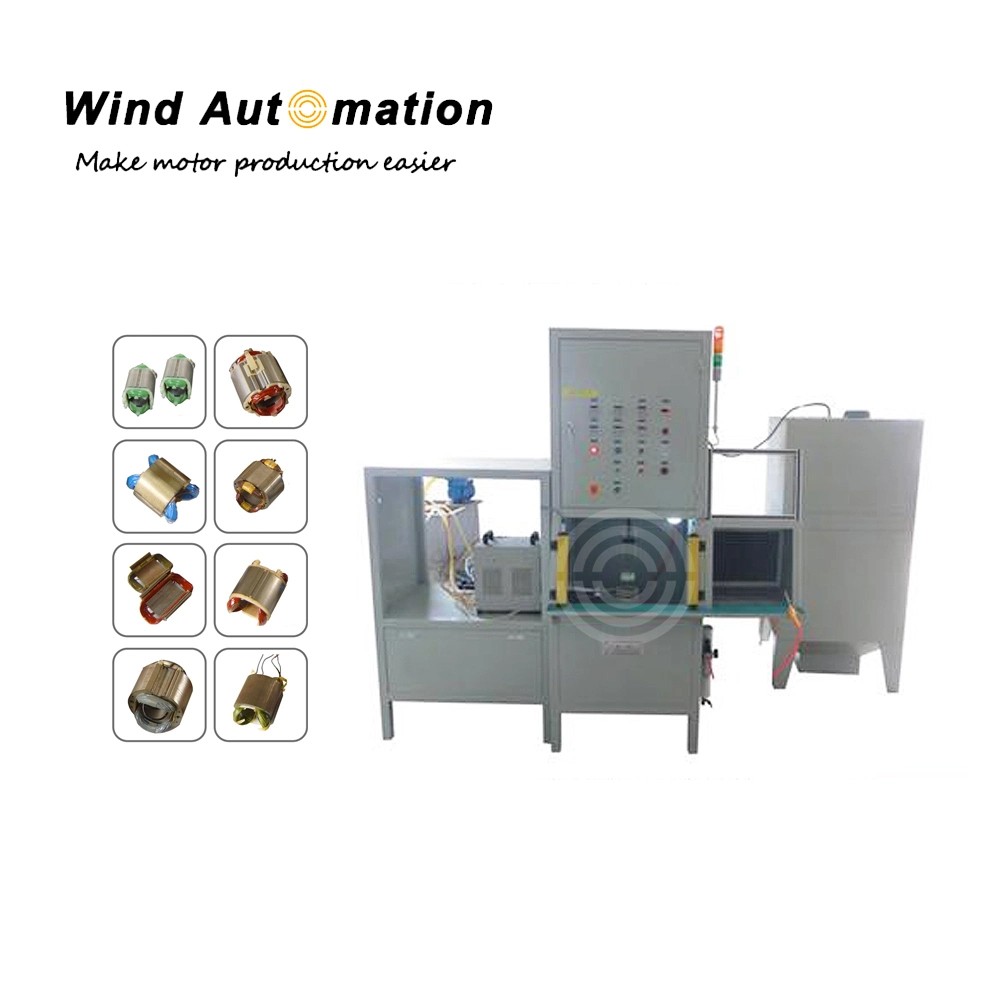

Power Coating Machine for Stator with Fluidizing Chamber

Power Coating Machine for Stator with Fluidizing Chamber

Pre-heat stator in the oven to the required temperature, then load stator to powder coating machine. Unload it after powder coating. Then put stator into oven to curring.


(1) Operation process

No.StepTimeTemperature
1Cover stator lamination with sticker, then put stator into oven to bake.Keep heating for 30min200ºC, according to powder feature and actual ambient temperature
2Manually put stator into fixture, then hold the fixture to powder coating area. Dip it into the fluidization powder.5 times (make sure the rough side is upward.  )according to coating thickness
3After powder coating, unload stator. Then remove the sticker. Put stator aside.

4After all stators has been powder coated, put all these into oven to cure.Keep heating for 40min200ºC, according to powder feature
5After curing and put stators aside to let them cooling down.



(2) Secification

Dimension3058x1720x2100mm
Power supply380V ±10%  50HZ
Air supply0.6MPa
Power of oven9.5KW
Power of coating machine2.2KW



(3) Information needed for inquiry
1. Stator lamination drawing
2. Stator stack drawing
3. Power coating thickness
4. Stator application
5. Required productivity
6. Other technical requirement



Power Coating Machine for Stator with Fluidizing Chamber

Power Coating Machine for Stator with Fluidizing Chamber
Power Coating Machine for Stator with Fluidizing Chamber
