Copper-Wire-Winding-Machine-for-Riser-Type-Commutator-Rotor

Basic Info.

Model NO.

WIND-2B-TD

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

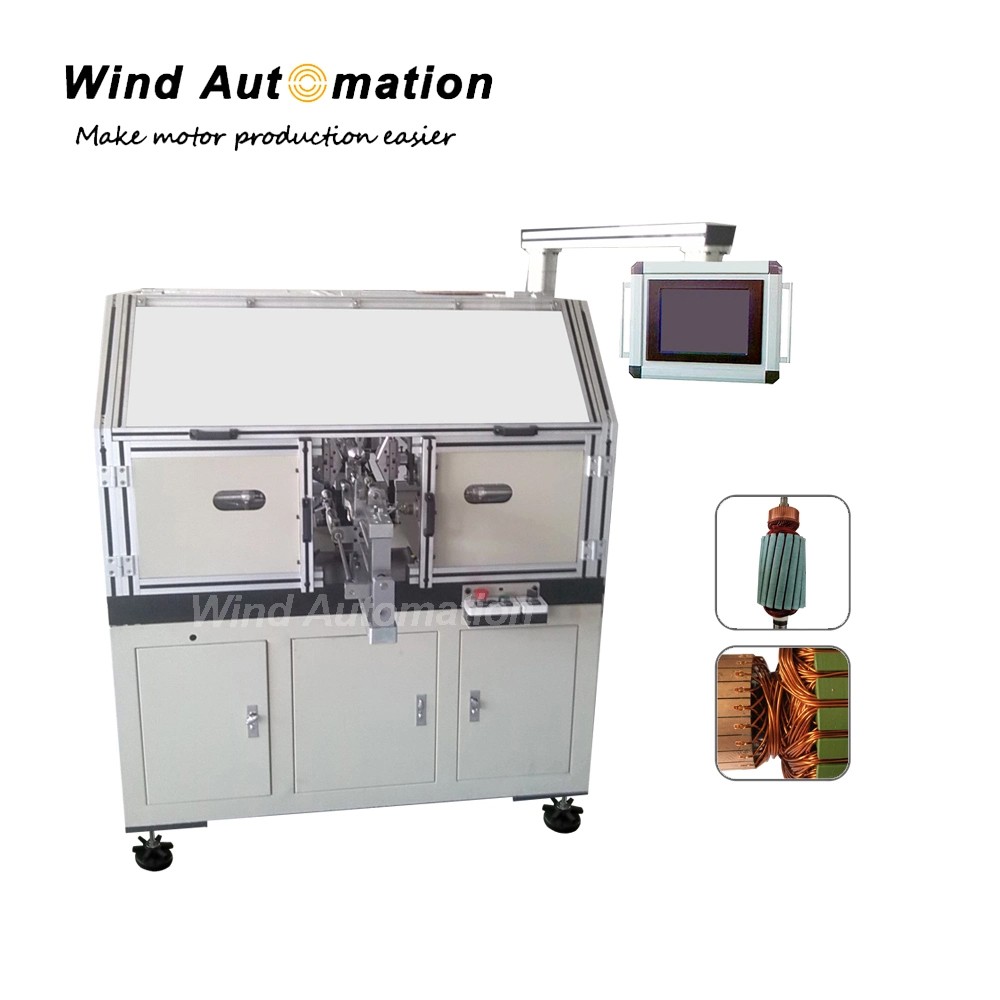

Copper Wire Winding Machine For Riser-type Commutator Rotor

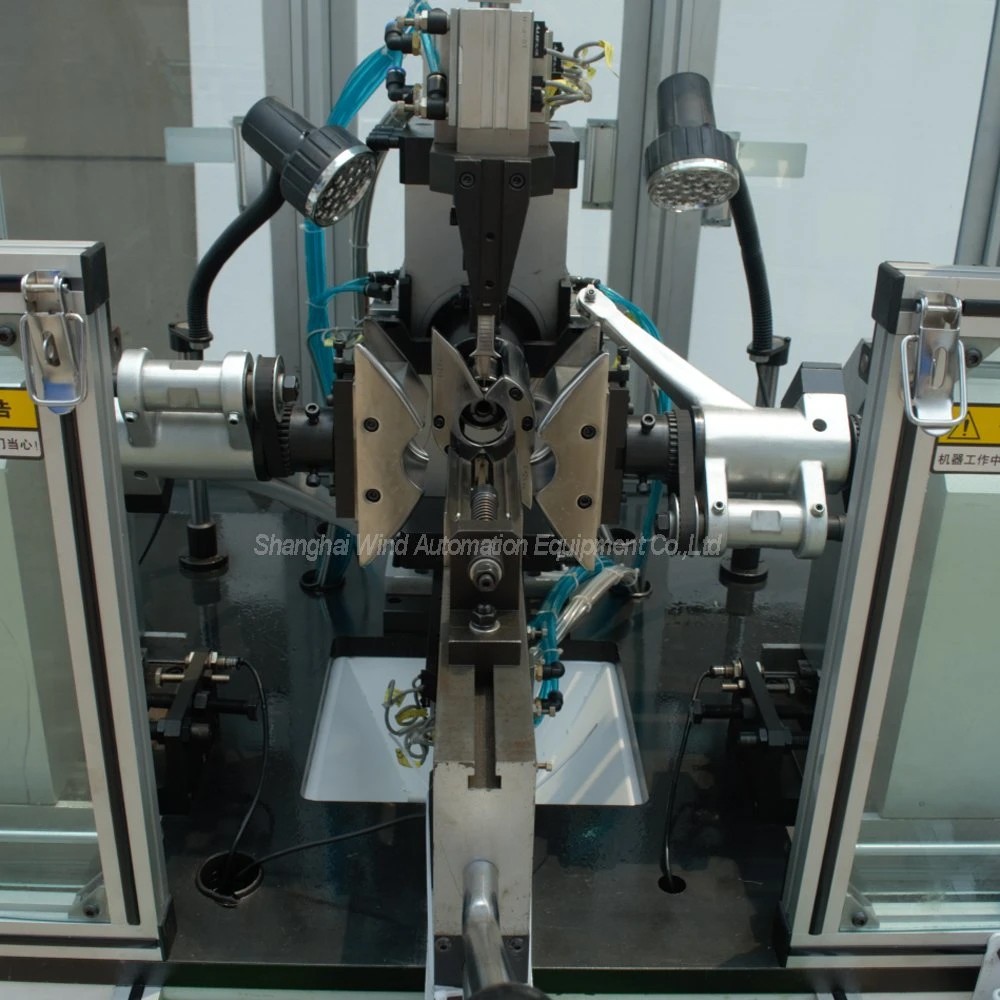

This machine is has two fliers to do the coil winding process. It suitable for both straight and skewed type armature with riser type commutator. This machine will do clamping, hooking ,winding, indexing automatically. The yield rate can reach 98%.

(1)Feature
For riser type commutator
With medium and big wire diameter
Manual loading and unloading
Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen

(2)Application

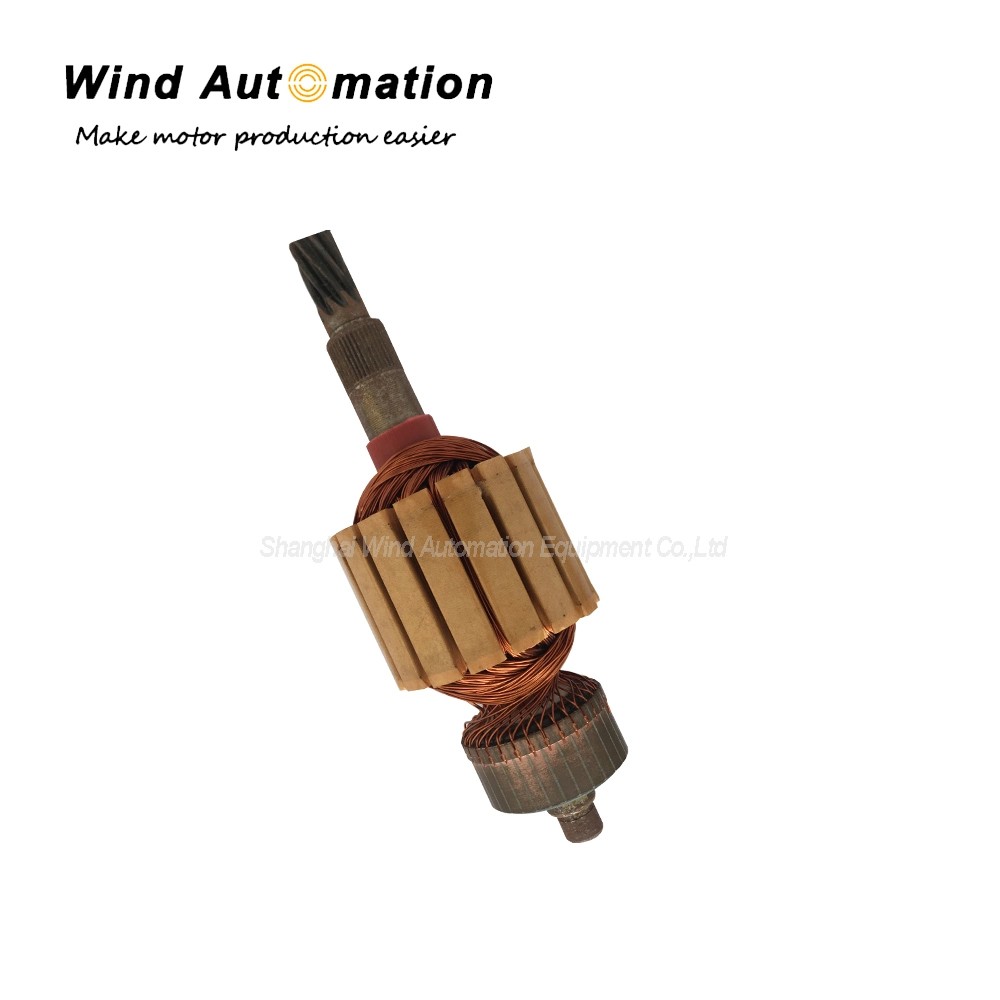

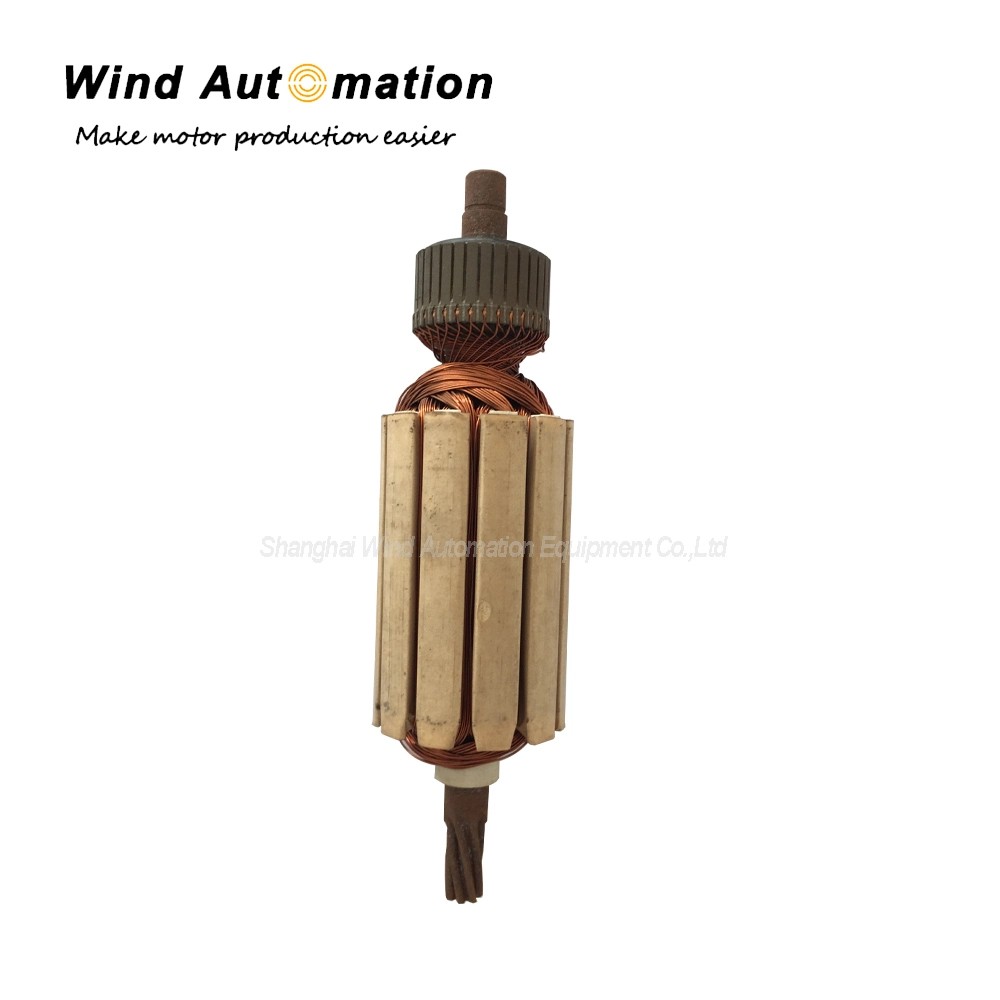

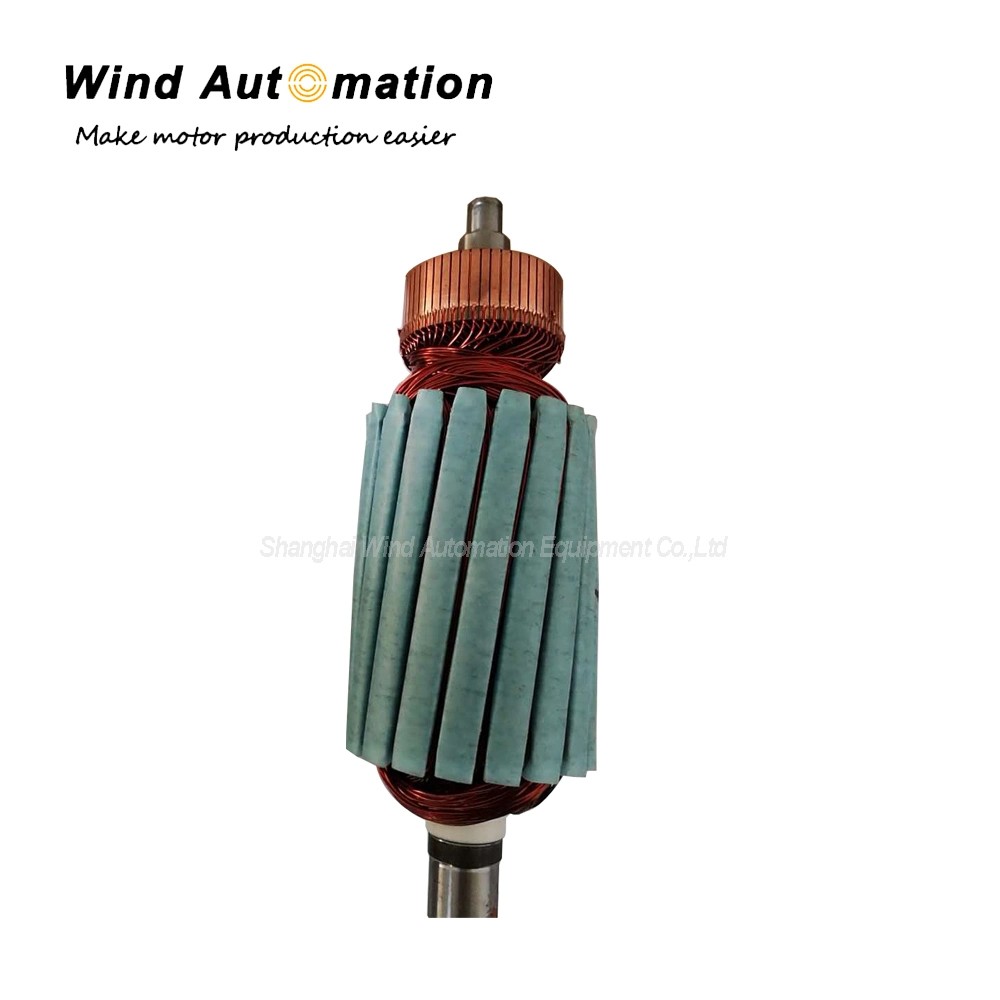

This machine is suitable for slotted type armature with riser type commutator.

(3)Specification

(4)Machine Operation
1)Put the armature on the tooling
2)Then press the start button.
3)Machine will wind the armature automatically
4)Unload wound armature
