Large-and-Heavy-Stator-Induction-Paper-Inserting-Machine

Basic Info.

Model NO.

WIND-250-SI

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

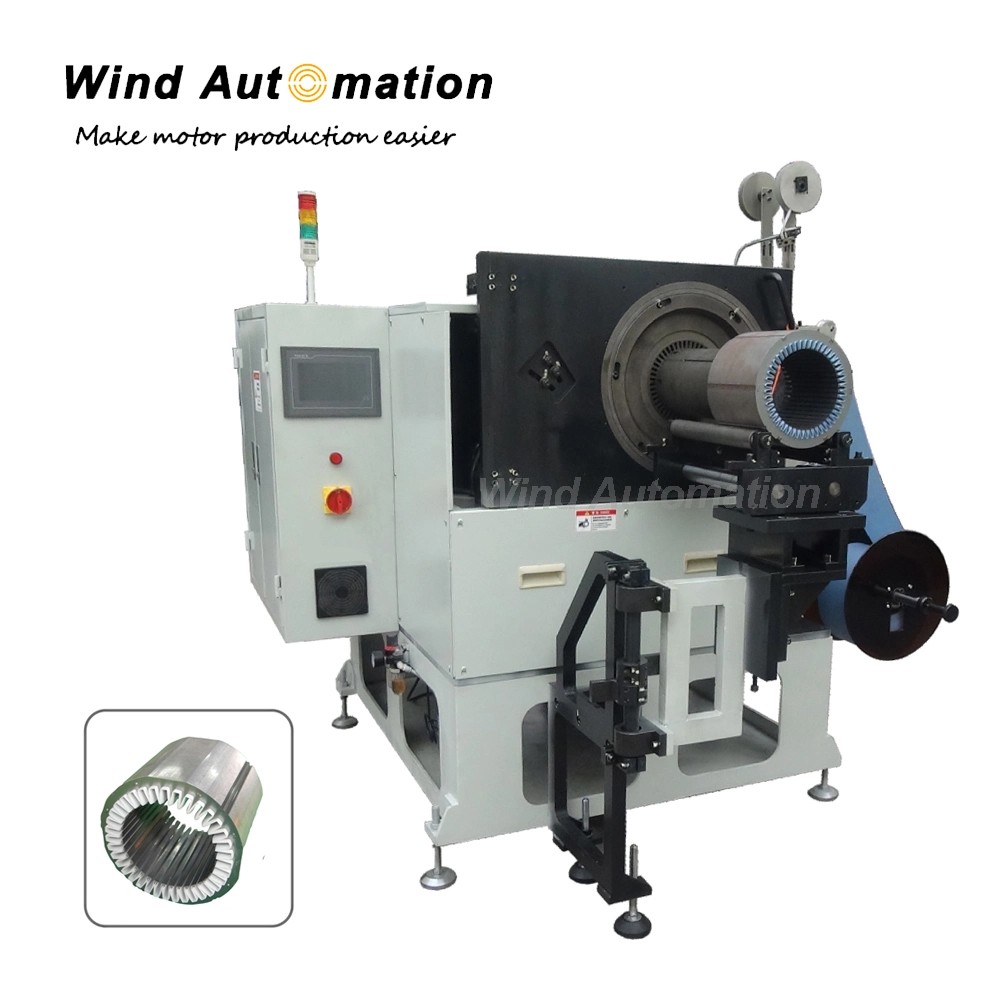

Large and Heavy Stator Induction Paper Inserting Machine

This machine is made up of the insulating paper conveying mechanism into the mold, mold molding die, cutting knife, and push rod and other components.

(1)Working principle
when send paper feeding mechanism, the paper cut and incised on a knife cutter will be cut into the insulation paper forming dies, extrusion molding, servo motor driven push rod from flank blunt come up, push the molding of paper into the stator, and putting back, servo motor and drive the transfer gear rotary, mould gear into the next position and continue to feed, the second slot, induction switch installed on the machine in the mold gear, after when plugged into a circle, automatic stop.

(2) Specification

(3) Application
This type of stator paper inserter is suitable for large and medium-sized motor stators with a low volume but a high mix of production.

(4) Feature
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required
Low noise, high efficiency
Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process
