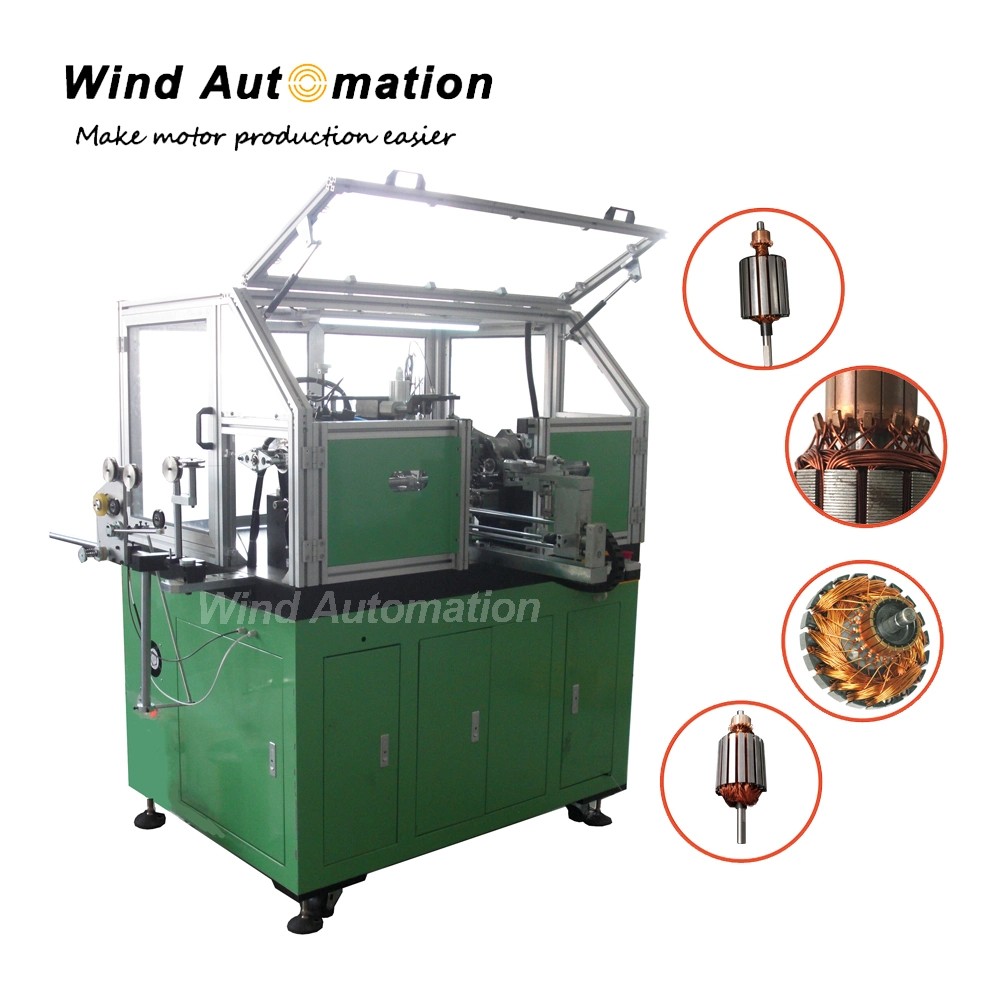

Armature Winding Machine For Medium and Big Wire Diameter Armature
This machine has a wide application and suitable for hook type commutator with even slot number.

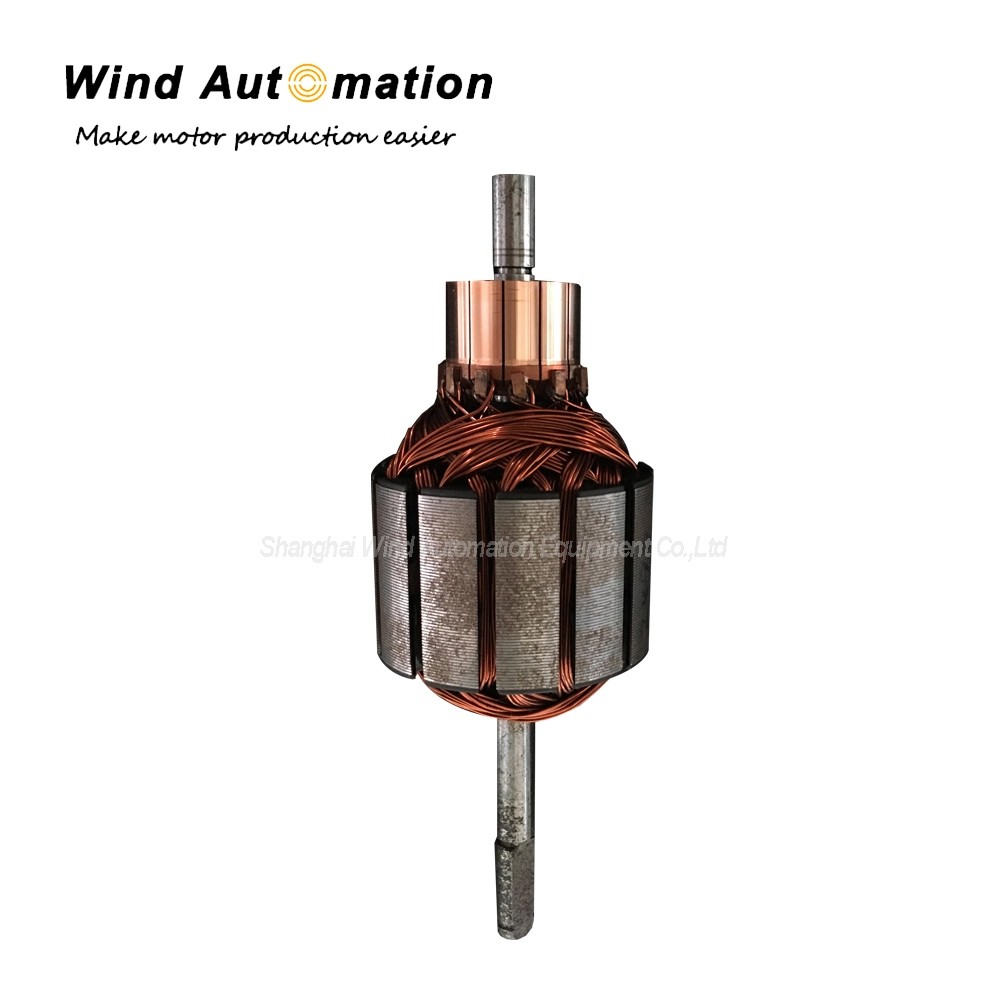

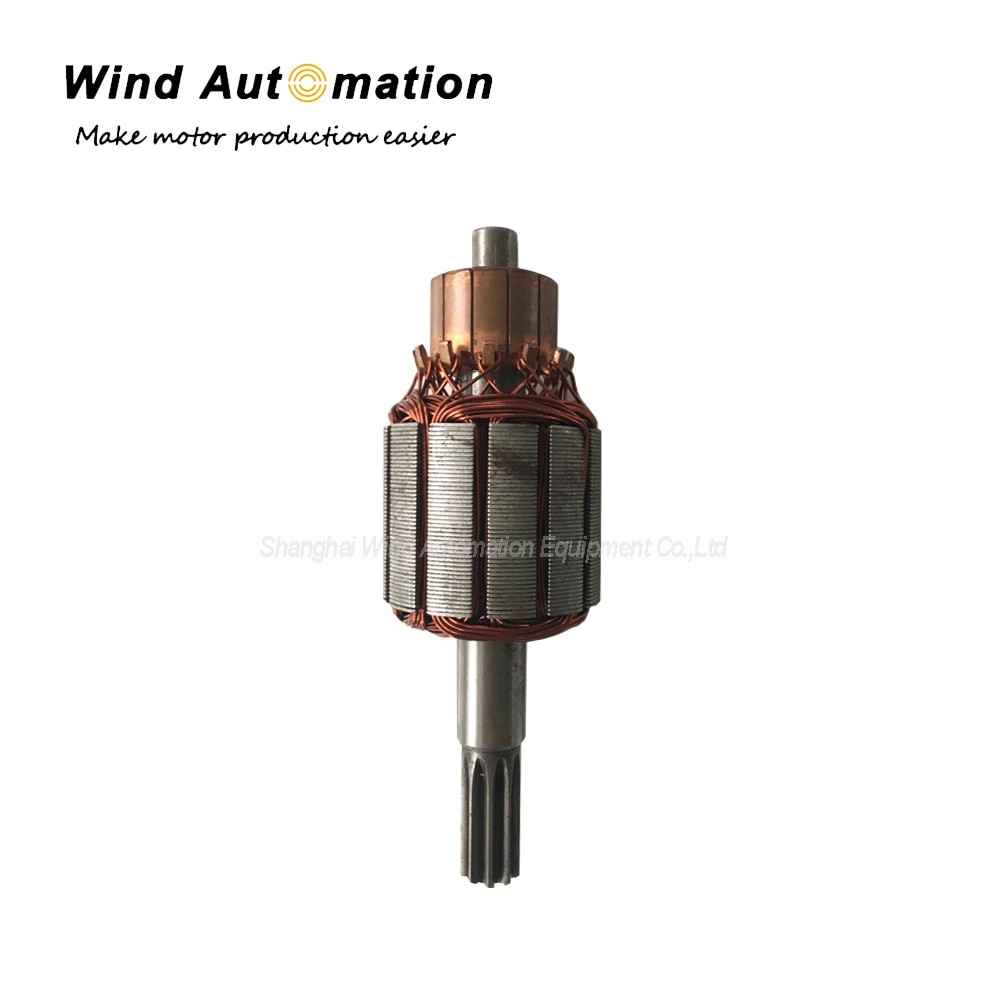

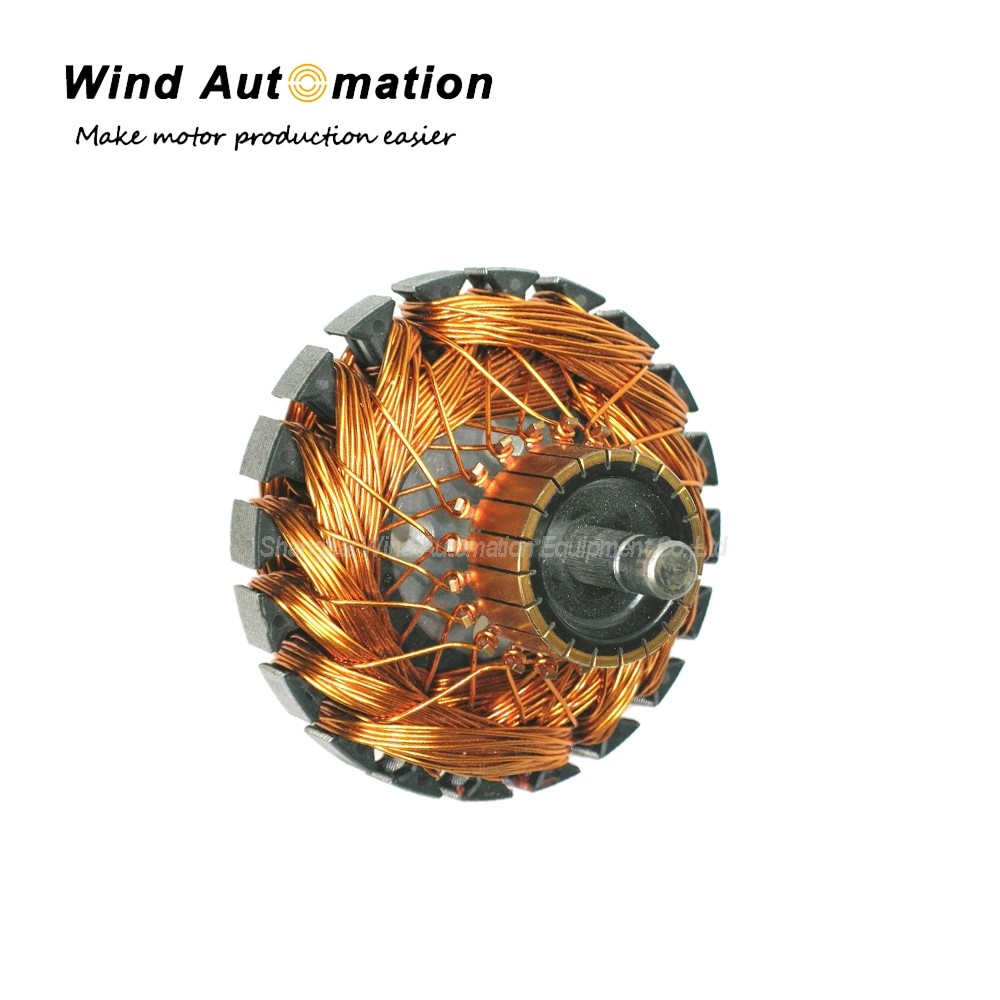

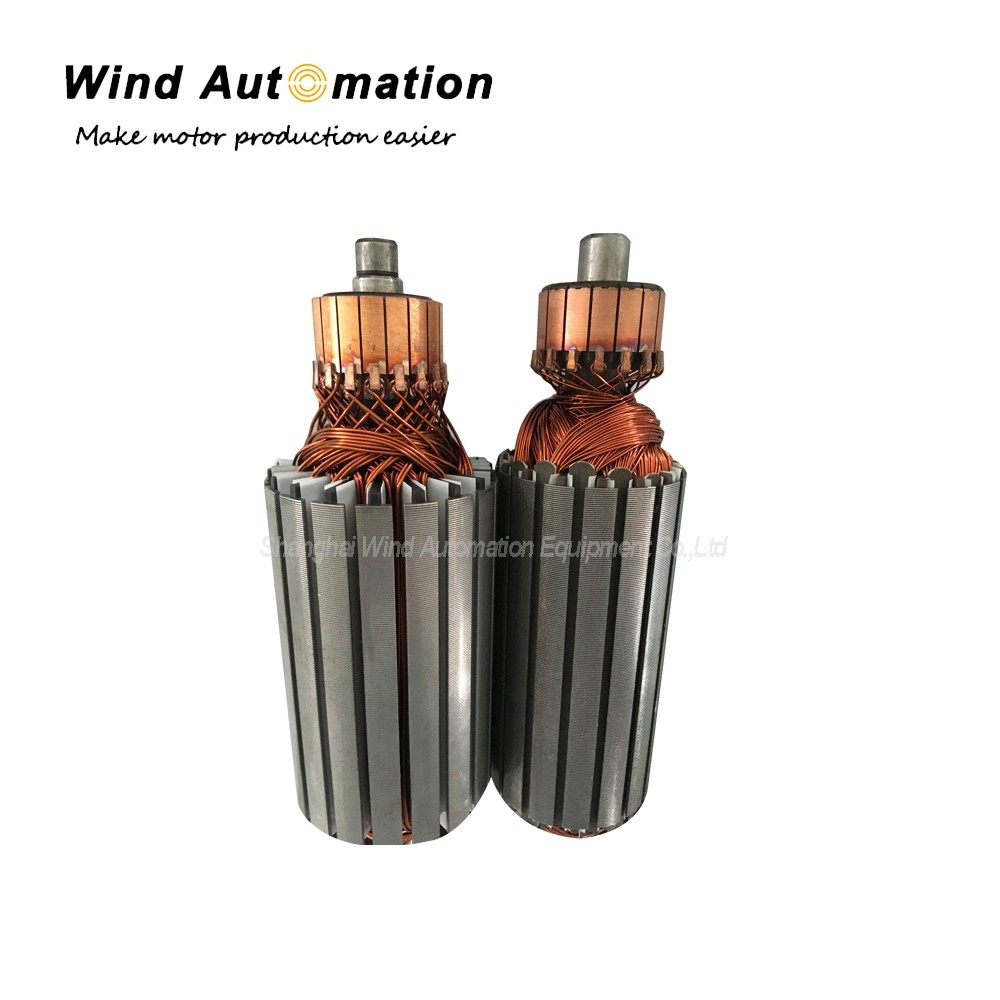

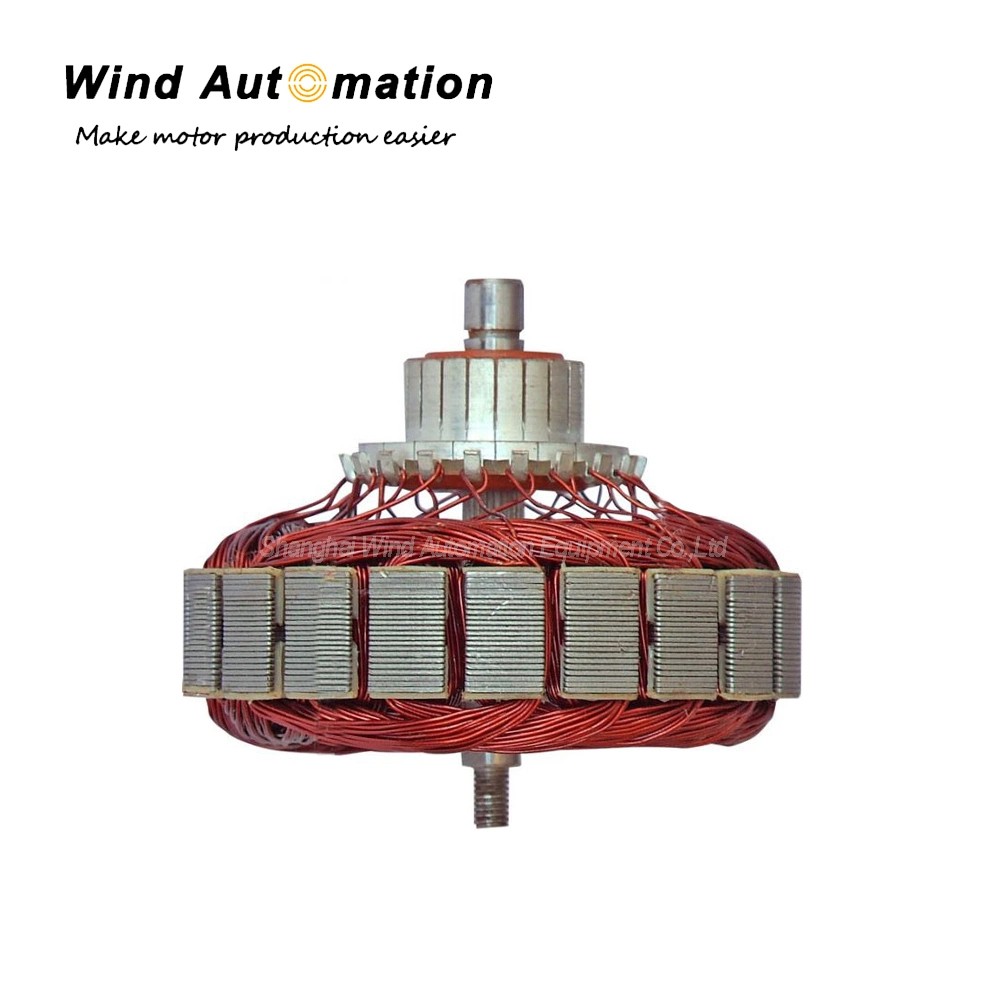

(1) Application
Suitable for mixer,vacuum cleaners, hammers,power tool.
(2) Specification
| Power supply | AC380V±10% 50/60HZ |
| Air resource | 4~6kg/cm2 |
| Weight | about 1250kg |
| Dimension | 2000mm×1000mm×1800mm |
| Total power | 4KW |
| Armature OD | 20~85 mm |
| Commutator OD | 8~40mm |
| Shaft OD | 3~15 mm |
| Shaft length | Max 250mm |
| Wire diameter | 0.16~1.2 mm |
| Slot number | Even number |
| Turn No. | 0~9999 |
| Stack length | 10~70 mm |
| Winding speed | 0~2500rpm |
| Winding motor power | 1.5KWX2 |
| Angle detecting speed | 0~3000rpm |
| Angle detecting motor power | 0.75KWX1 |
(3)Feature
For hook type commutator
High quality level of winding
Manual loading and unloading
For medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
All winding parameter programmed on touch screen
(4)Machine configuration
Mitsubishi PLC
Mitsubishi or Panasonic servo motor control system
5.7'' colorful touch screen system
SMC Cylinder
