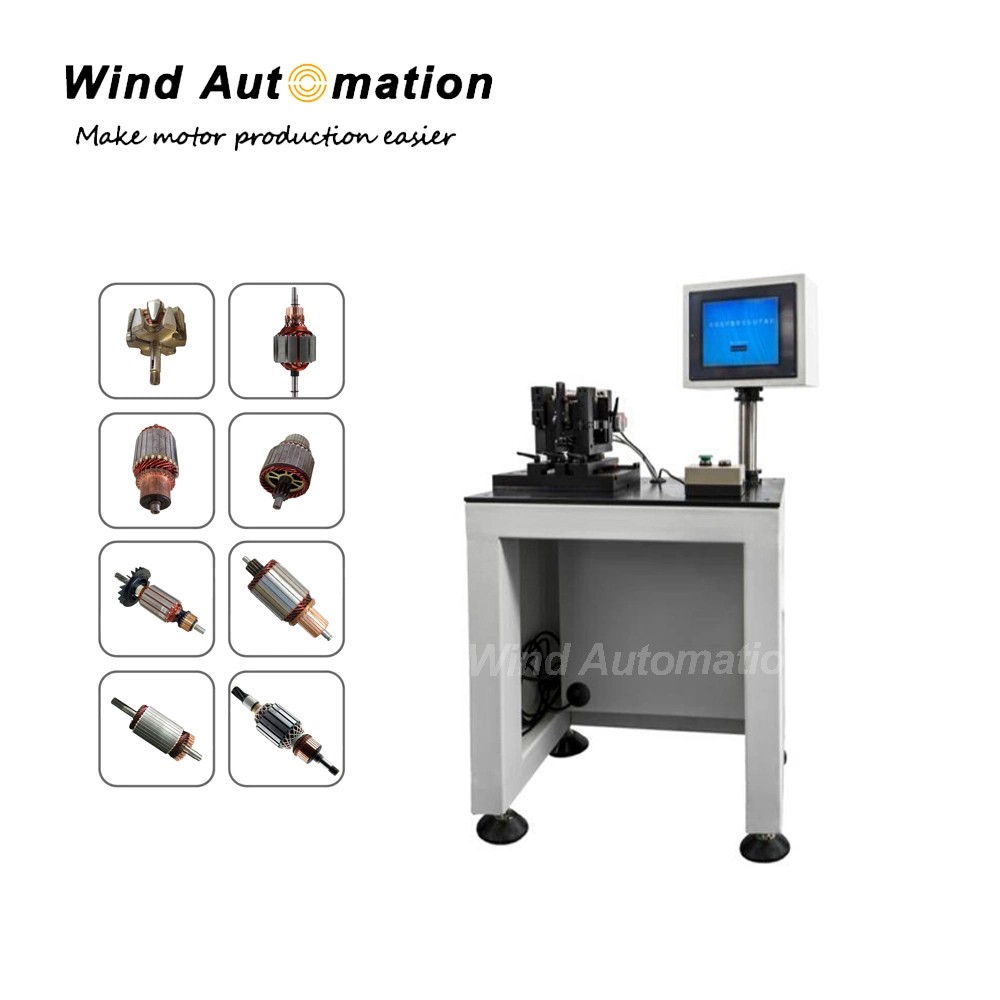

Motor Armature Unbalancing Volume Testing Machine
This machine is is used to do armature unbalancing measurement. All related parameters can be programmed on touch screen. The control system includes single chip, PLC and a touch screen.
(1)Machine specification
| Armature OD | 20-100mm |
| Rotating speed | 2100 rpm |
| Cycle time | ≤10 second |
| Maximum armature parameter | 100 different armatures |
| Pressure | 0.4~0.6Mpa |
| Power supply | AC220V |
(2) Application
It is suitable for home appliance, car and power tool motor armature.
