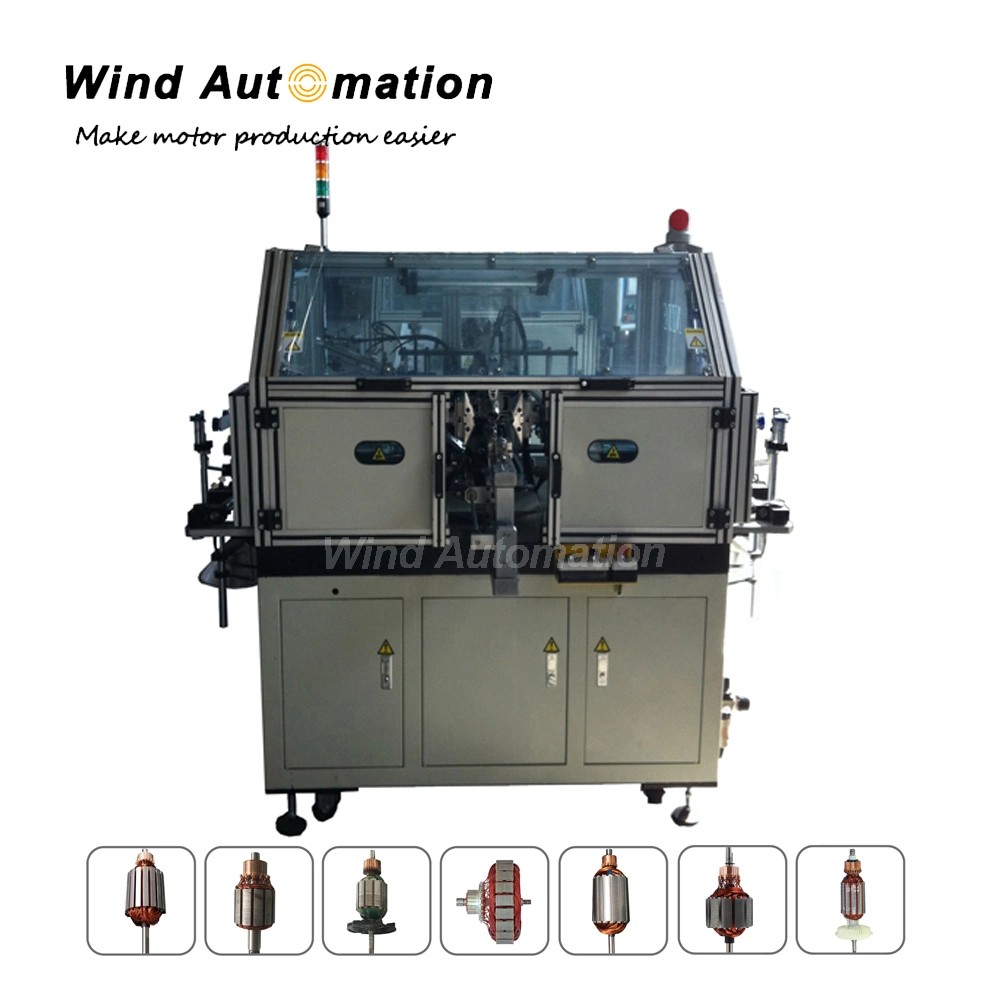

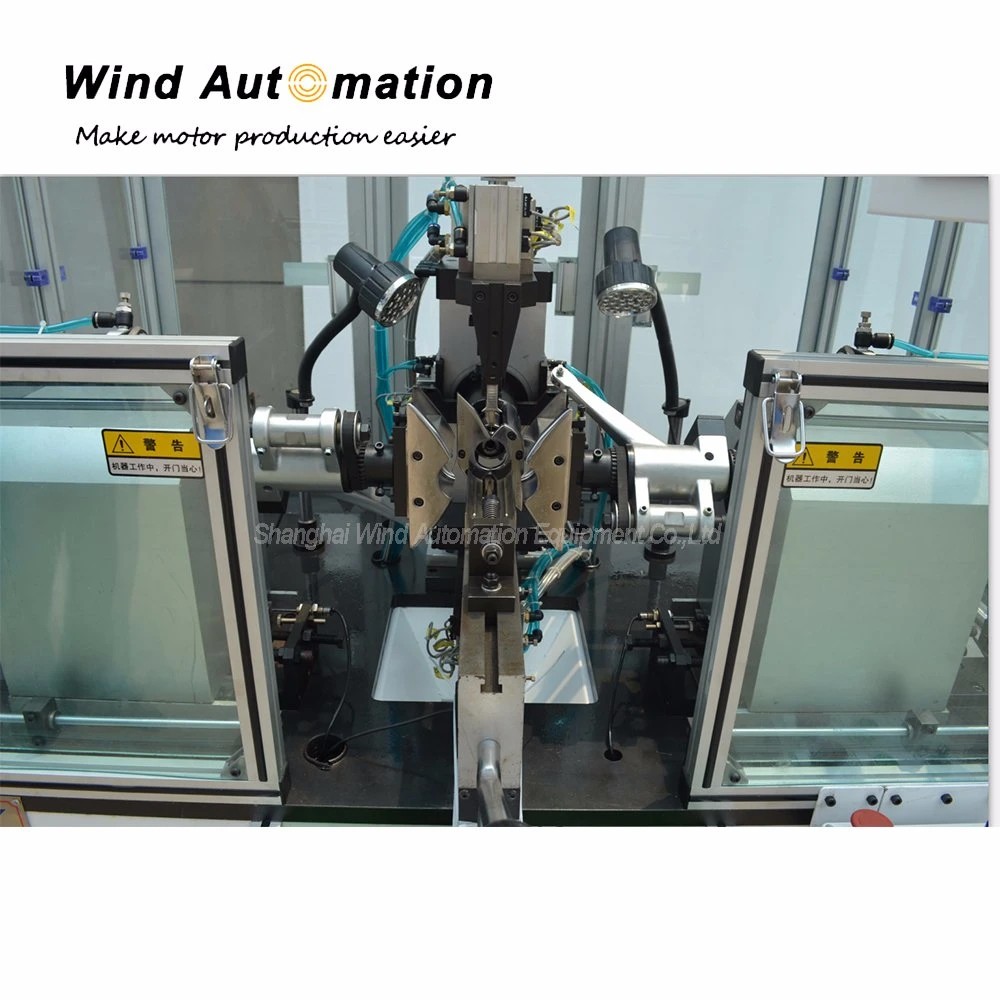

Flyer Winding Machine For Pump Motor Power Tool Motor Armature

Flyer Winding Machine for Pump Motor Power Tool Motor Armature

There are 3 winding methods programmed in this machine, namely single slot with single hook, eg: 12 hooks commutator with 12 slots; single slot with double hooks, eg: 24 hooks commutator with 12 slots; one layer winding and single slot with double hooks (two layers).

(1)Feature
For even slot armature
For hook type commutator
With medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
Manual loading and unloading
Three winding method optional
Can work as a stand-alone machine or integrated into a production line
All winding parameter programmed on touch screen

(2) Specification

Power supply	AC 380V±10% 50/60HZ
Air resource	5~7kg/cm2
Weight	about 1180kg
Dimension	2560mm×1300mm×1800mm
Armature OD	Φ20~Φ60mm
Commutator OD	Φ18~Φ40mm
Wire diameter	Φ0.2~Φ0.6mm
Slot number	Even number
Turn No.	0~99
Stack length	10~60mm
Winding speed	0~2000rpm
Indexing speed	0~2000rpm

(3) Application
It is suitable for hook type home appliance, car and power tool motor armature.
