Three Phase Motor Coil Winding Machine Stator Winder

Three Phase Motor Coil Winding Machine Stator Winder

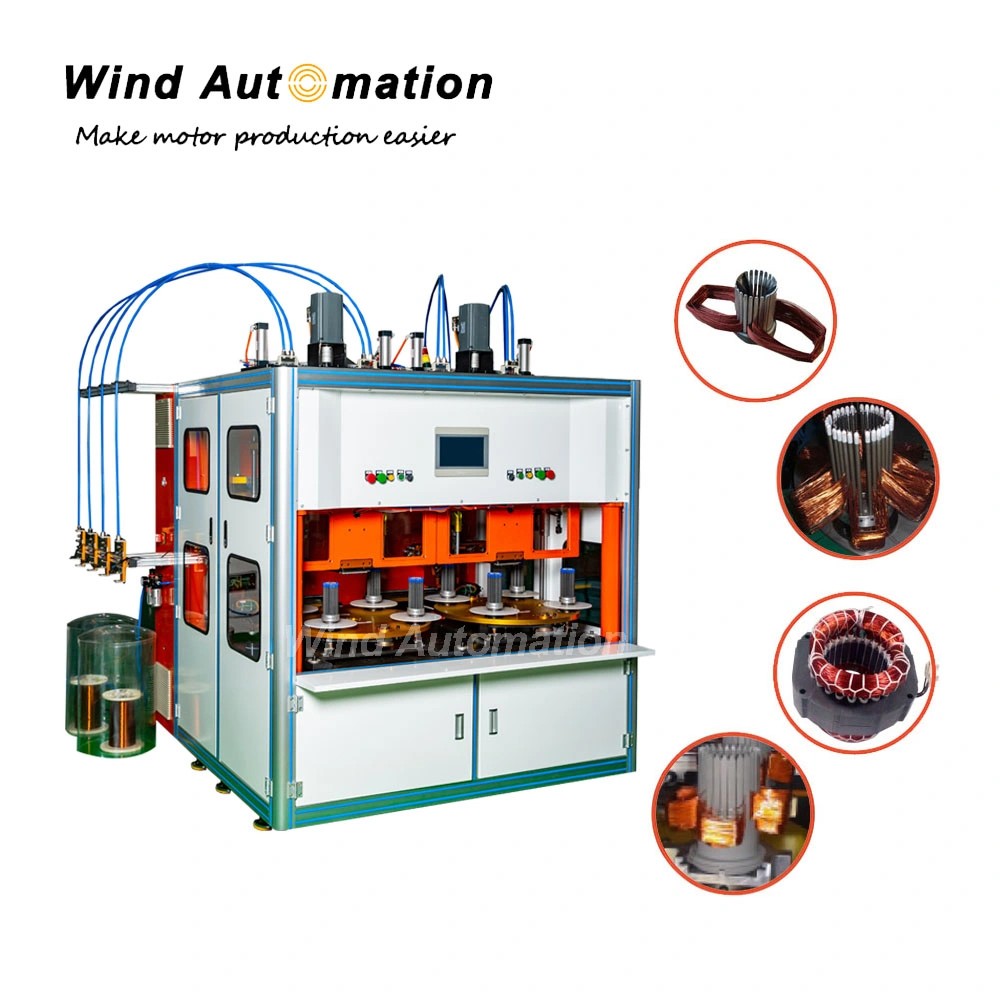

This machine have eight working stations, every two working stations are in one turntable mechanism, therefore, one for coil winding, the other for coil unloading. So coil winding and coil loading can be done at the same time, therefore greatly improves the working efficiency.


(1) Specification

Wire diameter0.2~1.0mm
Winding head4
Station8
Stack lengthMax 70mm
Winding SpeedMax 3000r/min
Air pressureMin 0.6Mpa
Power supply380V  7KW
WeightAbout 2300KG
Dimension1900x1400x2200mm



(2) Feature
4 winding head 8 working station
Manual unloading coils after winding
Rotation and indexing controlled by servo system

No distinct vibration or noise during winding
Automatically stop if wire is run out

All winding parameter programmable on touch screen

(3) Application
This machine is suitable for mass production of 2 poles, 4 poles and 6poles coils winding.
