Compressor-Motor-Stator-Insulation-Paper-Insertion-Machine

Basic Info.

Model NO.

WIND-100-SI

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

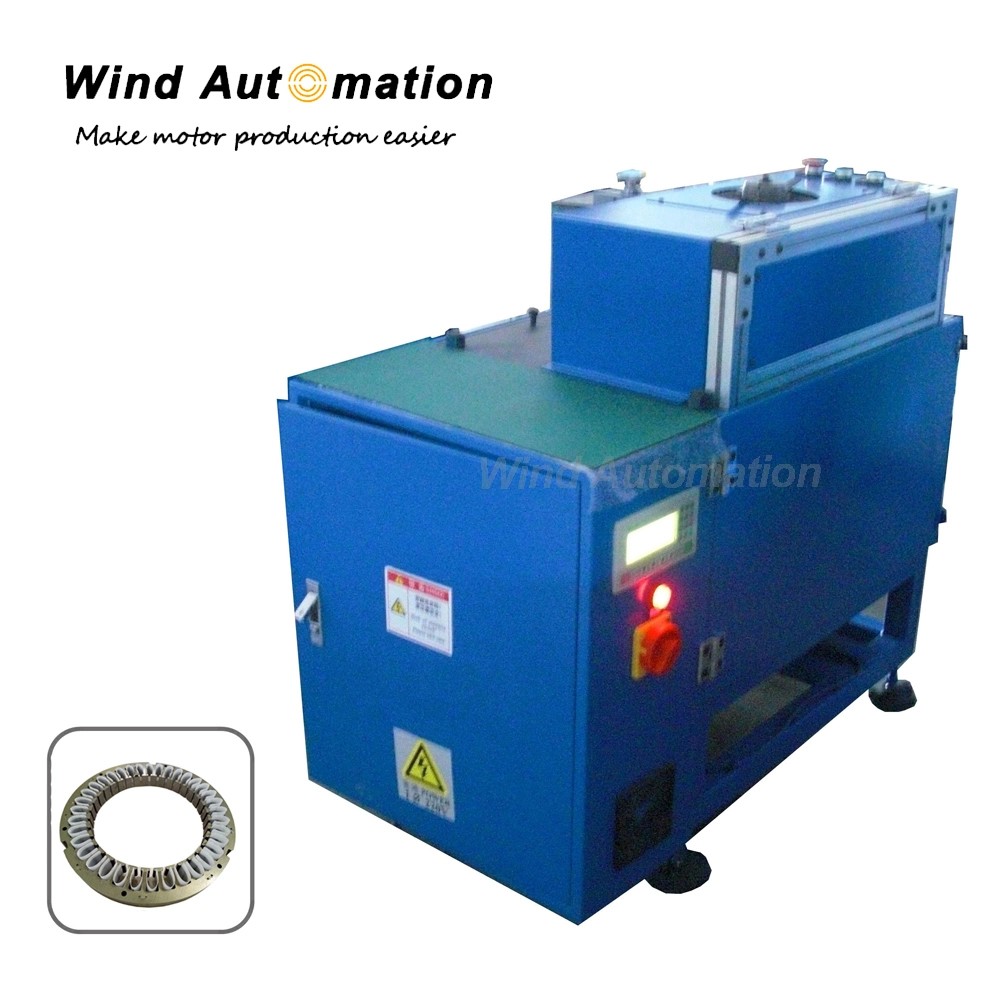

Compressor Motor Stator Insulation Paper Insertion Machine

Compressor Motor Stator Insulation Paper Insertion Machine

(1) Specification

Item NameItem Data
Laminated thickness of stator10mm-100mm
Stator ODΦ 200mm
Height of stator Φ 15mm- Φ 90mm
Height of edge folded insolation2.5mm-5mm
Max insulation paper's thickness0.3mm
Feeding length12mm-45mm
Tack time0.5 to 0.7s/slot
Input Power Source380V/50Hz
Power0.75KW
Machine productivityaround 1500pcs/8hours
Dimension950mm × 600mm × 1000mm
Weight150KG



(2) Application
This machine is suitable for small and medium-sized three phase motor, single phase motor, external rotor motor and generator.

(3) Feature
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
After paper inserted, no deformation of stator or lamination
Easy for operation, No skilled operator required
Low noise, high efficiency

Production capacity ≤1s/slot (exclude the loading/unloading time)
Manual loading and unloading
Can be customized accordingly
High quality level of the paper inserting process

Compressor Motor Stator Insulation Paper Insertion Machine Compressor Motor Stator Insulation Paper Insertion Machine
Compressor Motor Stator Insulation Paper Insertion Machine
